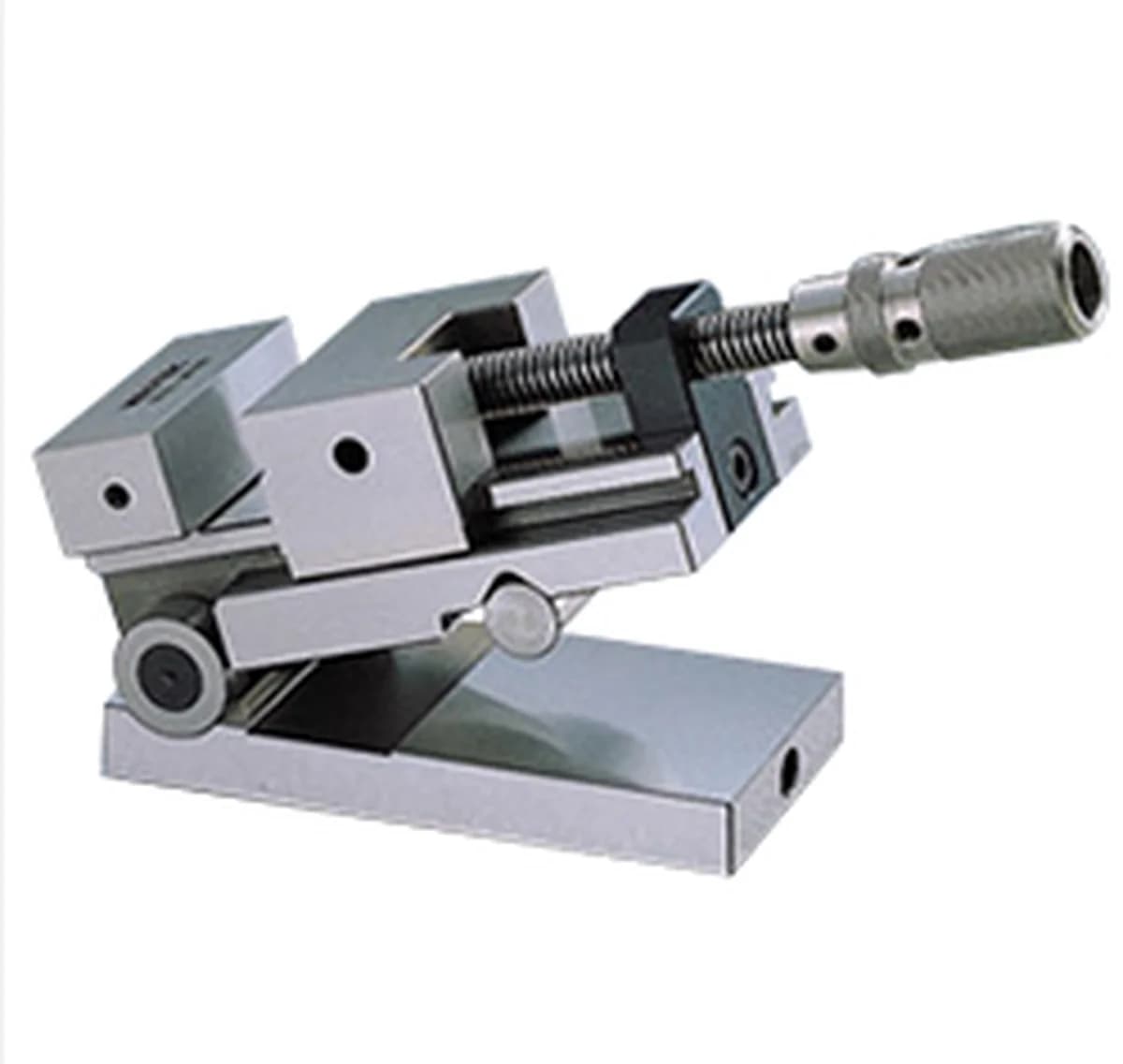

Crystal Sine Vice AA-6131
Precision sine vice designed for accurate work holding during milling operations. Model AA-6131 features a compact 150 x 48 x 88 mm size with 0-75mm jaw opening. • Hardened jaws ensure long-term durability • Parallel ground base for accurate alignment • Compact 150mm width fits small workbenches Ideal for precision holding in light machining tasks.
Specifications
For: AA-6131- Angular Accuracy
- Within ± 5 seconds
- Roller Center Distance Accuracy
- Within ± 0.005 mm
- C.D. 'S' (Centre Dist.)
- 125 mm
- Series
- AA-613
- Size
- 150 x 48 x 88 mm
- JAW opening
- 0-75mm
Configurations
Click a row to switch| Variant | Series | JAW opening | C.D. 'S' (Centre Dist.) | Size | Price |
|---|---|---|---|---|---|
| AA-6131 | AA-613 | 0-75mm | 125 mm | 150 x 48 x 88 mm | ₹13,082 |
| AA-6132 | AA-613 | 0-90mm | 150 mm | 180 x 63 x 98 mm | ₹17,682 |
| AA-6133 | AA-613 | 0-100mm | 175 mm | 200 x 73 x 108 mm | ₹20,737 |
| AA-6134 | AA-613 | 0-125mm | 200 mm | 235 x 96 x 130 mm | ₹27,793 |
Machine Tool Integration
- Compatible with standard machine tool tables and surface plates
- Side-slotted pockets provide flexible mounting options for fixtures
- Designed to withstand cutting forces during light milling and grinding
- Ensures minimal deflection under load for consistent part quality
- Integrates seamlessly into existing quality control and inspection lines
Setup and Operational Efficiency
- Quick angular setup reduces downtime between machining operations
- Standard slip gauge blocks facilitate easy calibration and verification
- Stable pivot axis minimizes setup errors during repeated use
- Optimized for toolroom workflows requiring frequent angle changes
- Enhances overall productivity in precision manufacturing environments
Versatile Size and Jaw Capacity
- Total body footprints range from 150 x 48 x 88 mm – 235 x 96 x 130 mm
- Wide workholding window spans from 0–75 mm to 0–125 mm jaw opening
- Scalable dimensions accommodate various workpiece sizes and tasks
- Available in multiple configurations to suit different shop floor needs
- Ensures compatibility with diverse machine tool table sizes
Ideal for Precision Machining and Inspection
- Firmly holds complex workpieces at precise predetermined tilts
- Supports high-accuracy surface grinding and boring setups
- Enables light milling operations with stable angular positioning
- Serves as an angular master reference fixture on surface plates
- Critical for quality control and multi-axis toolroom inspections
Rigid Construction and Clamping
- Precision ground flat bases ensure stability on machine tables
- Side-slotted pockets allow rigid clamping directly to work surfaces
- Ergonomic mechanical screw provides balanced T-handle operation
- Delivers smooth, non-deflecting jaw force during heavy machining
- Designed for toolroom environments requiring high durability
Precision Angular Adjustment System
- Integrated sine system rests on precision-ground hinge rollers
- Clamping body tilts continuously on a pivot axis for settings
- Establishes highly precise angular positions using slip gauge blocks
- Dual cylindrical rollers allow seamless and accurate angular adjustment
- Based on established sine principles for reliable measurement reference
More questions buyers ask
What is the Crystal Sine Vice Series AA-613 used for?
It is used for precision grinding, milling, and inspection of angles in industrial applications.
What material are the jaws made of?
The vice features fully hardened steel construction for extended tool life and durability.
What is the angular accuracy of this sine vice?
The angular accuracy is within 15 seconds.
What is the accuracy for squareness, flatness, and parallelism?
It is within 0.005 mm for sizes up to AA-6133, and 0.010 mm for the AA-6134 model.
Does it come with a clamping screw?
Yes, this vice is provided with a clamping screw having square threads for reliable clamping force.
Is this vice compatible with standard machine tables?
Yes, the series is available in multiple sizes to fit various standard machine tables.
How do I maintain the sine vice?
Regular cleaning, applying light oil to sliding parts, and storing in a dry environment will maintain its corrosion-resistant finish.
Can it handle heavy-duty operations?
Yes, it supports heavy-duty operations with minimal runout and stable clamping action.
What is the center distance accuracy between rollers?
The center distance between rollers is maintained within 0.005mm.
Does the price include a GST invoice?
Yes, all purchases come with a valid GST invoice for B2B buyers.
Who should choose the AA-6131 variant?
Ideal for smaller workpieces requiring a jaw opening up to 75mm and a compact size of 150x48x88mm.
Who should choose the AA-6132 variant?
Best for medium-sized tasks needing a jaw opening up to 90mm and a size of 180x63x98mm.
Who should choose the AA-6133 variant?
Suitable for larger workpieces with a jaw opening up to 100mm and a size of 200x73x108mm.
Who should choose the AA-6134 variant?
Perfect for heavy-duty applications requiring a maximum jaw opening of 125mm and a size of 235x96x130mm.
What is the difference between AA-6131 and AA-6134?
AA-6131 has a 75mm jaw opening and 0.005mm accuracy, while AA-6134 has a 125mm opening and 0.010mm accuracy.
How does the jaw opening vary across the series?
It ranges from 0-75mm in the AA-6131 model to 0-125mm in the AA-6134 model.
Are all variants made of the same material?
Yes, all variants feature fully hardened steel jaws and ground reference surfaces for true alignment.
