Crystal - Round Magnetic Chuck with Radial Poles AA-15916

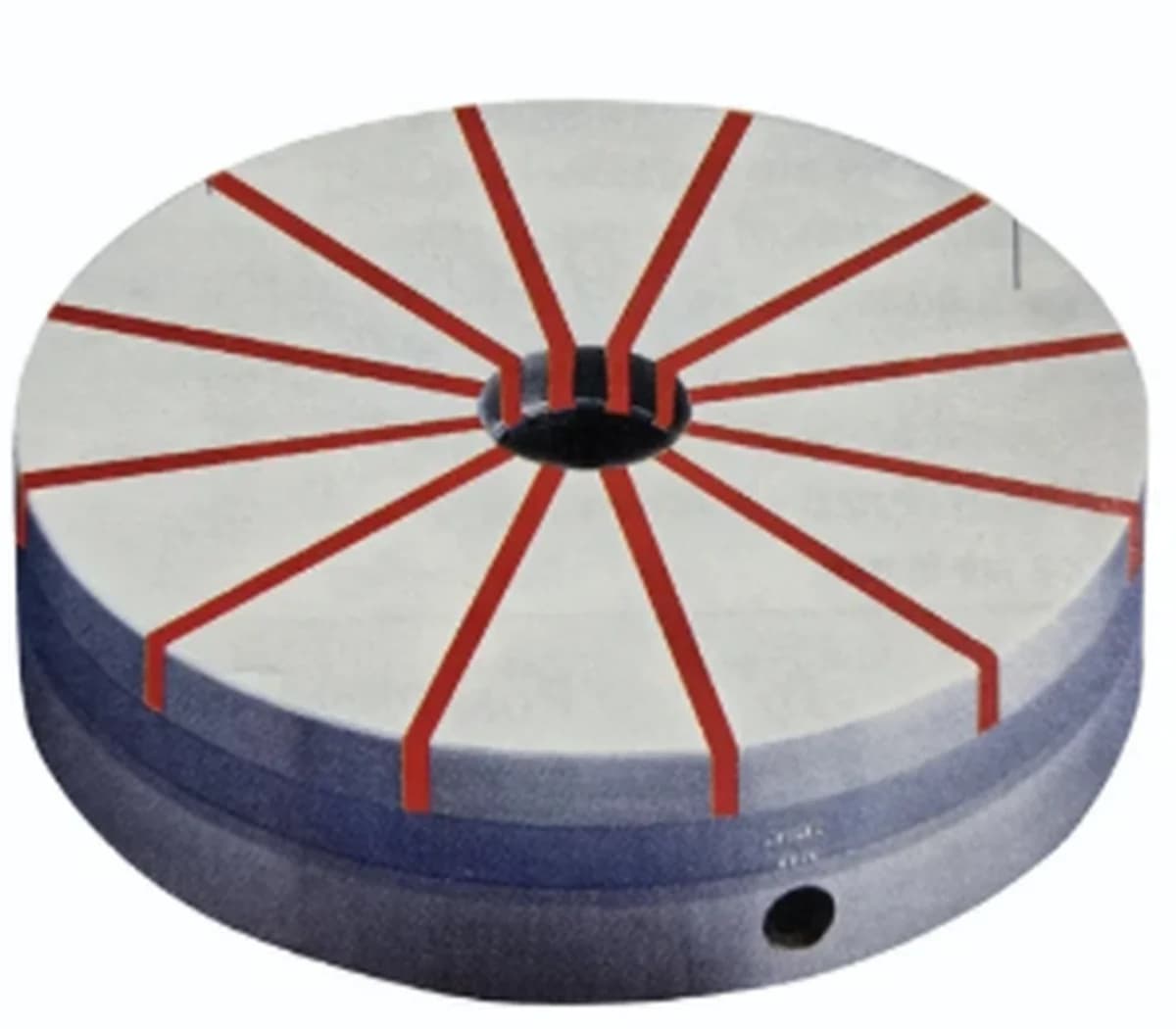

Secure workpieces with high holding power using this round permanent magnetic chuck designed for industrial grinding applications. The AA-15916 model features a 200 mm diameter suitable for smaller setups. • Diameter 200 mm with 65 mm height • AA-159 series radial pole design • Precision accuracy per IS-4186-1987 • Compact size for light duty grinding
Specifications
For: AA-15916- Brand
- Crystal
- Series
- AA-159
- Size
- Dia 200 X 65 mm Ht
Configurations
Click a row to switch| Variant | Series | Size | Price |
|---|---|---|---|
| AA-15916 | AA-159 | Dia 200 X 65 mm Ht | ₹20,571 |
| AA-15917 | AA-159 | Dia 250 X 65 mm Ht | ₹27,352 |
| AA-15918 | AA-159 | Dia 300 X 65 mm Ht | ₹31,915 |
| AA-15919 | AA-159 | Dia 375 X 65 mm Ht | ₹54,795 |
| AA-15920 | AA-159 | Dia 400 X 65 mm Ht | ₹61,419 |
Operational Safety & Maintenance Guidelines
- Always verify mechanical switch position before initiating spindle rotation or coolant flow
- Clean magnetic face with non-abrasive cloth to prevent debris from reducing holding force
- Inspect pole segments periodically for wear, burrs, or corrosion that may affect contact
- Store unused chucks with switch in OFF position to prevent accidental workpiece attraction
- Apply light machine oil to moving switch components to ensure smooth mechanical operation
- Follow standard lifting protocols when handling larger diameter units to prevent injury
Model Range & Dimensional Coverage
- Available in five standard diameters to match specific machine table configurations
- Size options include 200mm, 250mm, 300mm, 375mm, and 400mm for flexible integration
- Consistent 65mm thickness ensures compatibility with standard chuck mounting interfaces
- Each diameter variant maintains identical radial pole layout for uniform holding characteristics
- Standardized dimensions simplify spare part inventory and cross-reference management
- Factory-calibrated magnetic output guarantees reliable performance across all size options
Industrial Workholding Applications
- Turning and boring of rings, discs, flanges, and bearing components on lathes
- Precision face grinding and internal or external diameter grinding of circular tools
- Concentric workholding for rings and pipe components where parallel poles fail
- High-accuracy rotary inspection, balancing, and centering operations in toolrooms
- Ideal for heavy cutting forces that demand stable, vibration-resistant clamping
- Supports continuous production runs requiring rapid part changeover and repeat accuracy
Magnetic Field Performance & Pole Configuration
- Radial pole configuration delivers concentric gripping force for circular components
- Magnetic flux lines converge radially – preventing workpiece shifting during machining
- Even field distribution reduces localized stress on delicate or thin-walled parts
- Permanent magnet design requires zero electrical power for continuous holding force
- Quick engagement and disengagement streamline part loading and unloading workflows
- Consistent magnetic output maintains accuracy across repeated machining operations
Core Design & Operating Mechanism
- Crystal AA-159 series features a mechanical ON/OFF switch for independent clamping security
- Manual operation eliminates heat dissipation concerns during extended machining cycles
- Rigid circular body provides stable mounting for rotational grinding and heavy turning
- Star-pattern magnetic fields project maximum holding power evenly toward the center
- Segmented radial geometry maximizes contact area on ring-shaped workpieces
- Compatible with model variations ranging from AA-15916 to AA-15920 for diverse shop needs
- Uniform 65mm height standardizes setup across the entire product family
