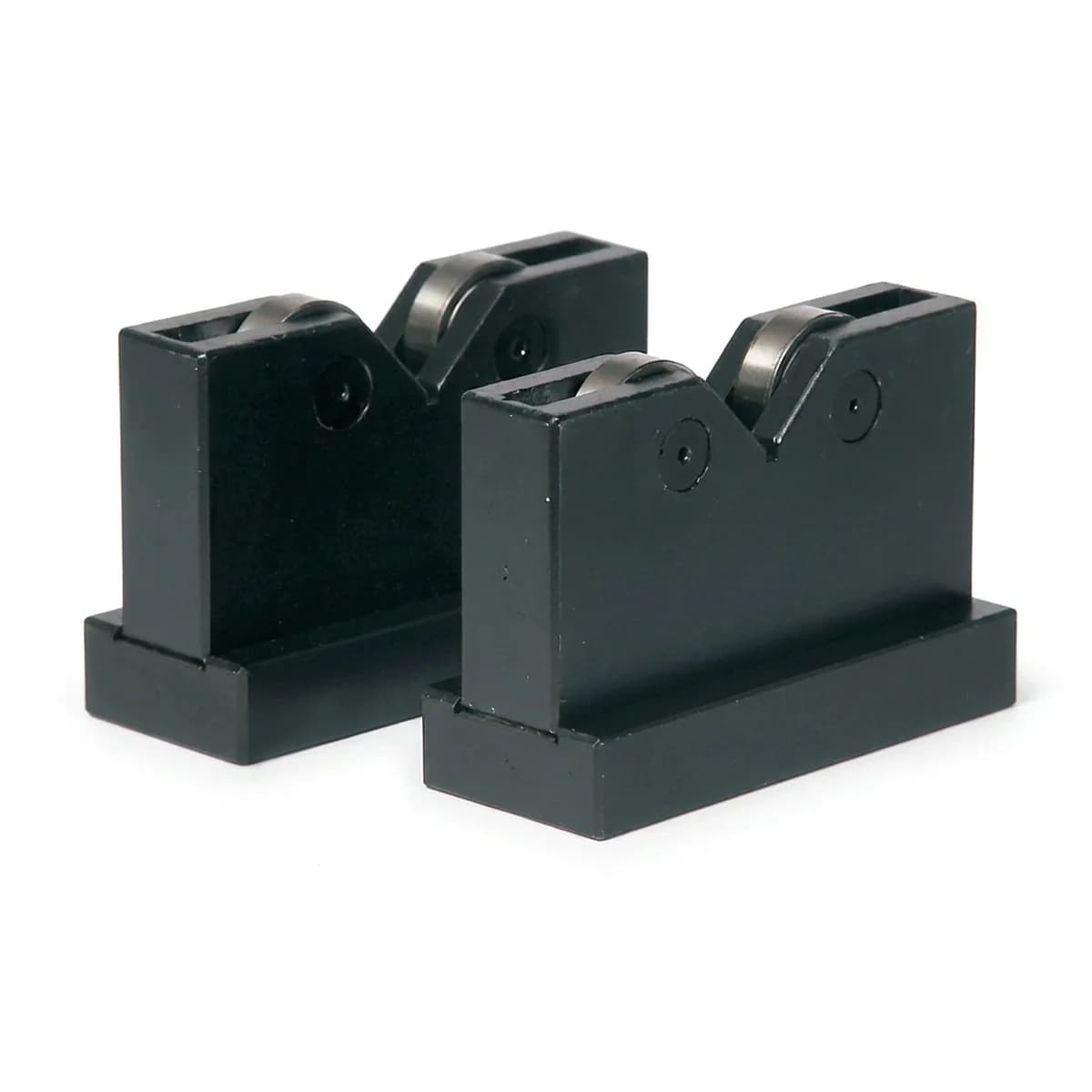

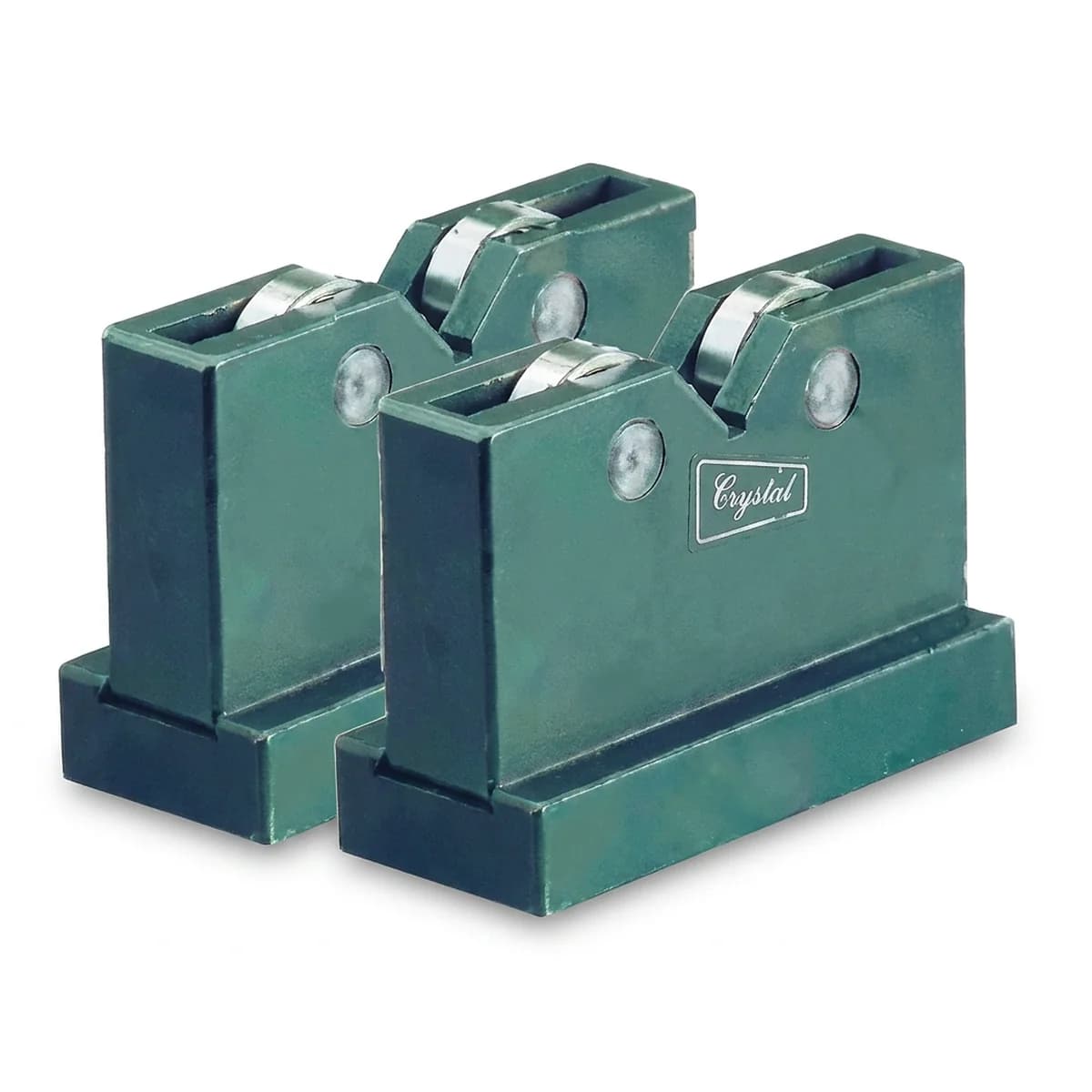

Crystal Roller Bearing V Block for Industrial & Workshop Use AA-3710
Precision V blocks provide stable positioning for cylindrical workpieces during machining and layout tasks. This AA-3710 unit from the AA-371 series measures 100 x 60 x 97 mm, optimized for compact benchtop setups. • Hardened steel body resists deformation under load • Adjustable roller mechanism aligns various shaft diameters • Designed for precision tooling in industrial workshops • Fits standard machine table clearances.
Specifications
For: AA-3710- Brand
- Crystal
- Series
- AA-371
- Size
- 100 x 60 x 97 mm
Configurations
Click a row to switch| Variant | Series | Size | Price |
|---|---|---|---|
| AA-3710 | AA-371 | 100 x 60 x 97 mm | ₹9,614 |
| AA-3711 | AA-371 | 150 x 60 x 100 mm | ₹10,387 |
| AA-3712 | AA-371 | 230 x 100 x 150 mm | ₹20,139 |
| CRY-150X100X60MM-3711 | AA-371 | 100 x 60 x 97 mm | Quote |
Maintenance and Handling Guidelines
- Keep bearing surfaces clean to prevent debris accumulation
- Regularly inspect rollers for signs of wear or damage
- Store in dry environment to prevent rust on hardened base
- Avoid dropping blocks to maintain precision ground alignment
- Lubricate bearings periodically per manufacturer recommendations
Flexible Size Range Availability
- Size range spans from 100 x 60 x 97 mm – 230 x 100 x 150 mm
- Dimensions listed as Length x Width x Height
- Select size based on specific workpiece weight and length
- Multiple variants ensure compatibility with various machinery
- Available footprints accommodate diverse industrial requirements
Metrology and Quality Control
- Ideal for supporting and aligning shafts during inspection
- Serves as low-friction staging for layout work tasks
- Supports quality control checks on finished round parts
- Facilitates runout testing without damaging workpiece surfaces
- Essential tool for workshop precision measurement needs
Heavy-Duty Industrial Durability
- Heavy-duty block design built for high weight capacities
- Hardened base components maintain strict accuracy long-term
- Stable configuration supports heavy cylindrical components
- Robust construction withstands continuous workshop use
- Crystal brand quality ensures reliable performance standards
Precision Bearing Integration
- Series AA-371 features precision ground matched pairs
- High-accuracy roller bearings integrated inside V-groove
- Frictionless rotation ensures seamless concentricity testing
- Smooth-rolling interface prevents surface marring on parts
- Designed for manual rotation during precision inspection
Frequently asked
Can these blocks be used on soft finished surfaces?
Yes, the smooth-rolling bearing interface prevents scratching.
What is the maximum weight capacity?
Capacity varies by size, ranging from small to heavy-duty.
Are the V-blocks precision ground?
Yes, Series AA-371 features precision ground matched pairs.
How do I maintain runout accuracy?
Keep bearings clean and avoid dropping the hardened base.
More questions buyers ask
What is a Crystal Roller Bearing V Block?
The Crystal Roller Bearing V Block is a precision tool used in workshops for inspection, marking, and machining. It features high-precision roller bearings to support cylindrical workpieces without damaging their surface.
What are the dimensions of the AA-3711 model?
The Crystal AA-3711 Roller Bearing V Block has dimensions of 150mm x 100mm x 60mm.
What is the load capacity of the Crystal AA-3711 V block?
The load capacity for the AA-3711 model is approximately 900 kg.
What materials are Crystal Roller Bearing V Blocks made of?
These V-blocks are made from hardened and ground steel for high accuracy and durability, with high-precision ball bearings.
Can I get a GST invoice for my purchase?
Yes, we provide a GST invoice for every purchase.
Do you offer delivery across India?
Yes, we offer pan-India delivery for all our products.
Who should choose the Crystal AA-3711 Roller Bearing V-Block?
The AA-3711 model is ideal for workshops and tool rooms that handle delicate or heavy cylindrical parts with diameters from 20mm to 70mm. Its high precision and load capacity make it suitable for professional inspection and machining tasks.
What is the difference between a standard V-block and a roller bearing V-block?
A standard V-block has a fixed 'V' shape, and the workpiece rests directly on the steel surface. A roller bearing V-block, like the Crystal model, uses bearings to support the workpiece, allowing for smooth rotation and preventing surface damage, which is crucial for delicate or polished parts.
How does the Crystal V-block compare to magnetic V-blocks?
Crystal roller bearing V-blocks provide support through mechanical means and precision bearings, ideal for non-ferrous materials and delicate surfaces. Magnetic V-blocks use magnetism to hold ferrous workpieces, which is useful for securing parts firmly but may not be suitable for all materials or applications requiring free rotation.
