Crystal Heavy Duty Plate Type Magnetic Separator AA-2236
This unit removes ferrous contaminants from bulk materials during handling to ensure equipment safety and product purity. The AA-223 series model features a compact 125 x 175 x 30 mm plate size for targeted applications. • High-grade neodymium magnets ensure strong retention of iron particles • Durable stainless steel construction resists corrosion and wear • Easy installation fits standard conveyor belt systems for minimal downtime
Specifications
For: AA-2236- Brand
- Crystal
- Series
- AA-223
- Size
- 125 x 175 x 30 mm
Safety & Quality Control
- Designed to meet general industrial safety standards for magnetic equipment
- Prevents ferrous contamination that could compromise product quality or safety
- Reduces risk of equipment damage from uncontrolled metal debris in flow
- Ensures operator safety by containing hazardous magnetic shards securely
- Suitable for use in environments requiring strict material purity controls
Maintenance & Handling Guidelines
- Mechanical stripping tray simplifies disposal of collected ferrous waste
- Manual handle design allows for safe adjustment without specialized tools
- Regular inspection of the magnetic surface ensures consistent attraction strength
- Clean the stripping mechanism frequently to prevent buildup of non-magnetic residue
- Proper handling prevents damage to the permanent magnet assembly during transport
Operational Efficiency & Benefits
- Permanent magnet technology requires no external power source for operation
- Low maintenance design reduces downtime and operational costs significantly
- Versatile mounting options allow integration into various existing production lines
- Reliable performance ensures consistent removal of fine tramp iron particles
- Cost-effective solution for bulk material purification and equipment protection
Versatile Industrial Applications
- Suspend over conveyor systems, chutes, or ducts to trap fine tramp iron
- Automatically extract ferrous shards from flowing materials during production
- Purify chemical powders and food ingredients by removing hazardous debris
- Ideal for cleaning grain batches and filtering liquid coolants effectively
- Protects downstream machinery from damage caused by magnetic contamination

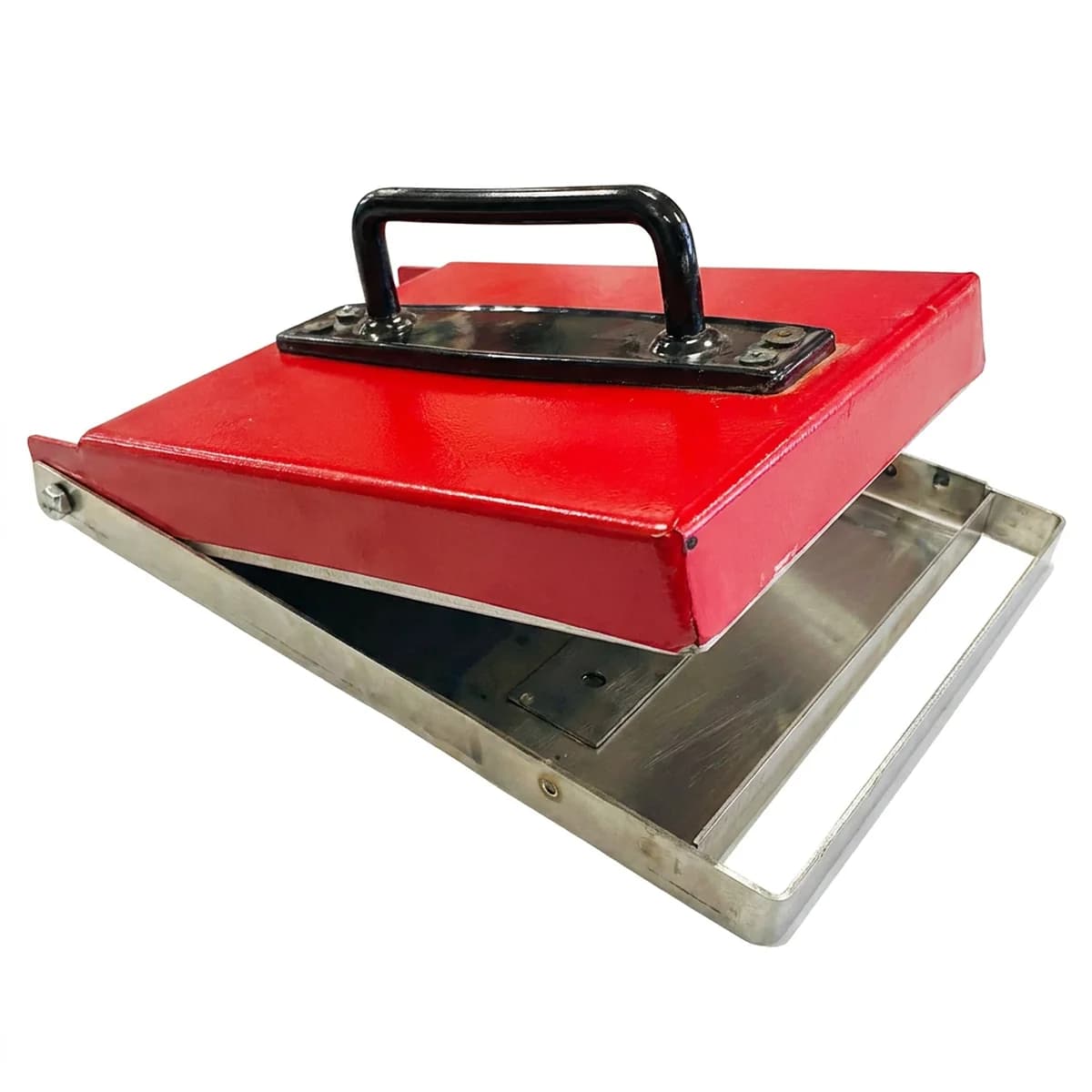

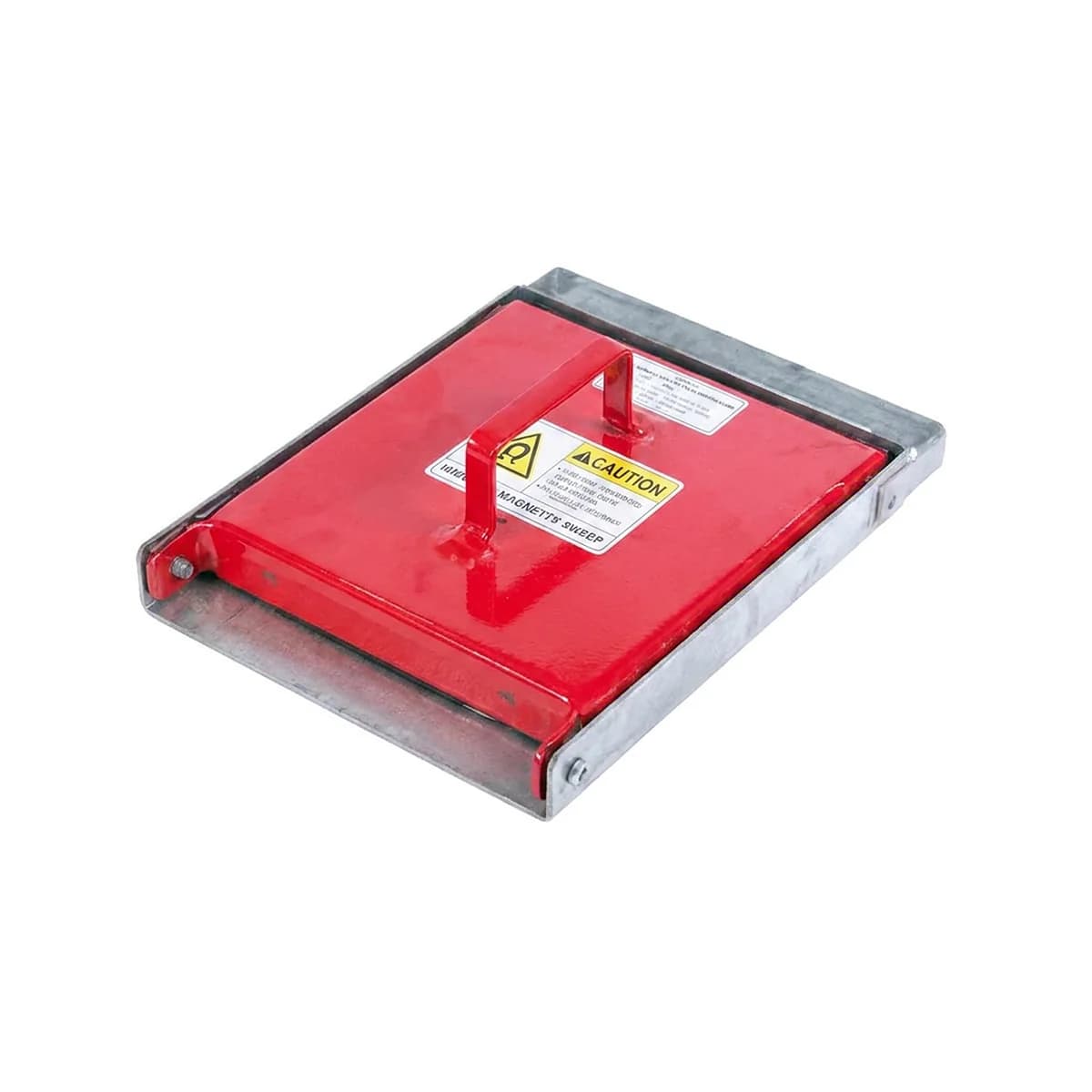

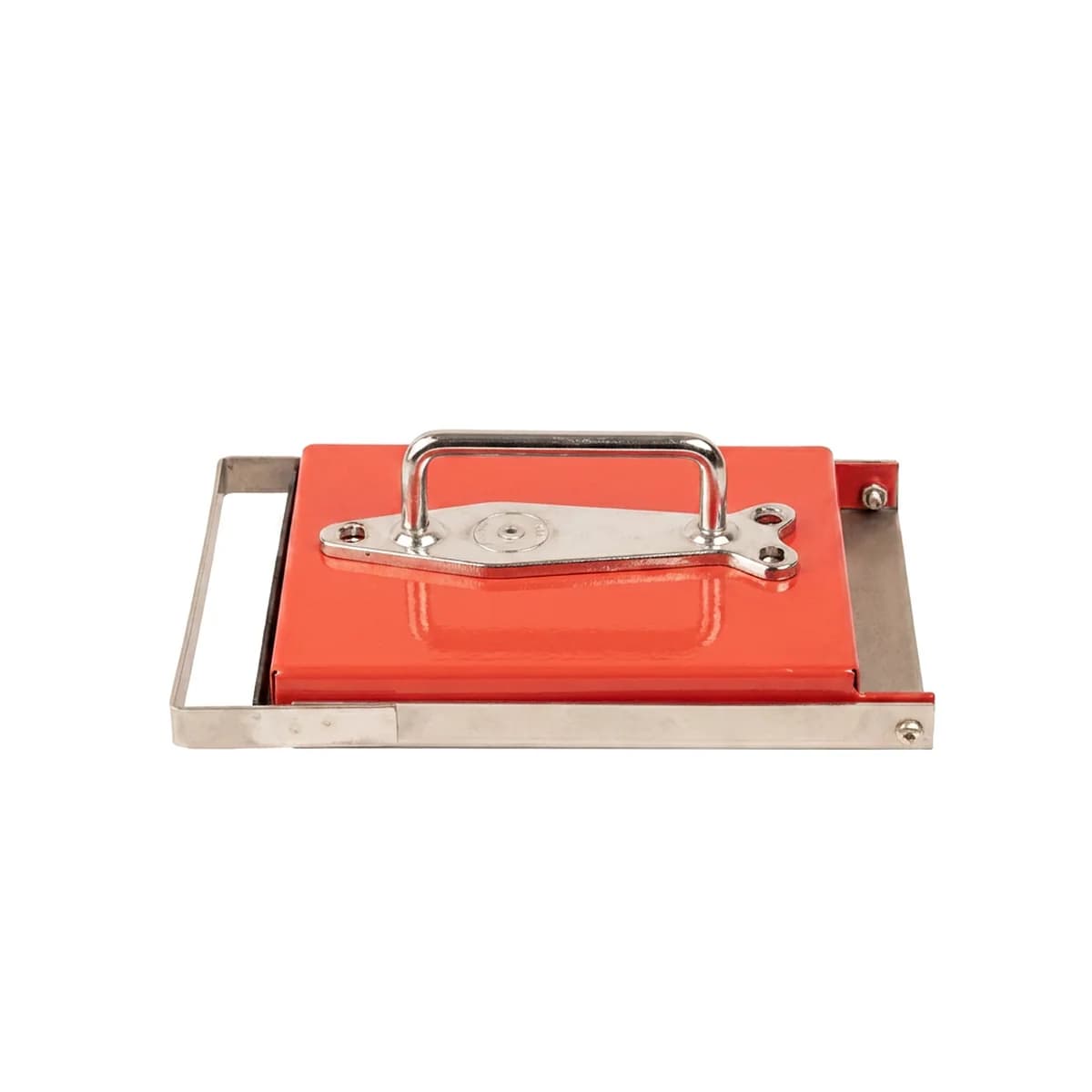

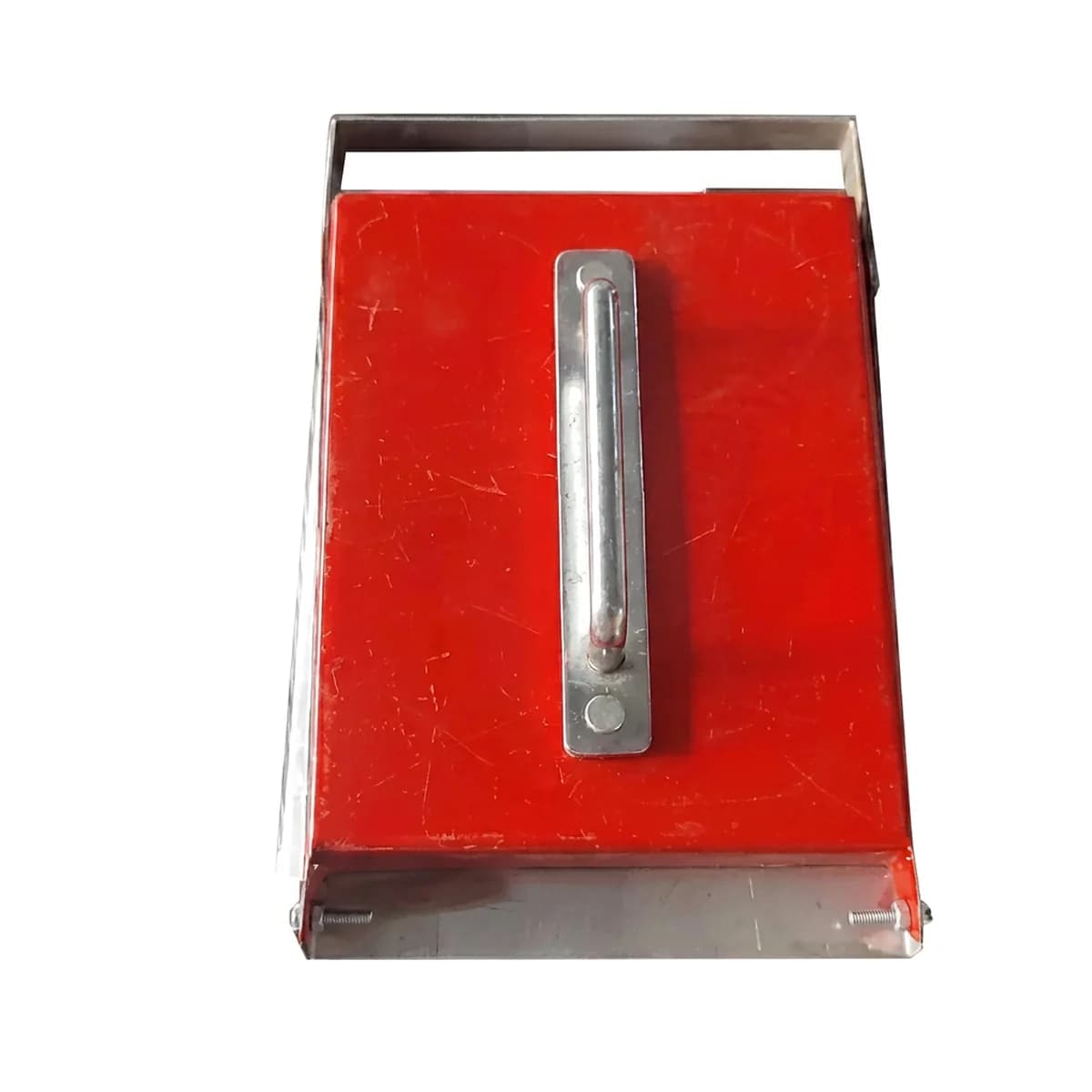

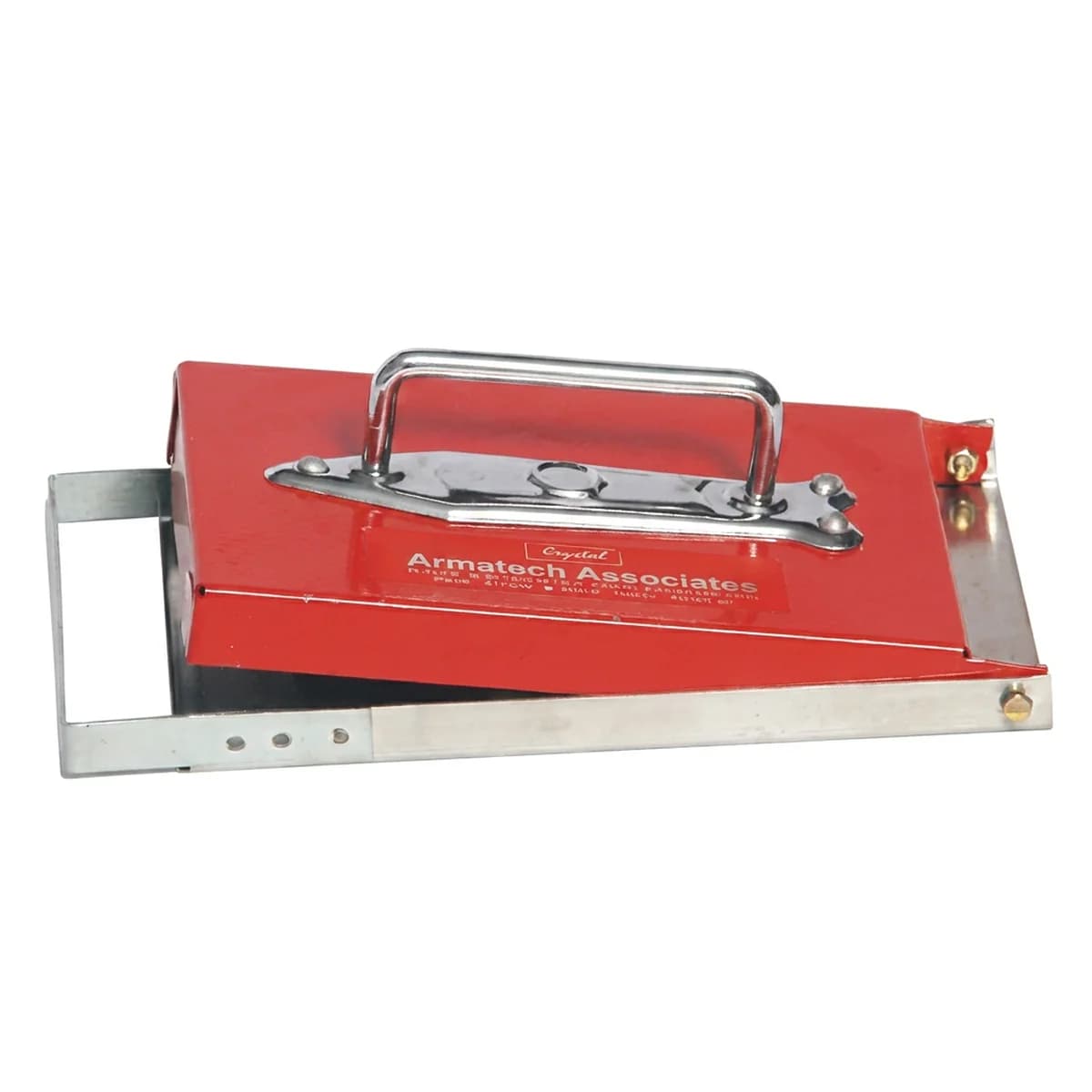

Robust Design & Construction
- Series AA-223 features a flat plate-style permanent magnetic surface
- Top-mounted manual carrying handle ensures easy positioning and transport
- Bottom mechanical stripping plate mechanism enables fast contaminant release
- Configurations include dimensions such as 125 x 175 x 30 mm for Model AA-2236
- Heavy-duty construction supports continuous industrial operation
More questions buyers ask
What is a plate-type magnetic separator?
A plate-type magnetic separator is a device used to remove ferrous contaminants from material flowing through chutes, conveyors, or ducts using permanent magnets.
Does the Crystal magnetic separator require electricity?
No, the Crystal AA-223 series uses high-intensity permanent magnets, requiring no external power source for operation.
How do I clean the magnetic separator?
The unit features a mechanical stripping tray that allows for easy, manual removal of collected ferrous debris.
What materials can this separator process?
It is suitable for purifying chemical powders, food ingredients, grains, and liquid coolants by extracting fine tramp iron.
Is this separator suitable for heavy-duty industrial use?
Yes, the Crystal AA-223 series is built with robust materials designed for continuous operation in industrial environments.
What are the dimensions of the AA-2236 model?
The AA-2236 model has dimensions of 125 x 175 x 30 mm.
Can this be installed on existing conveyor lines?
Yes, it features versatile mounting options, making it easy to integrate into various existing production lines and chutes.
What is the benefit of using a magnetic separator?
It prevents ferrous contamination, protects downstream machinery from damage, and ensures product purity and safety.
Does it come with a warranty?
Yes, Crystal products come with standard manufacturer warranty coverage. Please check the specific invoice details.
How is the separator mounted?
It is typically suspended over conveyor systems or installed within chutes and ducts to intercept material flow.
Who should choose the Crystal AA-2236 model?
The AA-2236 is ideal for facilities needing a compact, reliable solution for removing fine metal particles from smaller material streams.
How does the AA-2236 compare to larger magnetic separators?
The AA-2236 is a compact, entry-level plate separator, whereas larger models in the series are designed for higher volume throughput and wider material channels.
