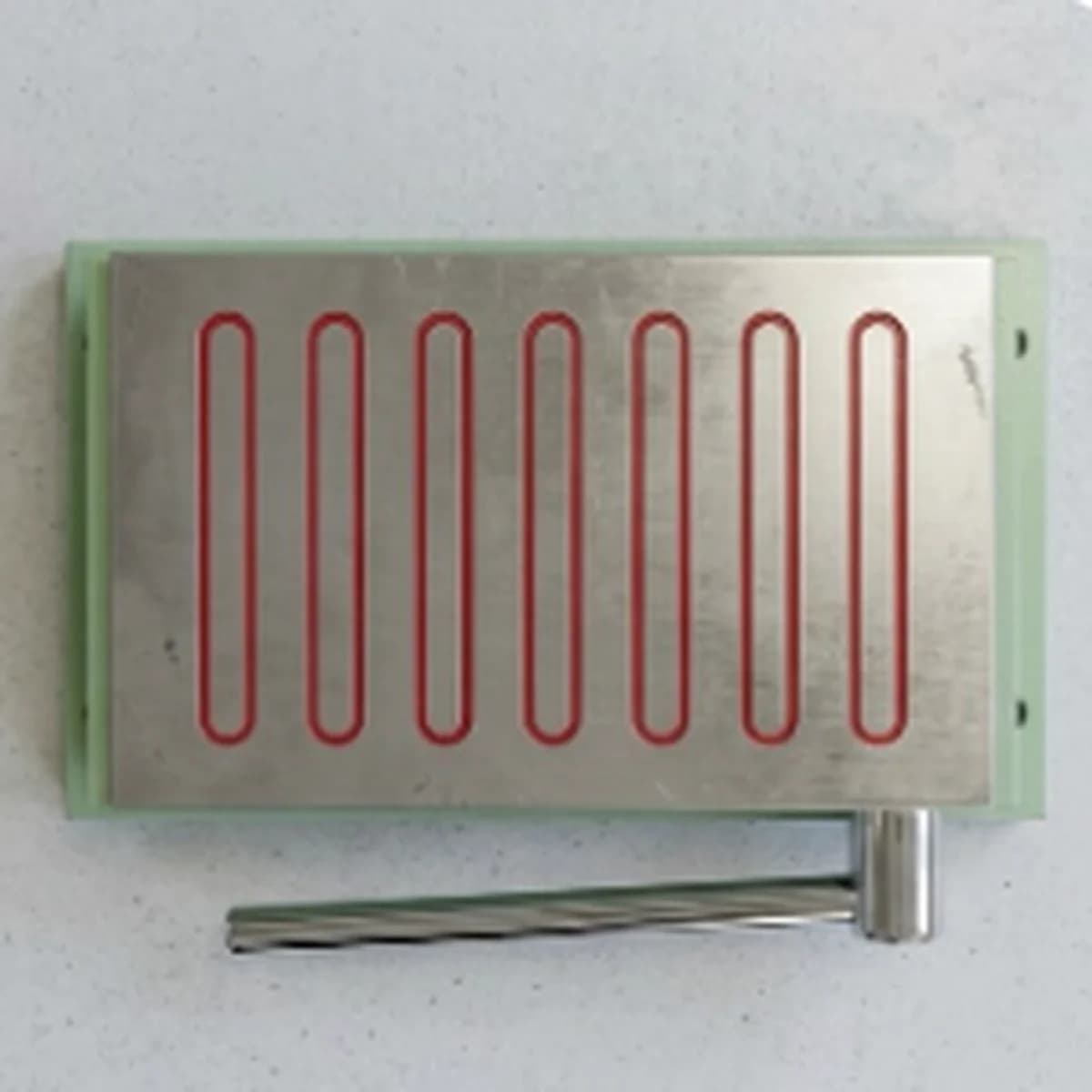

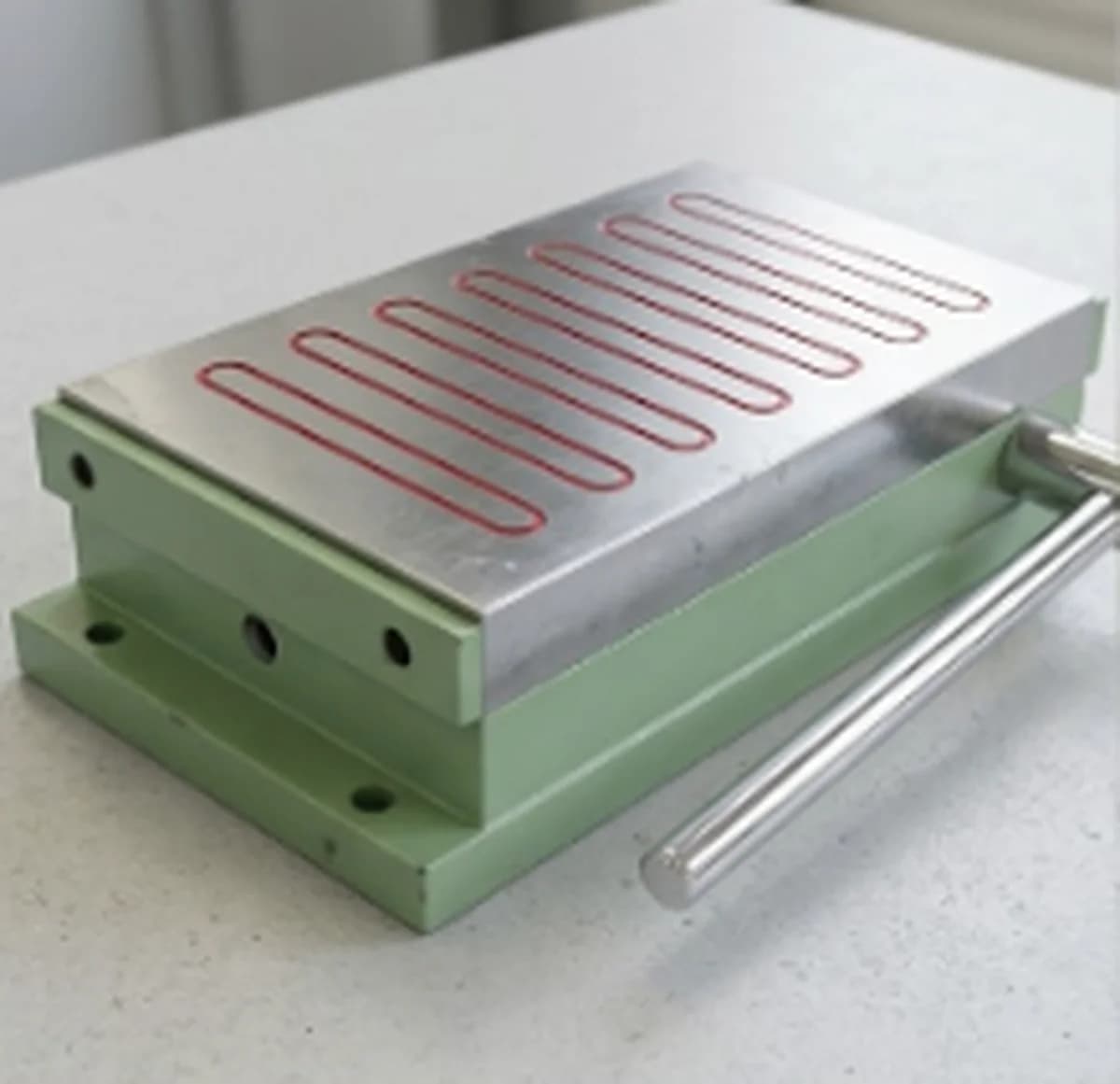

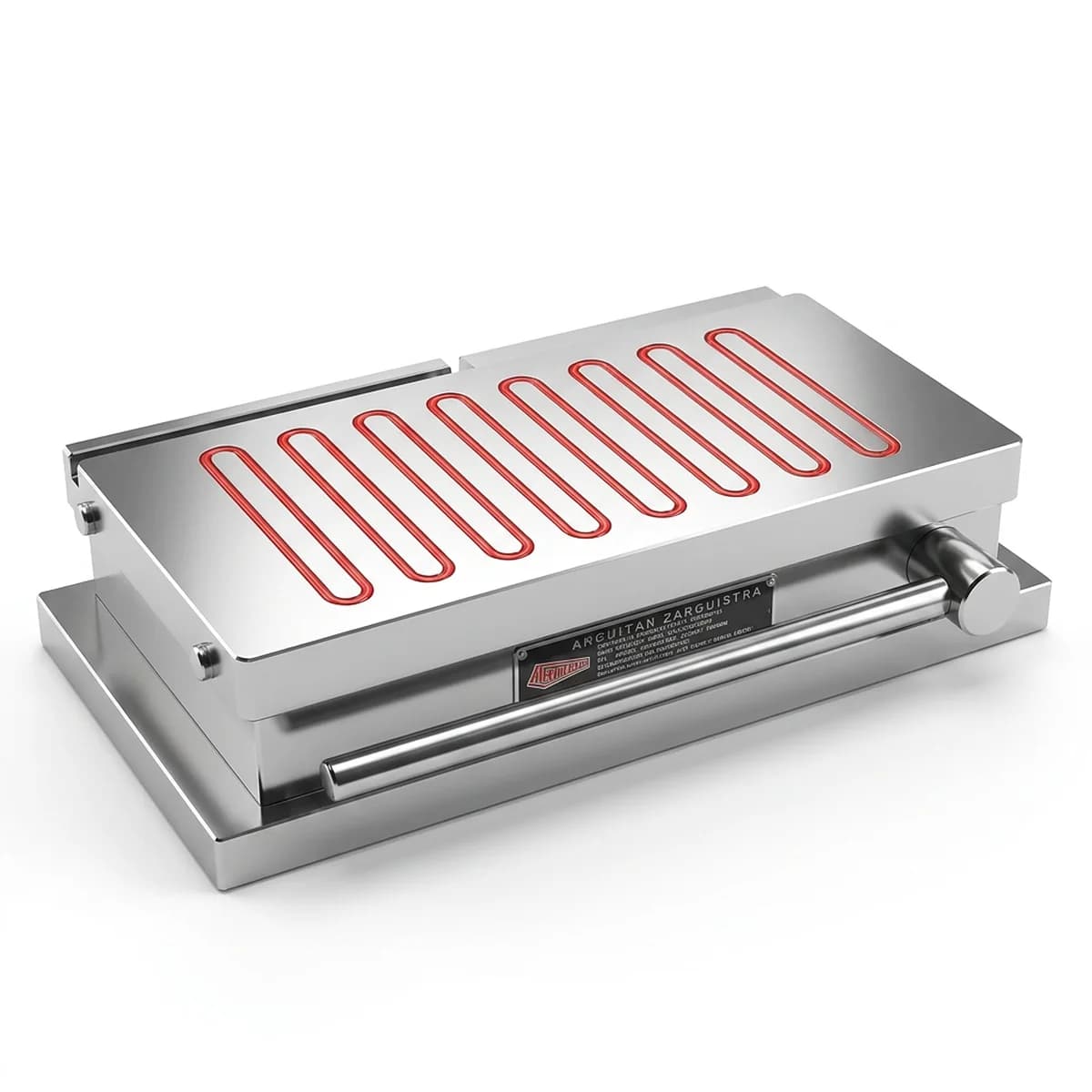

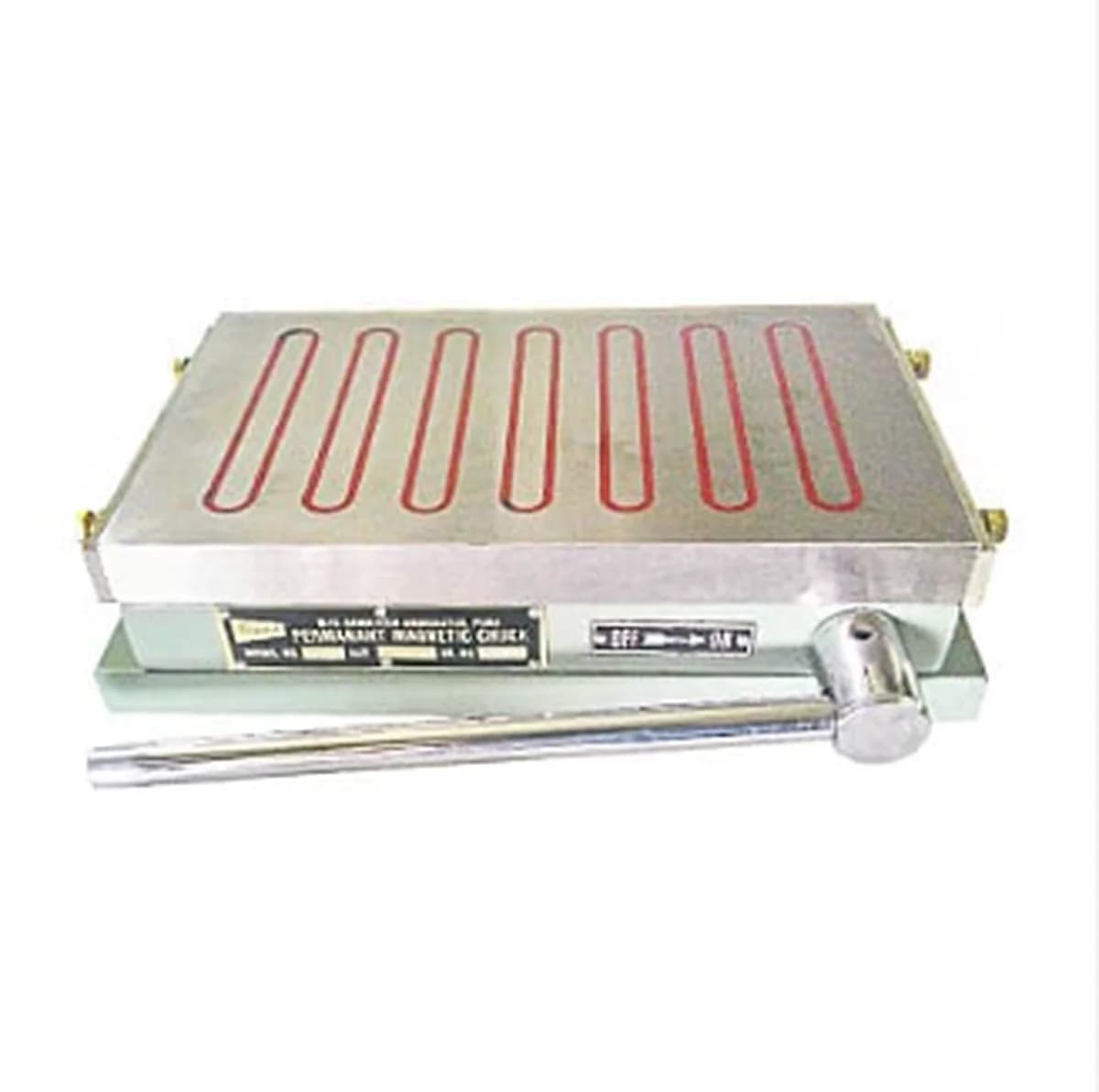

Crystal Permanent Magnetic Chuck Standard Pole - Heavy Duty AA-15201
The Crystal AA-152 permanent magnetic chuck securely holds ferrous workpieces during precision grinding. This 150 x 100 x 60 mm model integrates a 180mm bottom plate and a 16mm magnetic pole gap for stable flux distribution. • 150 x 100 x 60 mm footprint fits compact machine tables • 16mm pole gap ensures consistent magnetic flux density • ALNICO core delivers reliable holding force without power • Meets IS-4816-1987 accuracy standards for finishing
Specifications
For: AA-15201- Series
- AA-152
- Size
- 150 x 100 x 60 mm
- Magnetic Pole Gap
- 16
- Bottom Plate Length
- 180
- Accuracy
- As per IS-4816-1987
Configurations
Click a row to switch| Variant | Series | Magnetic Pole Gap | Size | Price |
|---|---|---|---|---|
| AA-15201 | AA-152 | 16 | 150 x 100 x 60 mm | ₹5,916 |
| AA-15202 | AA-152 | 16 | 175 x 125 x 60 mm | ₹6,771 |
| AA-15203 | AA-152 | 16 | 200 x 100 x 60 mm | ₹6,771 |
| AA-15204 | AA-152 | 16 | 200 x 150 x 60 mm | ₹7,562 |
| AA-15205 | AA-152 | 19 | 250 x 150 x 60 mm | ₹10,267 |
| AA-15206 | AA-152 | 19 | 300 x 150 x 60 mm | ₹12,668 |
| AA-15207 | AA-152 | 19 | 300 x 200 x 65 mm | ₹15,162 |
| AA-15208 | AA-152 | 19 | 350 x 150 x 65 mm | ₹14,288 |
| AA-15209 | AA-152 | 19 | 400 x 150 x 65 mm | ₹18,142 |
| AA-15210 | AA-152 | 19 | 450 x 150 x 65 mm | ₹19,835 |
| AA-15211 | AA-152 | 19 | 450 x 200 x 70 mm | ₹22,246 |
| AA-15212 | AA-152 | 19 | 500 x 200 x 70 mm | ₹25,594 |
| AA-15213 | AA-152 | 19 | 600 x 200 x 70 mm | ₹29,624 |
| AA-15214 | AA-152 | 19 | 450 x 250 x 70 mm | ₹34,758 |
| AA-15215 | AA-152 | 19 | 450 x 300 x 70 mm | ₹40,535 |
| AA-15216 | AA-152 | 19 | 600 x 250 x 70 mm | ₹46,110 |
| AA-15217 | AA-152 | 19 | 600 x 300 x 70 mm | ₹62,376 |
| AA-15218 | AA-152 | 19 | 750 x 250 x 70 mm | ₹63,351 |
Operational Efficiency & Safety Benefits
- Eliminates power-related downtime by maintaining secure workpiece retention during outages
- Reduces setup time through intuitive mechanical lever operation for rapid clamping
- Prevents heat-induced workpiece distortion common in electromagnetic alternatives
- Low maintenance design minimizes service interruptions and extends equipment lifespan
- Enhances operator safety by removing electrical hazards from the immediate work zone
- Supports consistent cycle times in high-volume production and toolroom workflows
Build Quality & Compliance Standards
- Constructed to meet IS-4816-1987 accuracy standards for consistent performance
- Heavy-duty series design ensures long-term durability under continuous shop floor use
- Precision-ground top plate maintains flat clamping surfaces for repeatable accuracy
- Robust internal magnet assembly resists demagnetization over extended service life
- Mechanical switching mechanism reduces electrical dependency and system complexity
- Toleranced dimensions guarantee seamless integration across various industrial machines
- Engineered to minimize thermal distortion during prolonged high-intensity operations
Industrial Applications & Use Cases
- Secure workholding for ferromagnetic components during precision surface grinding
- Reliable clamping for light to medium milling, shaping, and planing operations
- Stable fixturing during toolroom inspection, layout, and precision measurement tasks
- Ideal for manufacturing environments requiring continuous operation without heat generation
- Supports consistent part retention during high-vibration machining processes
- Suitable for repetitive production runs where quick setup and release are critical
- Compatible with standard machine tables and auxiliary workholding setups
Key Features & Design Advantages
- Heavy-duty permanent magnetic chuck engineered for demanding workholding tasks
- Standard pole design delivers uniform magnetic force across the entire top plate
- Mechanical ON/OFF lever provides reliable clamping without electrical power
- Prevents accidental part release during unexpected power outages or failures
- Manufactured to strict industrial tolerances for high precision and parallelism
- Available in the Crystal AA-152 series with model variations from AA-15201 to AA-15218
- Base lengths range from 150–750mm with widths from 100–300mm
- Overall height dimensions span 60–70mm for versatile machine integration
- Magnetic pole gap measures 16mm for compact models or 19mm for larger units
Frequently asked
How do I select the correct pole gap size for my workpieces?
Choose the 16mm gap for smaller components or the 19mm gap for medium to large workpieces.
Is this chuck compatible with standard machine tables?
Yes, the AA-152 series features standardized mounting dimensions for broad machine compatibility.
What maintenance is required for the mechanical switching mechanism?
Periodic lubrication of the lever pivot and cleaning of the top plate ensures optimal function.
Can this chuck be used for non-ferrous materials like aluminum?
No, it is specifically engineered for ferromagnetic workpieces only.
More questions buyers ask
What is a permanent magnetic chuck?
A permanent magnetic chuck is a workholding device that uses high-strength permanent magnets to secure ferromagnetic workpieces for machining without needing electricity.
Why choose Crystal magnetic chucks?
Crystal chucks are built to IS-4816-1987 standards, offering high precision, durability, and reliable clamping force for professional industrial use.
Are these chucks suitable for milling?
Yes, they are suitable for light to medium milling, shaping, and planing operations on ferromagnetic materials.
Do I need electricity to operate this chuck?
No, it operates via a mechanical lever, making it safer and immune to power outages.
How do I maintain the chuck?
Keep the top plate clean and periodically lubricate the lever mechanism to ensure smooth operation.
What materials can be clamped?
Only ferromagnetic materials (like steel and iron) can be clamped. Non-ferrous metals like aluminum or brass will not hold.
What is the pole gap?
The pole gap is the distance between magnetic poles. Smaller gaps (16mm) are better for small parts; larger gaps (19mm) are better for medium-to-large parts.
Is the top plate replaceable?
The top plate is precision-ground and integral to the chuck's accuracy; it should be maintained rather than replaced.
Can it be used on a surface grinder?
Yes, it is specifically designed for secure workholding during precision surface grinding.
Does it come with a warranty?
Crystal products are known for industrial quality; please check the specific invoice for warranty terms provided by the dealer.
Who should choose the AA-15201 model?
The AA-15201 is ideal for small-scale toolroom tasks and precision grinding of compact components.
Who should choose the AA-15218 model?
The AA-15218 is designed for large-scale industrial machining, offering the largest surface area for heavy-duty workpieces.
How does the 16mm pole gap compare to the 19mm gap?
The 16mm gap provides higher density for smaller parts, while the 19mm gap offers deeper magnetic penetration for larger, thicker workpieces.
Are these chucks better than electromagnetic ones?
They are safer during power failures and generate no heat, which prevents thermal distortion of the workpiece.
How do I ensure the chuck is level?
The chuck is manufactured to high parallelism tolerances; ensure your machine table is clean before mounting.
