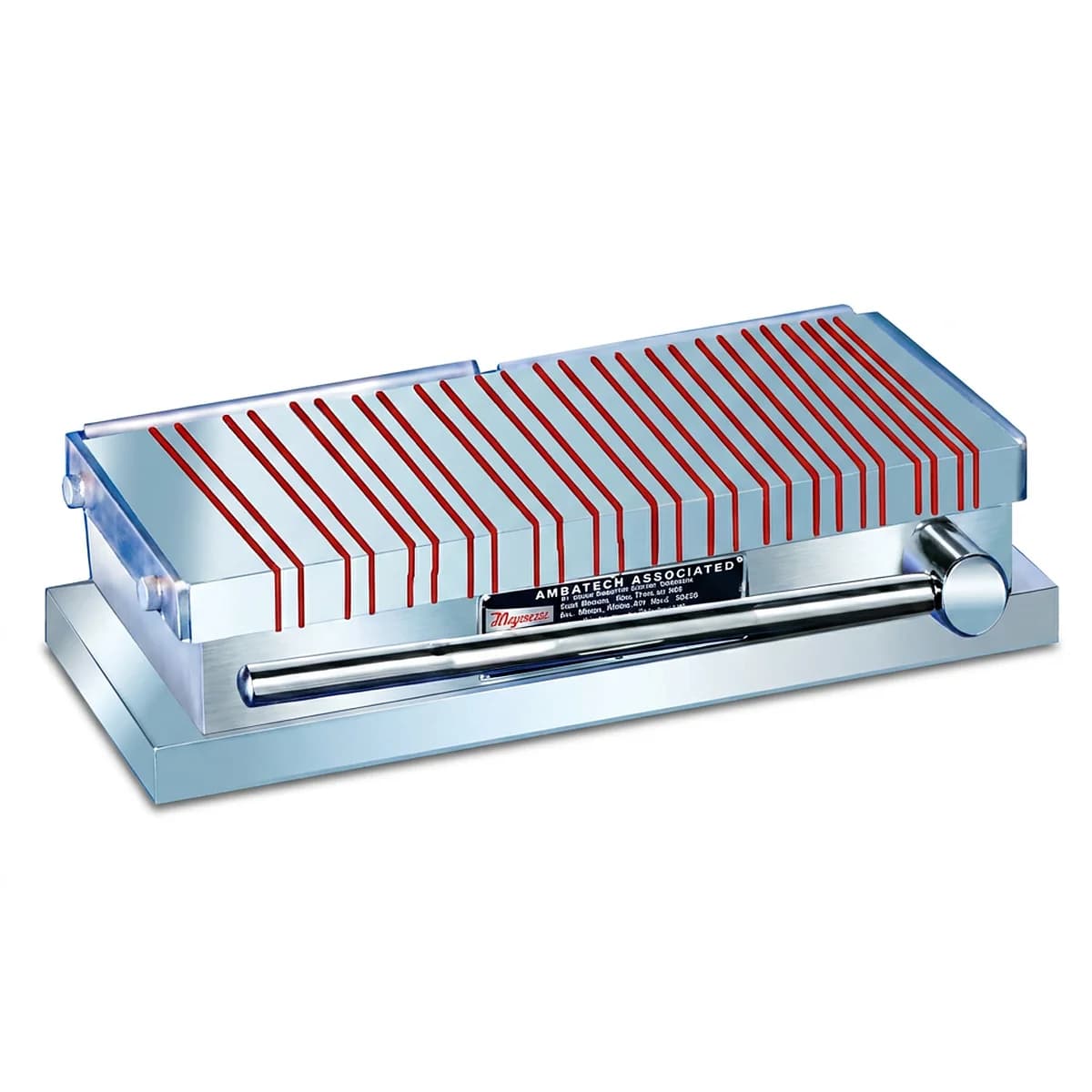

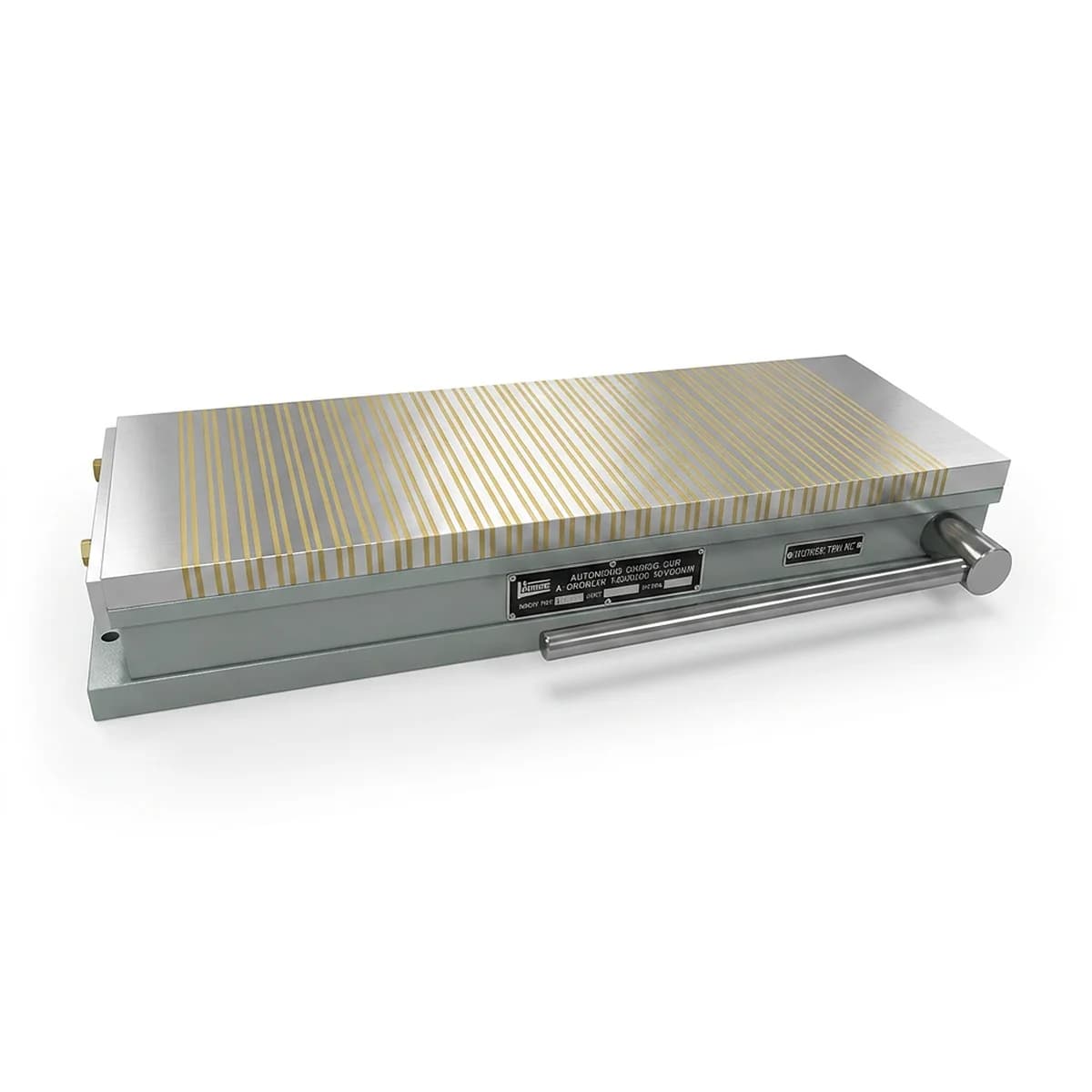

Crystal Permanent Magnetic Chuck Fine Pole - Heavy Duty — AA-15711
These Permanent Magnetic Chucks provide secure holding for ferrous workpieces during machining. Heavy duty fine pole designs ensure stability during precision grinding and milling operations without mechanical jaws. • Even magnetic flux distribution for flatness • Meets IS-4186-1987 accuracy standards • Robust construction for continuous industrial use • Available in multiple sizes for diverse machine tools
Specifications
For: AA-15711- Magnetic Pole Pitch
- 9.9
- Brand
- Crystal
- Series
- AA-157
- Size
- 150 X 100 X 70 mm
Configurations
Click a row to switch| Variant | Series | Size | Magnetic Pole Pitch | Price |
|---|---|---|---|---|
| AA-15711 | AA-157 | 150 X 100 X 70 mm | 9.9 | ₹6,652 |
| AA-15712 | AA-157 | 200 X 100 X 70 mm | 9.9 | ₹7,820 |
| AA-15713 | AA-157 | 200 X 150 X 70 mm | 9.9 | ₹11,684 |
| AA-15714 | AA-157 | 250 X 150 X 70 mm | 9.9 | ₹15,134 |
| AA-15715 | AA-157 | 300 X 150 X 70 mm | 9.9 | ₹20,516 |
| AA-15716 | AA-157 | 400 X 150 X 70 mm | 9.9 | ₹27,352 |
| AA-15717 | AA-157 | 300 X 200 X 70 mm | 9.9 | ₹22,742 |
| AA-15718 | AA-157 | 350 X 150 X 70 mm | 9.9 | ₹26,827 |
| AA-15719 | AA-157 | 450 X 150 X 70 mm | 9.9 | ₹30,434 |
| AA-15720 | AA-157 | 450 X 200 X 70 mm | 9.9 | ₹38,134 |
| AA-15721 | AA-157 | 500 X 200 X 70 mm | 9.9 | ₹39,910 |
| AA-15722 | AA-157 | 600 X 200 X 70 mm | 9.9 | ₹41,842 |
| AA-15723 | AA-157 | 600 X 300 X 70 mm | 9.9 | ₹62,956 |
Sizing & Integration
- Available in multiple sizes to fit various machine tables
- Standardized mounting interfaces for easy integration
- – Ranges from compact to large format options
- Compatible with existing magnetic chuck systems
- Streamlines inventory management for procurement teams
Compliance Standards
- Meets IS-4186-1987 accuracy standards for reliability
- Ensures dimensional consistency across the product range
- Aligns with industry expectations for precision tools
- Certified for safety in heavy duty industrial settings
- Provides documented quality assurance for procurement
Durability & Build Quality
- Robust casing protects internal magnetic components
- Resistant to wear from frequent workpiece changes
- Withstands harsh industrial workshop conditions
- Ensures long service life with minimal maintenance
- Built to meet rigorous industrial durability requirements
Industrial Applications
- Ideal for surface grinding and precision milling operations
- Supports rectangular and square workpiece geometries
- Used in tool and die manufacturing environments
- Effective for ferrous material processing tasks
- Enhances setup efficiency in high-volume production lines
Magnetic Performance
- Fine pole design maximizes holding power for heavy loads
- Reduces magnetic flux leakage for consistent performance
- Suitable for various machine table configurations
- Provides reliable clamping without mechanical fixtures
- Maintains stability during high-vibration operations
Core Design Features
- Engineered for secure workpiece retention during precision machining
- Heavy duty construction designed for continuous industrial use
- Utilizes close pole technology to minimize leakage flux
- Optimized pole gap ensures efficient magnetic field distribution
- Complies with IS-4186-1987 accuracy standards for quality
More questions buyers ask
What is a permanent magnetic chuck?
A permanent magnetic chuck is a workholding device that uses permanent magnets to securely hold ferromagnetic workpieces during machining operations like grinding and milling.
What are the advantages of a fine pole magnetic chuck?
Fine pole magnetic chucks provide a more uniform magnetic field, making them ideal for holding smaller or thinner workpieces securely.
What is the accuracy of Crystal magnetic chucks?
Crystal permanent magnetic chucks meet IS-4186-1987 standards for accuracy, ensuring high precision in your machining operations.
Are these chucks suitable for heavy-duty use?
Yes, these are heavy-duty models designed for continuous industrial use in demanding workshop environments.
What is the warranty on Crystal magnetic chucks?
We offer a standard 1-year warranty against manufacturing defects on all Crystal magnetic chucks.
Who should choose the Crystal AA-15711 Magnetic Chuck?
The AA-15711 is the most affordable option, ideal for small workshops and light-duty applications.
Who should choose the Crystal AA-15712 Magnetic Chuck?
The AA-15712 offers a balance of price and performance for general-purpose grinding and milling.
Who should choose the Crystal AA-15713 Magnetic Chuck?
The AA-15713 is a mid-range option suitable for medium-sized workpieces and more demanding applications.
Who should choose the Crystal AA-15714 Magnetic Chuck?
The AA-15714 provides increased holding power for larger workpieces and heavy-duty machining.
Who should choose the Crystal AA-15715 Magnetic Chuck?
The AA-15715 is a high-performance chuck for large-scale industrial applications and maximum holding power.
Who should choose the Crystal AA-15716 Magnetic Chuck?
The AA-15716 is designed for heavy industrial use, offering superior holding for large and heavy components.
Who should choose the Crystal AA-15717 Magnetic Chuck?
The AA-15717 is a robust chuck for high-volume production and demanding machining tasks.
Who should choose the Crystal AA-15718 Magnetic Chuck?
The AA-15718 provides exceptional stability and holding power for precision engineering applications.
Who should choose the Crystal AA-15719 Magnetic Chuck?
The AA-15719 is a top-of-the-line chuck for the most demanding industrial applications, offering the highest level of performance.
Who should choose the Crystal AA-15720 Magnetic Chuck?
The AA-15720 is a large-capacity chuck for oversized workpieces and heavy-duty milling operations.
Who should choose the Crystal AA-15721 Magnetic Chuck?
The AA-15721 offers a combination of large size and high power for specialized industrial applications.
Who should choose the Crystal AA-15722 Magnetic Chuck?
The AA-15722 is one of the largest and most powerful chucks in the range, suitable for the most demanding jobs.
Who should choose the Crystal AA-15723 Magnetic Chuck?
The AA-15723 is the ultimate choice for heavy industrial manufacturing, providing maximum holding power and capacity.
What is the difference between the AA-15711 and AA-15723 models?
The AA-15711 is the smallest and most affordable model, while the AA-15723 is the largest and most powerful, with a significant price difference. The best choice depends on your specific workpiece size and machining requirements.
How do I choose the right size magnetic chuck?
Consider the size and weight of your typical workpieces, as well as the table size of your grinding or milling machine. Choose a chuck that is large enough to support your largest workpiece.
Are there any discounts for bulk orders?
Yes, we offer special pricing for bulk orders. Please contact our sales team for a customized quote.
