Crystal Parallel Blocks AA-1311
Crystal Parallel Blocks Series AA-131 ensure accurate workpiece alignment during milling and grinding operations. This 100 x 10 x 5 mm size offers compact support for light duty setups. • Compact dimensions for small workpieces • Ground surfaces ensure precise height • Reliable stability for inspection tasks
Specifications
For: AA-1311- Brand
- Crystal
- Series
- AA-131
- Size
- 100 x 10 x 5 mm
Configurations
Click a row to switch| Variant | Series | Size | Price |
|---|---|---|---|
| AA-1311 | AA-131 | 100 x 10 x 5 mm | ₹1,040 |
| AA-1312 | AA-131 | 150 X 20 X 10 mm | ₹1,426 |
| AA-1313 | AA-131 | 150 X 25 X 15 mm | ₹1,426 |
| AA-1314 | AA-131 | 200 X 35 X 20 mm | ₹2,732 |
| AA-1315 | AA-131 | 250 X 45 X 25 mm | ₹3,294 |
| AA-1316 | AA-131 | 250 X 60 X 30 mm | ₹4,609 |
| AA-1317 | AA-131 | 300 X 70 X 35 mm | ₹7,323 |
| AA-1318 | AA-131 | 350 X 80 X 40 mm | ₹10,350 |
| AA-1319 | AA-131 | 400 X 100 X 50 mm | ₹13,285 |
| AA-1320 | AA-131 | 450 X 100 X 50 mm | ₹16,321 |
Common Buyer Questions

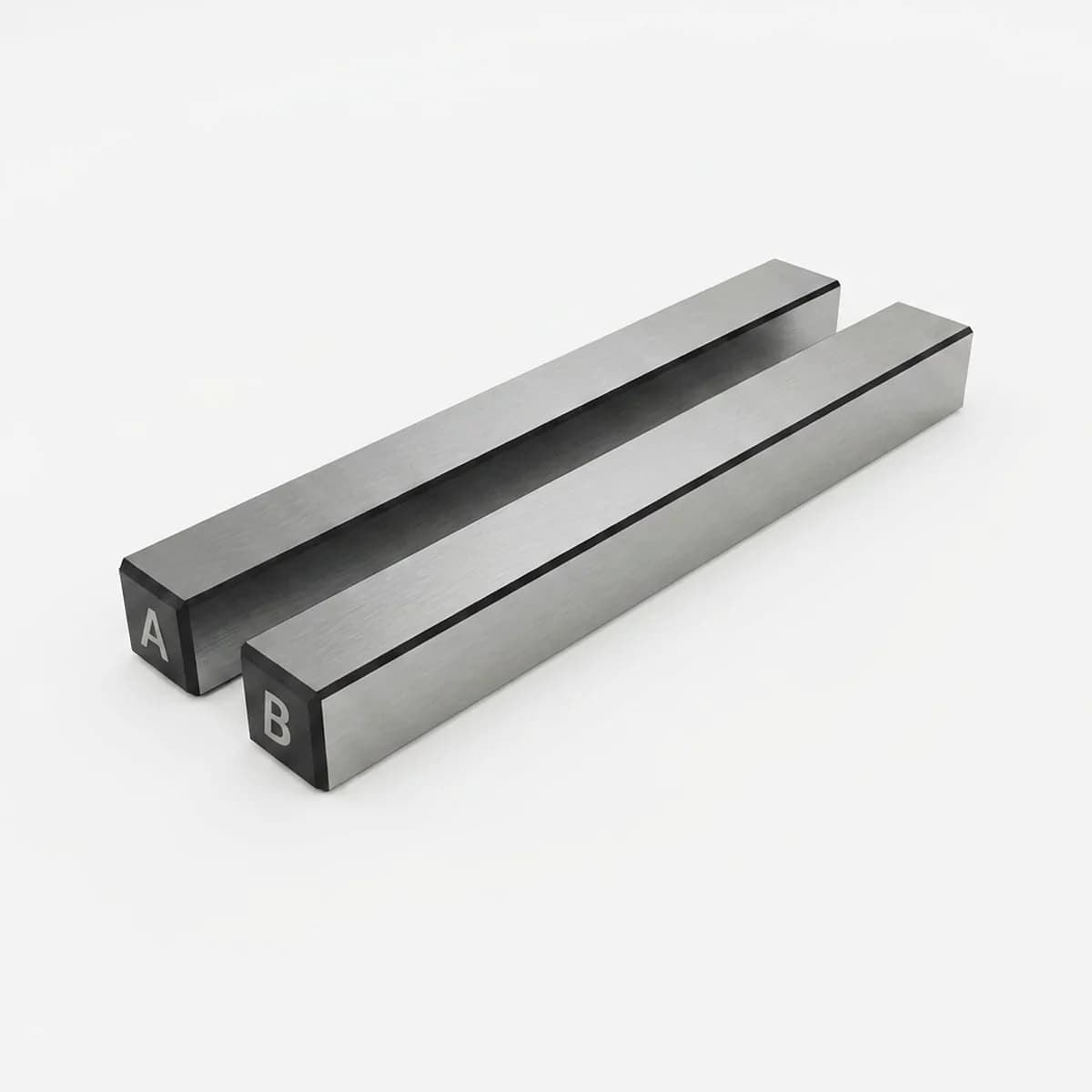

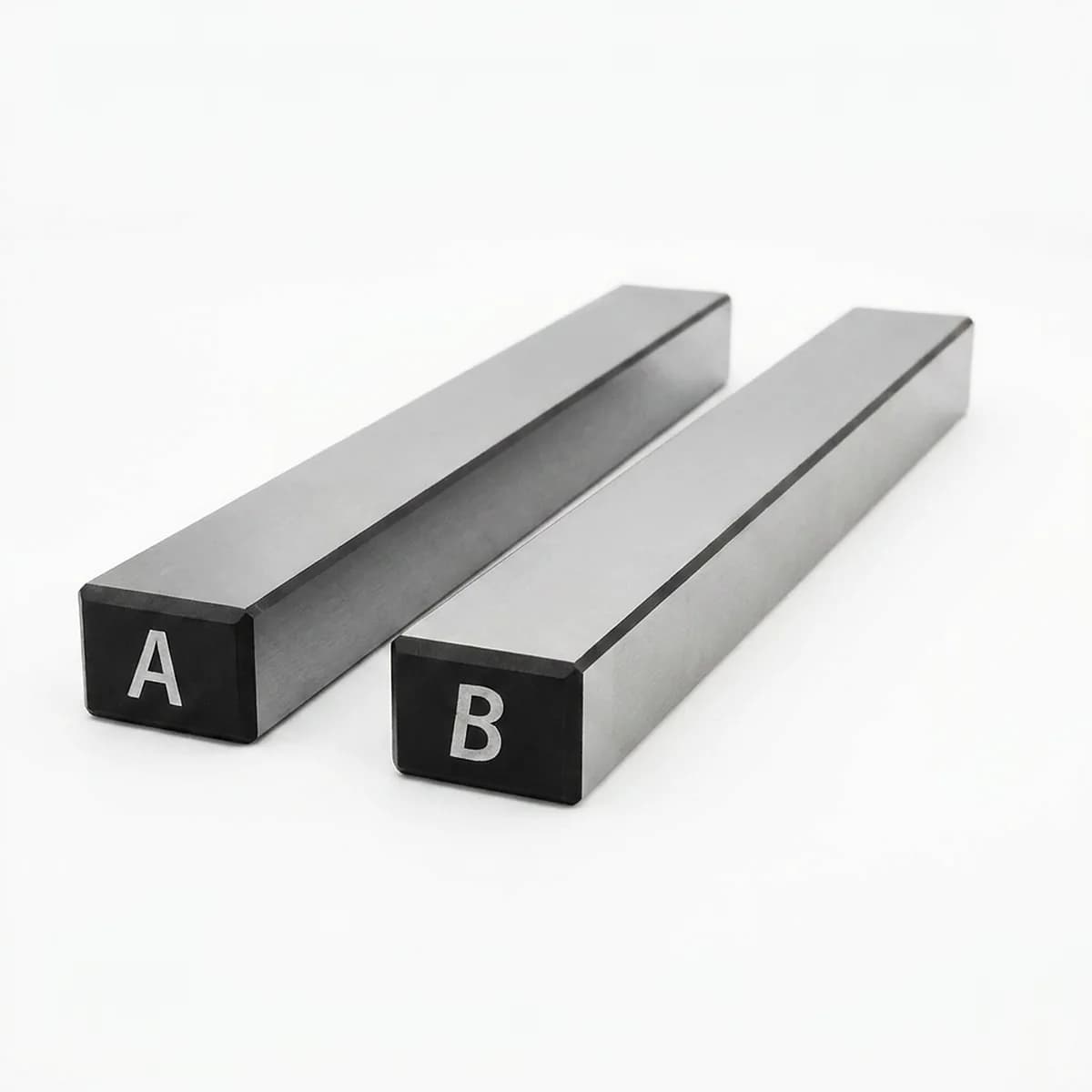

Q: Are the blocks sold individually or in pairs? A: They are precision matched in identical pairs (A & B) for uniform height. Q: What material are these parallel blocks made from? A: Constructed from precision ground tool steel with oil-hardened treatment. Q: Do these blocks comply with international standards? A: Yes, built and evaluated as per IS-4241-1967 guidelines.
Quality Assurance and Selection Criteria
- Oil-hardened treatment ensures long-term rigidity under pressure
- Matched pairs guarantee zero height variance between blocks
- Compliance with IS-4241-1967 guarantees standardized manufacturing quality
- Suitable for both production shop floors and precision metrology labs
- Rigid design reduces setup time for accurate workpiece positioning
Available Size Configurations
- Length expansions start from 100 mm – 450 mm variants
- Cross-sections available from 10 x 5 mm – 100 x 50 mm nominal dimensions
- Series AA-131 covers a wide spectrum of industrial machining requirements
- Multiple structural configurations support diverse load-bearing needs
- Standardized sizing ensures compatibility with common machine tool setups
Industrial Applications and Use Cases
- Provides dependable level raising support for raw workpieces in machine vices
- Ensures clean tool clearance inside machine tables during operations
- Serves as precise flat staging blocks on inspection surface plates
- Ideal for dimensional height gauging and metrology checks
- Supports various workpiece sizes from 100 mm – 450 mm lengths
Precision Construction and Material Integrity
- Oil-hardened tool steel construction minimizes material wear and deflection
- Precision ground flat edges ensure perfect parallelism and squareness interfaces
- Matched pair leveling surfaces provide absolute uniform height alignment
- Built and evaluated as per IS-4241-1967 guidelines
- Identical pairs (A & B) matched for consistent performance
More questions buyers ask
What are Crystal Series AA-131 Parallel Blocks used for?
They are used for accurate workpiece alignment during milling, drilling, and grinding operations in workshops and industrial settings.
What material are these parallel blocks made of?
They are constructed from high-grade hardened steel for maximum durability and wear resistance.
Are they suitable for heavy-duty milling operations?
Yes, their robust design allows them to withstand high clamping forces typical in heavy-duty milling.
How do these blocks ensure accurate workpiece alignment?
They feature precision ground surfaces that guarantee flatness and parallelism for precise height setting.
Do they come with a protective finish against rust?
Yes, they have a protective finish that guards against rust, making them suitable for humid workshop environments.
Can these blocks be used for inspection tasks?
Absolutely, their high accuracy makes them ideal for various inspection and quality control procedures.
How should I maintain my parallel blocks?
Clean surfaces before use, store in dry conditions, and inspect regularly for any nicks or damage.
Are the surfaces precision ground?
Yes, all surfaces are precision ground to ensure exact dimensions and reliable repeatability.
What is the advantage of hardened steel construction?
Hardened steel resists wear and deformation over time, ensuring the blocks maintain their accuracy through repeated use.
Do you provide a GST invoice for these parallel blocks?
Yes, we provide a proper GST invoice for all B2B purchases, allowing you to claim input tax credit.
Who should choose the AA-1311 (100x10x5mm) parallel block?
Ideal for small-scale precision alignment and compact workshop setups requiring minimal height adjustment.
Who should choose the AA-1312 (150x20x10mm) parallel block?
Suitable for medium-sized milling and inspection tasks where standard dimensions are required.
Who should choose the AA-1313 (150x25x15mm) parallel block?
Perfect for users needing slightly more width and height for stable workpiece positioning compared to the AA-1312.
Who should choose the AA-1314 (200x35x20mm) parallel block?
Best for standard industrial machining operations requiring a versatile 200mm length.
Who should choose the AA-1315 (250x45x25mm) parallel block?
Ideal for providing robust support for larger workpieces during milling and grinding.
Who should choose the AA-1316 (250x60x30mm) parallel block?
Recommended for heavy-duty clamping tasks that demand high stability and a wider base.
Who should choose the AA-1317 (300x70x35mm) parallel block?
Suitable for extensive industrial alignment and inspection of large components.
Who should choose the AA-1318 (350x80x40mm) parallel block?
Perfect for large-scale machining setups requiring precise height and substantial support.
Who should choose the AA-1319 (400x100x50mm) parallel block?
Ideal for heavy industrial applications and supporting very large workpieces securely.
Who should choose the AA-1320 (450x100x50mm) parallel block?
The best choice for the most demanding milling operations requiring maximum stability and the largest dimensions.
What is the difference between AA-1312 and AA-1313 models?
While both are 150mm long, the AA-1313 is wider (25mm vs 20mm) and taller (15mm vs 10mm), offering more stability for certain setups.
How does the size affect the application of these parallel blocks?
Smaller blocks are for compact, intricate work, while larger blocks provide the necessary support and height for heavy, large-scale industrial machining.
Which parallel block is best for large-scale industrial milling?
Models AA-1318 through AA-1320 (350mm to 450mm lengths) are best suited for large-scale industrial milling due to their massive size and stability.
