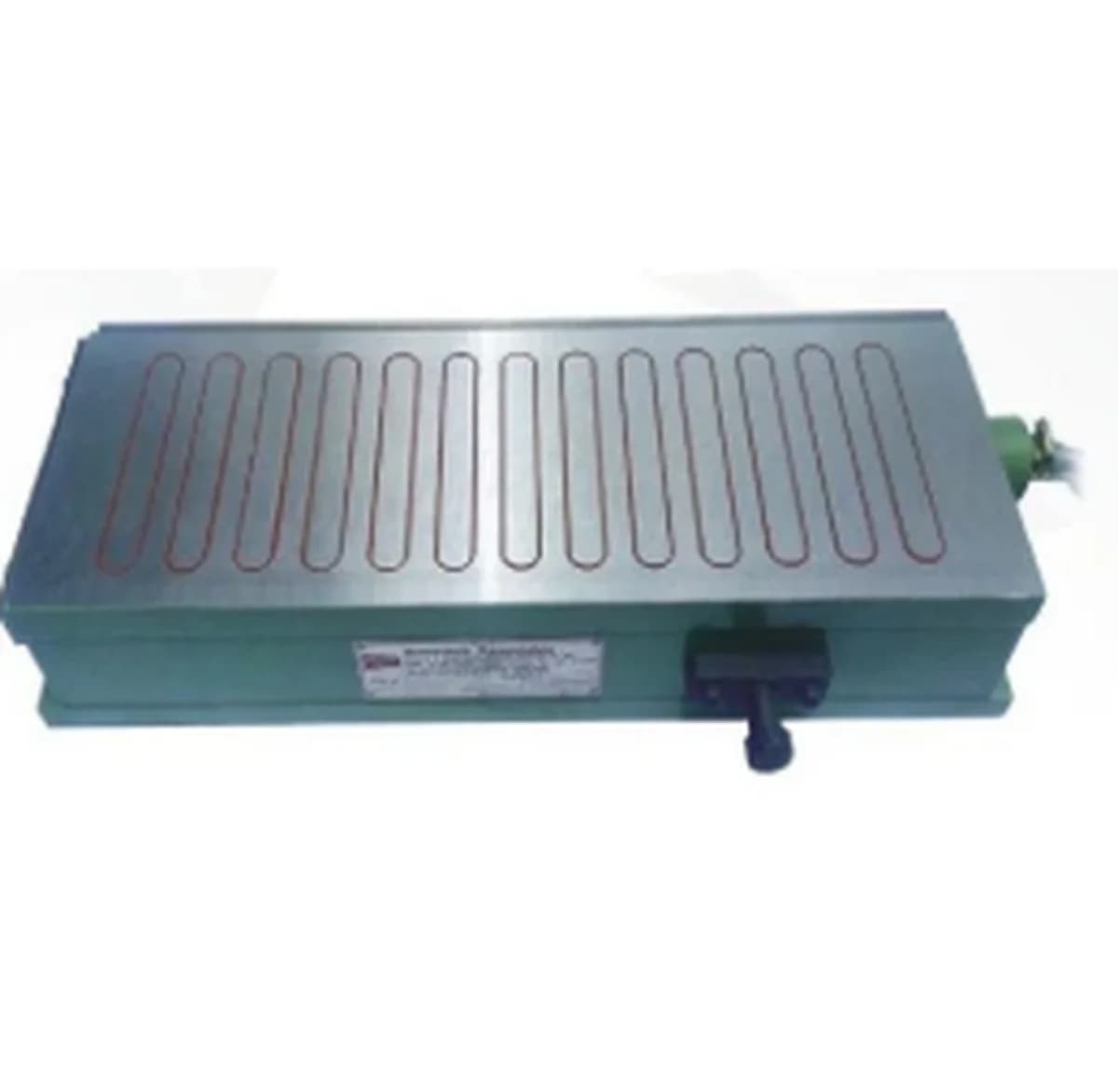

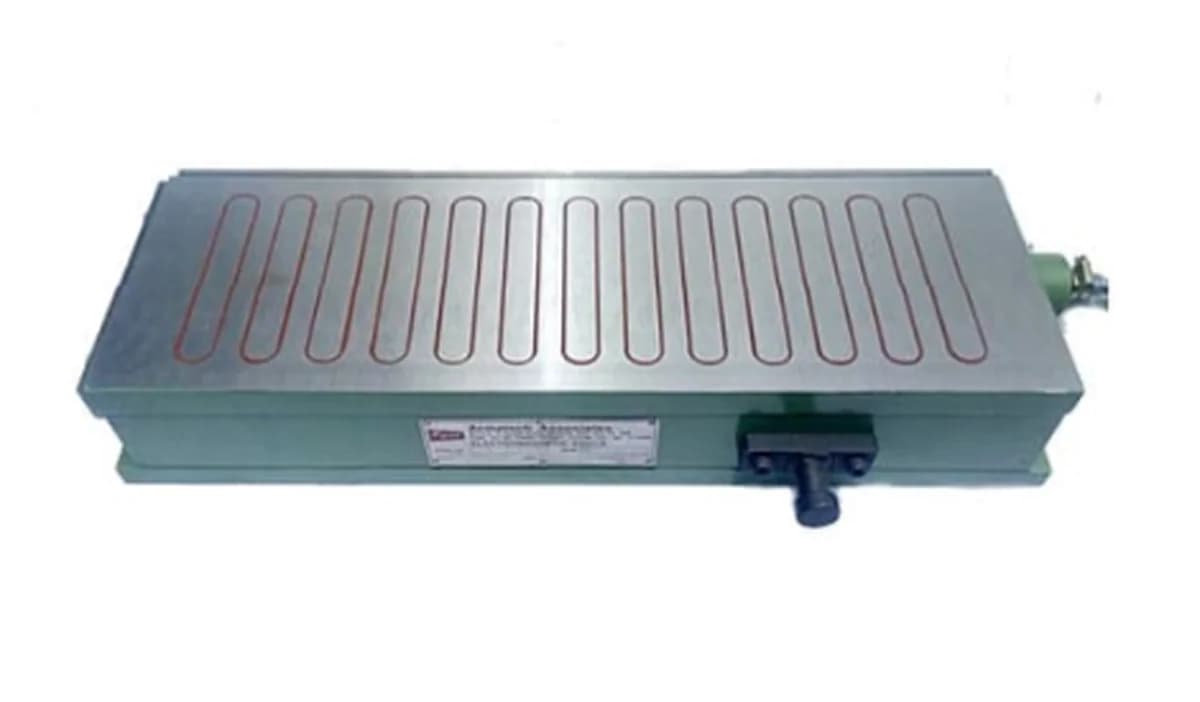

Crystal Heavy Duty Multicoil Electromagnetic Chuck for Industrial Use AA-30301
Secure workholding for precision machining with this multicoil electromagnetic chuck. Includes 110 V DC power supply for stable magnetization. • Series AA-303 model AA-30301 features 450 X 150 X 100 dimensions • 40 mm pitch with 15 mm pole gap • Variable control unit for flux adjustment • Optimized for compact setups
Specifications
For: AA-30301- Brand
- Crystal
- Series
- AA-303
- Pole Gap
- 15
- Size (mm)
- 450 X 150 X 100
- Pitch
- 40
Configurations
Click a row to switch| Variant | Pitch | Size (mm) | Series | Price |
|---|---|---|---|---|
| AA-30301 | 40 | 450 X 150 X 100 | AA-303 | ₹26,284 |
| AA-30302 | 40 | 500 X 200 X 100 | AA-303 | ₹31,243 |
| AA-30303 | 40 | 600 X 200 X 100 | AA-303 | ₹35,668 |
| AA-30304 | 40 | 600 X 250 X 100 | AA-303 | ₹44,040 |
| AA-30305 | 40 | 750 X 250 X 100 | AA-303 | ₹64,952 |
| AA-30306 | 40 | 900 X 250 X 100 | AA-303 | ₹70,693 |
| AA-30307 | 40 | 600 X 300 X 100 | AA-303 | ₹50,563 |
| AA-30308 | 40 | 750 X 300 X 100 | AA-303 | ₹70,987 |
| AA-30309 | 40 | 900 X 300 X 100 | AA-303 | ₹75,661 |
| AA-30310 | 40 | 1000 X 250 X 110 | AA-303 | ₹75,274 |
| AA-30311 | 40 | 1000 X 300 X 110 | AA-303 | ₹88,651 |
| AA-30312 | 40 | 1500 X 250 X 110 | AA-303 | ₹1,00,786 |
| AA-30313 | 40 | 1500 X 300 X 110 | AA-303 | ₹1,25,534 |
| AA-30314 | 40 | 1500 X 400 X 110 | AA-303 | ₹1,52,085 |
Durability & Reliability
- Built to withstand demanding industrial workshop environments
- Hardened steel construction resists wear and deformation
- Provides stable mounting for heavy workpieces during processing
- Maintains structural integrity under continuous magnetic load
- Reduces downtime through reliable long-term performance
Precision Applications
- Ideal for accurate positioning during milling and grinding tasks
- Essential for assembly tasks requiring stable workholding
- Serves as essential machine accessories for workshop environments
- Supports varied load requirements in industrial settings
- Enhances workflow efficiency in precision machining operations
Power & Control System
- Features DC Power Supply Unit for consistent magnetic output
- Supports both Magnetization and Demagnetization functions
- Equipped with Switch & Variable Control Unit for operation
- Ensures reliable power delivery for heavy duty applications
- Designed for seamless integration with workshop power systems
Key Features & Construction
- Manufactured from hardened steel for long-term durability
- Available in multiple standard dimensions for varied load requirements
- Compatible with most industrial fixture systems
- Engineered for precise alignment and stability in machine setups
- Optimized for use in precision machining and industrial fixturing
Frequently asked
Is this chuck compatible with standard machine tables?
Yes, it is compatible with most industrial fixture systems.
How is the magnetic force controlled?
It uses a Switch & Variable Control Unit for adjustment.
What power supply is required?
It operates with a DC Power Supply Unit for magnetization.
More questions buyers ask
What is a multicoil electromagnetic chuck?
A multicoil electromagnetic chuck is an industrial workholding device that uses multiple electromagnetic coils to securely hold ferrous workpieces for precision grinding and milling.
What are the key benefits of Crystal electromagnetic chucks?
Crystal chucks offer superior holding power, consistent magnetic force, durability, and precision, making them ideal for heavy-duty industrial machining.
How do I control the magnetic force?
These chucks are operated via a dedicated DC power supply unit with a switch and variable control unit for precise magnetization and demagnetization.
Are these chucks suitable for heavy-duty grinding?
Yes, they are specifically engineered for heavy-duty grinding and milling applications, providing stable mounting for large workpieces.
What material is used in the construction?
They are manufactured from high-grade hardened steel to ensure long-term durability and resistance to wear in workshop environments.
Do these chucks require a specific power supply?
Yes, they require a compatible DC power supply unit to function correctly, which is typically integrated into the workshop's electrical setup.
Can I use these for milling operations?
Yes, they are highly effective for milling, grinding, and other precision machining tasks requiring stable workholding.
What is the advantage of the multicoil design?
The multicoil design ensures uniform magnetic flux distribution across the entire surface, providing consistent holding power for various workpiece sizes.
How do I choose the right size?
Select a size based on your machine table dimensions and the typical size of the workpieces you process. We offer sizes ranging from 450mm to 1500mm.
Is GST invoice provided?
Yes, all purchases include a valid GST invoice for your accounting and tax requirements.
Do you offer pan-India delivery?
Yes, we provide reliable pan-India delivery for all industrial equipment and accessories.
What is the warranty on these chucks?
Crystal products are known for quality; please check the specific warranty terms provided with your purchase documentation.
Who should choose the 450x150mm model?
This is ideal for small-to-medium precision grinding tasks where space is limited but high holding force is required.
Who should choose the 1500x400mm model?
This is designed for large-scale industrial machining and heavy-duty workpieces that require maximum surface area and magnetic stability.
How does the 450mm model compare to the 1500mm model?
The 450mm model is compact and suited for smaller machines, while the 1500mm model is a heavy-duty solution for large-scale industrial production.
Are these chucks better than permanent magnetic chucks?
Electromagnetic chucks offer adjustable holding force and easier workpiece release, which is often preferred for heavy-duty and automated industrial processes.
