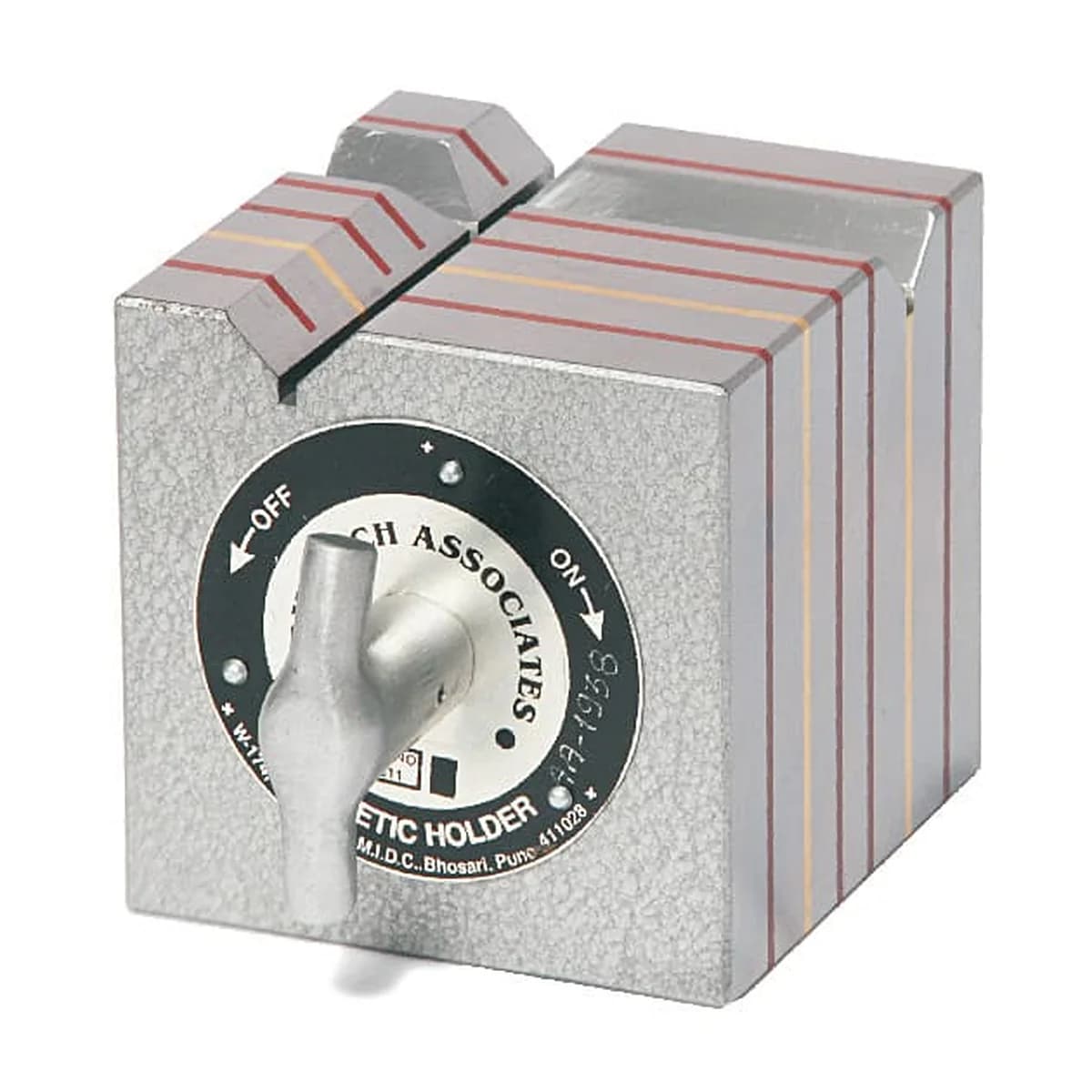

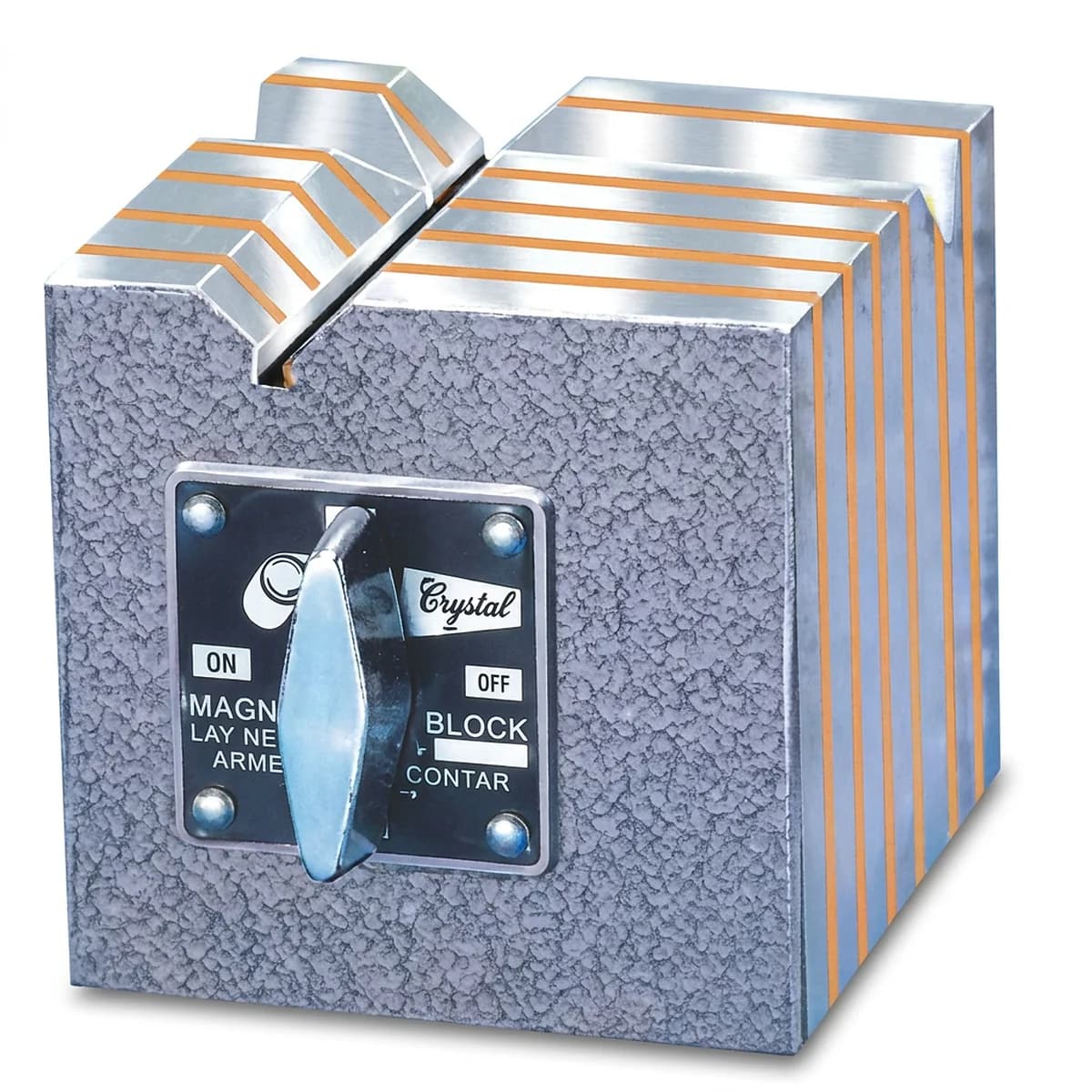

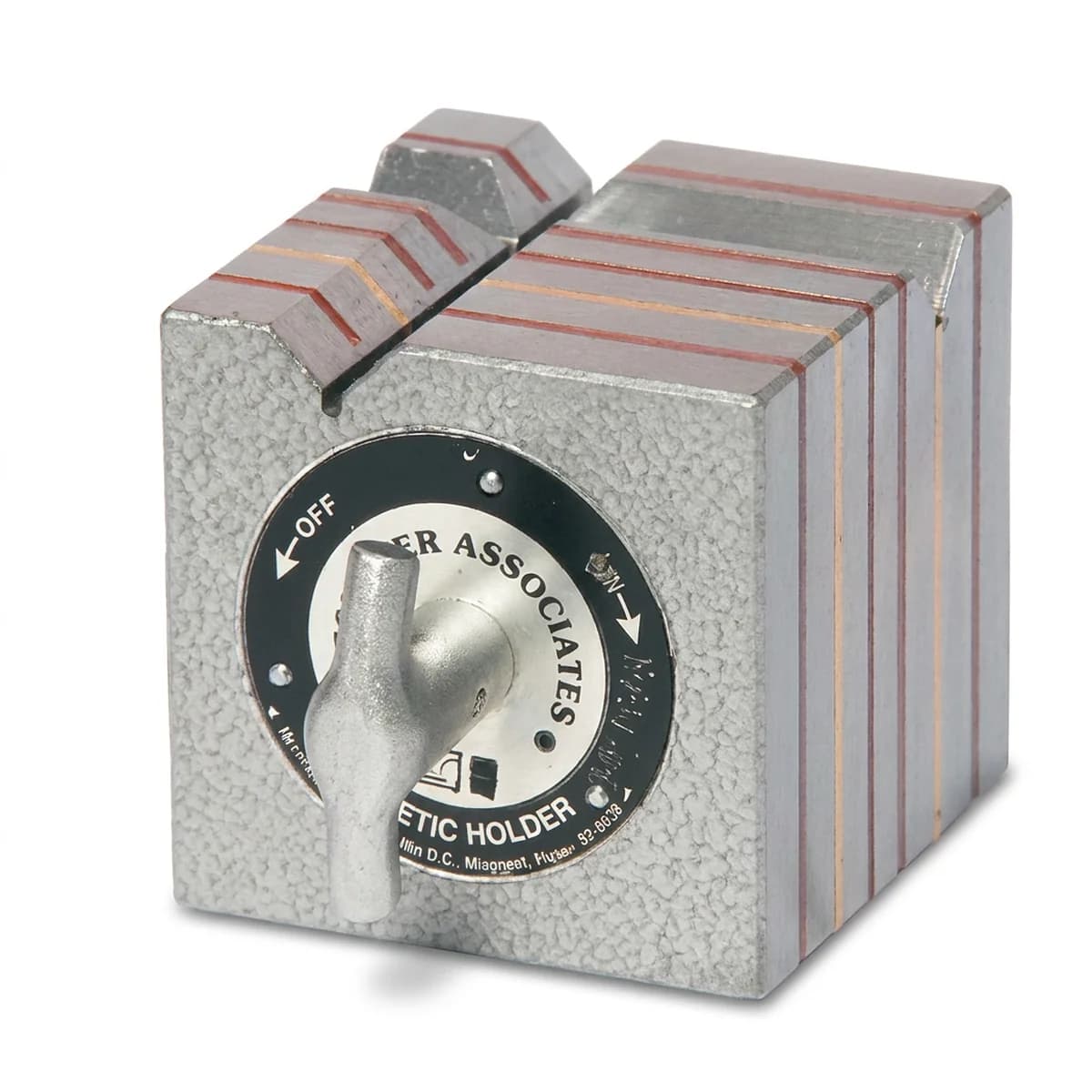

Crystal Magnetic V Block With Two Vee AA-1938
The Crystal Magnetic V Block With Two Vee secures cylindrical workpieces with precision during machining or inspection tasks. This AA-193 series unit utilizes 75 Kg magnetic retention to hold parts without manual clamping pressure. • Series AA-193 with ± 0.005 mm accuracy • Compact 100 x 100 x 100 dimensions • Three magnetic surfaces for versatile mounting
Specifications
For: AA-1938- Series
- AA-193
- Magnetic Pull
- 75 Kg
- Magnetic Surfaces
- 3
- Accuracy
- ± 0.005 mm
- Size
- 100 x 100 x 100
- Width of 'V'
- 20 mm
Configurations
Click a row to switch| Variant | Size | Magnetic Pull | Price |
|---|---|---|---|
| AA-1938 | 100 x 100 x 100 | 75 Kg | ₹15,312 |
| AA-1939 | 150 x 150 x 150 | 75 Kg | ₹20,982 |
Common Buyer Questions
Q: Can I hold multiple round parts at once? A: Yes, the dual-vee design holds two cylindrical components simultaneously. Q: How do I turn the magnet on and off? A: Use the manual rotary switch control for easy ON/OFF activation. Q: What accuracy can I expect from this series? A: The AA-193 series maintains a standard accuracy of ± 0.005 mm.
Operational Efficiency and Control
- Quick magnetic engagement reduces non-cutting time
- Manual switch prevents accidental activation during transport
- Smooth rotary mechanism ensures reliable long-term operation
- Easy to clean surfaces maintain magnetic strength over time
- Compatible with standard vises and clamping accessories
- Enhances workflow by freeing up hands during setup
Configuration and Size Options
- Sizes range from 100 x 100 x 100 mm – 150 x 150 x 150 mm
- Available in 4" Square Block – 6" Square Block variations
- Precision V slots machined on multiple faces for flexibility
- Consistent build quality across all size variations
- Compact square design fits standard machine tool tables
- Robust construction withstands heavy industrial workshop use
Versatile Industrial Applications
- Ideal for clamping round workpieces in different orientations
- Supports simultaneous holding of two cylindrical components
- Provides multi-face square reference for layout and scribing
- Essential tool for high-accuracy metrology inspection tasks
- Suitable for machining operations requiring precise alignment
- Reduces setup time by securing parts in multiple positions
Series AA-193 Performance Highlights
- Series AA-193 features precision accuracy of ± 0.005 mm
- Provides strong magnetic pull up to 75 Kg for secure holding
- Equipped with 3 magnetic surfaces for versatile workholding
- Manual rotary switch control enables easy ON/OFF activation
- Dual-vee design allows simultaneous holding of two parts
- Square outer body profile ensures stable mounting on tables
More questions buyers ask
What is a Magnetic V Block used for?
Used for holding cylindrical workpieces securely during precision machining, grinding, and inspection.
What are the key features of the Crystal Magnetic V Block?
It features two Vee grooves, high magnetic pull, and precision ground surfaces for accuracy.
How many magnetic surfaces does this V Block have?
It typically has three magnetic surfaces: top, bottom, and the end surface opposite the switch.
What is the accuracy of the Crystal Magnetic V Block?
The accuracy for flatness, parallelism, and squareness is highly precise, suitable for quality control and tool rooms.
Can it be used for wet grinding?
Yes, it can be used for both wet and dry grinding, as well as light milling and drilling.
What material is the V Block made of?
It is manufactured from hardened tool steel for durability and longevity.
How do I activate the magnet?
The magnet is activated by turning the switch to the "ON" position, which activates all magnetic surfaces simultaneously.
Is it suitable for industrial applications?
Yes, it is designed for robust industrial environments and precision machining tasks.
How should I maintain the Magnetic V Block?
Keep magnetic surfaces clean, store in dry conditions, wipe with oil before long-term storage, and avoid dropping.
Does it come with a warranty?
Please check the specific warranty terms provided by the seller or manufacturer at the time of purchase.
Who should choose the AA-1938 (100 x 100 x 100) variant?
Ideal for users needing a compact V block for smaller cylindrical workpieces and tighter workspaces.
Who should choose the AA-1939 (150 x 150 x 150) variant?
Best suited for larger workpieces requiring a more substantial holding capacity and stability.
What is the main difference between the AA-1938 and AA-1939 variants?
The primary difference is the size; AA-1938 is 100x100x100 mm, while AA-1939 is 150x150x150 mm.
Which variant offers better stability for large parts?
The AA-1939 variant provides better stability for larger parts due to its increased dimensions and weight.
Are both variants suitable for the same applications?
Yes, both are used for precision machining and inspection, but the choice depends on the size of the workpiece being handled.
