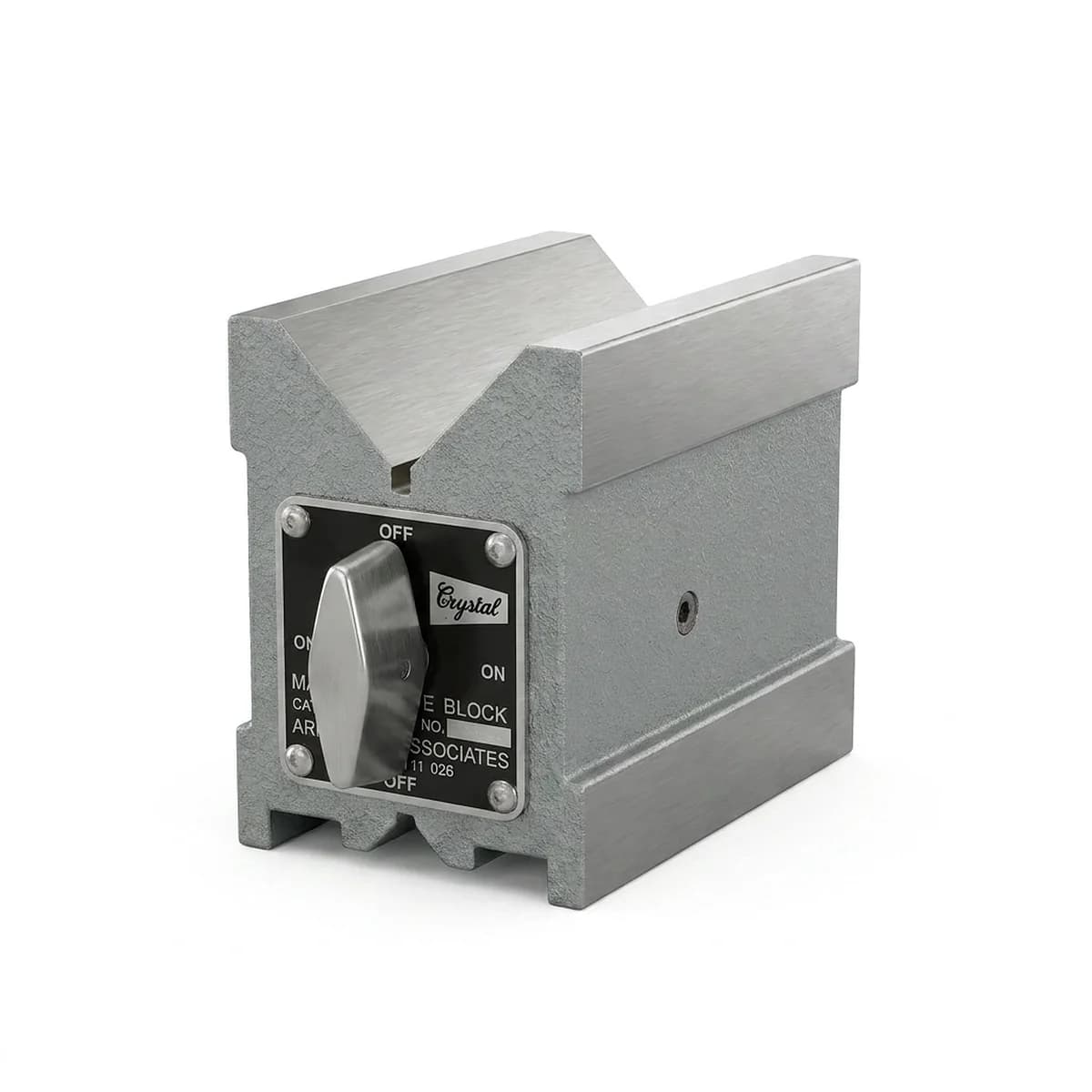

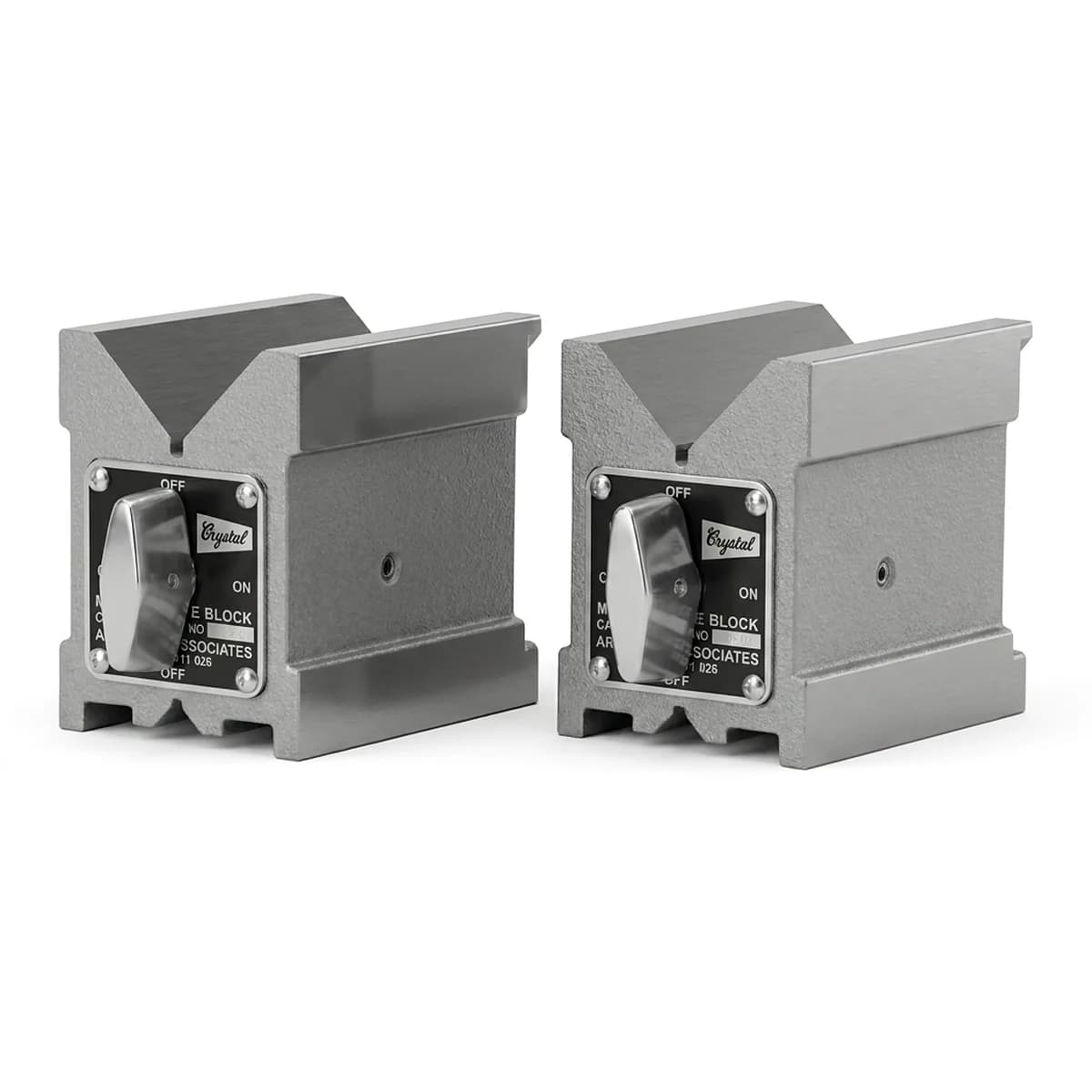

Crystal Magnetic V Block Set — AA-1803 H
Specifications
For: AA-1803 H- Series
- AA-180
- Accuracy (Flatness, Squarness, Parallelism)
- 0.005 mm (for 2", 3", 4", 6" blocks) and 0.010 mm (for 8" blocks)
- Standard 'V' Angle
- 90°
- Optional 'V' Angles
- 60°, 108°, 120°
- Hardness
- 58 HRC ± 2 HRC
- Size
- 40 × 40 × 50 mm
- Material
- Hardened Steel with HSS Blades
- Brand
- Crystal
- Clamping Range (Ø D)
- 3-25 mm
- Magnetic Pull Capacity (Kg)
- 25
Configurations

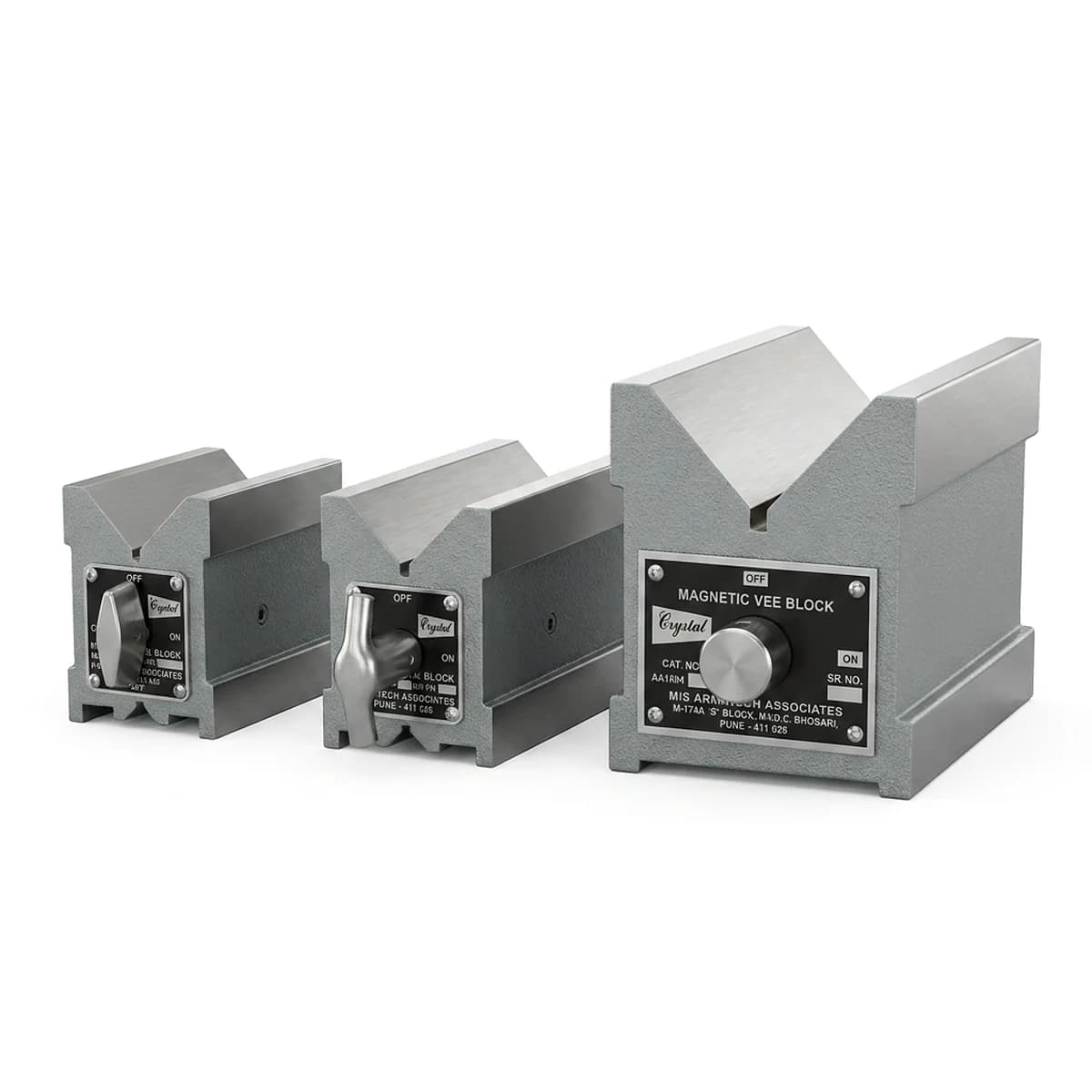

Click a row to switch| Variant | Size | Clamping Range (Ø D) | Magnetic Pull Capacity (Kg) | Price |
|---|---|---|---|---|
| AA-1803 H | 40 × 40 × 50 mm | 3-25 mm | 25 | ₹4,260 |
| AA-1802 H | 75 x 56 x 75 mm | 5–40 mm | 75 | ₹8,222 |
| AA-1801 H | 100 x 70 x 95 mm | 5–65 mm | 100 | ₹13,372 |
| AA-1805 H | 150 x 75 x 100 mm | 5–70 mm | 125 | ₹22,393 |
| AA-1806 H | 200 x 125 x 150 mm | 10–140 mm | 175 | ₹37,603 |
| AA-1803 S | 40 x 40 x 50 mm | 3-25 mm | 30 | ₹3,443 |
| AA-1802 S | 75 x 56 x 75 mm | 5–40 mm | 80 | ₹6,867 |
| AA-1801 S | 100 x 70 x 95 mm | 5–65 mm | 125 | ₹10,245 |
| AA-1805 S | 150 x 75 x 100 mm | 5–70 mm | 150 | ₹19,293 |
| AA-1806 S | 200 x 125 x 150 mm | 10–140 mm | 200 | ₹33,668 |
| AA-1807 H | 110 x 55 x 75 mm | 5–65 mm | 50 | ₹14,802 |
| AA-1808 H | 150 x 65 x 100 mm | 5–75 mm | 75 | ₹20,620 |
| AA-1807 S | 110 x 55 x 75 mm | 5–65 mm | 50 | ₹10,848 |
| AA-1808 S | 150 x 65 x 100 mm | 5–75 mm | 75 | ₹18,040 |
Construction & Durability
- Manufactured from hardened tool steel for long life
- Ground surfaces ensure flatness and squareness
- Protective coating resists rust and corrosion in workshops
- V-groove design accommodates round and irregular shapes
- Maintains magnetic strength over extended usage periods
Industrial Applications
- Ideal for precision grinding and milling operations
- Supports workshop inspection and layout tasks
- Facilitates accurate angle setting for bevel cutting
- Suitable for jig and fixture alignment in assembly lines
- Used in quality control departments for part verification
Magnetic Holding Mechanism
- Utilizes powerful permanent magnets for hands-free operation
- Allows quick release of workpieces without tools
- Provides consistent holding force across the V-groove surface
- Prevents slippage during high-vibration grinding processes
- Ensures stable alignment for accurate dimensional measurement
Product Highlights & Series Info
- Product name: Magnetic V Block Set
- Series AA-180 ensures standardized identification
- Accuracy tolerance of ±5 microns guarantees high precision
- Dimensions available include 40 × 40 × 50 mm
- Supports secure clamping for various workpiece shapes
Frequently asked
Can these blocks hold heavy cylindrical parts?
Yes, the magnetic force is designed to secure standard industrial workpieces securely.
How do I demagnetize the workpiece after use?
Use a demagnetizer tool or follow specific removal procedures to avoid residual magnetism.
Are these blocks compatible with standard machine tables?
Yes, the flat base allows secure mounting on most magnetic or T-slot work tables.
More questions buyers ask
What is the Crystal Magnetic V Block Set used for?
It is ideal for precision grinding, milling operations, workshop inspection, layout tasks, and accurate angle setting for bevel cutting.
What is the accuracy of the Crystal Magnetic V Block?
These V blocks offer an accuracy of ±5 microns for flatness, parallelism, and squareness.
What material is used to manufacture these V blocks?
They are manufactured from hardened tool steel for long life and durability in industrial environments.
How does the magnetic holding mechanism work?
It utilizes powerful permanent magnets for hands-free operation, providing consistent holding force across the V-groove surface.
Can these blocks hold heavy cylindrical parts?
Yes, the magnetic force is designed to secure standard industrial workpieces securely, preventing slippage during high-vibration grinding processes.
Are the magnetic surfaces activated simultaneously?
Yes, when turned 'ON', all three magnetic surfaces (top, bottom, and end surface) are activated simultaneously.
What are the typical applications of these V blocks?
They are widely used in quality control departments for part verification, jig and fixture alignment in assembly lines, and tool room applications.
Do these V blocks come with a protective coating?
Yes, they feature a protective coating that resists rust and corrosion in workshops.
How do I demagnetize the workpiece after use?
Use a demagnetizer tool or follow specific removal procedures to avoid residual magnetism on the workpiece.
Are these V blocks suitable for high-vibration grinding processes?
Yes, the powerful magnetic pull prevents slippage even during high-vibration grinding and light milling work.
Who should choose the AA-1803 H (40x40x50 mm) variant?
This compact hardened variant is perfect for small-scale precision machining and inspection of miniature cylindrical parts.
Who should choose the AA-1802 H (75x56x75 mm) variant?
Ideal for medium-sized workpieces requiring hardened surfaces for extended durability in tool rooms.
Who should choose the AA-1801 H (100x70x95 mm) variant?
A versatile choice for standard industrial applications needing robust holding power and hardened wear resistance.
Who should choose the AA-1805 H (150x75x100 mm) variant?
Best suited for larger workpieces in heavy-duty grinding and milling operations where hardened surfaces are essential.
Who should choose the AA-1806 H (200x125x150 mm) variant?
The largest hardened variant, designed for securing heavy and oversized cylindrical parts in demanding industrial setups.
Who should choose the AA-1803 S (40x40x50 mm) variant?
A cost-effective, standard surface option for small parts inspection and light machining tasks.
Who should choose the AA-1802 S (75x56x75 mm) variant?
Suitable for general-purpose workshop applications involving medium-sized components without the need for hardened surfaces.
Who should choose the AA-1801 S (100x70x95 mm) variant?
Great for standard quality control and layout tasks requiring reliable magnetic hold on standard-sized parts.
Who should choose the AA-1805 S (150x75x100 mm) variant?
Ideal for handling larger workpieces in standard machining environments where extreme wear resistance is not the primary concern.
Who should choose the AA-1806 S (200x125x150 mm) variant?
The go-to standard surface option for large-scale industrial applications requiring substantial magnetic holding force.
Who should choose the AA-1807 H (110x55x75 mm) variant?
Perfect for specialized applications requiring a specific 110mm length with the added durability of hardened surfaces.
Who should choose the AA-1808 H (150x65x100 mm) variant?
Designed for tasks needing a 150mm length with a narrower profile and hardened surfaces for extended life.
Who should choose the AA-1807 S (110x55x75 mm) variant?
A standard surface alternative for 110mm length requirements in general workshop and inspection duties.
Who should choose the AA-1808 S (150x65x100 mm) variant?
Suitable for standard applications requiring a 150mm length and narrower profile without the premium of hardened surfaces.
What is the difference between the 'H' and 'S' series of Crystal Magnetic V Blocks?
The 'H' series features hardened holding surfaces and 'V' angles for extra wear resistance, while the 'S' series offers standard surfaces for general applications.
How does the size of the V block affect its holding capacity?
Larger V blocks provide a greater surface area and stronger magnetic pull, allowing them to securely hold heavier and larger cylindrical workpieces.
Which Crystal Magnetic V Block is best for heavy-duty milling work?
The larger 'H' series variants, such as the AA-1805 H or AA-1806 H, are best for heavy-duty milling due to their strong magnetic pull and hardened, wear-resistant surfaces.
