Crystal Magnetic Carbide V Block Set AA-1802 C

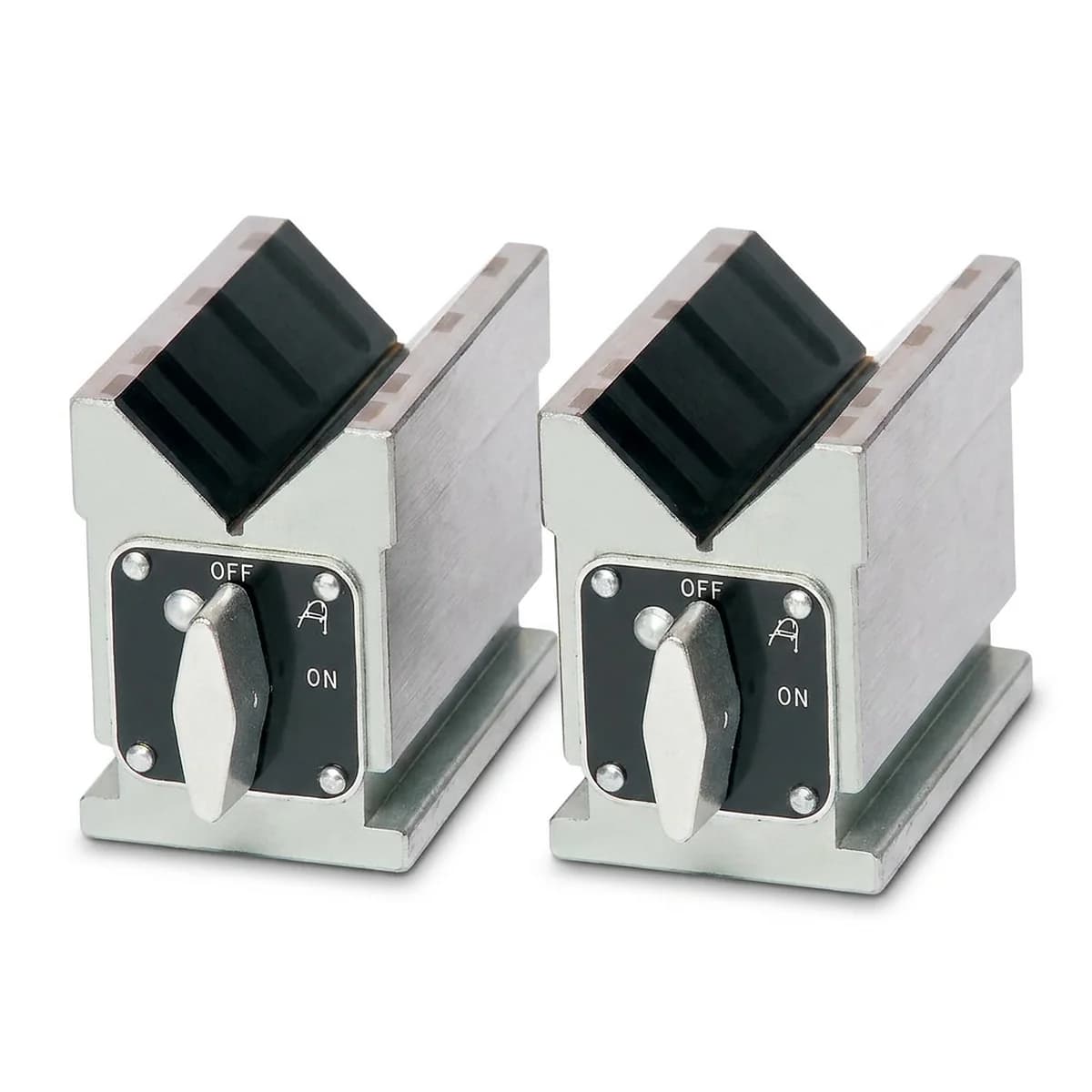

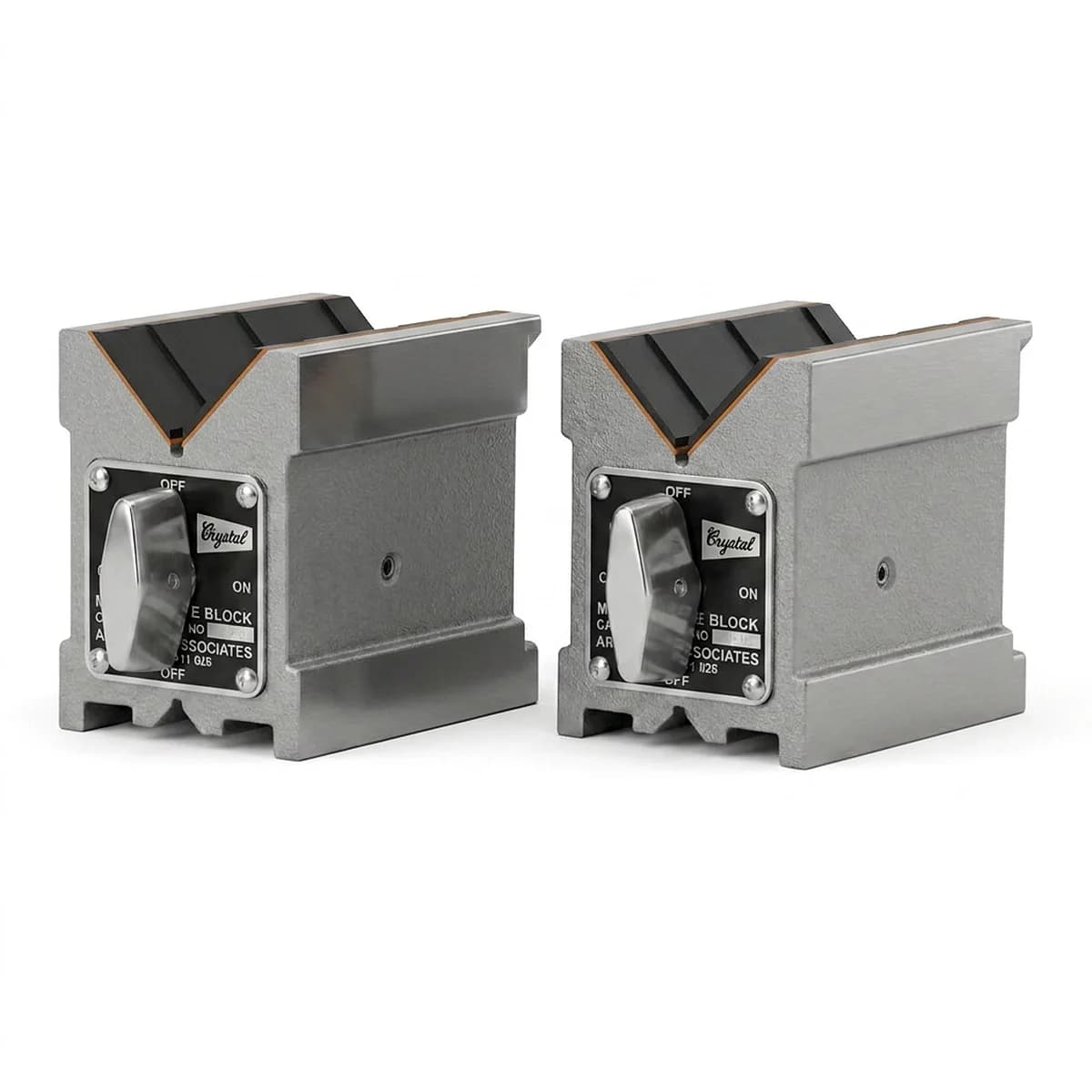

Crystal Magnetic Carbide V Block Set provides secure holding for cylindrical workpieces during precision machining operations. This AA-1802 C model features a compact design suitable for smaller components. • Clamping Range (Ø D): 5-40 mm • Pull Capacity: 75 Kg • 6 H.S.S. Hardened Strips with integrated Carbide Blades • Size: 75 x 56 x 75 mm
Specifications
For: AA-1802 C- Series
- AA-180
- Pull Capacity
- 75 Kg
- No Of Carbide Strips
- 6
- Size
- 75 x 56 x 75 mm
- Material
- H.S.S. Hardened Strips with integrated Carbide Blades
- Brand
- Crystal
- Clamping Range (Ø D)
- 5-40 mm
Configurations
Click a row to switch| Variant | Size | Pull Capacity | Clamping Range (Ø D) | No Of Carbide Strips | Price |
|---|---|---|---|---|---|
| AA-1802 C | 75 x 56 x 75 mm | 75 Kg | 5-40 mm | 6 | ₹14,282 |
| AA-1801 C | 100 x 70 x 95 mm | 100 Kg | 5–65 mm | 8 | ₹23,237 |
| AA-1805 C | 150 x 75 x 100 mm | 175 Kg | 5–70 mm | 10 | ₹38,920 |
Operational Efficiency
- Quick magnetic engagement reduces setup time compared to mechanical clamps
- Reusable without damaging the workpiece surface for multiple setups
- Simplifies workflow for engineers performing repetitive layout tasks
- Compatible with various cylindrical diameters within the specified size range
- Enhances productivity by minimizing downtime for tool changes or adjustments
Durability & Material Quality
- Integrated carbide blades ensure long-term durability against abrasive materials
- Hardened construction maintains geometric stability under heavy clamping forces
- Resists corrosion and degradation common in industrial shop floor environments
- Designed to withstand repeated use without losing magnetic strength or alignment
- Crystal brand reputation ensures consistent quality across the AA series
Precision Applications
- Securely hold hard, abrasive, or heavy cylindrical workpieces during machining
- Ideal for high-precision grinding operations where surface protection is critical
- Provides rigid clamping for long-run inspection and metrology tasks
- Supports layout work requiring sustained accuracy and scratch resistance
- Suitable for holding parts without wearing down the block faces over time
Key Features & Construction
- H.S.S. hardened strips with integrated carbide blades for maximum wear resistance
- Configuration includes 6 carbide strips for balanced support and stability
- High-precision accuracy maintained within ± 5 microns for squareness and flatness
- Manual rotary switch control allows instant ON/OFF magnetic activation
- Available in sizes from 75 x 56 x 75 mm (3\") – 150 x 75 x 100 mm (6\")
- Series AA-180 design ensures consistent performance across the product line
