Crystal Magnetic Bases for Industrial & Workshop Use AA-1600
Crystal magnetic bases secure workpieces and align machinery with high-hold strength for industrial precision. These fixtures provide stable positioning for various machining tasks. • Heavy-duty steel construction ensures durability • Compatible with standard tooling posts • Size 60 x 50 x 60 mm fits standard setups • Reliable performance for alignment and welding
Specifications
For: AA-1600- Brand
- Crystal
- Series
- AA-160
- Size
- 60 x 50 x 60 mm
Configurations
Click a row to switch| Variant | Series | Size | Price |
|---|---|---|---|

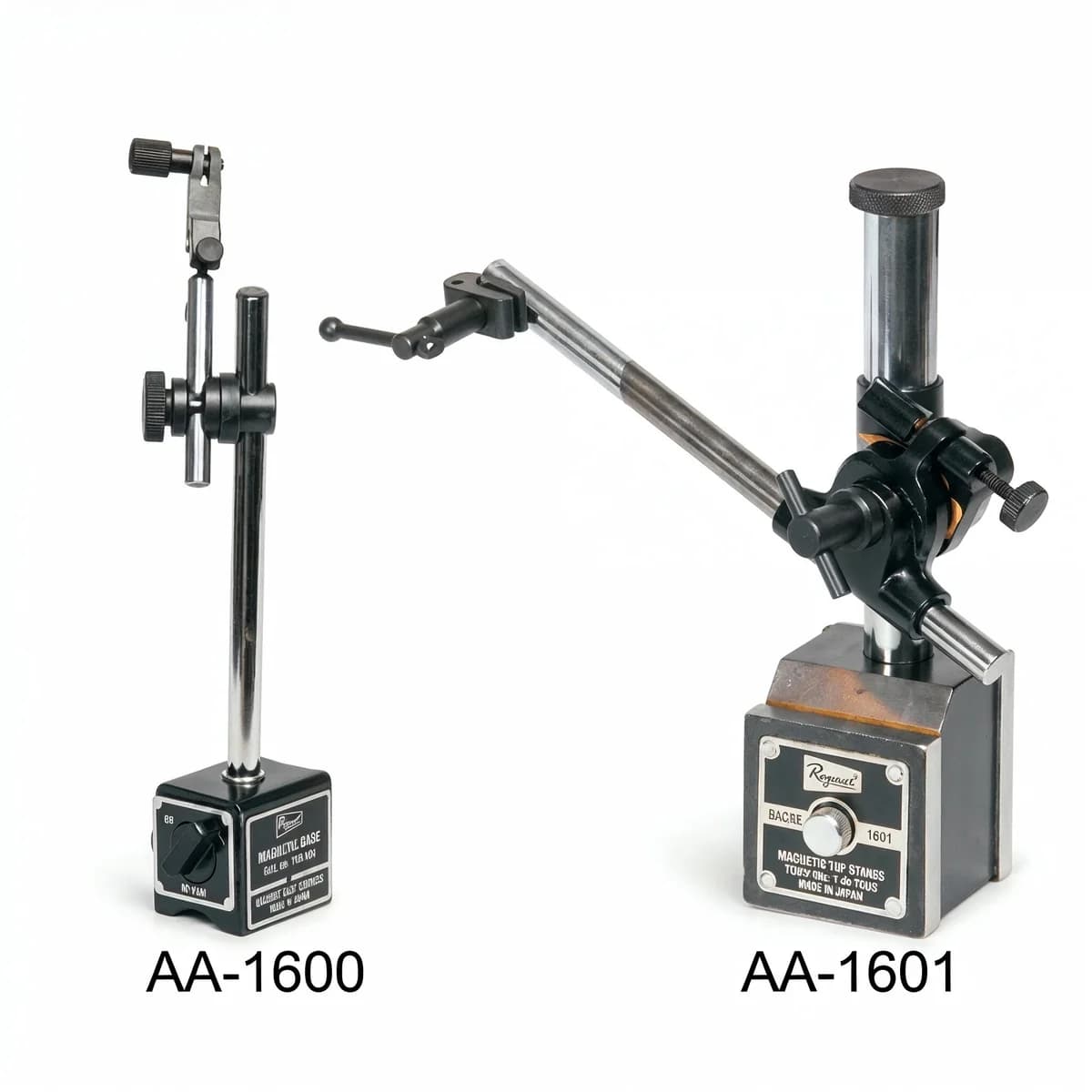

| AA-1600 | AA-160 | 60 x 50 x 60 mm | ₹1,748 |
| AA-1601 | AA-160 | 63 x 63 x 75 mm | ₹4,775 |

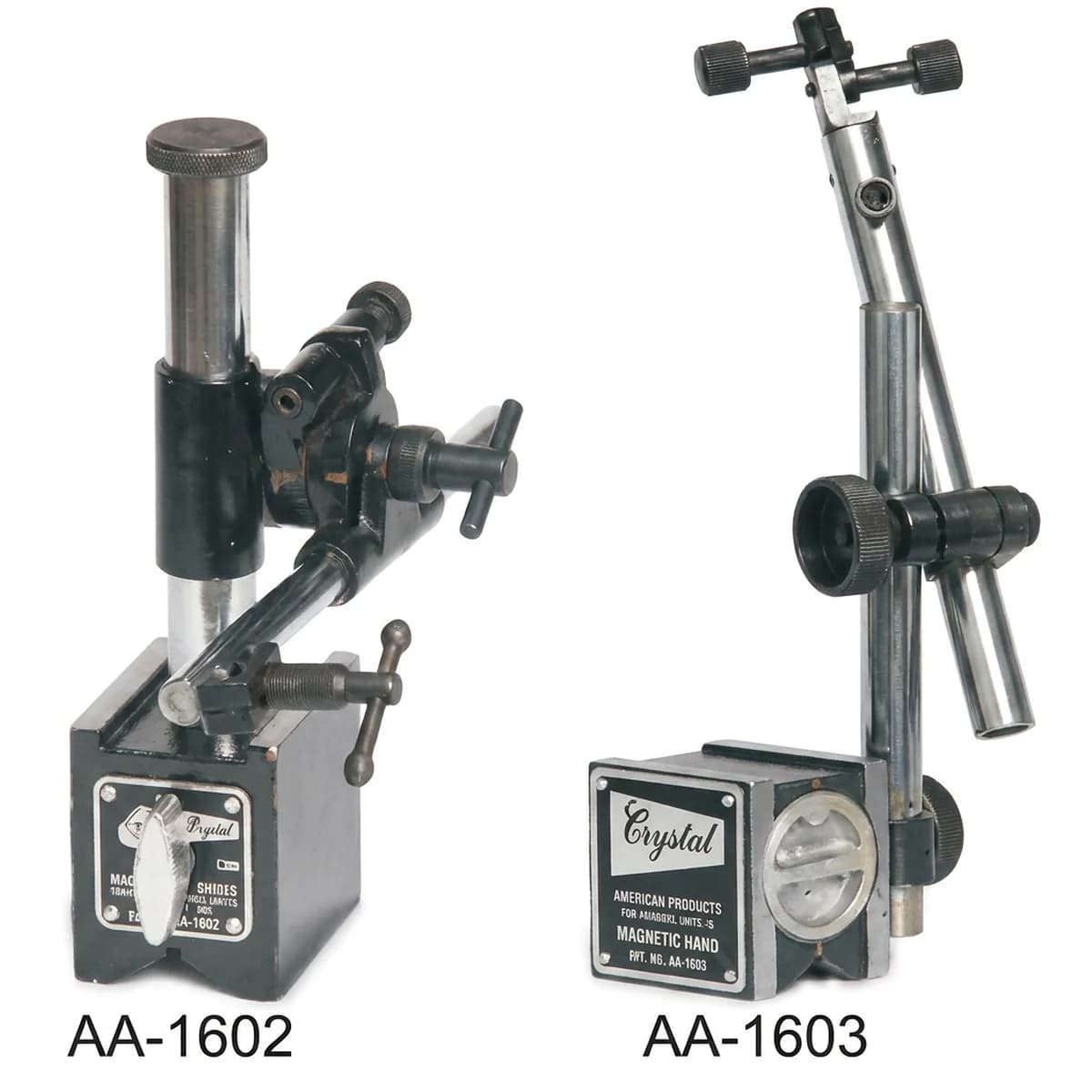

| AA-1602 | AA-160 | 70 x 56 x 70 mm | ₹4,775 |
| AA-1603 | AA-160 | 65 x 56 x 70 mm | ₹4,775 |

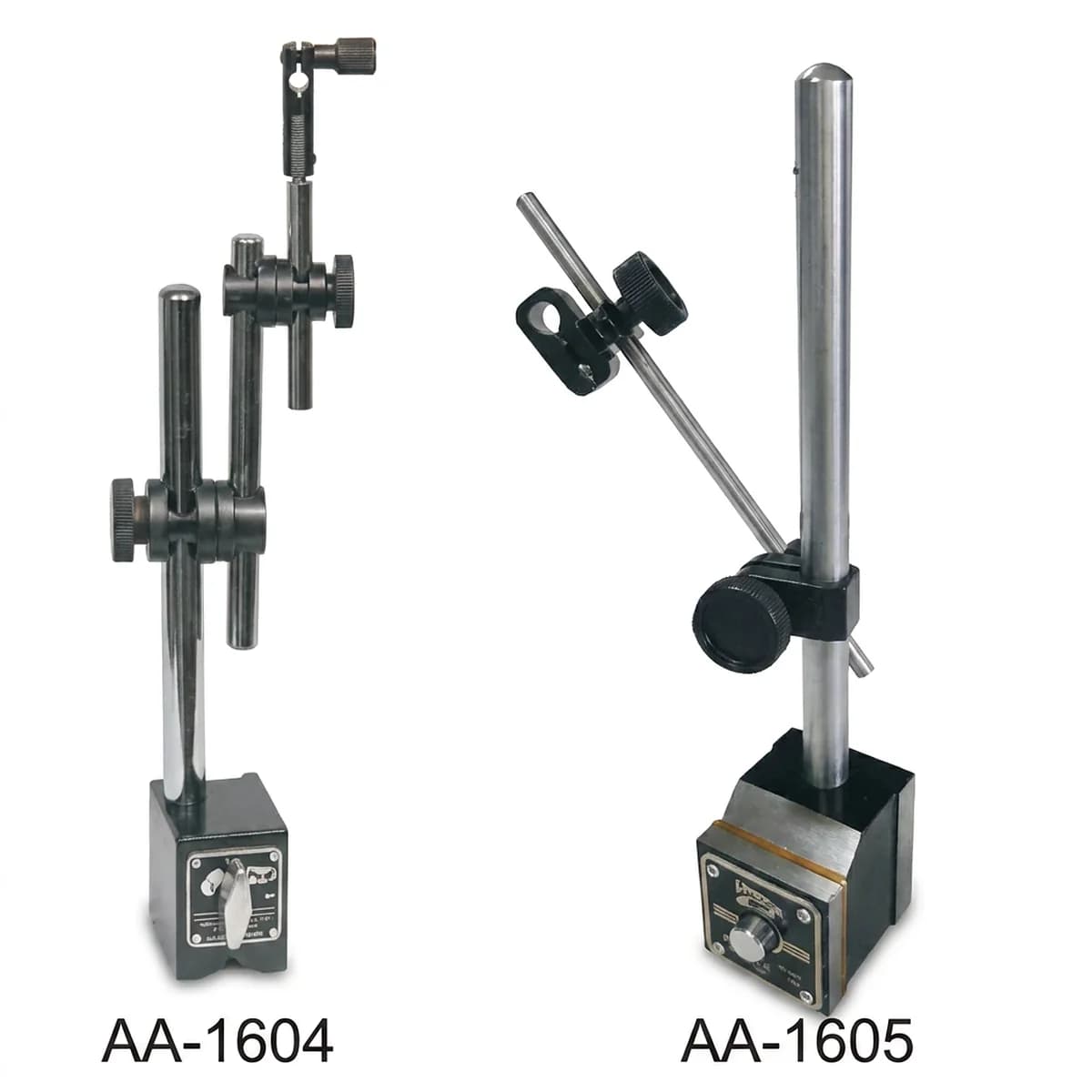

| AA-1604 | AA-160 | 70 x 48 x 64 mm | ₹3,726 |
| AA-1605 | AA-160 | 48 x 42 x 49 mm | ₹1,113 |

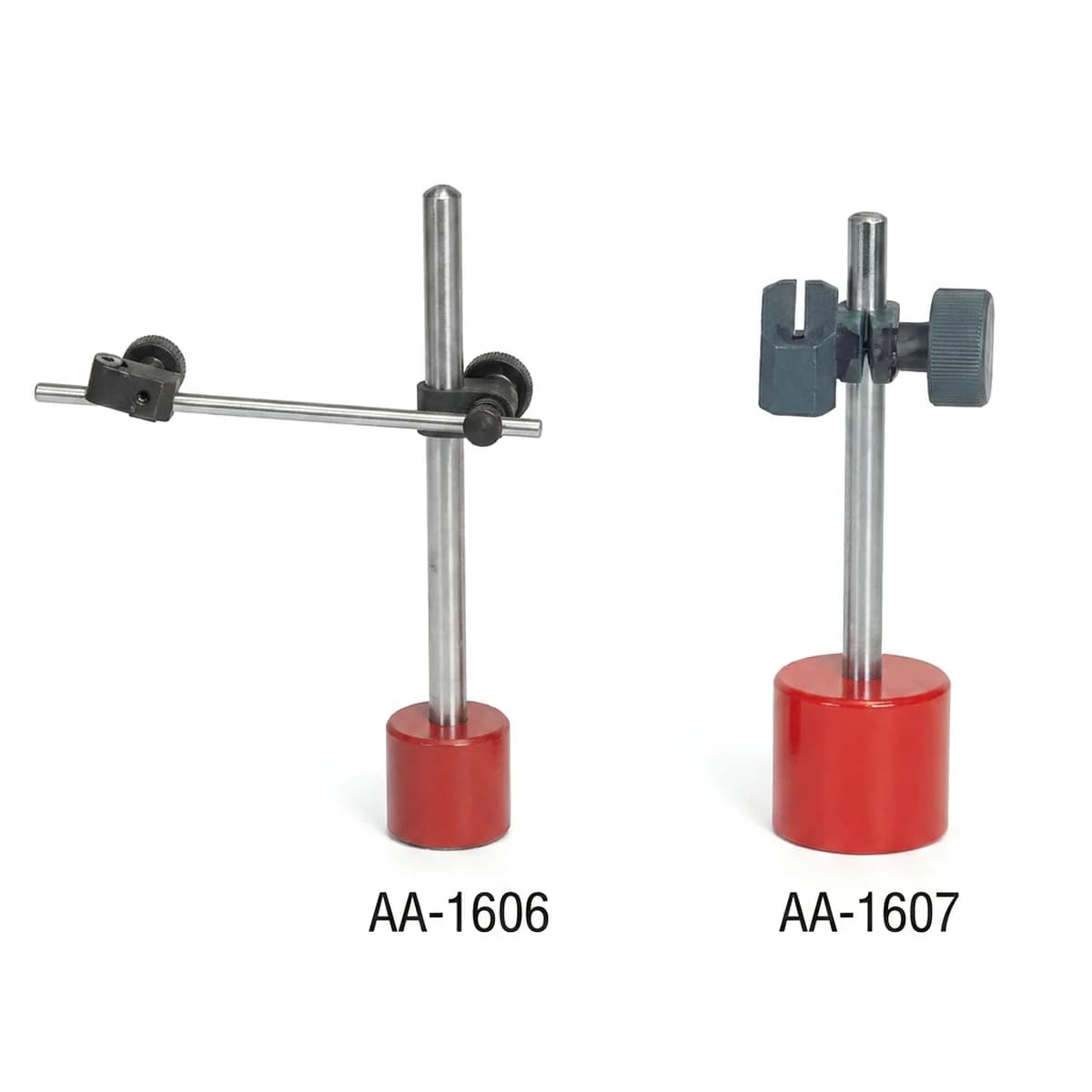

| AA-1606 | AA-160 | Dia 41 x 38 H | ₹902 |
| AA-1607 | AA-160 | Dia 28 x 25 H | ₹773 |

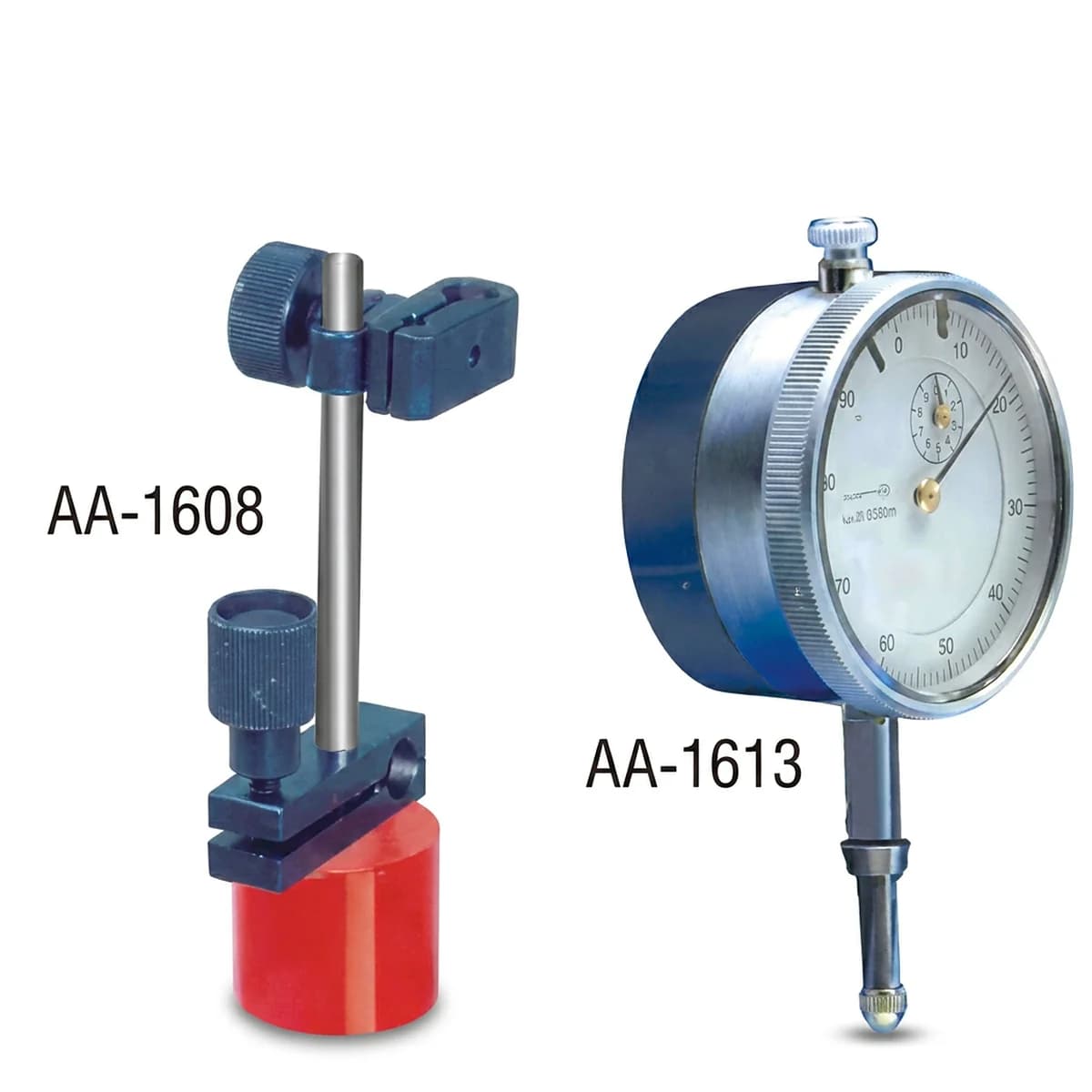

| AA-1608 | AA-160 | Dia 28 x 25 H mm | ₹791 |
| AA-1613 | AA-160 | Dia 56 x 15 H mm Thick | ₹745 |

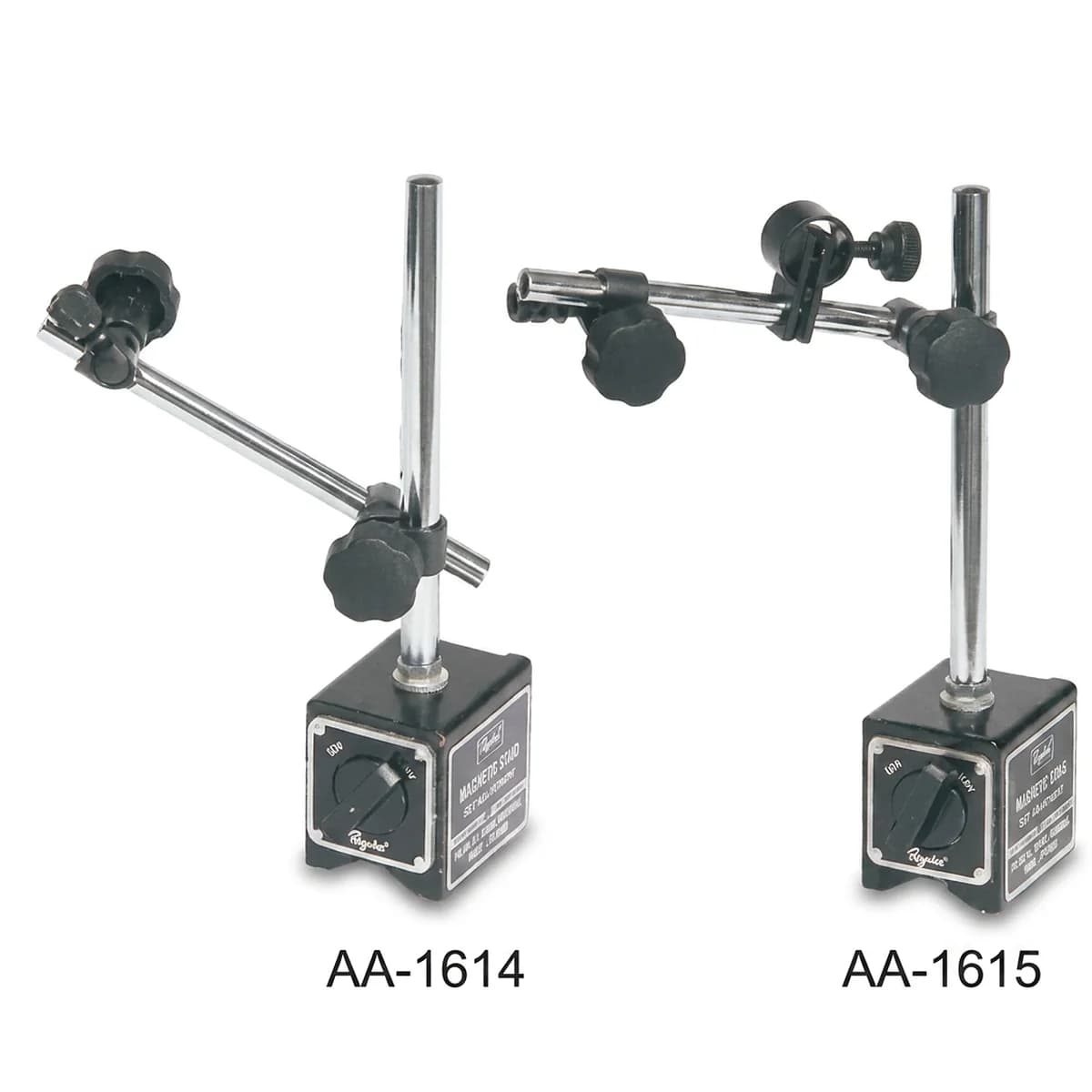

| A-1614 | AA-160 | 60(L) x 50(W) x 60(H) x 235 | ₹1,279 |
| A-1615 | AA-160 | 60(L) x 50(W) x 60(H) x 235 | ₹1,739 |

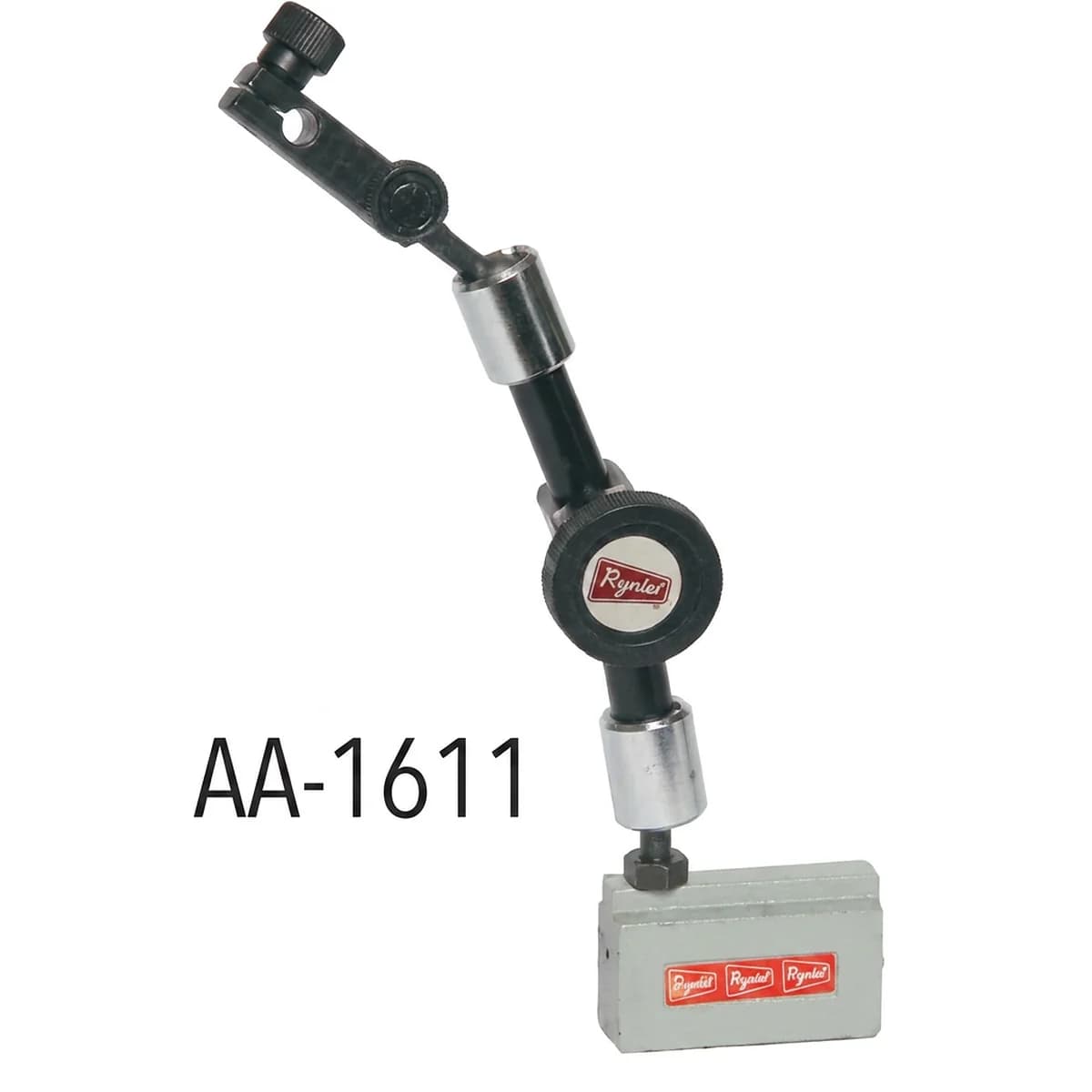

| AA-1611 | AA-160 | 60 x 16 x 32 mm | ₹2,364 |

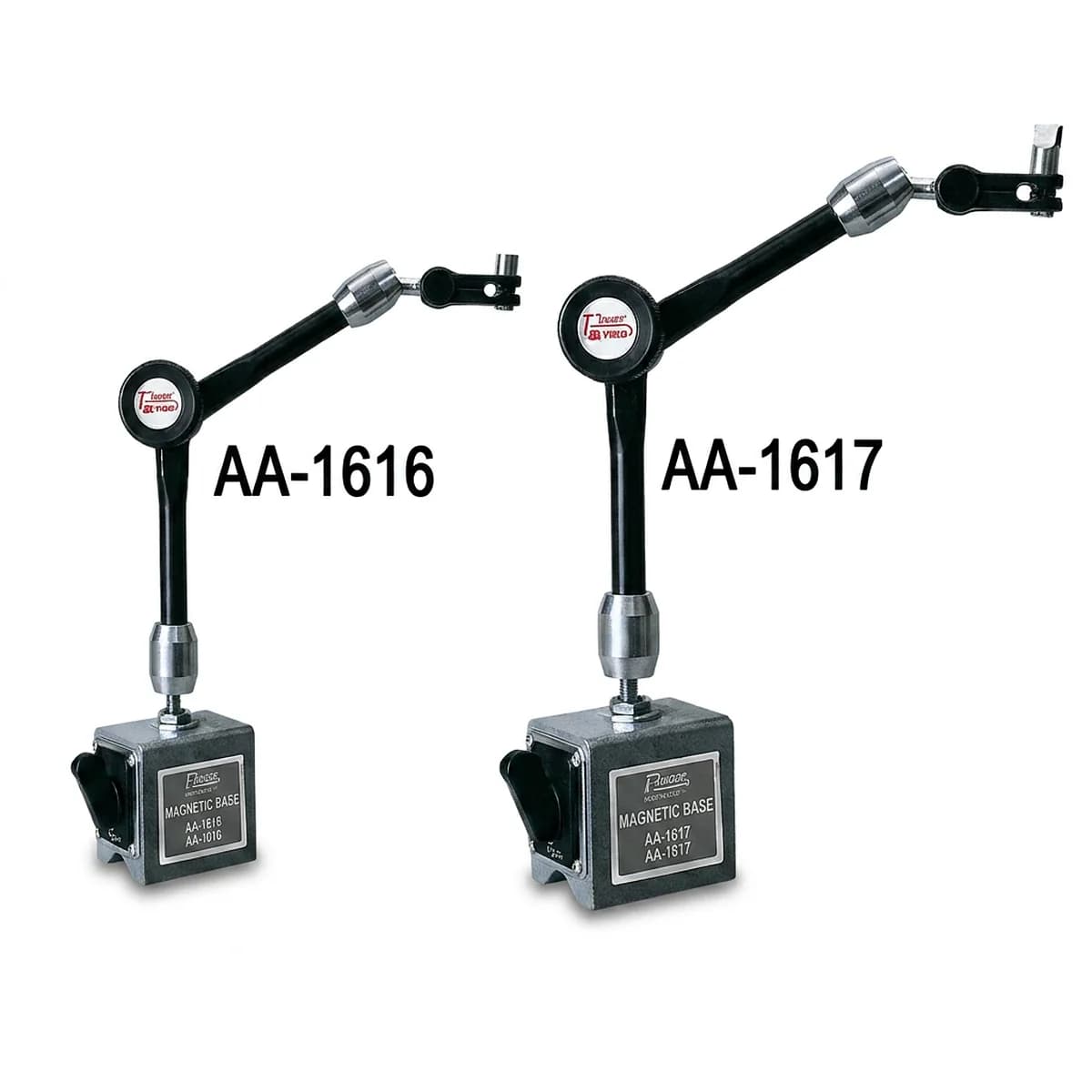

| AA-1616 | AA-160 | 60L X 50W X 60H X 230 mm | ₹2,024 |
| AA-1617 | AA-160 | 70L X 48W X 64H X 230 mm | ₹2,852 |
Surface Compatibility & Operational Best Practices
- Optimized for ferrous metallic surfaces including cast iron, steel, and machined toolroom plates
- Clean contact surfaces before mounting to remove debris, oil, or burrs that reduce magnetic retention
- Engage the ON/OFF switch fully to ensure maximum holding force and prevent accidental instrument shift
- Store bases flat in dry conditions to preserve magnet integrity and prevent surface scratching
- Periodically inspect pivot joints and locking knobs for wear to maintain consistent adjustment precision
Configurable Designs for Diverse Workspaces
- Available in standard, heavy-duty, compact round, and slim mini configurations to match workspace constraints
- Standard and heavy-duty rectangular blocks range from 40 x 42 x 49 mm – 73 x 56 x 78 mm
- Cylindrical pot magnet variants span diameters from 28 mm – 41 mm for compact mounting needs
- Mini base configuration measures 60 x 16 x 32 mm for tight clearance and portable inspection setups
- Model variations include rectangular blocks, cylindrical pots, and slim blocks for targeted application fits
Versatile Metrology & Machining Applications
- Securely mount dial test indicators and plunger gauges during precision machining and inspection tasks
- Inspect component runout, flatness, alignment, and parallelism on lathes, milling machines, and surface plates
- Align workpieces and fixtures precisely within CNC machine centers for optimized setup workflows
- Support versatile metrology operations in quality control laboratories and heavy toolroom environments
- Compatible with standard gauge accessories for expanded measurement capabilities across production floors
Precision Magnetic Holding & Adjustment
- Crystal Series AA-160 magnetic bases deliver reliable instrument retention during dynamic machining operations
- Integrated ON/OFF switch mechanism allows instant magnetic engagement and safe tool removal
- Strong holding force secures dial indicators and plunger gauges on both flat and curved metallic surfaces
- Central locking mechanisms enable rapid positioning and stable alignment across heavy-duty setups
- Fine-adjustment controls provide micro-level calibration for repeatable measurement accuracy
- Articulation options include rigid pillar posts, cross-arms, and fully flexible articulated arms
Frequently asked
Can these magnetic bases hold securely on curved or uneven metal surfaces?
Yes, the powerful magnets are engineered to maintain strong holding force on flat and curved metallic workpieces.
How do I select the right variant for my workspace?
Choose standard or heavy-duty blocks for general use, cylindrical pots for compact setups, or mini bases for tight areas.
Are the adjustment mechanisms suitable for high-vibration environments?
Central locking mechanisms and fine-adjustment controls maintain position stability during dynamic machining operations.
What gauge accessories are compatible with this series?
The bases securely mount standard dial test indicators and plunger gauges across the Crystal AA-160 product family.
More questions buyers ask
What are Crystal Magnetic Bases used for?
Crystal Magnetic Bases are primarily used in workshops and industrial settings to securely hold dial indicators, gauges, and other measuring instruments for precise alignment, inspection, and machining tasks.
What is the magnetic pull force of these bases?
The magnetic pull force varies depending on the model. Please refer to the specifications of each variant for detailed information on magnetic pull.
Are Crystal Magnetic Bases suitable for heavy-duty use?
Yes, Crystal offers a range of magnetic bases, including heavy-duty models designed for demanding industrial applications. The robust construction ensures stability and durability.
What is the warranty on Crystal Magnetic Bases?
All Crystal products come with a standard manufacturer's warranty against manufacturing defects. For specific warranty details, please contact our customer support.
Can I get a GST invoice for my purchase?
Yes, we provide a GST invoice for all purchases. Please provide your GST details at the time of checkout.
Do you offer pan-India delivery?
Yes, we deliver Crystal Magnetic Bases across India. Shipping charges may vary depending on the location.
What are the different models available?
We offer a wide variety of Crystal Magnetic Base models, including the AA-1600, AA-1601, AA-1602, and more, each with different sizes and specifications to suit your needs.
How do I choose the right magnetic base for my needs?
The choice of magnetic base depends on the application, the weight of the instrument to be held, and the required magnetic force. Consider the size, magnetic pull, and features of each model before making a decision.
Are these bases compatible with all dial indicators?
Crystal Magnetic Bases are designed to be compatible with most standard dial indicators and gauges. However, we recommend checking the compatibility before purchase.
What is the material of construction?
Crystal Magnetic Bases are constructed from high-quality materials, typically with a heavy-duty cast iron base, to ensure durability and stability.
Who should choose the Crystal AA-1600 Magnetic Base?
The Crystal AA-1600 is a versatile magnetic base suitable for general workshop applications. Its compact size and strong magnetic pull make it ideal for holding small to medium-sized measuring instruments.
Who should choose the Crystal AA-1601 Magnetic Base?
The Crystal AA-1601 offers a larger base and higher magnetic force, making it suitable for more demanding applications that require greater stability and holding power.
What is the difference between the AA-1600 and AA-1601 models?
The main difference between the AA-1600 and AA-1601 models is the size of the base and the magnetic pull force. The AA-1601 has a larger base and stronger magnet, making it more suitable for heavier-duty applications.
Which Crystal magnetic base offers the highest magnetic pull?
Please refer to the detailed specifications of each variant to find the model with the highest magnetic pull that meets your requirements.
Which is the most affordable Crystal magnetic base?
The price of Crystal Magnetic Bases varies by model. The AA-1613 is generally one of the most affordable options, but we recommend comparing the features and prices of all variants to find the best value for your needs.
