Crystal Magnetic Angle Setter for Workholding & Alignment AA-4601

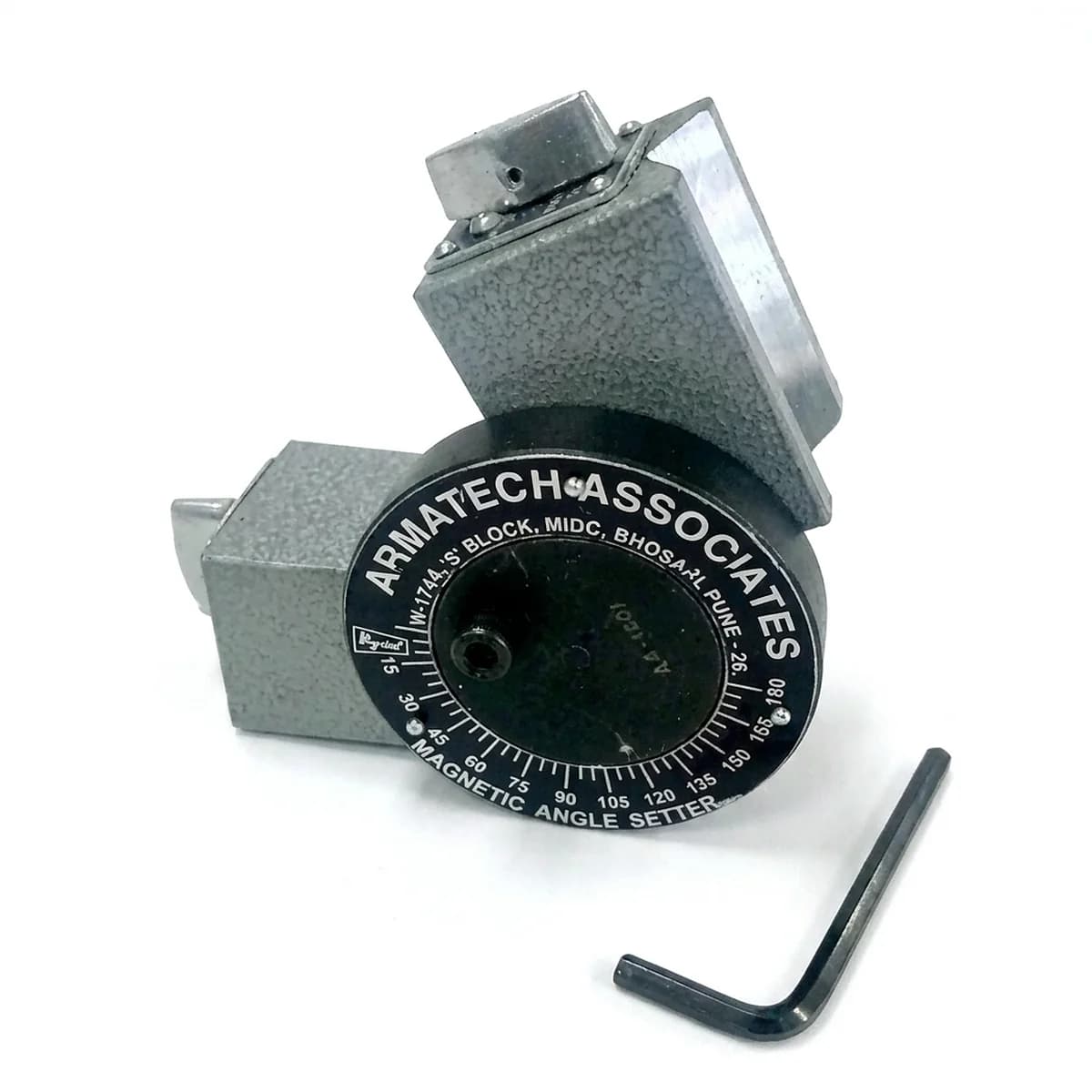

The Crystal Magnetic Angle Setter offers compact workholding for medium-sized machining tasks. The AA-460 model suits standard fixture plates effectively. • Size: 190 X 50 X 55 mm • Reliable magnetic base • Angular precision for setup • Stable clamping force
Specifications
For: AA-4601- Brand
- Crystal
- Series
- AA-460
- Size
- 190 X 50 X 55
Configurations
Click a row to switch| Variant | Series | Size | Price |
|---|---|---|---|
| AA-4601 | AA-460 | 190 X 50 X 55 | ₹14,518 |
| AA-4602 | AA-460 | 275 X 50 X 55 | ₹16,744 |
| AA-4603 | AA-460 | 166 X 50 X 55 | ₹10,065 |
Maintenance & Care
- Clean magnetic surfaces regularly to maintain holding strength
- Store in dry environment to prevent rust on steel body
- Use provided hex key wrench to avoid stripping adjustment screws
- Avoid dropping to protect precision ground surfaces
- Apply light oil on moving parts if not used frequently
- Inspect protractor scale for wear before critical setups
Operational Efficiency
- Reduces setup time for complex angular workholding
- Eliminates need for multiple angle blocks in one setup
- Enhances repeatability for batch production runs
- Compatible with standard machine table surfaces
- Simplifies alignment for operators of varying skill levels
- Improves overall machining accuracy and part quality
Construction & Durability
- Hardened steel construction resists wear during repeated use
- High-grade magnets maintain strong holding force over time
- Graduated scales are etched for long-term readability
- Compact design allows access to tight machine spaces
- Robust build quality withstands industrial workshop conditions
- Surface finish prevents rust during extended storage
Precision Industrial Applications
- Setting up compound angles for precision grinding operations
- Locking workpieces during complex drilling or milling tasks
- Accurate angular reference fixture for toolroom inspection
- Machining layout work requiring reliable alignment
- Ideal for ferrous workpieces in machine shop environments
- Supports setup and locking specific angular positions
Core Configuration & Adjustment
- Dual magnetic blocks provide secure hold on ferrous surfaces
- Precision 360-degree graduated protractor scale ensures accuracy
- Manual angle adjustments secured with dedicated hex key wrench
- Standard 50 x 55 mm cross-section profiles for stability
- Handheld lengths range from 166 mm – 275 mm for versatility
- Crystal brand Series AA-460 guarantees consistent quality
Frequently asked
Can this work on non-ferrous materials?
No, the magnetic base requires ferrous surfaces for secure attachment.
What is the accuracy of the protractor scale?
The 360-degree graduated scale provides precise angular reference for layout.
Is the hex key included with the product?
A dedicated hex key wrench is used for securing adjustments securely.
What sizes are available in this series?
Handheld lengths range from 166 mm – 275 mm with standard profiles.
More questions buyers ask
What is a magnetic angle setter used for?
It is used for precise angular alignment, layout, and workholding of ferrous workpieces during machining, grinding, and inspection tasks.
How does the magnetic base work?
The base contains high-grade magnets that securely lock onto ferrous metal surfaces, providing a stable foundation for angular setups.
Can this be used on non-ferrous materials?
No, the magnetic base requires a ferrous (magnetic) surface to function correctly.
What is the accuracy of the protractor scale?
The integrated 360-degree graduated scale allows for precise angular reference and setting for various machining operations.
Is the angle setter adjustable?
Yes, it features manual angle adjustments secured with a dedicated hex key wrench for reliable locking.
What materials is it made of?
It is constructed from hardened steel to resist wear and maintain precision over long-term industrial use.
Does it come with a warranty?
Crystal products are known for quality; please check the specific warranty terms provided with your purchase.
How do I maintain the magnetic surface?
Keep the magnetic base clean from metal chips and debris, and store in a dry environment to prevent rust.
What are the available sizes?
The series is available in lengths of 166mm, 190mm, and 275mm, all with a standard 50 x 55 mm cross-section.
Is it suitable for toolroom applications?
Yes, it is an essential tool for toolroom inspection, layout work, and precision machine setups.
Who should choose the AA-4601 model?
The AA-4601 (190mm) is ideal for standard precision grinding and milling setups requiring reliable angular alignment.
Who should choose the AA-4602 model?
The AA-4602 (275mm) is best for larger workpieces needing extra stability during complex, heavy-duty machining.
Who should choose the AA-4603 model?
The AA-4603 (166mm) is perfect for tight machine spaces and smaller, intricate precision components.
How does the 166mm compare to the 275mm model?
The 166mm is compact for tight spaces, while the 275mm provides a larger footprint and increased stability for bigger jobs.
Are all models in the series made of the same material?
Yes, all models in the Crystal AA-460 series are built with the same high-grade hardened steel and magnetic components.
