Heavy Duty Multicoil Electromagnetic Chuck Fine Pitch Longitudinal Pole AA-30401

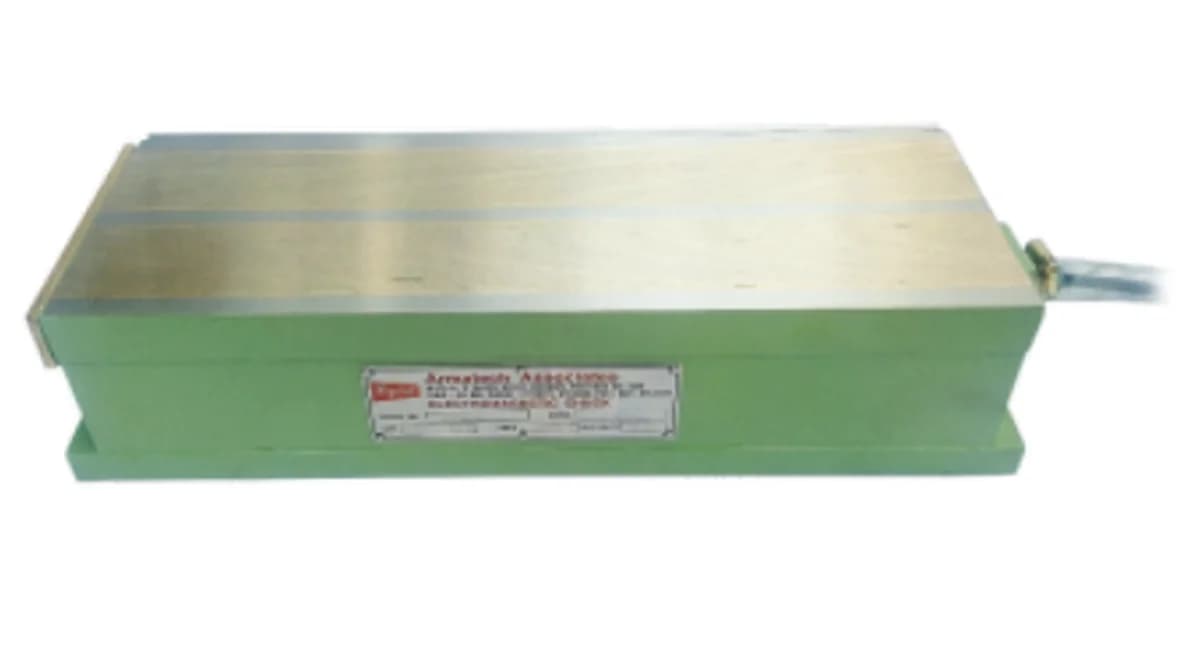

The Crystal AA-304 heavy duty multicoil electromagnetic chuck provides secure workholding for precision machining. This unit features a 4+1 longitudinal pole pitch for consistent magnetic distribution across its 450 X 150 X 100 mm surface. • Compact 450 X 150 X 100 mm footprint • Standard DC power compatibility • Optimized for small precision components • Reliable holding force
Specifications
For: AA-30401- Brand
- Crystal
- Pole Pitch
- 4+1
- Series
- AA-304
- Size
- 450 X 150 X 100
Configurations
Click a row to switch| Variant | Series | Pole Pitch | Size | Price |
|---|---|---|---|---|
| AA-30401 | AA-304 | 4+1 | 450 X 150 X 100 | ₹37,554 |
| AA-30402 | AA-304 | 4+1 | 500 X 200 X 100 | ₹44,611 |
| AA-30403 | AA-304 | 4+1 | 600 X 200 X 100 | ₹50,940 |
| AA-30404 | AA-304 | 4+1 | 600 X 250 X 100 | ₹62,910 |
| AA-30405 | AA-304 | 4+1 | 750 X 250 X 100 | ₹92,800 |
| AA-30406 | AA-304 | 4+1 | 900 X 250 X 100 | ₹1,00,804 |
| AA-30407 | AA-304 | 4+1 | 600 X 300 X 100 | ₹72,312 |
| AA-30408 | AA-304 | 4+1 | 750 X 300 X 100 | ₹1,01,375 |
| AA-30409 | AA-304 | 4+1 | 900 X 300 X 100 | ₹1,08,072 |
| AA-30410 | AA-304 | 4+1 | 1000 X 250 X 110 | ₹1,07,520 |
| AA-30411 | AA-304 | 4+1 | 1000 X 300 X 110 | ₹1,26,601 |
| AA-30412 | AA-304 | 4+1 | 1500 X 250 X 110 | ₹1,44,063 |
| AA-30413 | AA-304 | 4+1 | 1500 X 300 X 110 | ₹1,79,354 |
| AA-30414 | AA-304 | 4+1 | 1500 X 400 X 110 | ₹2,17,470 |
Common Buyer Questions
Q: Is this compatible with existing fixtures? A: Designed to be compatible with most industrial fixture systems Q: What are the load capacity options? A: Available in multiple standard dimensions for varied load requirements
Maintenance and Handling Guidelines
- Regular inspection of poles prevents debris accumulation
- Store in dry conditions to maintain magnetic properties
- Handle with care to avoid physical damage to the steel surface
- Follow safety protocols during Magnetization / Demagnetization cycles
- Ensure clean contact surfaces for optimal magnetic transfer
Industrial Applications and Use Cases
- Ideal for heavy-duty milling operations requiring secure workholding
- Suitable for precision grinding setups needing fine alignment
- Used in industrial assembly tasks for accurate part positioning
- Compatible with various workshop environments and machine tools
- Enhances workflow efficiency in manufacturing lines
Power Specifications and Integration
- Power requirements align with DC Power Supply Unit specifications
- Output voltage 110 V DC for reliable power supply integration
- Output current rated at 2 Amp for efficient operation
- Stable power delivery supports continuous industrial workflows
- Efficient energy usage reduces operational costs over time
Magnetic Configuration and Control
- Heavy duty multicoil design with fine pitch longitudinal pole
- 4+1 pole pitch configuration for enhanced holding power
- Series AA-304 ensures consistent performance across variants
- Control type includes Switch & Variable Control Unit
- Function covers Magnetization / Demagnetization operations
Precision Engineering and Durability
- Engineered for precise alignment and stability in machine setups
- Manufactured from hardened steel for long-term durability
- Available in multiple standard dimensions for varied load requirements
- Compatible with most industrial fixture systems
- Optimized for use in precision machining and industrial fixturing
- Ensure accurate positioning during milling, grinding, and assembly tasks
More questions buyers ask
What is an electromagnetic chuck?
An electromagnetic chuck is a workholding device that uses electricity to create a magnetic field, securely holding ferrous metal workpieces for machining operations like milling and grinding.
What are the key benefits of the Crystal AA-304 series?
The AA-304 series features a heavy-duty multicoil design with fine-pitch longitudinal poles, providing superior holding power, precision, and stability for industrial machining.
What power supply is required for these chucks?
These chucks typically operate on 110V DC, requiring a compatible control unit for magnetization and demagnetization.
Are these chucks suitable for heavy-duty milling?
Yes, the heavy-duty multicoil construction is specifically engineered to withstand the forces involved in heavy-duty milling and grinding operations.
How do I maintain the magnetic surface?
Keep the surface clean of debris, avoid physical damage, and ensure regular inspection of the poles to maintain optimal magnetic transfer.
What is the pole pitch configuration?
The Crystal AA-304 series utilizes a 4+1 pole pitch configuration for enhanced magnetic holding force.
Can I use this for precision grinding?
Yes, the fine-pitch longitudinal pole design is ideal for precision grinding setups requiring accurate part alignment.
What safety precautions should be followed?
Always follow safety protocols during magnetization and demagnetization cycles and ensure the workpiece is properly positioned before activating the magnet.
Is a control unit included?
The chuck is designed to work with a switch and variable control unit, which is typically part of the overall system integration.
What materials are these chucks made from?
They are manufactured from high-quality hardened steel to ensure durability and long-term performance in demanding workshop environments.
Who should choose the 450x150x100mm variant?
This compact size is ideal for smaller precision grinding tasks and limited-space machine setups.
Who should choose the 1500x400x110mm variant?
This large-format variant is designed for heavy-duty, large-scale industrial machining and milling of substantial workpieces.
How does the 600mm length variant compare to the 1000mm variant?
The 600mm variant is suited for medium-sized components, while the 1000mm variant provides a larger surface area for extended or multiple workpieces.
Which variant offers the best balance for general workshop use?
The 600x200x100mm or 600x250x100mm variants are often preferred for their versatility in handling a wide range of standard industrial parts.
