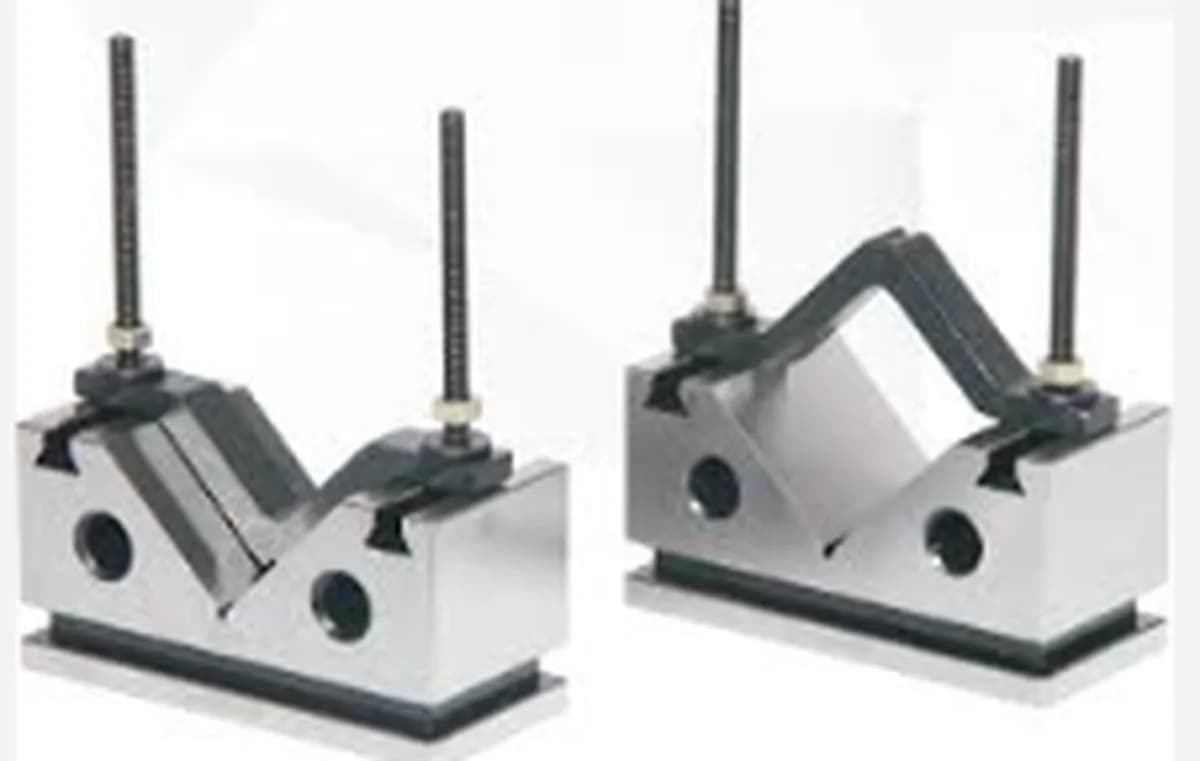

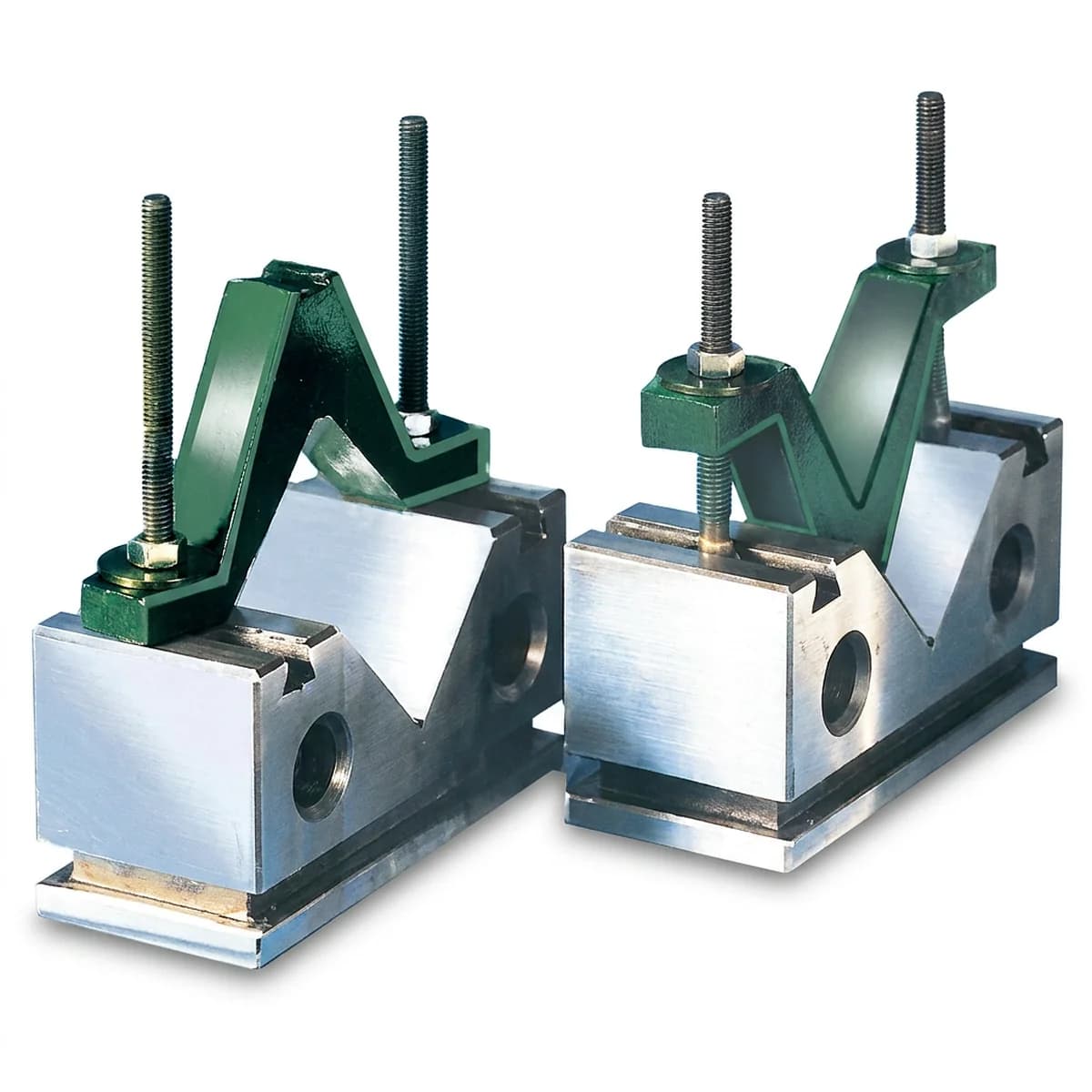

Crystal Hardened & Ground V Blocks with Clamp – Series AA-172 AA-1721
These Crystal V blocks with clamp provide stable support for layout and inspection tasks. The AA-1721 model features dimensions of 65 x 150 x 75 mm suitable for medium applications. • Hardened steel construction ensures durability • Ground surfaces maintain high accuracy • Integrated clamp secures round workpieces • Suitable for general machining setups
Specifications
For: AA-1721- Brand
- Crystal
- Series
- AA-172
- Size
- 65 x 150 x 75 mm
- Hardness
- 58 Rc ± 2 Rc
Configurations
Click a row to switch| Variant | Series | Size | Price |
|---|---|---|---|
| AA-1721 | AA-172 | 65 x 150 x 75 mm | ₹12,181 |
| AA-1722 | AA-172 | 65 x 175 x 100 mm | ₹13,846 |
| AA-1723 | AA-172 | 75 x 200 x 125 mm | ₹20,332 |
Common Buyer Questions
Q: Is this suitable for heavy-duty grinding setups? A: Yes, the 58 HRC hardness and rigid design support high-accuracy grinding. Q: What mounting options are available? A: Dual side-recess holes allow for versatile bolting or clamping configurations. Q: Does the clamp assembly secure large shafts? A: The top-mounted flat strap clamp anchors cylindrical parts securely. Q: What is the material composition? A: Made from premium tool steel hardened uniformly for durability.
Care & Maintenance Tips
- Store in dry environment to prevent rust on precision surfaces
- Clean working surfaces before each use to maintain accuracy
- Avoid dropping or striking to preserve hardness and flatness
- Lubricate clamp threads occasionally to ensure smooth operation
- Inspect regularly for wear to maintain setup precision
Industrial Applications & Use Cases
- Anchoring and centering long or large-diameter cylindrical shafts
- Staging heavy rollers and bars for precise layout inspection
- Provides rigid base during drilling, slotting, and grinding operations
- Supports steady, high-accuracy setups in machine shops
- Crystal brand ensures trusted quality for professional engineers
Precision Ground Accuracy
- Strict parallelism – flatness – squareness control maintained
- Ideal for high-accuracy machining setups requiring tight tolerances
- Reduces setup time by providing a rigid positioning base
- Suitable for layout inspection and quality control processes
- Consistent accuracy across all working surfaces for reliability
Secure Clamp & Stable Profile
- Features extra-wide V block profile for enhanced stability
- Includes dual side-recess holes for versatile mounting options
- Top-mounted flat strap mechanical tie-down clamp assembly
- Securely anchors cylindrical parts during high-vibration tasks
- Size range spans 65 x 150 x 75 mm (3") – 75 x 200 x 125 mm (5")
Robust Material & Hardness
- Constructed using premium tool steel for long service life
- Hardened uniformly to 58 HRC ± 2 HRC for wear resistance
- Precision ground working surfaces ensure consistent performance
- Maintains shape under heavy loads during industrial operations
- Series AA-172 offers reliable durability for shop floor use
More questions buyers ask
What is the Crystal Hardened & Ground V Block Series AA-172 used for?
The Crystal Series AA-172 V Blocks are precision tools used for layout, inspection, and supporting cylindrical workpieces during machining, drilling, and milling operations.
What is the hardness of the Crystal V Blocks?
These V Blocks are manufactured from high-quality tool steel and hardened to 55-58 HRC, ensuring excellent wear resistance and long-term durability.
What is the accuracy of the Crystal AA-172 V Blocks?
The top and bottom 'V' grooves are precision ground parallel within ± 3 microns, providing exceptional accuracy for critical measurement and machining tasks.
Do these V Blocks come with clamps?
Yes, the Series AA-172 V Blocks are supplied with integrated clamping screws designed to securely hold the workpiece without protruding over the sides.
What material are the Crystal V Blocks made of?
They are constructed from hardened ground steel, specifically high-quality tool steel, to deliver consistent accuracy and resist deformation.
Are the top and bottom V grooves parallel?
Yes, the top and bottom V grooves are precision ground to be parallel within ± 3 microns.
What is the squareness accuracy of these V Blocks?
The squareness to the end faces and height variations in a matched pair are controlled within ± 3 microns.
Can these V Blocks be used for CNC setup?
Absolutely. Their high precision and stable clamping make them ideal for both manual and CNC machining setups.
How should I maintain my Crystal V Blocks?
Store them in a dry environment, clean surfaces before and after use, avoid dropping them, and apply a light coat of oil for protection during storage.
Does the clamp protrude over the sides of the V Block?
No, the V Blocks are specifically designed so that the clamps do not protrude over the sides, allowing for versatile positioning.
Are these V Blocks supplied in matched pairs?
Yes, they are typically supplied in matched pairs to ensure perfect alignment and consistent height for supporting long workpieces.
What is the surface finish of the Crystal V Blocks?
They feature a precision ground surface finish that supports reliable measurement tasks and ensures stable workpiece contact.
Who should choose the Crystal AA-1721 V Block (65 x 150 x 75 mm)?
The AA-1721 is ideal for tool rooms and workshops handling small to medium-sized cylindrical components that require precise clamping and inspection.
Who should choose the Crystal AA-1722 V Block (65 x 175 x 100 mm)?
The AA-1722 is best for professionals needing a versatile, mid-sized V Block for general-purpose machining, drilling, and quality control tasks.
Who should choose the Crystal AA-1723 V Block (75 x 200 x 125 mm)?
The AA-1723 is designed for heavy-duty industrial applications, providing maximum stability and support for large, heavy workpieces during complex machining.
What is the difference between the AA-1721 and AA-1723 V Blocks?
The primary difference is size and capacity. The AA-1721 is 150mm long, suitable for smaller parts, while the AA-1723 is 200mm long and wider, designed to support larger and heavier workpieces.
How does the size affect the application of these V Blocks?
Larger V Blocks like the AA-1723 offer a wider V-groove and greater mass, allowing them to securely hold larger diameter cylinders and absorb more vibration during heavy machining compared to smaller models.
Which Crystal V Block is best for large workpieces?
The AA-1723 (75 x 200 x 125 mm) is the best choice in this series for large workpieces due to its increased dimensions and robust support capabilities.
