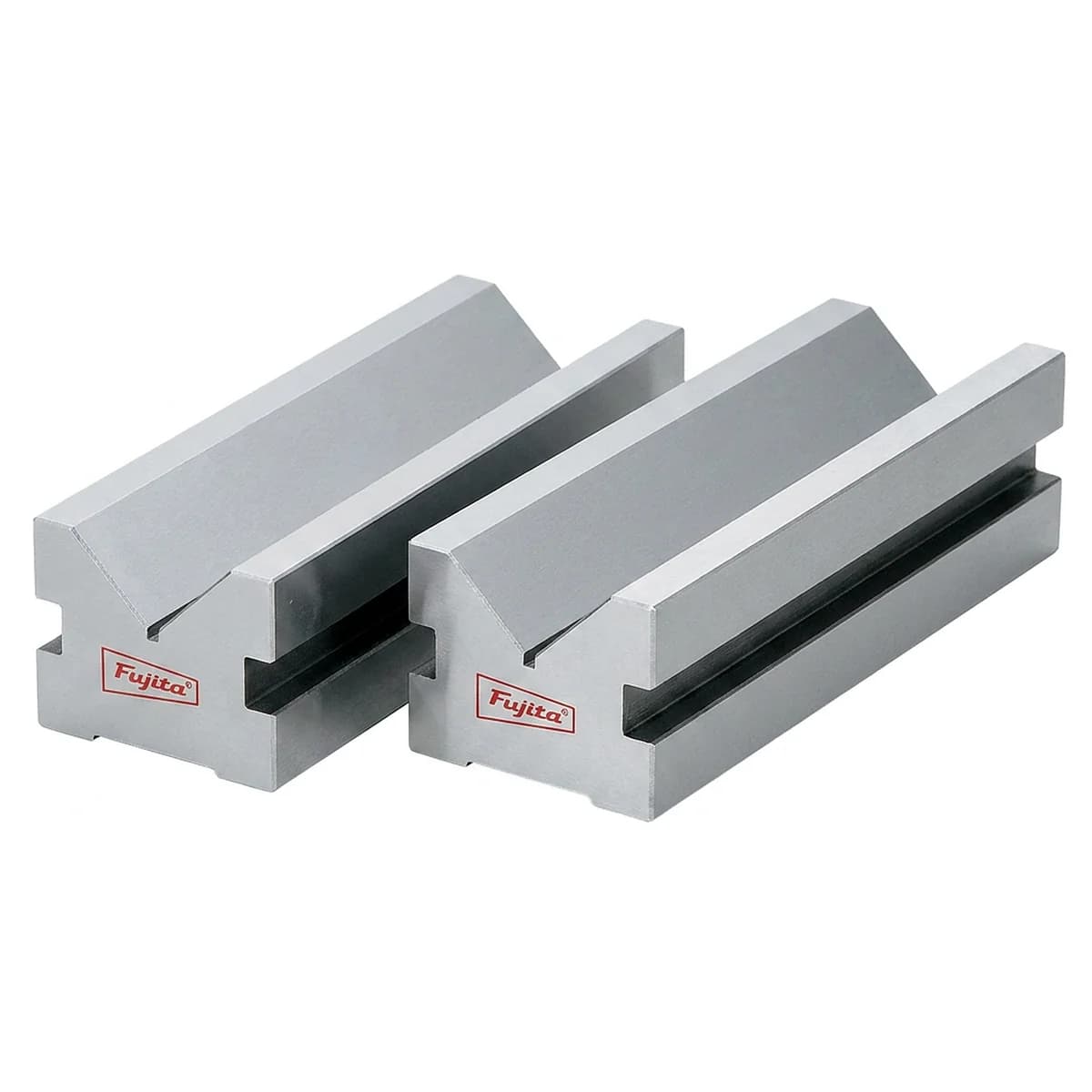

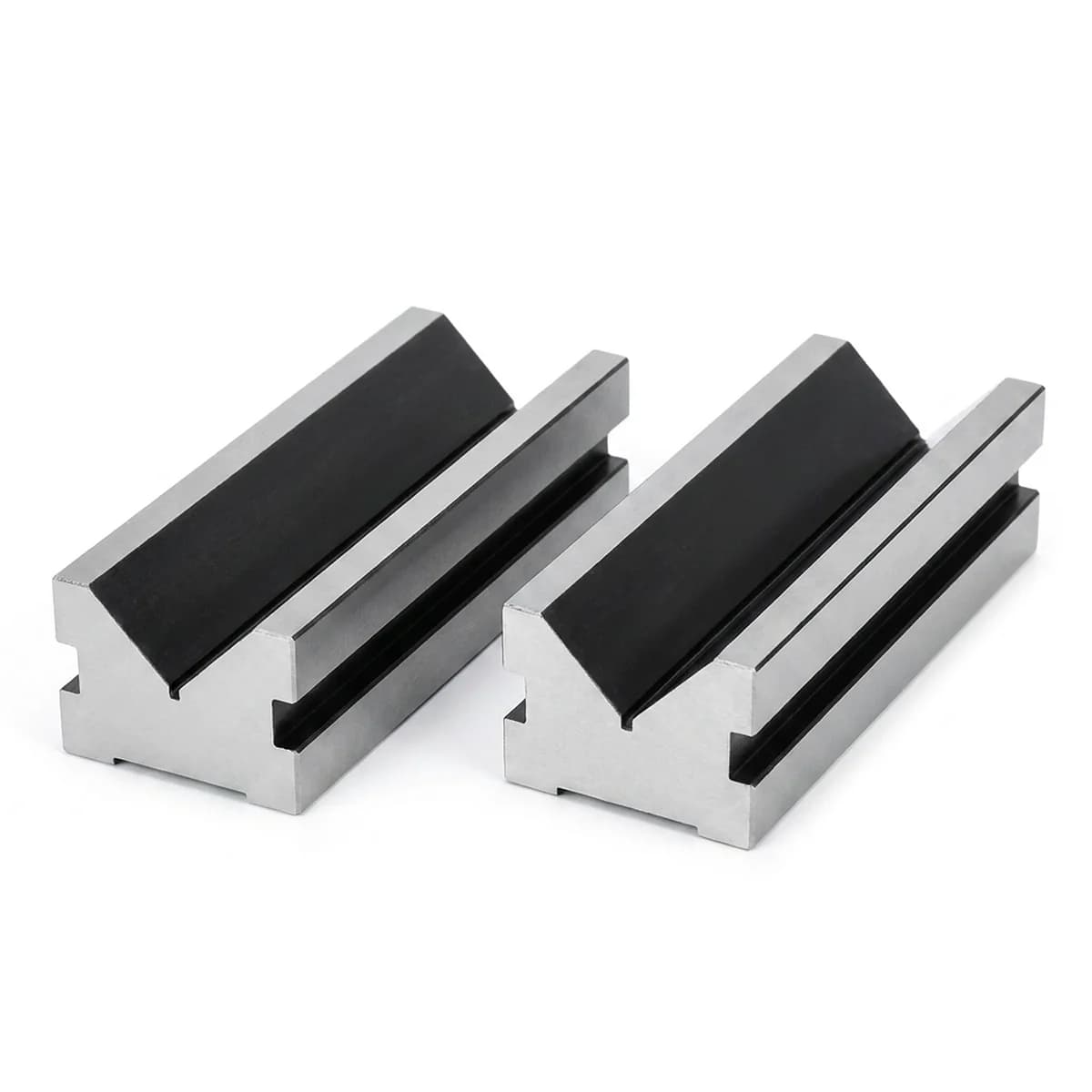

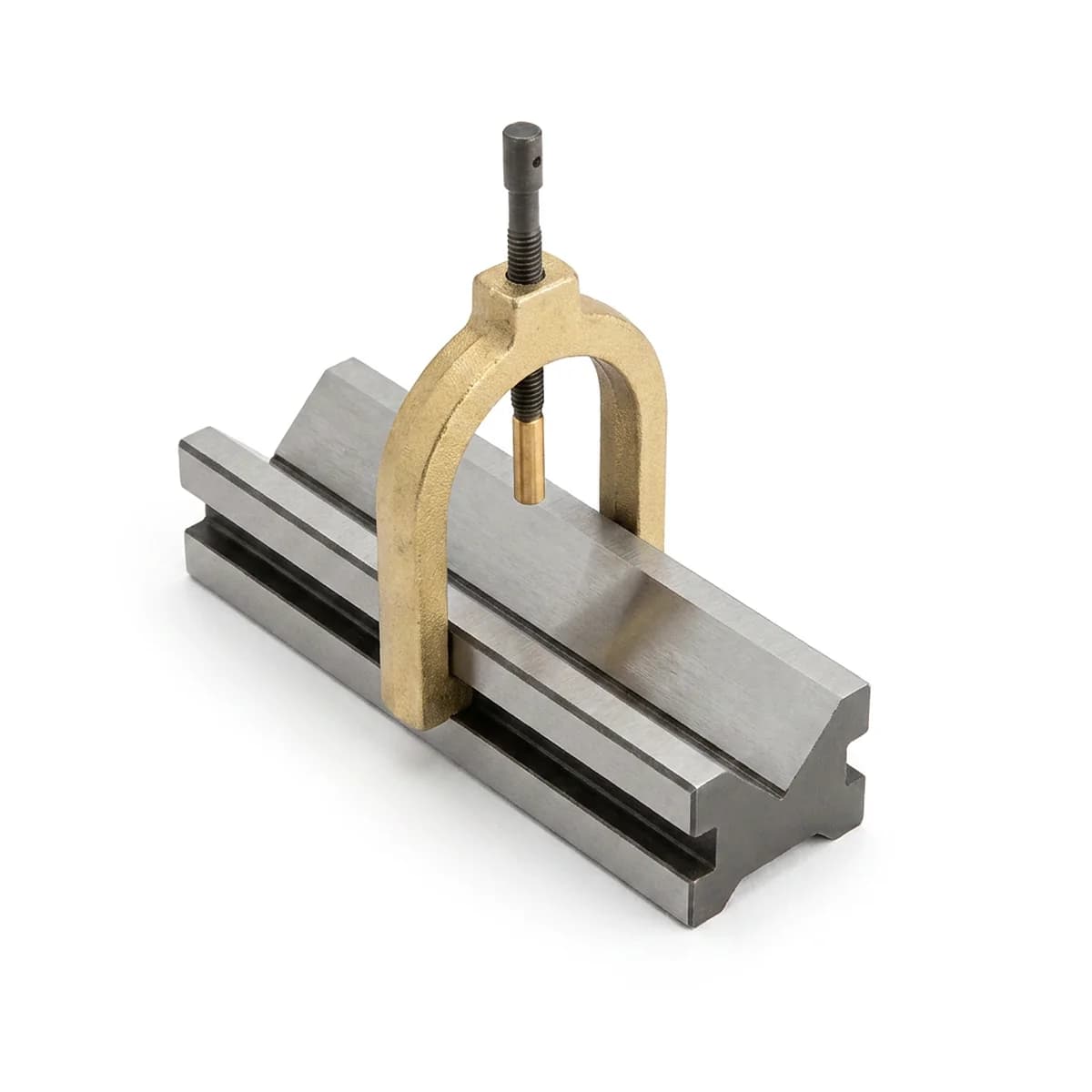

Crystal Precision Elongated V Blocks | Buy Online Price in India — AA-1791
Ensure accurate workpiece alignment with these precision V blocks designed for precision machining and inspection work. They accommodate various cylindrical diameters with stable hardened steel construction. • Hardened steel construction meeting IS-4960-1968 standards • Available in multiple sizes for diverse industrial applications • Ideal for layout work, setting, and quality control tasks • Long Vee grooves provide extended contact surfaces
Specifications
For: AA-1791- Series
- AA-179
- Hardness
- 55 HRC ± 2 HRC
- Size
- 160 X 50 X 35 mm
Configurations
Click a row to switch| Variant | Series | Size | Price |
|---|---|---|---|
| AA-1791 | AA-179 | 160 X 50 X 35 mm | ₹3,864 |
| AA-1792 | AA-179 | 200 X 63 X 50 mm | ₹6,734 |
| AA-1793 | AA-179 | 300 X 100 X 63 mm | ₹12,862 |
| AA-1794 | AA-179 | 100 X 40 X 32 mm | ₹3,008 |
| AA-1795 | AA-179 | 200 X 70 X 50 mm | ₹7,452 |
| AA-1796 | AA-179 | 300 X 100 X 65 mm | ₹13,101 |
Maintenance & Handling
- Store in a dry environment to prevent rust formation
- Clean surfaces with a soft cloth before each use
- Avoid dropping or striking the hardened steel body
- Apply light oil coating for long term storage protection
- Inspect V-angles regularly for signs of wear or damage
- Use protective cases when transporting between workshops
- Ensure surface plates are clean to prevent scratching
Why Choose This Product
- Delivers high accuracy within ± 3 Micron tolerance
- Securely supports cylindrical workpieces during manufacturing
- Reduces setup time with reliable centering capabilities
- Cost-effective solution for precision layout and inspection
- Trusted by engineers for consistent measurement results
- Series AA-178 offers reliable support for machining tasks
- Meets IS-4960-1968 hardness requirements for durability
Material & Durability
- Manufactured from hardened steel for long service life
- Surface finish prevents corrosion and ensures smooth handling
- Precision ground surfaces maintain contact with workpieces
- Robust design withstands repeated industrial usage
- Resists deformation under load during machining operations
- Provides consistent performance across varied industrial applications
- Maintains dimensional stability across varied industrial applications
Industrial Applications
- Supports cylindrical workpieces securely during manufacturing
- Essential for inspection work on precision ground components
- Used in toolrooms for setting up milling and grinding machines
- Facilitates accurate alignment in assembly line processes
- Suitable for quality control departments checking roundness
- Helps maintain workpiece integrity during heavy duty operations
- Compatible with standard surface plate setups in workshops
Key Features & Specifications
- Series AA-178 engineered for precision layout and inspection
- Hardened steel body resists wear during manufacturing processes
- Ground V-angles ensure accurate centering of cylindrical workpieces
- Accuracy level maintained within ± 3 Micron for critical tasks
- Ideal for surface plate setups and machining setups
- Constructed from hardened steel for dimensional stability
- Hardness meets IS-4960-1968 standards for reliability
- Available in standard dimensions like 63 x 100 x 100 mm
Frequently asked
What material is used for the V block body?
Constructed from hardened steel meeting IS-4960-1968 standards
What is the accuracy level of the product?
Accuracy level is within ± 3 Micron for precision work
Can these blocks be used for inspection work?
Yes, they are engineered for precision layout and inspection
What is the Series number for this product line?
This product belongs to the AA-178 series of V blocks
More questions buyers ask
What is the Crystal Precision Elongated V Block used for?
It is used for accurate workpiece alignment during precision machining and inspection work.
What material are these V blocks made of?
They are constructed from hardened steel meeting IS-4960-1968 standards.
What is the accuracy level of the Crystal Elongated V Blocks?
The accuracy level is within ± 3 Micron for precision work.
Are these V blocks suitable for inspection work?
Yes, they are ideal for layout work, setting, and quality control tasks.
What shapes of workpieces can these V blocks hold?
They are designed to accommodate various cylindrical diameters securely.
Do these V blocks come in different sizes?
Yes, they are available in multiple sizes ranging from 100mm to 300mm in length.
How should I maintain these V blocks?
Store in a dry environment, clean with a soft cloth, and apply a light oil coating for long-term storage.
Can these V blocks withstand industrial usage?
Yes, their robust hardened steel design withstands repeated industrial usage and resists deformation.
What standards do these V blocks comply with?
They meet the IS-4960-1968 standards for V blocks.
Do these V blocks have long Vee grooves?
Yes, the long Vee grooves provide extended contact surfaces for better stability.
Who should choose the AA-1794 (100 x 40 x 32 mm) V Block?
Ideal for small-scale precision tasks requiring a compact 100mm block.
Who should choose the AA-1791 (160 x 50 x 35 mm) V Block?
Perfect for medium-sized cylindrical workpieces needing a 160mm support base.
Who should choose the AA-1792 (200 x 63 x 50 mm) V Block?
Best for standard machining operations requiring a 200mm length and 63mm width.
Who should choose the AA-1795 (200 x 70 x 50 mm) V Block?
Suitable for users needing a 200mm block with a slightly wider 70mm base for extra stability.
Who should choose the AA-1793 (300 x 100 x 63 mm) V Block?
Ideal for large cylindrical components requiring a 300mm long and 100mm wide support.
Who should choose the AA-1796 (300 x 100 x 65 mm) V Block?
Perfect for heavy-duty industrial applications needing maximum 300mm length and 65mm height.
What is the difference between the AA-1792 and AA-1795 models?
Both are 200mm long, but the AA-1795 has a wider 70mm base compared to the 63mm base of the AA-1792.
How does the AA-1793 compare to the AA-1796?
Both are 300x100mm, but the AA-1796 is slightly taller at 65mm compared to the 63mm height of the AA-1793.
Which Crystal V Block is the most compact?
The AA-1794 is the most compact model, measuring 100 x 40 x 32 mm.
Which models are best for large workpieces?
The AA-1793 and AA-1796 models, both 300mm in length, are best suited for large workpieces.
