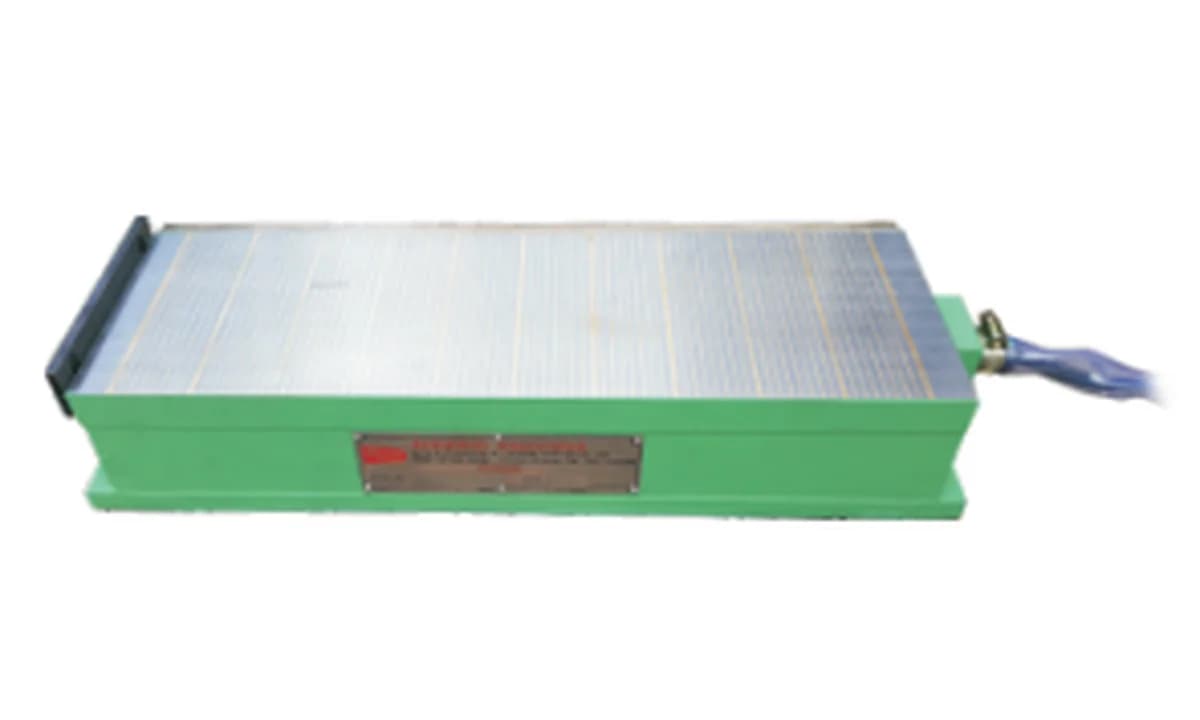

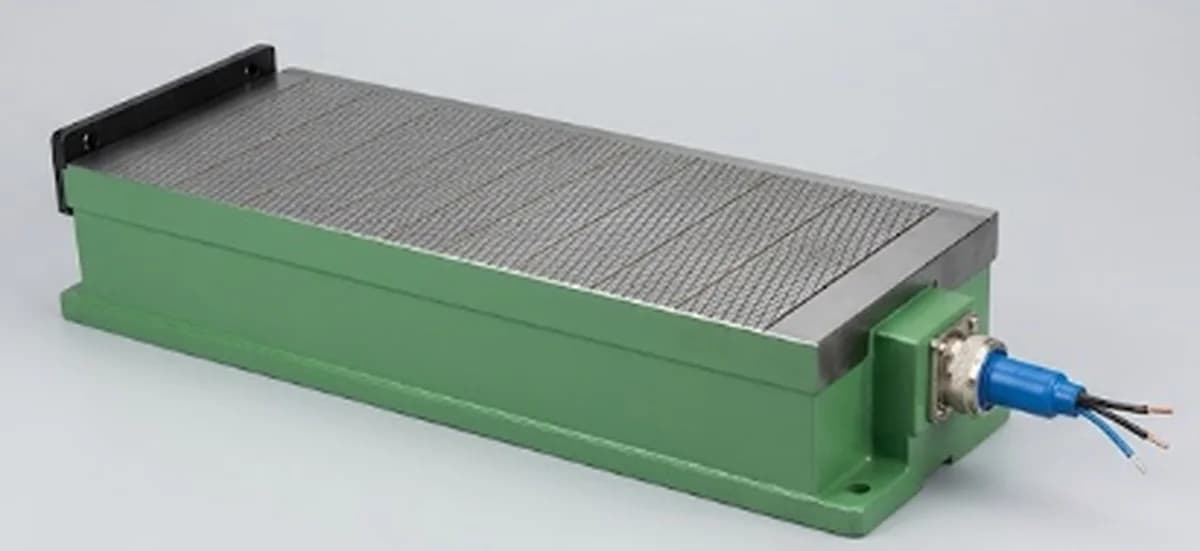

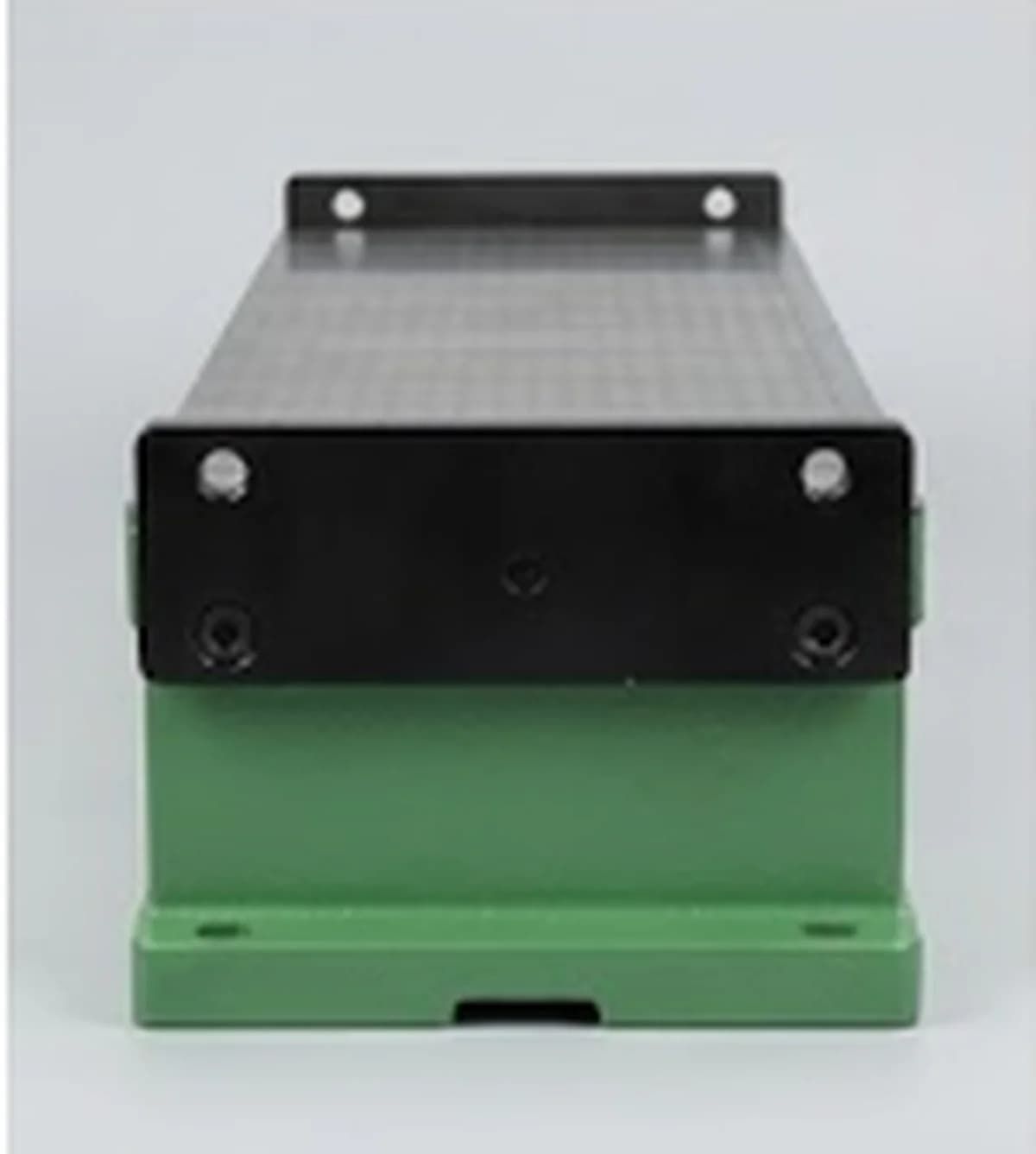

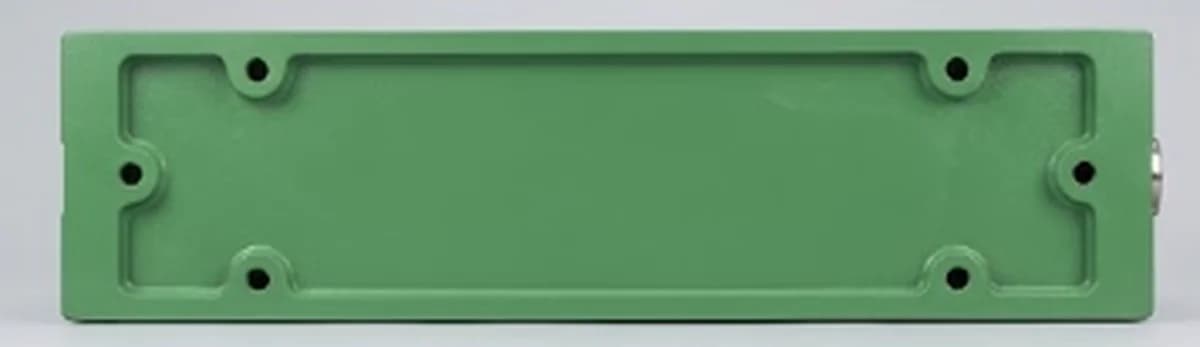

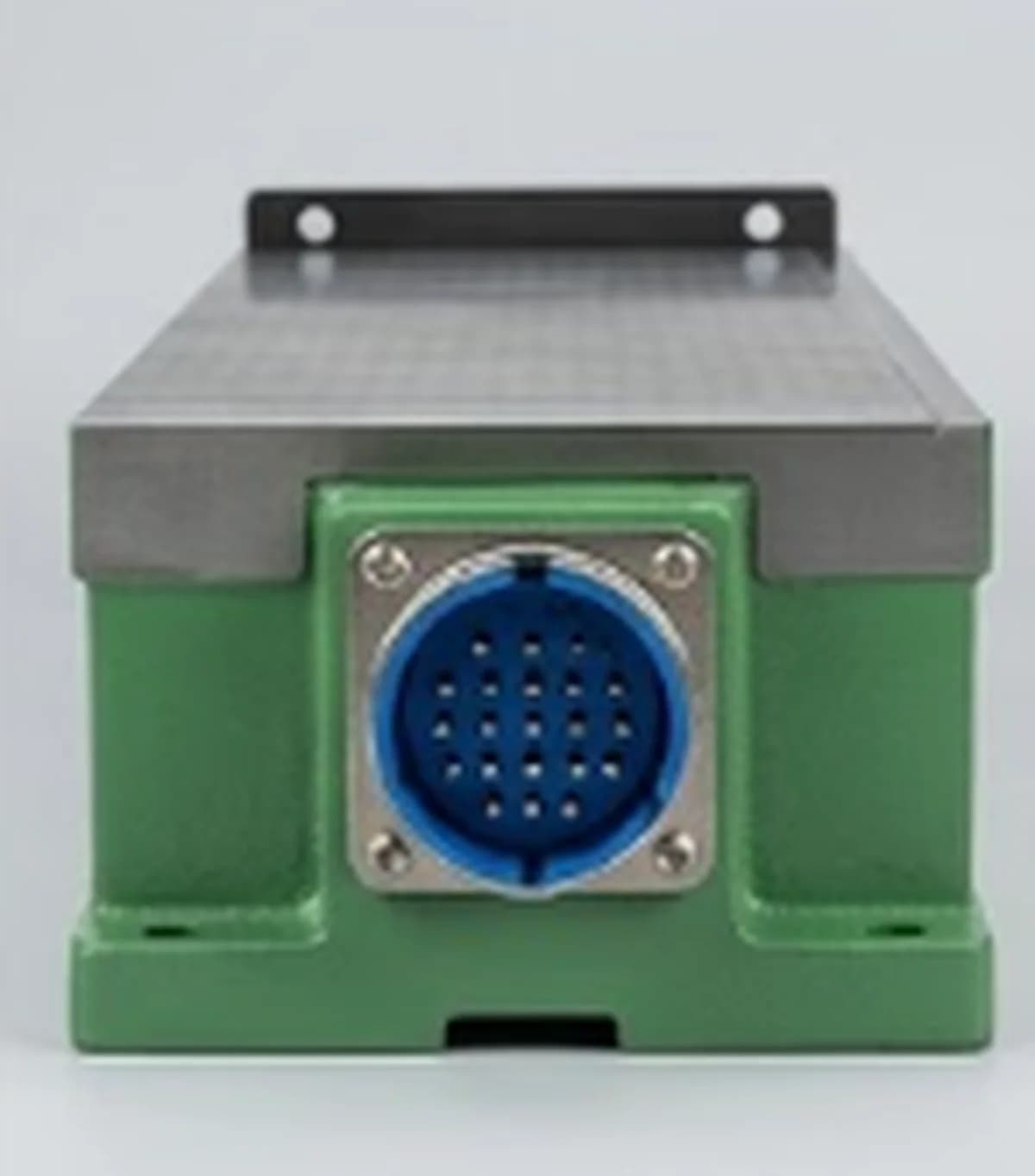

Crystal Electroperm Magnetic Chuck Price in India — AA-30901
Secure ferrous workpieces with high holding power for precision surface grinding operations. These electroperm magnetic chucks offer reliable clamping without mechanical fixtures. • Consistent magnetic flux distribution ensures flatness • Compatible with various surface grinding machine models • Durable construction withstands heavy industrial use • Quick demagnetization for safe part removal
Specifications
For: AA-30901- Pitch
- 4+1 mm
- Series
- AA-302
- Size
- 450 X 150 X 90 mm
Configurations
Click a row to switch| Variant | Size | Pitch | Series | Price |
|---|---|---|---|---|
| AA-30901 | 450 X 150 X 90 mm | 4+1 mm | AA-302 | ₹1 |
| AA-30902 | 500 X 200 X 90 mm | 4+1 mm | AA-302 | ₹1 |
| AA-30903 | 600 X 200 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30904 | 600 X 250 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30905 | 750 X 250 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30906 | 900 X 250 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30907 | 600 X 300 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30908 | 750 X 300 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30909 | 900 X 300 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30910 | 1000 X 250 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30911 | 1000 X 300 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30912 | 1500 X 250 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30913 | 1500 X 300 X 90 mm | 4+1 mm | AA-309 | ₹1 |
| AA-30914 | 1500 X 400 X 90 mm | 4+1 mm | AA-309 | ₹1 |
Safety & Maintenance
- Demagnetization feature prevents residual magnetism in parts
- Simple cleaning required to maintain magnetic efficiency
- Regular inspection of power cables recommended for safety
- Protects against accidental workpiece release during power failure
- Designed for long-term durability in heavy industrial environments
Surface Quality & Precision
- Prevents workpiece distortion common with mechanical clamps
- Allows access to edges and contours for complex grinding
- Reduces setup time compared to traditional bolt-down fixtures
- Maintains flatness and finish on delicate components
- Minimizes vibration for smoother grinding results
Standard Compatibility
- Designed with Series AA-302 standard compatibility
- Fits a wide range of industrial machine interfaces
- Ensures interchangeability with standard mounting systems
- Supports various ferrous workpiece dimensions and shapes
- Compatible with standard industrial power requirements
Power System & Control
- Requires D.C. Power Supply Unit for consistent operation
- Includes Variable Control Unit for precise magnetic strength adjustment
- Equipped with Slip Ring Arrangement for continuous rotation
- Ensures reliable power transmission to the chuck body
- Facilitates easy integration with existing machine setups
Magnetic Holding Performance
- Secures ferrous workpieces securely during machining operations
- Transverse pole configurations ensure uniform magnetic distribution
- Provides stable holding without mechanical clamping marks
- Ideal for precision surface grinding applications
- Maintains workpiece integrity during high-speed processing
Frequently asked
Can this chuck hold non-ferrous materials?
No, it is designed specifically for ferrous workpieces only.
What happens if power is lost during operation?
Workpieces may detach; safety protocols should be followed.
Is a separate power supply included?
A D.C. Power Supply Unit is required for operation.
How do I ensure the chuck is demagnetized?
Use the Variable Control Unit to gradually reduce field strength.
More questions buyers ask
What is an electroperm magnetic chuck?
An electroperm magnetic chuck is a workholding device that uses a combination of permanent magnets and an electric current to clamp and release ferrous workpieces for precision machining operations like surface grinding.
How does an electroperm magnetic chuck work?
It uses an electric pulse to magnetize and demagnetize a set of permanent magnets. This allows for strong clamping force during machining and easy release of the workpiece afterward, with no power consumption required to maintain the magnetic hold.
What are the advantages of using an electroperm magnetic chuck?
The main advantages include high clamping force, energy efficiency (power is only needed for activation/deactivation), improved safety as the workpiece remains clamped even during a power failure, and reduced workpiece distortion compared to mechanical clamping.
Can I use this chuck for non-ferrous materials?
No, electroperm magnetic chucks are only suitable for holding ferromagnetic materials like iron and steel.
What is the difference between a permanent and an electroperm magnetic chuck?
A permanent magnetic chuck uses a mechanical lever to switch the magnetic field on and off, while an electroperm chuck uses an electrical pulse. Electroperm chucks typically offer stronger holding forces and are more convenient for automated processes.
Who should choose the Crystal AA-30901 (450x150mm) model?
The AA-30901 is ideal for small workshops and job shops working with smaller workpieces on compact surface grinding machines. Its size is perfect for tool rooms and applications requiring frequent setup changes.
Who should choose the Crystal AA-30902 (500x200mm) model?
The AA-30902 offers a slightly larger clamping area, making it suitable for medium-sized components. It's a versatile choice for general-purpose grinding operations in small to medium-sized manufacturing facilities.
Who should choose the Crystal AA-30907 (600x300mm) model?
With its larger surface area, the AA-30907 is designed for medium to large-scale production environments. It can accommodate multiple smaller parts or single large workpieces, increasing productivity.
Who should choose the Crystal AA-30914 (1500x400mm) model?
The AA-30914 is the largest variant, intended for heavy-duty industrial applications and large-scale manufacturing. It is perfect for grinding large plates, molds, and dies with maximum holding power and stability.
What is the main difference between the AA-302 and AA-309 series?
The AA-309 series generally offers larger dimensions and potentially higher holding forces compared to the AA-302 series, making the AA-309 variants more suitable for larger and heavier workpieces.
How do I choose the right size chuck for my machine?
Select a chuck that matches the table size of your surface grinding machine. The chuck dimensions should not exceed the machine's table dimensions to ensure safe and stable operation.
What is the price difference between the smallest and largest Crystal chuck?
The price varies significantly based on size and holding capacity. The 450x150mm model is the most affordable option for smaller applications, while the 1500x400mm model is a higher investment for heavy-duty industrial needs. Contact us for a detailed quote.
