Crystal Electromagnetic Circular Chuck Price in India | Buy Online — AA-30221

An electromagnetic circular chuck is a workholding device that uses magnetic force to secure ferrous metal workpieces to a machine tool, such as a lathe or grinding machine. It allows for quick setup and clamping of round or cylindrical parts.

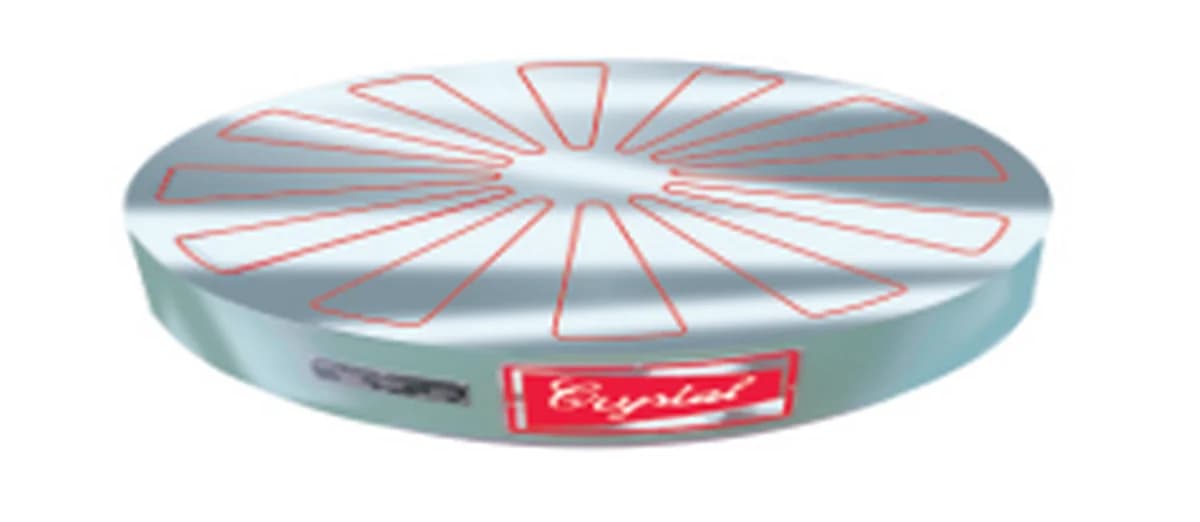

A radial pole configuration means the magnetic poles are arranged in a starburst pattern from the center of the chuck. This design provides a strong, even magnetic field, ideal for holding rings, discs, and other round workpieces securely during machining.

The main benefits include rapid workpiece clamping and release, uniform clamping pressure that prevents distortion of the workpiece, and a clear, unobstructed surface for machining, as there are no mechanical clamps.

This chuck is designed to hold ferromagnetic materials, which are materials that are strongly attracted to magnets, such as iron, steel, and certain alloys.

An external DC power supply unit is required to energize the electromagnet in the chuck. The power supply is typically sold separately and allows for variable control of the magnetic force.

Yes, when used with a variable voltage DC power supply unit, the magnetic holding force of the chuck can be adjusted to suit the specific workpiece and machining operation.

We offer pan-India delivery. Lead times vary depending on your location and stock availability. Please contact us for an exact delivery estimate for your pincode.

Yes, we provide a GST invoice for all purchases, allowing you to claim input tax credit for your business.

Yes, all Crystal products come with a standard manufacturer's warranty against manufacturing defects. Please refer to the warranty card for detailed terms and conditions.

Regular maintenance includes keeping the chuck surface clean from debris and metal chips, checking the electrical connections, and ensuring the slip ring assembly is functioning correctly. Always demagnetize the chuck before cleaning.

The 300mm model is ideal for small workshops and educational institutions using benchtop or small-capacity lathes for machining small to medium-sized ferrous components.

The 450mm model is a versatile choice for general machine shops that handle a variety of workpiece sizes. It offers a good balance of holding capacity and compatibility with medium-sized lathes.

The 600mm model is suited for heavy-duty machining and production environments where larger and heavier workpieces are common. It provides a substantial magnetic force for demanding applications.

The 750mm model is designed for large-scale industrial applications, including the manufacturing of large rings, gears, and bearing races. It requires a lathe with a large swing capacity.

The 1000mm model is the largest in this series, built for very large and heavy workpieces found in heavy engineering and manufacturing sectors. It offers the maximum holding diameter for the most demanding jobs.

The primary difference is the diameter and, consequently, the maximum size of the workpiece that can be held. The 450mm chuck offers a larger magnetic surface area and is suitable for bigger components compared to the 300mm model.

Consider the maximum swing over the bed of your lathe and the typical diameter of the workpieces you machine. The chuck diameter should be less than the lathe's maximum swing and appropriate for your work, ensuring it doesn't limit the tool post's movement.

Yes, generally, as the diameter of the chuck increases, the total magnetic surface area and the size of the electromagnetic coils also increase. This results in a greater overall magnetic holding force, making larger chucks suitable for heavier and larger workpieces.
