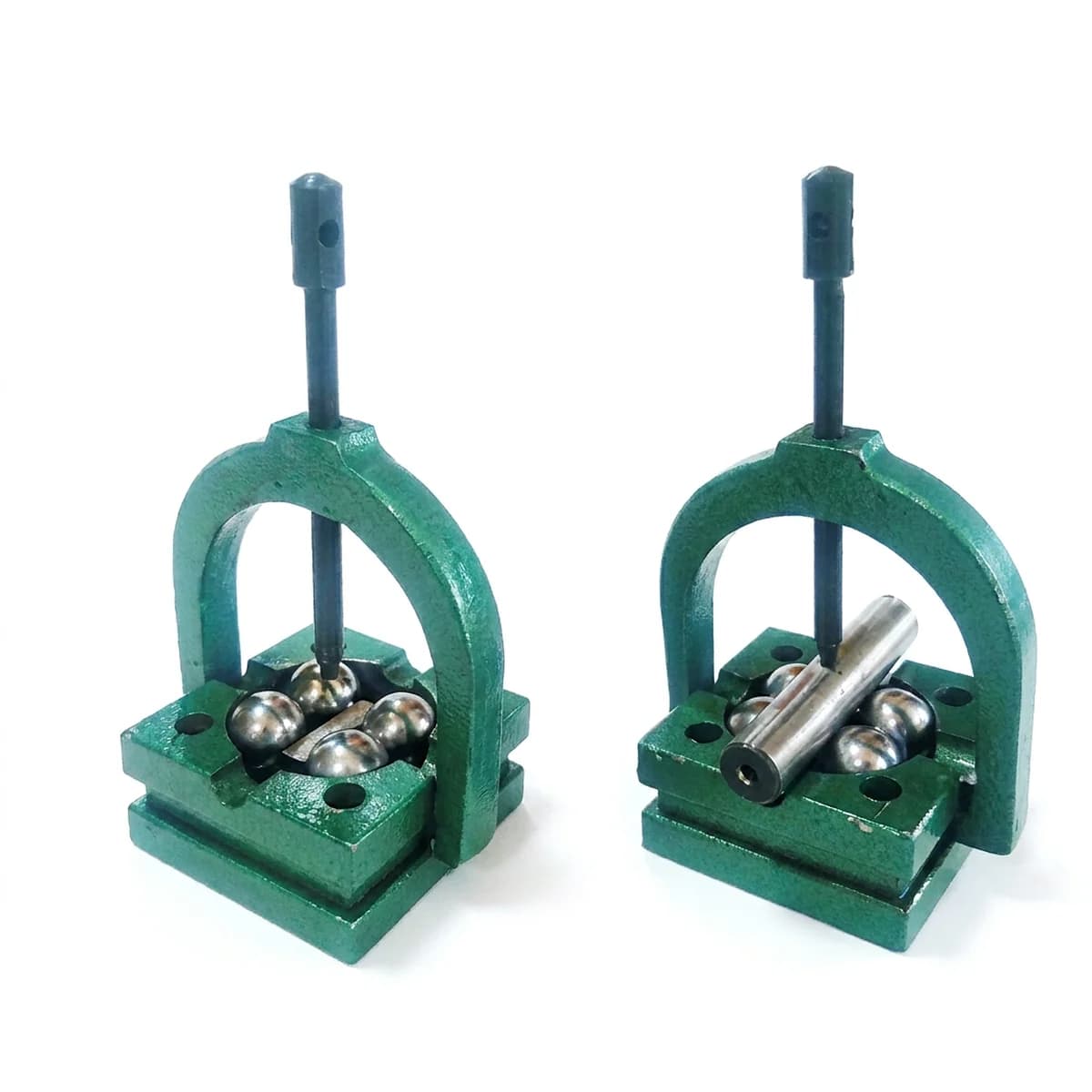

Crystal Ball Blocks with Clamps for Industrial & Workshop Use AA-1426
Crystal Ball Blocks with Clamps provide precise positioning for industrial workshop applications. The AA-142 series model measures 55 x 55 x 35 mm, offering a compact footprint for tight spaces. • Ideal for small component assembly and fixture mounting • Lightweight design facilitates rapid positioning changes • Precise alignment for small-scale machining operations • Corrosion-resistant surface finish extends tool life
Specifications
For: AA-1426- Size
- 55 x 55 x 35 mm
- Brand
- Crystal
- Series
- AA-142
Configurations
Click a row to switch| Variant | Size | Price |
|---|---|---|
| AA-1426 | 55 x 55 x 35 mm | ₹13,662 |
| AA-1427 | 85 x 85 x 45 mm | ₹18,566 |
| AA-1428 | 120 x 120 x 70 mm | ₹22,936 |
| CRYSTAL-BALL-BLOCKS-V6306 | 55 x 55 x 35 mm | Quote |
| CRYSTAL-BALL-BLOCKS-V6307 | 55 x 55 x 35 mm | Quote |
| CRYSTAL-BALL-BLOCKS-V6308 | 55 x 55 x 35 mm | Quote |
| CRYSTAL-BALL-BLOCKS-V6309 | 55 x 55 x 35 mm | Quote |
Workshop Versatility
- Suitable for general purpose Industrial & Workshop Use
- Integrates easily with standard clamping setups
- Supports various cylindrical workpiece diameters
- Enhances stability during measurement procedures
- Recommended for machine shops and toolrooms
Brand and Series Identity
- Manufactured by Crystal brand for industrial use
- Series AA-142 denotes specific performance standards
- Part of the Crystal brand industrial accessory range
- Meets rigorous workshop requirements
- Trusted by engineers for precision layout work
Maintenance and Cost Efficiency
- The ball can be replaced & readjusted with minimum effort & cost
- Extends product life without replacing the entire block
- Reduces downtime during maintenance cycles
- Simplifies repair processes for workshop technicians
- Cost-effective solution for high-volume usage

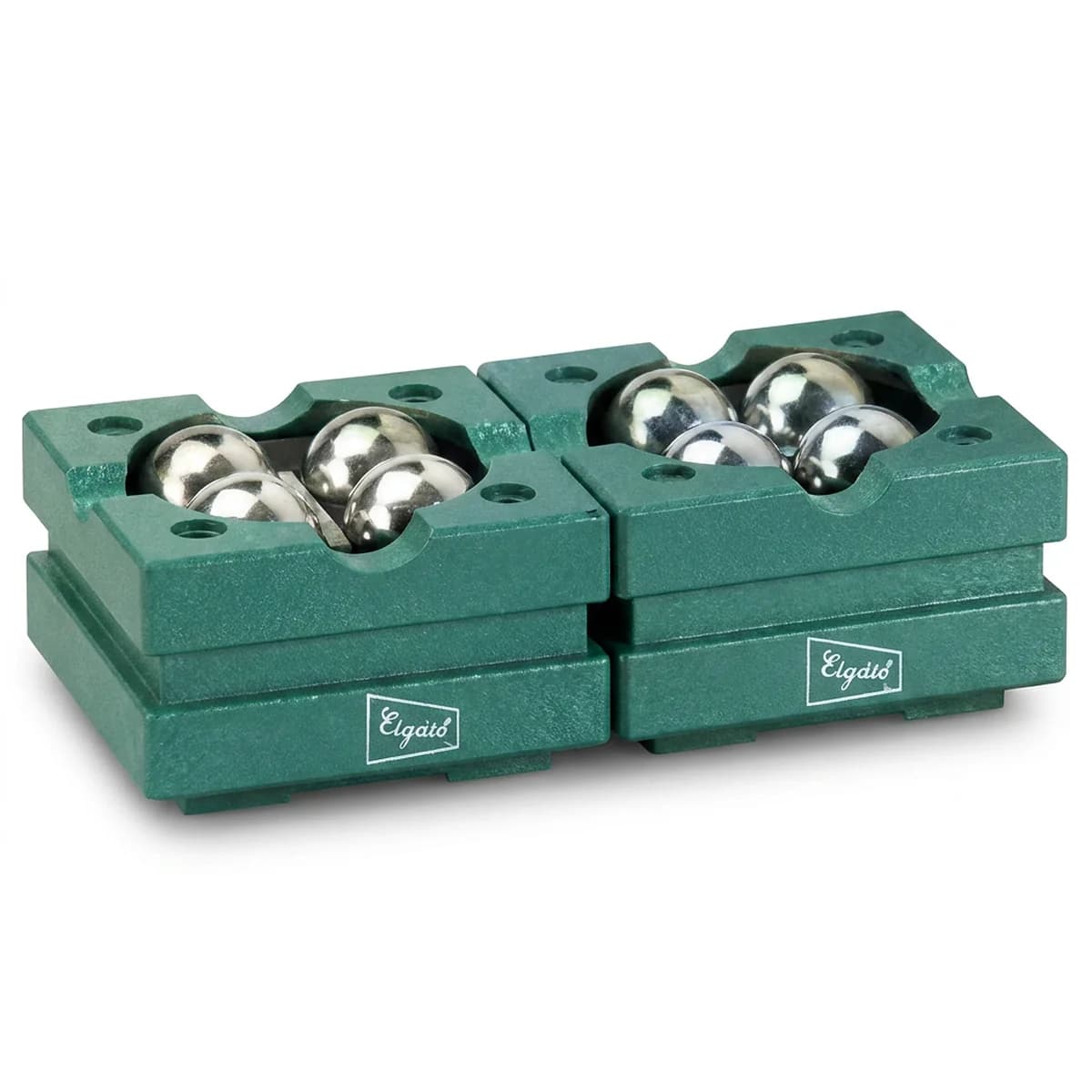

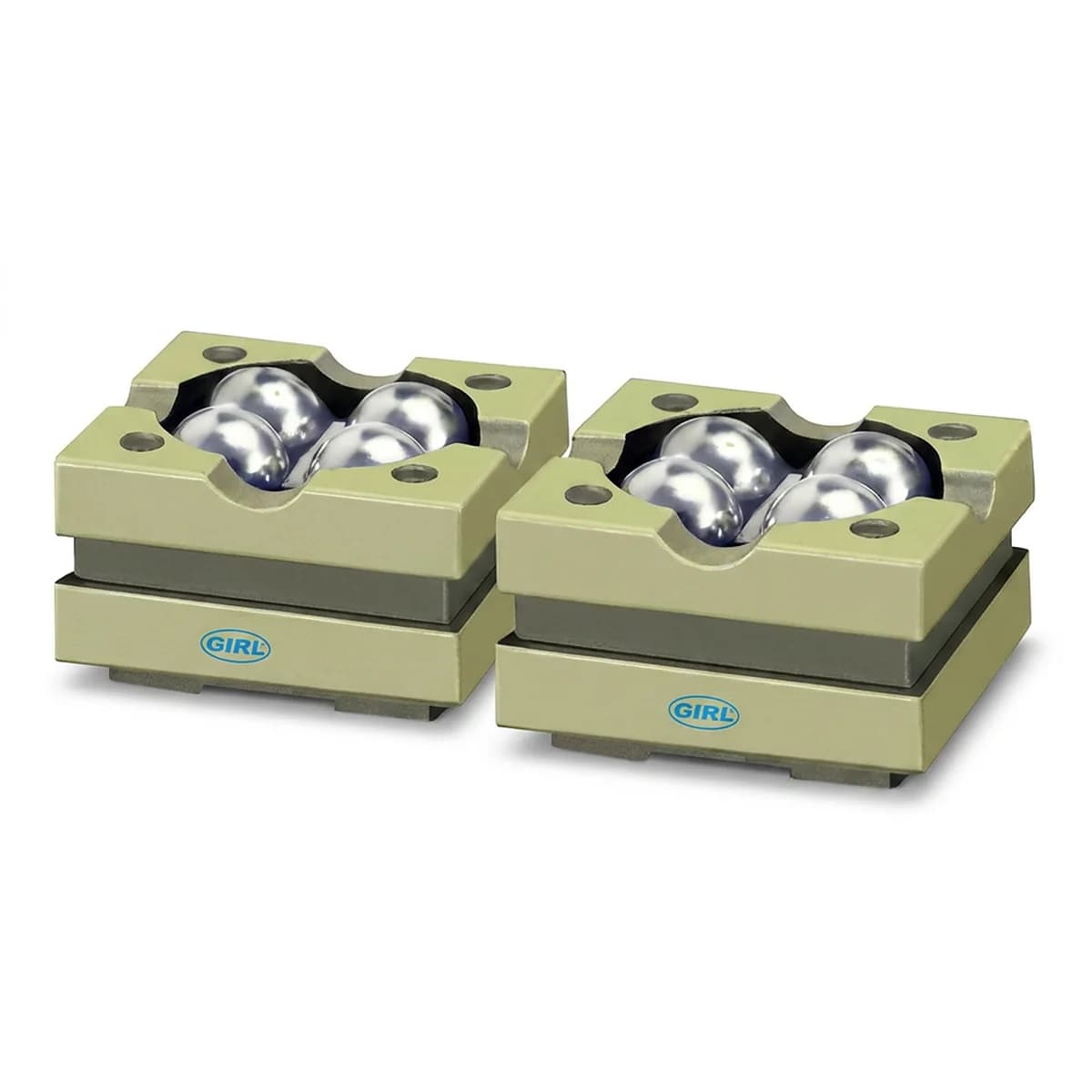

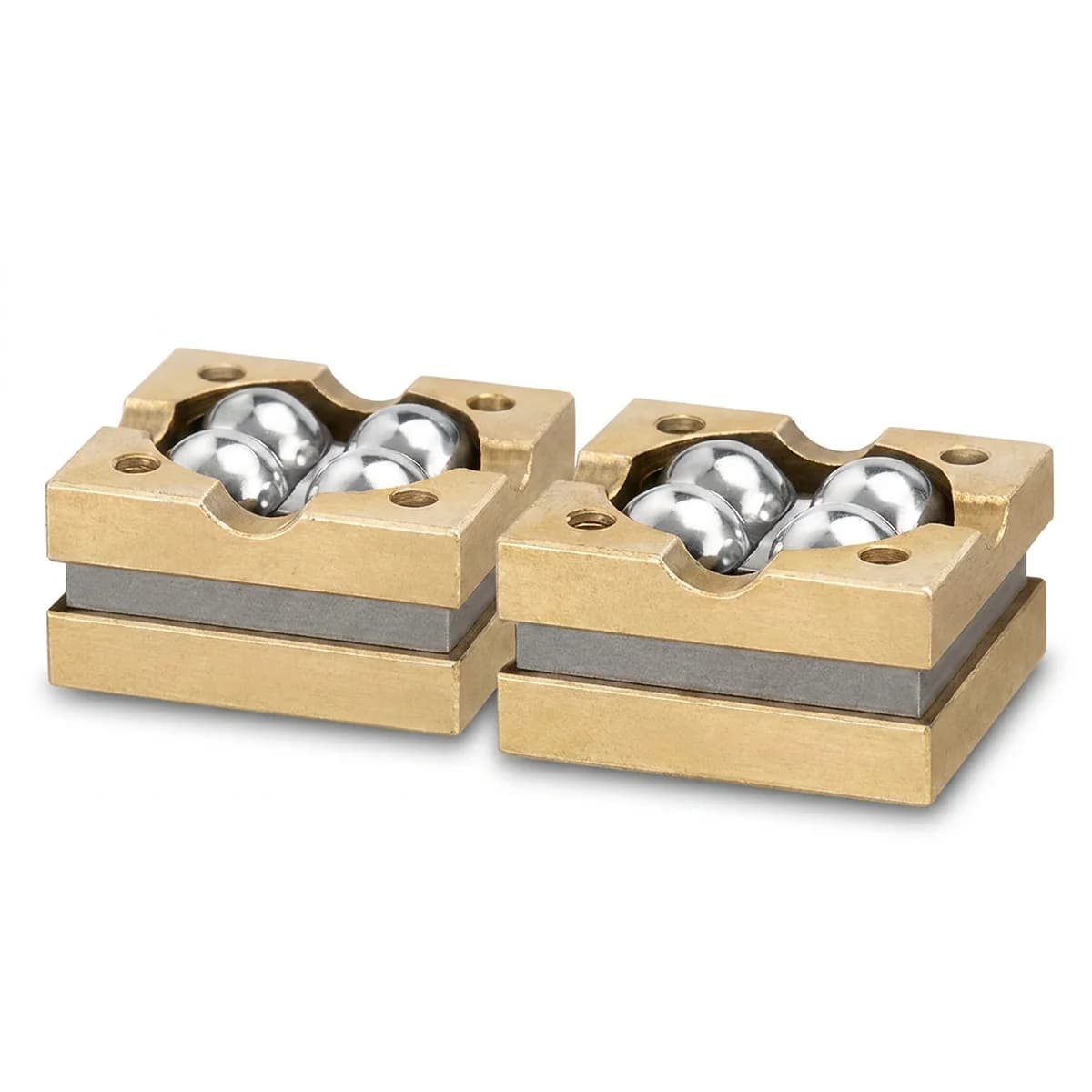

Robust Steel Construction
- Four hardened steel balls on the top face
- Provides self-aligning, hard-wearing, accurate support
- Ball wearing is even, so accuracy doesn't get affected
- Constructed for long-term industrial durability
- Resists deformation under heavy workshop loads
Precision Measurement Support
- Designed for checking of heavy round cylindrical jobs
- Supplied in perfectly matched pair for consistent results
- Accuracy maintained at ± 0.010 mm across the set
- Ensures reliable alignment during inspection tasks
- Ideal for quality control in machining environments
More questions buyers ask
What are Crystal Magnetic V Blocks used for?
Crystal Magnetic V Blocks are precision tools used in workshops and tool rooms for holding ferromagnetic cylindrical or square jobs securely during tasks like marking, checking, grinding, and drilling.
What sizes are available for Crystal Magnetic V Blocks?
Crystal Magnetic V Blocks are available in a range of sizes, commonly including 3-inch, 4-inch, 6-inch, and 8-inch models to accommodate various workpiece dimensions.
Are Crystal Magnetic V Blocks sold individually or in pairs?
They are typically sold in matched pairs to ensure high precision and parallelism for inspection and machining tasks. However, single pieces may also be available from some suppliers.
What is the accuracy of Crystal Magnetic V Blocks?
Crystal V Blocks are known for their high precision. The accuracy for flatness, parallelism, and squareness is generally within 0.005 mm, making them suitable for quality control and tool room applications.
How do you turn the magnet on and off?
Most Crystal Magnetic V Blocks feature a simple ON/OFF switch that engages or disengages the magnetic pull, allowing for easy placement and removal of the workpiece.
What material are Crystal V Blocks made from?
They are typically made from high-quality, hardened steel to ensure durability, stability, and long-term accuracy.
Can I get a GST invoice for my purchase?
Yes, we provide a proper GST invoice for all purchases, allowing you to claim input tax credit for your business.
Do you deliver Crystal V Blocks across India?
Absolutely. We offer pan-India delivery, ensuring your tools reach you safely and on time, no matter your location.
Who should choose the 4-inch Crystal Magnetic V Block (AA-1801 H)?
The 4-inch model is a versatile, general-purpose choice, ideal for small to medium-sized workshops that handle a variety of cylindrical parts. It offers a great balance of clamping force and size for common machining and inspection tasks.
Who should choose the 6-inch Crystal Magnetic V Block?
The 6-inch V block is suited for workshops dealing with larger and heavier workpieces that require a stronger magnetic pull and a larger base for stability during grinding or light milling operations.
Who should choose the 8-inch Crystal Magnetic V Block?
The 8-inch model is the best choice for heavy-duty applications and large-scale manufacturing or inspection environments. It provides the maximum magnetic force and support for very large and heavy cylindrical components.
Who should choose the 3-inch Crystal Magnetic V Block (AA-1802H)?
The compact 3-inch V block is perfect for toolmakers, hobbyists, and quality control inspectors working with smaller, more delicate cylindrical parts that require high precision but less clamping force.
What is the main difference between the 4-inch and 6-inch models?
The primary difference is the size and magnetic pull. The 6-inch model can accommodate larger diameter workpieces and offers a stronger magnetic force, making it more stable for heavier jobs compared to the more versatile 4-inch model.
How do I choose the right size V block for my needs?
Consider the maximum diameter and weight of the workpieces you typically handle. For smaller, lighter parts, a 3 or 4-inch block is sufficient. For heavier and larger parts that require more stability and magnetic force, a 6 or 8-inch block is recommended.
Are these suitable for wet grinding?
Yes, Crystal Magnetic V Blocks are designed to be used for both wet and dry grinding operations, thanks to their robust construction and sealed magnetic components.
