Crystal Angle Blocks for Industrial & Workshop Use AA-2751
Crystal Angle Blocks for Industrial & Workshop Use provide precise reference surfaces for layout and inspection tasks. This AA-2751 series unit features a 75 x 75 x 8 mm hardened steel design for stable positioning. • 45°/90° angles enable versatile fixture alignment • Hardened construction resists wear and deformation • Ensures consistent dimensional accuracy during production
Specifications
For: AA-2751- Series
- AA-275
- Angle
- 45°/90°
- Size
- 75 x 75 x 8 mm
Configurations
Click a row to switch| Variant | Series | Size | Angle | Price |
|---|---|---|---|---|
| AA-2751 | AA-275 | 75 x 75 x 8 mm | 45°/90° | ₹1,242 |
| AA-2752 | AA-275 | 50 x 85 x 8 mm | 30°/60° | ₹1,242 |
Sizing and Configuration
- Profile dimensions available in 75 x 75 x 8 mm and 50 x 85 x 8 mm variations
- Compact footprint allows use in tight machine table configurations
- Multiple size options accommodate different workpiece dimensions and weights
- Standardized thickness ensures compatibility with common fixture plates
- Select the appropriate profile based on specific layout or inspection needs
Construction and Durability
- Manufactured for long-term stability in high-volume production settings
- Hardened surfaces resist wear from repeated clamping and contact
- Maintains geometric integrity under typical workshop handling conditions
- Robust design minimizes deflection during heavy-duty machining operations
- Consistent surface finish ensures accurate contact with workpieces
Industrial Applications
- Establish highly accurate angular setups and tool orientations on machine tables
- Position parts precisely on surface plates for consistent manufacturing runs
- Serve as reliable reference masters during layout marking and squaring tasks
- Support metrology inspection of angled components with repeatable accuracy
- Ideal for workshop environments requiring stable angular positioning aids
Key Features

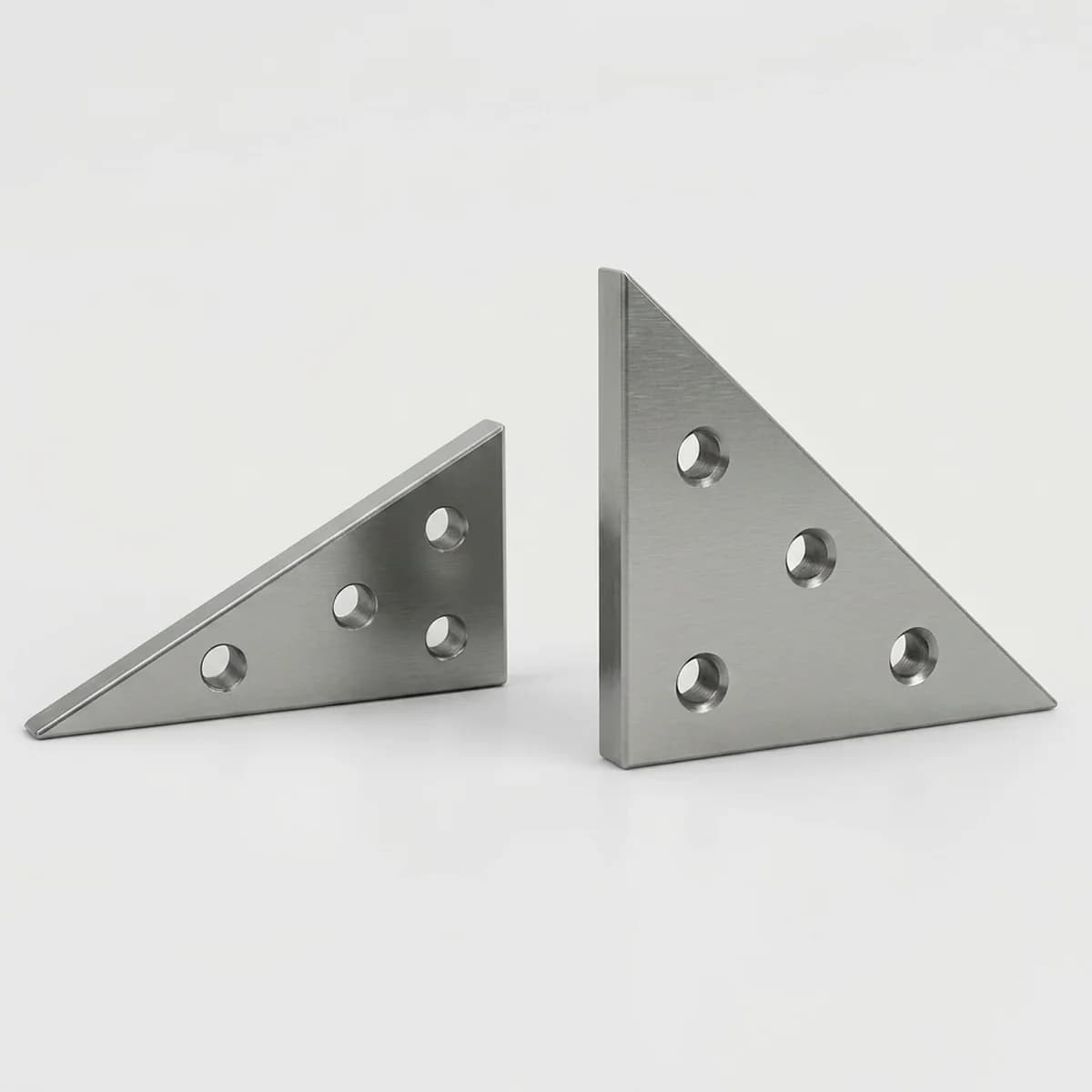

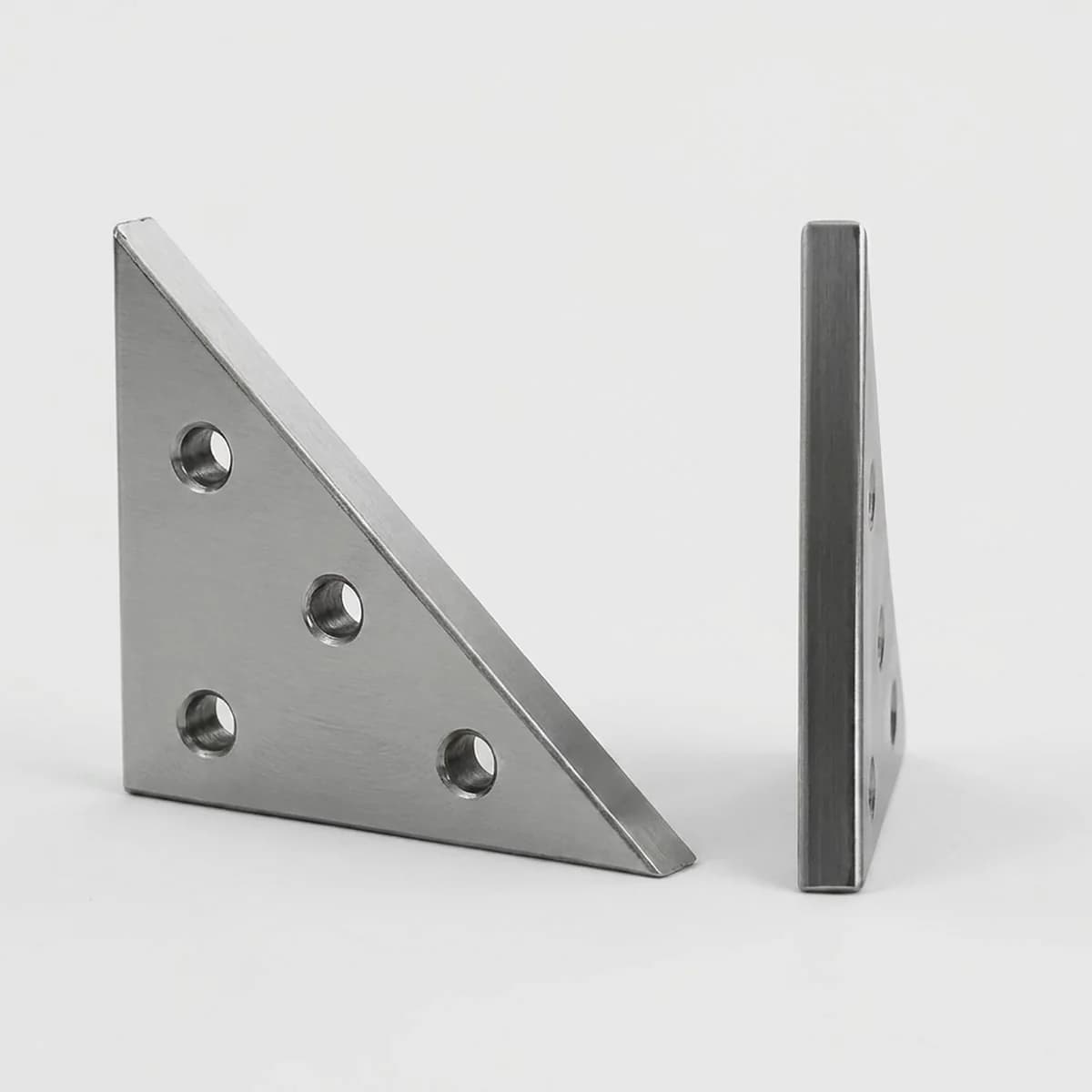

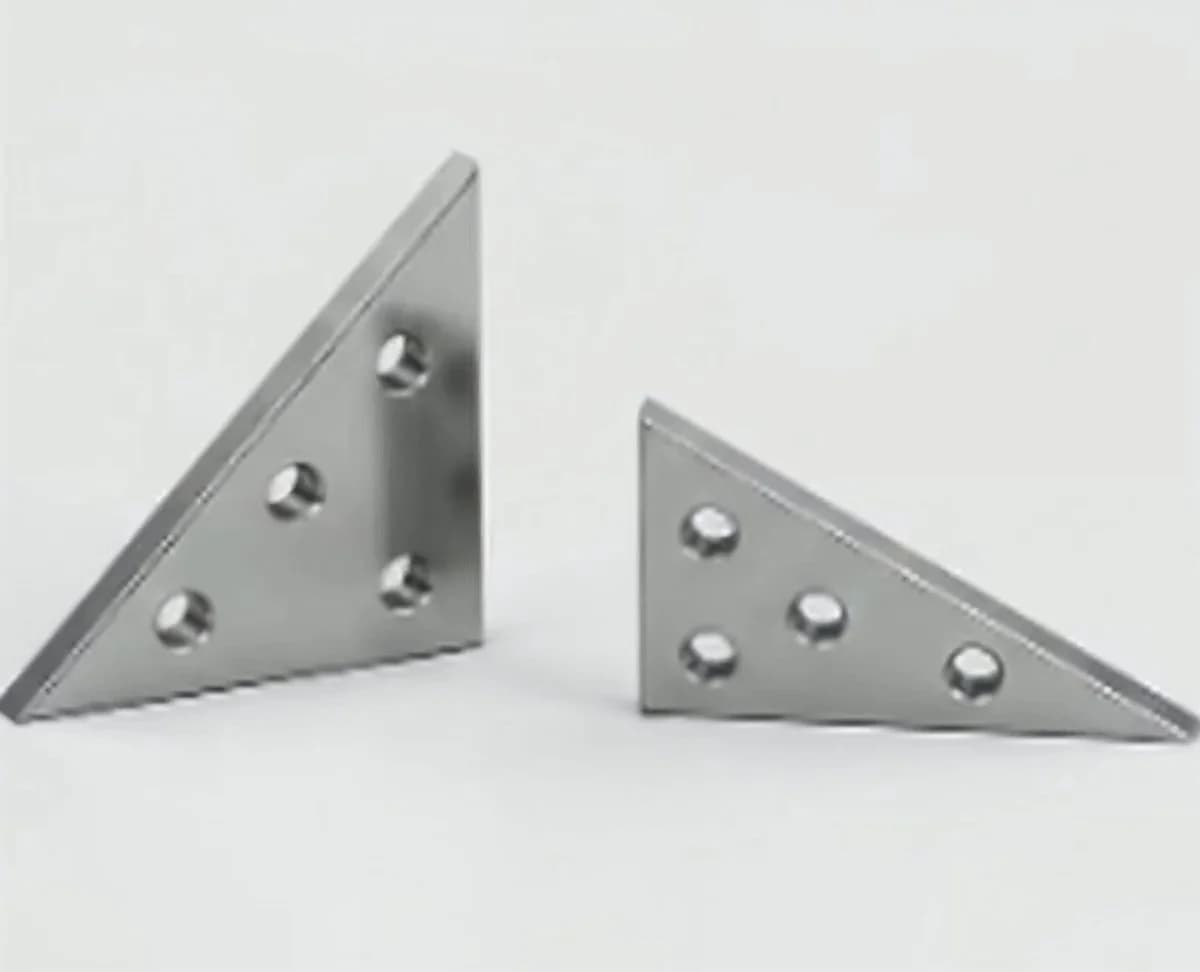

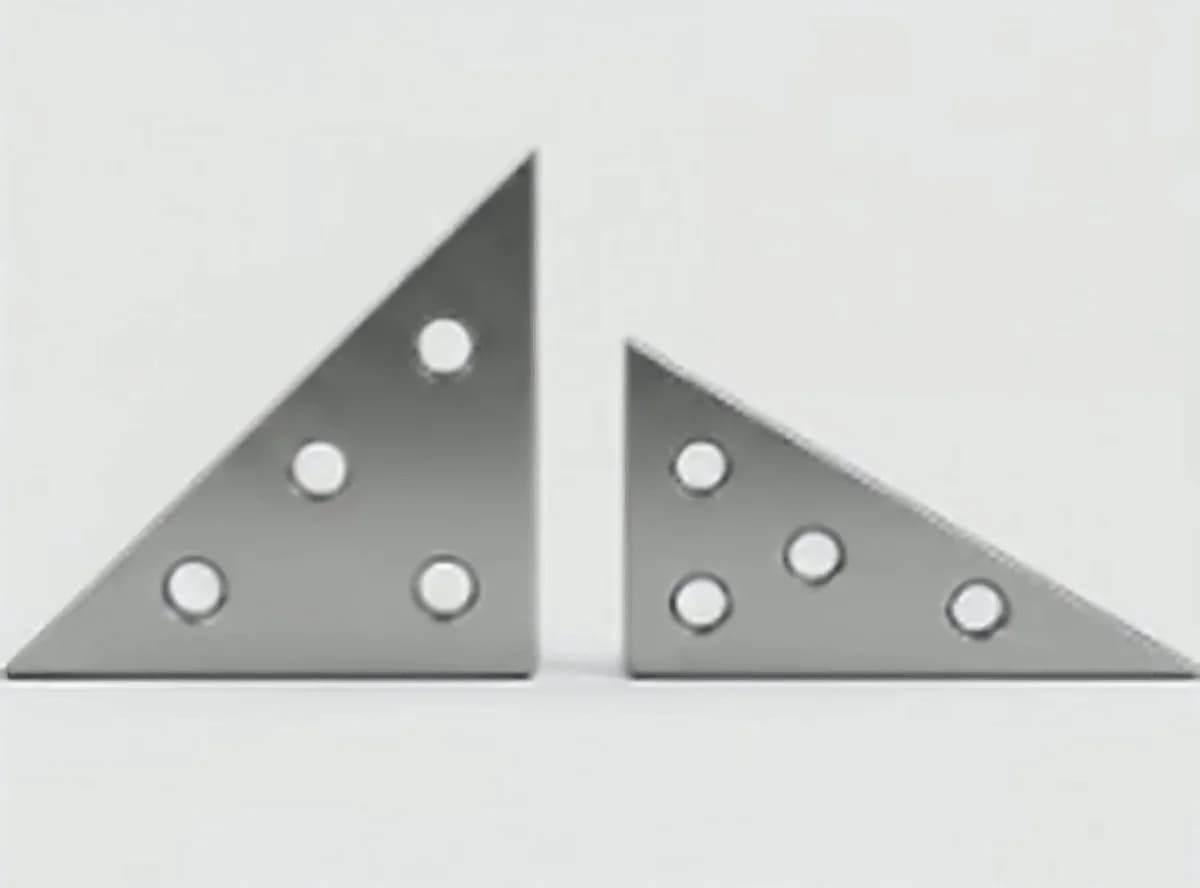

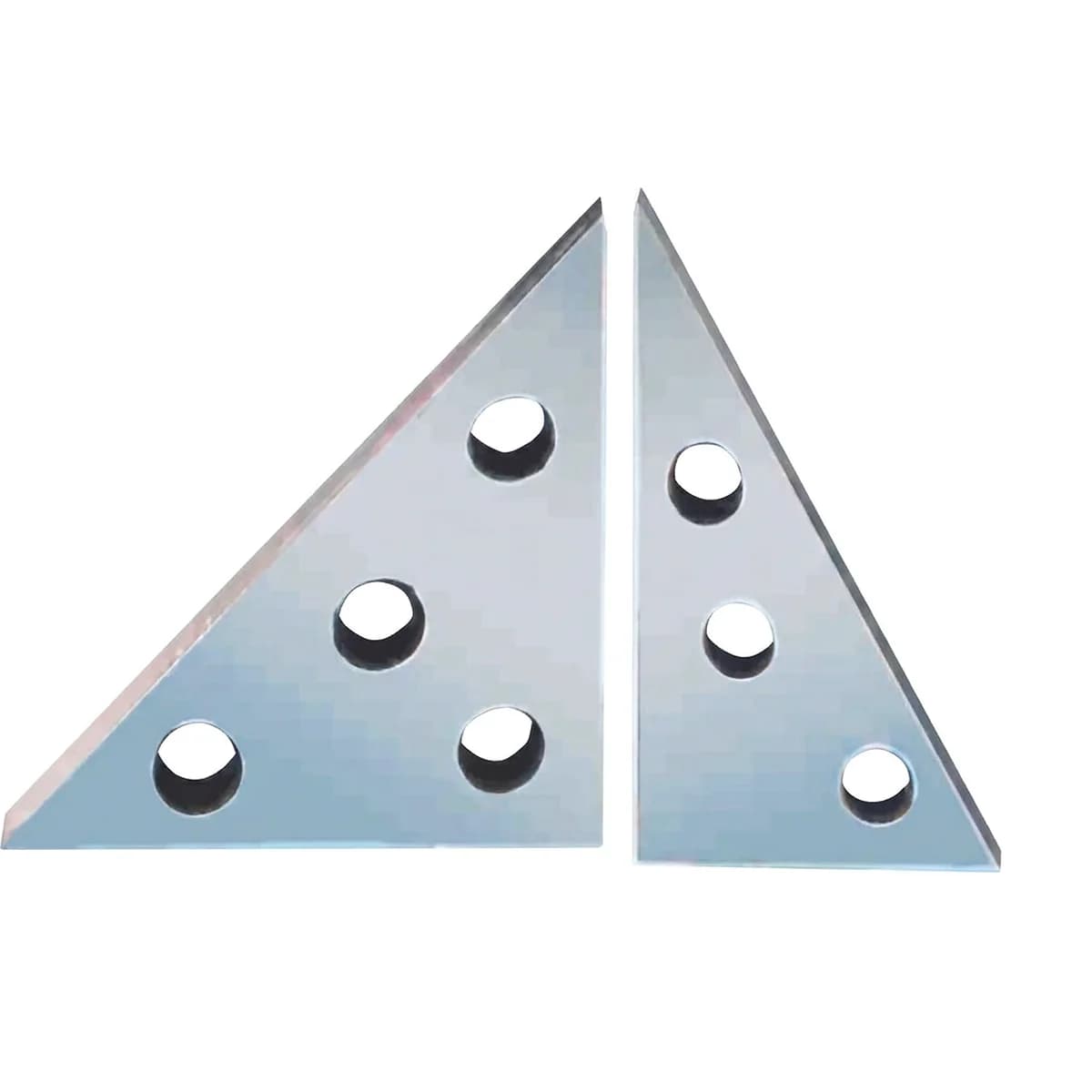

- Series AA-275 precision triangular blocks with fixed industrial angles
- Available in standard 45°/90° or 30°/60° angular configurations
- Solid precision-ground working edges ensure rigid angular references
- Integrated through-holes simplify clamping, bolting, or pinning setups
- Low-profile thickness optimized for space-restricted machining environments
- Uniform hole patterns support versatile fixture integration across sizes
Frequently asked
What material are these angle blocks typically made from?
They are generally crafted from hardened tool steel or cast iron for stability.
Can these blocks be used for inspection as well as setup?
Yes, they serve as reliable reference masters for both setup and metrology.
Are the through-holes standardized for common bolts?
The uniform through-holes are designed to simplify clamping with standard hardware.
More questions buyers ask
What are Crystal Angle Blocks used for?
Used for precise angular reference in layout, machining, and inspection operations.
What material are these angle blocks made of?
They are constructed from hardened steel to resist wear and deformation.
What angles are available in this series?
They are available in 45°/90° and 30°/60° configurations.
Are these angle blocks suitable for heavy-duty use?
Yes, the robust build quality ensures a long service life in demanding workshops.
Do these blocks come with surface protection?
Yes, surface treatments protect against corrosion and rust over time.
Can these be used for cylindrical workpieces?
Yes, they support cylindrical workpieces during turning and grinding processes.
How do these blocks improve machining accuracy?
They provide stable positioning, reducing setup time and improving overall accuracy.
Are these blocks compatible with standard fixtures?
Yes, their compact sizes fit standard machinery and fixture systems.
Do you provide a GST invoice for these angle blocks?
Yes, a B2B GST invoice is provided for all purchases.
Is pan-India delivery available?
Yes, we offer secure pan-India delivery for all industrial tools.
Who should choose the 45°/90° Angle Block (75 x 75 x 8 mm)?
Ideal for workshops needing standard right-angle and 45-degree setups for layout and inspection.
Who should choose the 30°/60° Angle Block (50 x 85 x 8 mm)?
Perfect for specialized machining operations requiring 30-degree or 60-degree angular references.
What is the difference between the 45°/90° and 30°/60° angle blocks?
The primary difference is the angle configuration and size; the 45°/90° block is 75x75x8mm, while the 30°/60° block is 50x85x8mm.
Which angle block is better for standard right-angle setups?
The 45°/90° angle block is specifically designed for standard right-angle and 45-degree setups.
Are both angle blocks made of the same material?
Yes, both variants are constructed from durable hardened steel for long-lasting precision.
