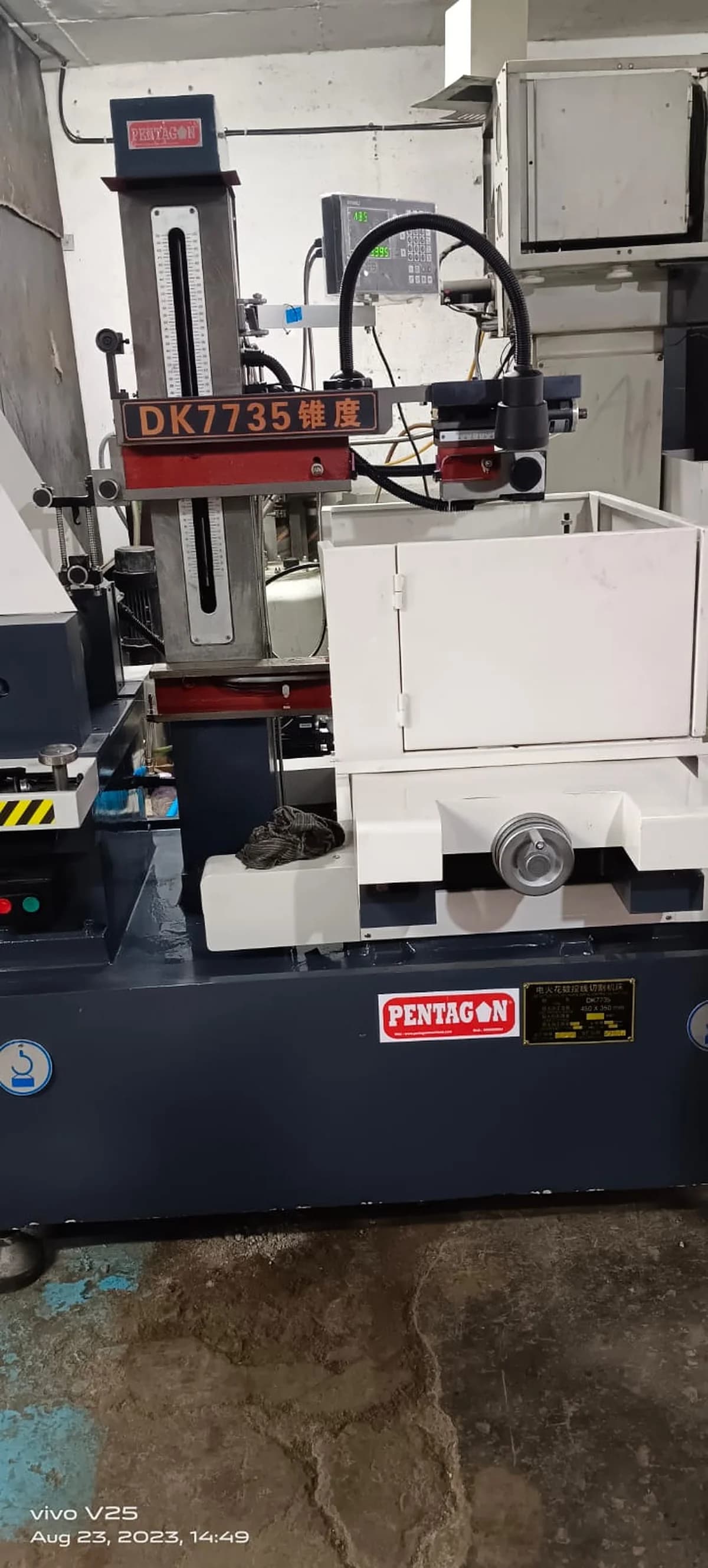

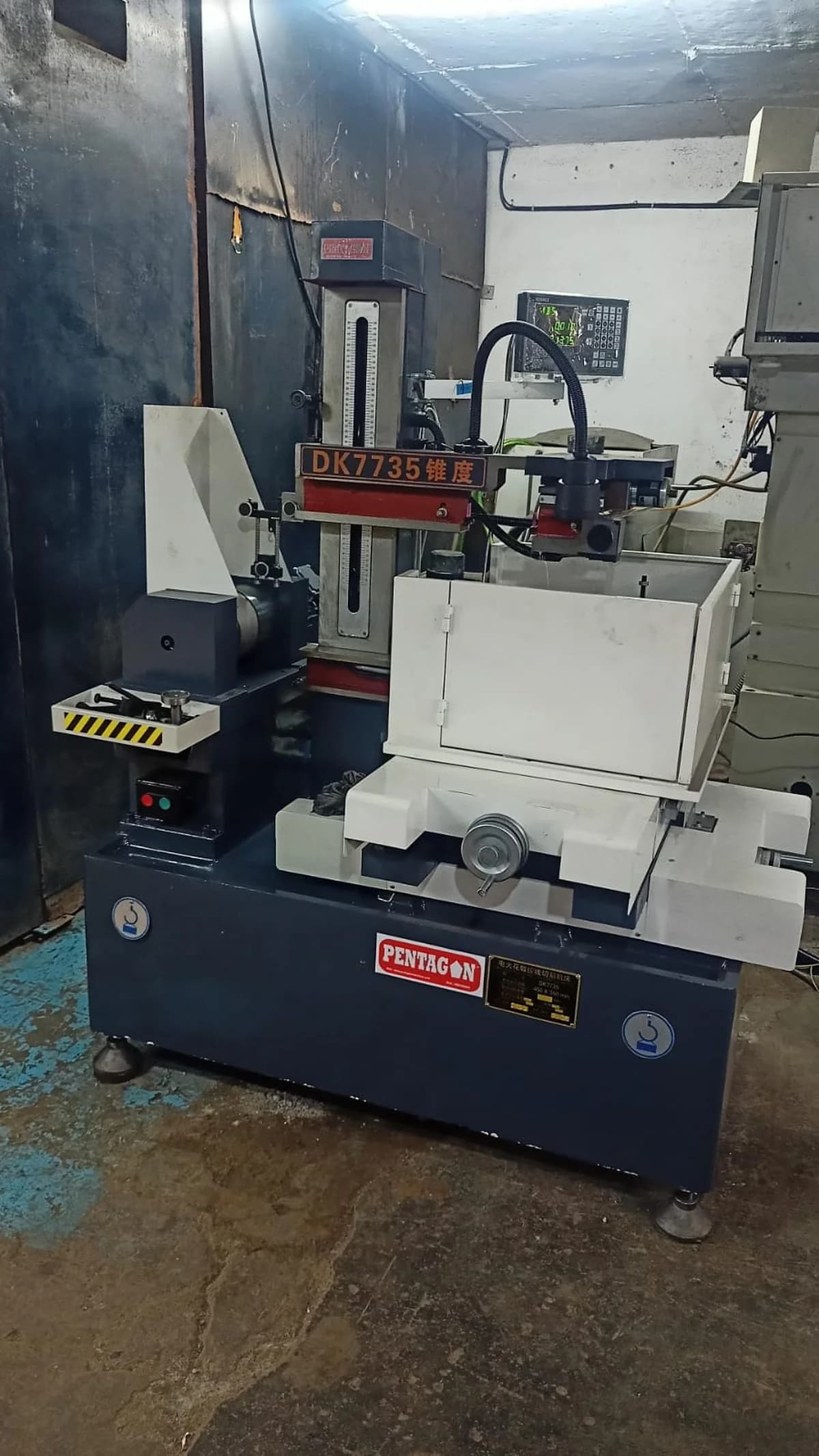

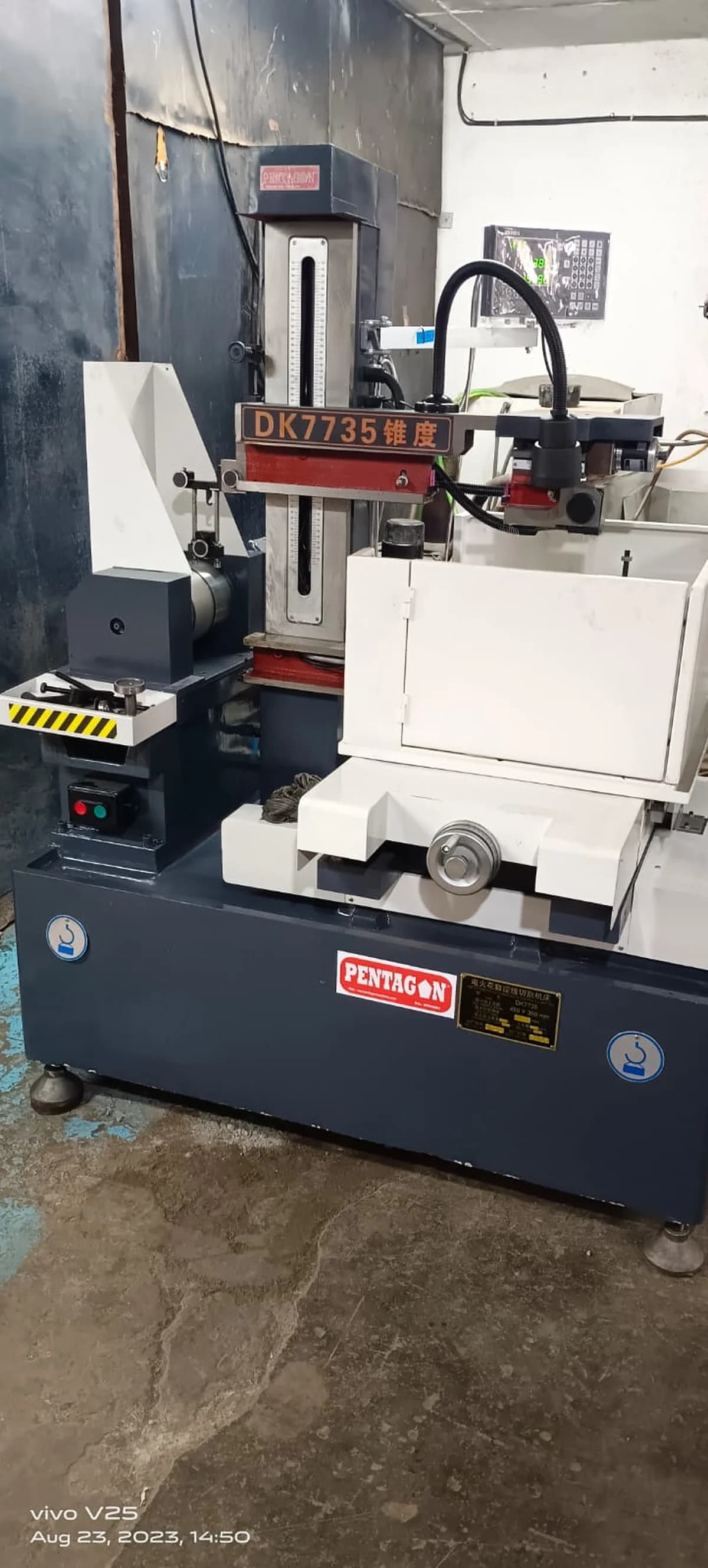

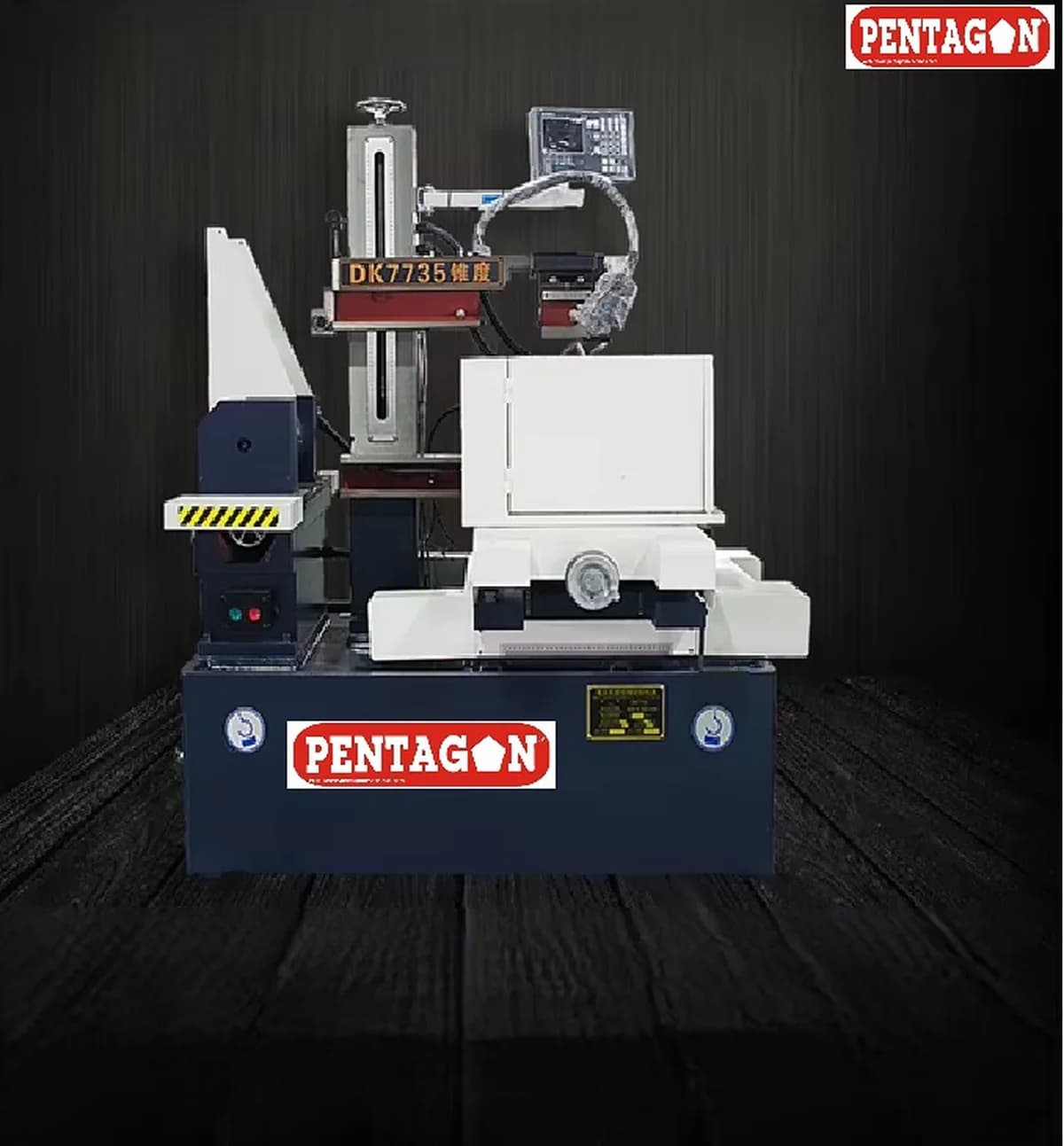

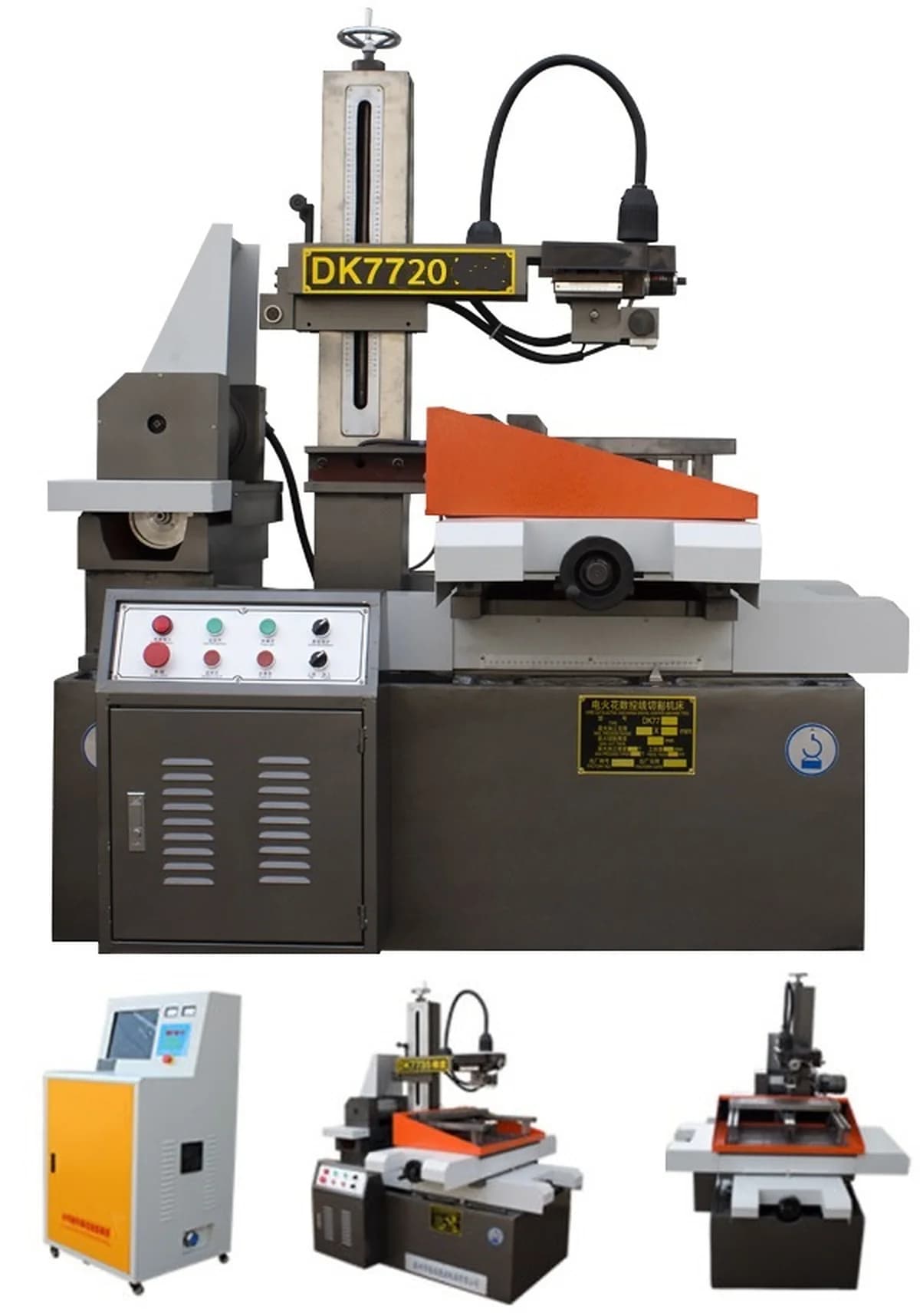

CNC Wire cut EDM Machine Model PDK7735
PENTAGON PDK7735 Economic CNC Wire Cut EDM Machine is engineered to deliver precision machining at an affordable cost, making it the ideal choice for tool rooms, die mould workshops, precision engineering units, R&D labs, and small-to-medium manufacturing industries.

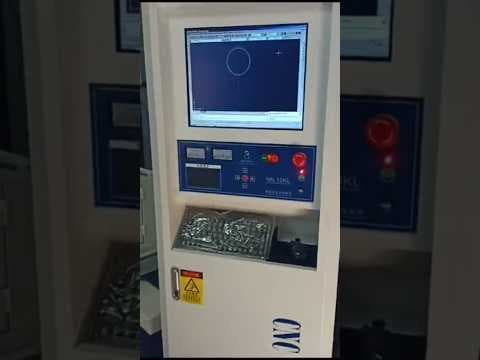

See it in action
Specifications
For: PDK7735- Machine Model
- DK7735
- Worktable Size
- 380*650 mm
- Worktable Travel
- 350*450 mm
- Wire Electrode Diameter
- Ø0.12 – 0.20 mm
- Maximum Cutting Taper
- 6° (°/80mm)
- Electrode Wire
- molybdenum
- Motor
- Step Motor (X/Y,U/V)
- Maximum Cutting Speed
- 100 (mm2/min)
- Machine Tools Total Power
- 2.2 KW

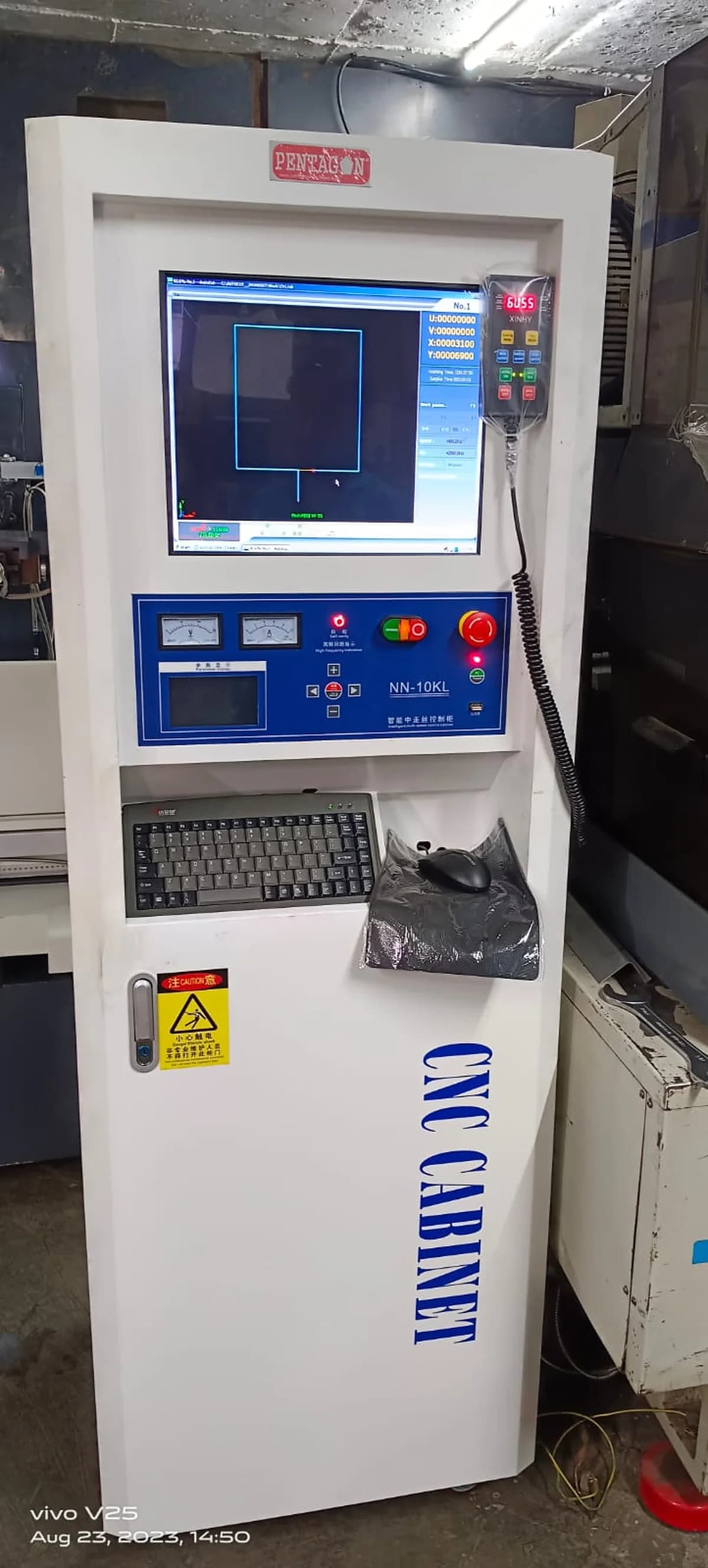

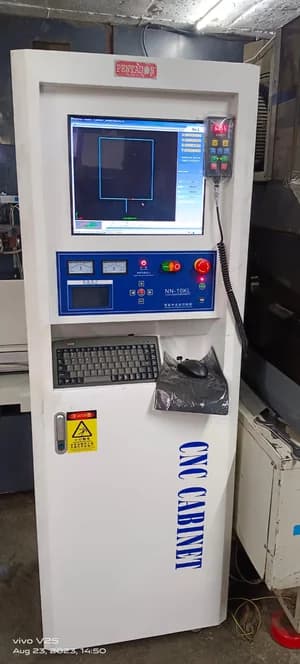

- Programming and Controlling
- HL, HF, AUTOCUT
- Worktables Maximum Load
- 300 Kgs
- Machining Precision Cutting Octagon
- 0.015 mm
- Maximum Cutting Thickness
- 450 mm
- Voltage Supply
- 3PH 380V 50Hz

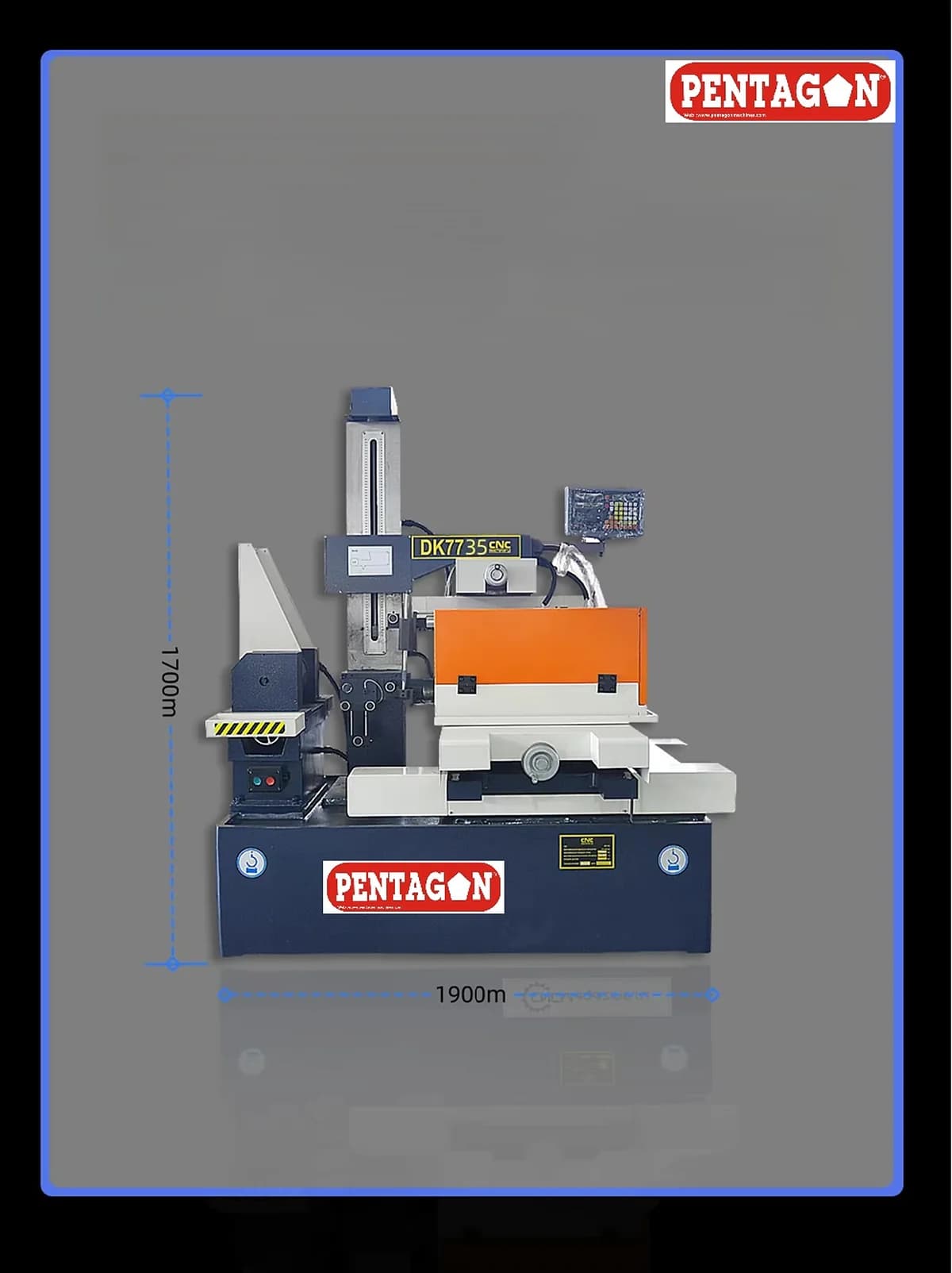

- Machine Tool Body Outline Dimensions
- 1750x1250x2000 mm
- Machine Weight
- 1200 Kgs
Configurations
Click a row to switch| Variant | Worktable Travel | Worktable Size | Maximum Cutting Taper | Maximum Cutting Speed | Price |
|---|---|---|---|---|---|
| PDK7735 | 350*450 mm | 380*650 mm | 6° (°/80mm) | 100 (mm2/min) | ₹5,95,000 |
| DK7720 | 200x250 mm | 270x420 mm | 6° (°/80mm) | 100 (mm2/min) | ₹4,90,000 |
| DK7725 | 250x320 mm | 340x520 mm | 6° (°/80mm) | 100 (mm2/min) | ₹5,25,000 |
| DK7745F | 450x630 mm | 950x600 mm | 6° (°/80mm) | 100 (mm2/min) | ₹8,12,000 |
| DK7755 | 550x650 mm | 950x650 mm | 6° (°/80mm) | 100 (mm2/min) | ₹9,85,000 |
| DK7755F | 550x800 mm | 1140x650 mm | 6° (°/80mm) | 100 (mm2/min) | ₹10,78,000 |
| DK7763 | 630x800 mm | 1140x750 mm | 6° (°/80mm) | 100 (mm2/min) | ₹11,20,000 |
| DK7763F | 630x1000 mm | 1350x750 mm | 6° (°/80mm) | 100 (mm2/min) | ₹12,15,000 |
| PDK7745 | 450*550 mm | 500*750 mm | 6° (°/80mm) | 100 (mm2/min) | ₹6,55,000 |
| DK7780 | 800x1000 mm | 1350x980 mm | 6° (°/80mm) | 190 (mm2/min) | ₹13,25,000 |
| DK7780F | 800x1200 mm | 1600x1050 mm | ±15°/80 mm | 120 (mm2/min) | ₹13,80,000 |
Economic Value
- Engineered to deliver precision machining at an affordable cost point
- Reduces operational overhead with efficient power consumption and setup
- Minimizes material waste through precise wire electrode diameter control
- Delivers high return on investment for SMEs entering EDM machining
- Simplifies maintenance with standardized components and accessible design
Control & Construction
- Features HL, HF, and AUTOCUT programming for versatile operation modes
- Supports molybdenum wire electrode with 0.18 mm diameter for fine cuts
- Handles worktables maximum load of 300 Kgs for substantial workpieces
- Configurations include models such as DK7735 with 380*650 mm table
- Machine tool body outline dimensions are 1750x1250x2000 mm for compact fit
- Machine weight is 1200 Kgs for stability during heavy cutting operations
Industrial Applications
- Ideal for tool rooms and die mold workshops requiring tight tolerances
- Suits precision engineering units needing reliable CNC wire cut solutions
- Perfect for R&D labs conducting material testing and prototype development
- Designed for small-to-medium manufacturing industries with budget constraints
- Provides affordable cost structure without compromising on machining quality
Precision & Performance
- Achieves machining precision cutting octagon of 0.015 mm for tight tolerances
- Supports maximum cutting thickness of 450 mm for substantial workpieces
- Delivers maximum cutting speed of 100 mm2/min for efficient production rates
- Enables maximum cutting taper of 6° for versatile angled machining applications
- Utilizes step motor on X/Y and U/V axes for reliable motion control
- Operates on 3PH 380V 50Hz voltage supply for standard industrial compatibility
- Features machine tools total power of 2.2 KW for energy-efficient operation
- Worktable travel of 350*450 mm allows for extended machining ranges

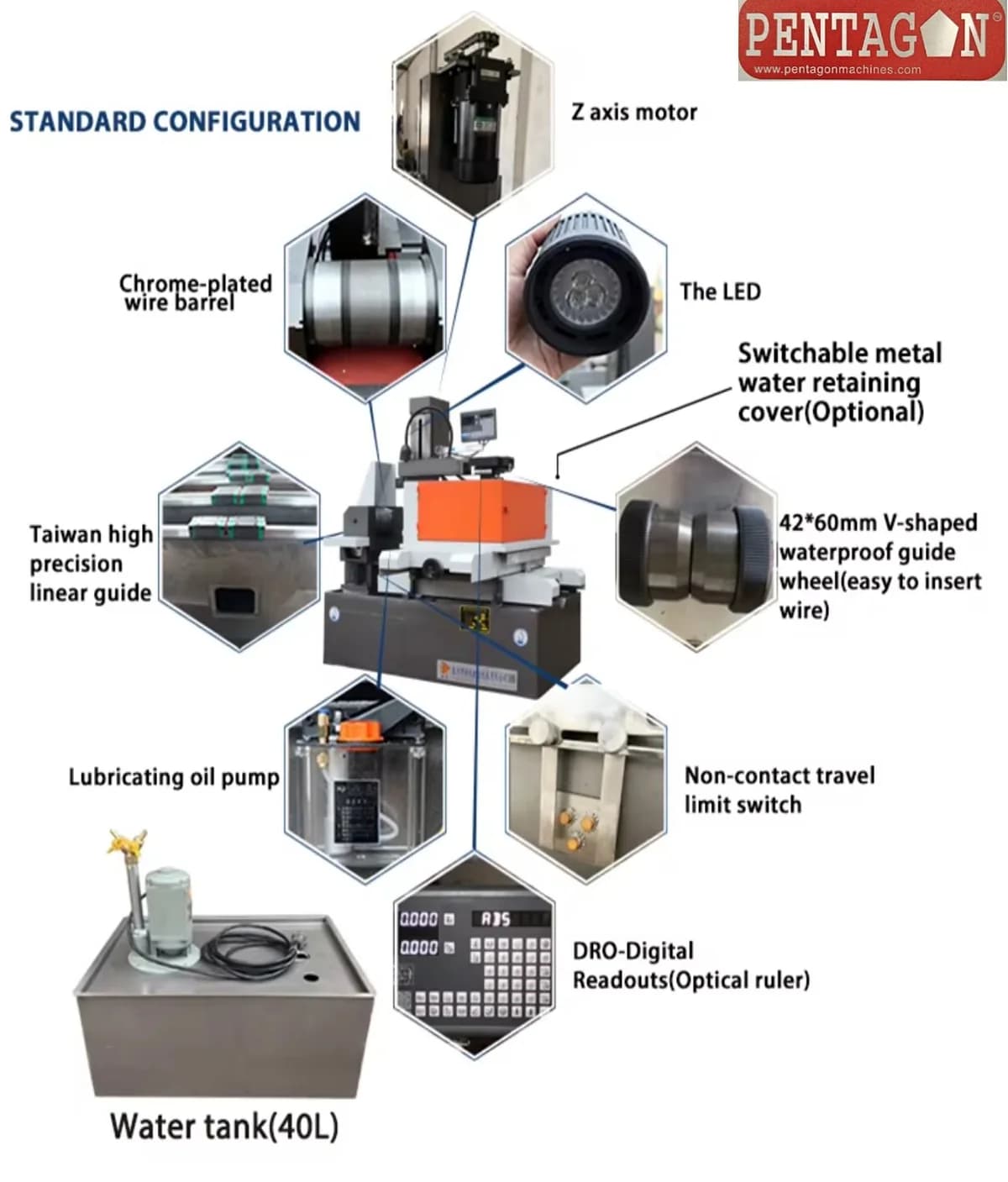

Standard Accessories
- 1. Machine Lamp
- 2. Working Fluid System
- 3. Workbench Water Retaining Cover
- 4. Tight Wire Device
- 5. Vertical Corrector Wire Electrode
- 6. Tool Carrier
- 7. DRO(Digital readout) fitted with linear scale
- 8. High Pressure Water Pump
- 9. Linear guide rail
- 10. Operation Manual
Optional Accessories
- Linear guide rail system
- Servo motor package
- Rotary axis attachment
- Large taper cutting attachment
- Fine finish power supply
- Industrial PC controller
- Water chiller system
- Magnetic chuck
- Auto fire protection system
- UPS & voltage stabilizer
More questions buyers ask
What is the PENTAGON PDK77 Series CNC Wire Cut EDM Machine?
The PENTAGON PDK77 Series is a range of economic CNC Wire Cut Electrical Discharge Machines designed for precise and affordable machining for various industrial applications in India.
What wire electrode diameter does the series support?
The machines in this series typically use a 0.18 mm molybdenum wire electrode, with some models supporting up to 0.25 mm.
Can these machines handle tapered cuts?
Yes, most models in the PDK77 series support a maximum cutting taper of 6°, allowing for angled and complex profiles.
What is the maximum workpiece load?
The maximum load capacity varies by model, ranging from 100 kg for the DK7720 to 2400 kg for the heavy-duty DK7780F.
What programming and controlling systems are used?
The series utilizes HL, HF, and AUTOCUT programming and controlling systems for versatile and automated operation.
What is the power supply requirement?
All machines in the series operate on a 3-Phase 380V 50Hz power supply.
What are the ideal applications for this machine?
It is ideal for tool rooms, die/mould workshops, precision engineering units, R&D labs, and small-to-medium manufacturing industries that require high-precision cutting.
What is the warranty on this machine?
All PENTAGON machines come with a standard manufacturer's warranty. For specific details, please contact our sales team.
Do you provide pan-India delivery?
Yes, we provide pan-India delivery for all our machines. We ensure safe and timely delivery to your workshop or factory.
Can I get a GST invoice for my purchase?
Absolutely. We provide a GST invoice with every purchase, allowing you to claim input tax credit.
Who should choose the DK7720 model?
The DK7720, with a 200x250 mm worktable travel, is perfect for small workshops and educational institutions looking for an entry-level, affordable CNC wire cut solution for smaller components.
Who should choose the DK7725 model?
The DK7725 offers a slightly larger worktable travel of 250x320 mm and is suitable for job shops and small-scale manufacturers who need a balance of affordability and capability for medium-sized parts.
Who should choose the PDK7735 model?
The PDK7735, with a 350x450 mm travel, is a versatile mid-range option for general-purpose tool rooms and precision engineering units that handle a variety of job sizes.
Who should choose the PDK7745 model?
With a 450x550 mm worktable travel, the PDK7745 is designed for workshops that require the capacity to machine larger dies, moulds, and components without compromising on precision.
Who should choose the DK7780F model?
The DK7780F is the top-of-the-line model with a massive 800x1200 mm travel and 2400 kg load capacity. It is built for heavy industrial applications, large-scale mould making, and aerospace or automotive component manufacturing.
What is the main difference between the DK7720, DK7725, and PDK7735 models?
The primary difference is the worktable size and travel (200x250mm for DK7720, 250x320mm for DK7725, and 350x450mm for PDK7735). As the model number increases, the capacity to handle larger workpieces also increases, making them suitable for different scales of operation.
How do the larger models like DK7763, DK7780, and DK7780F differ?
These models are designed for heavy-duty applications. They feature significantly larger worktable travels (from 630x800mm up to 800x1200mm), higher workpiece load capacities, and more robust construction to handle very large and heavy components, typical in industries like automotive and aerospace.
Which model offers the largest worktable travel?
The DK7780F model offers the largest worktable travel in the series, with an impressive 800 x 1200 mm, making it suitable for the most demanding and large-scale machining tasks.
