Pentagon All Geared Radial Drill Machine Price in India — Z3050x16/1

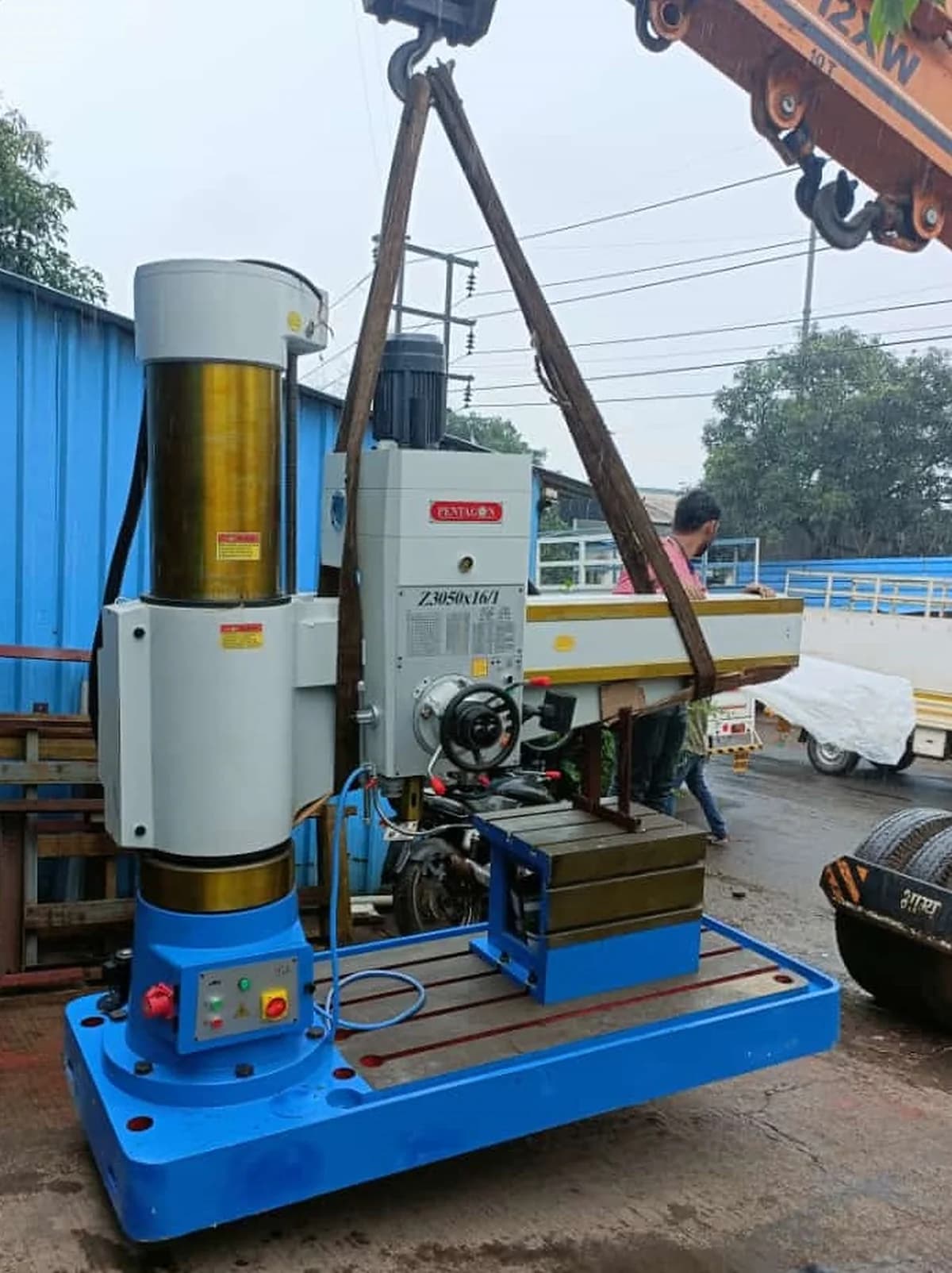

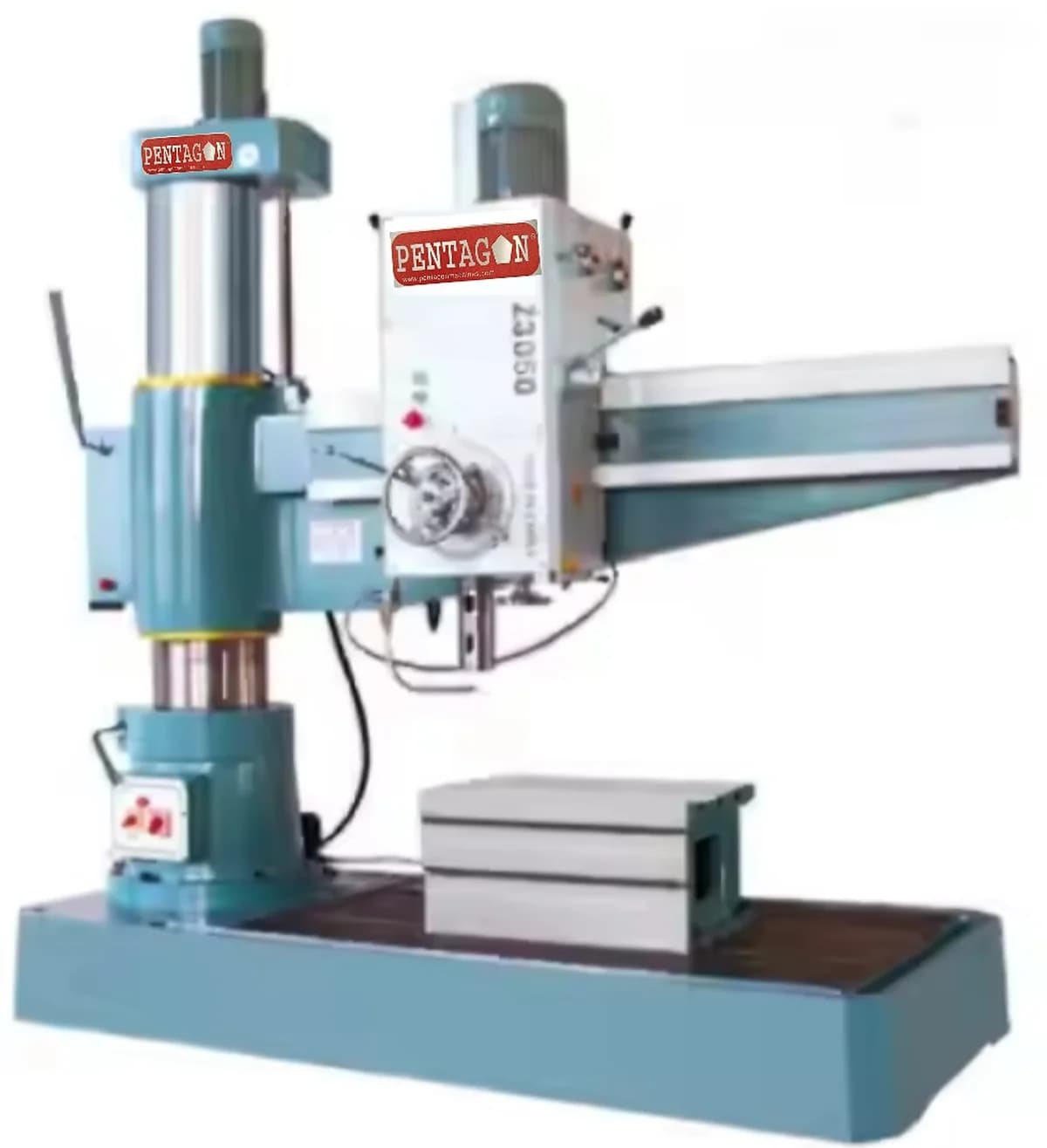

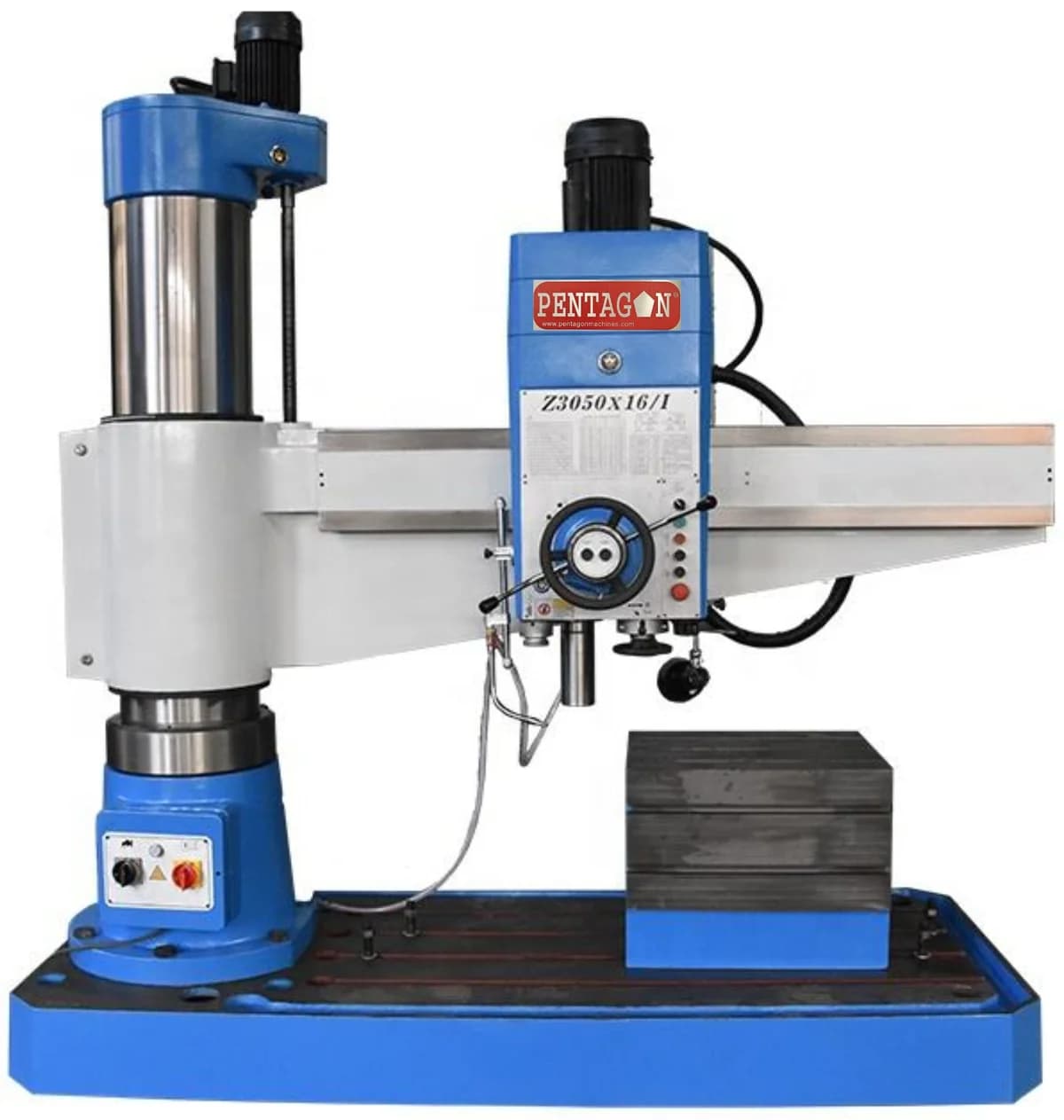

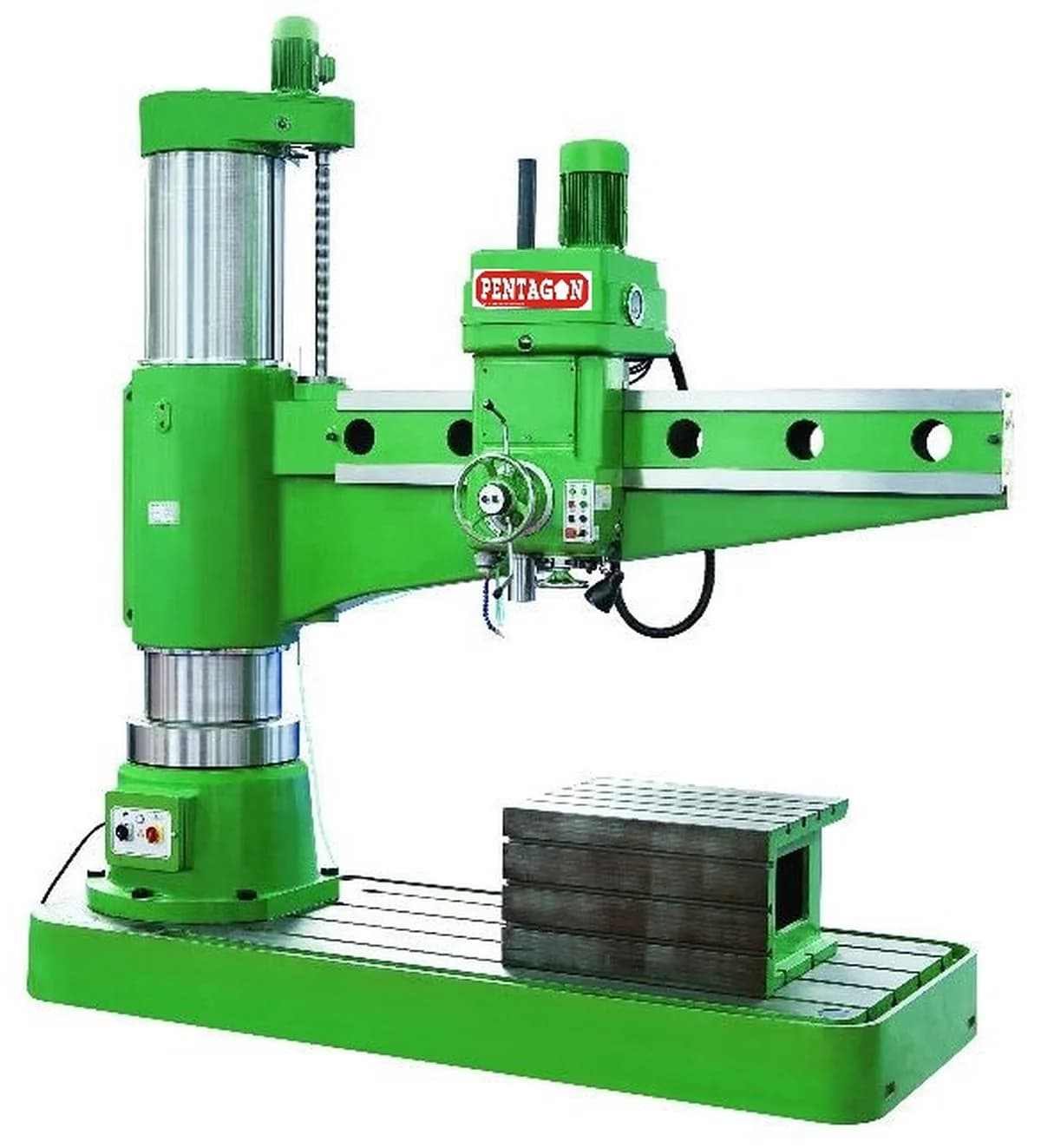

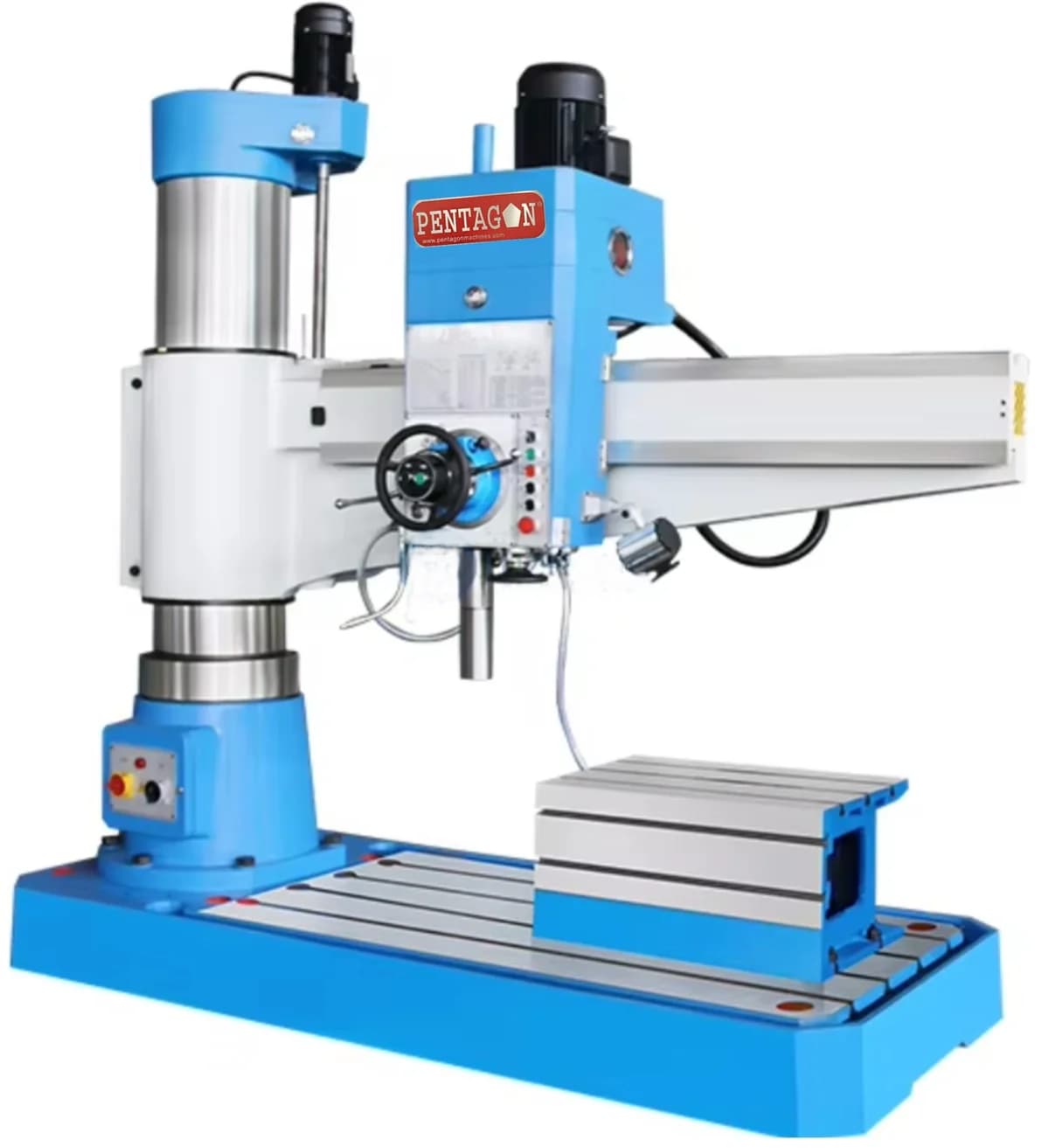

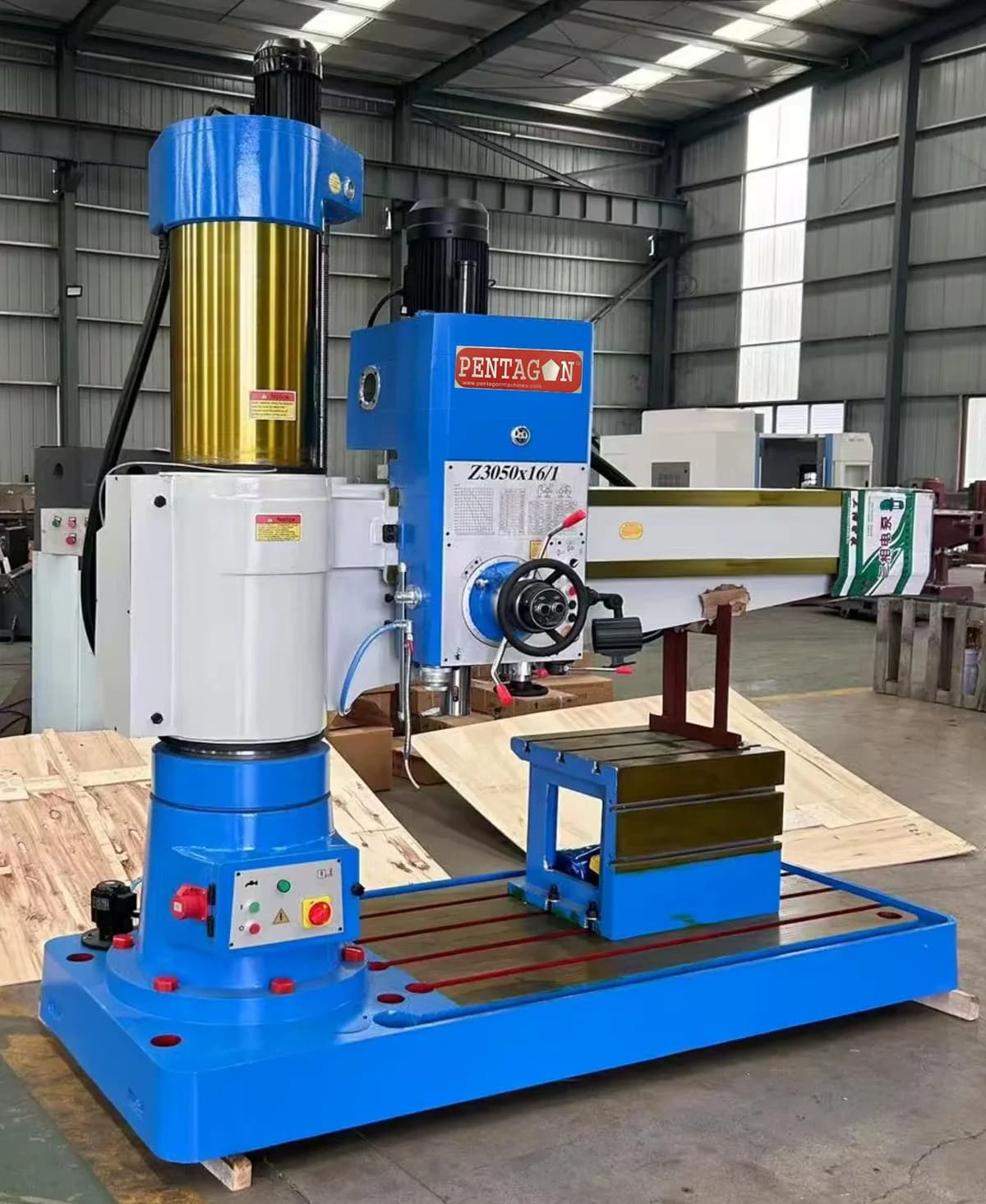

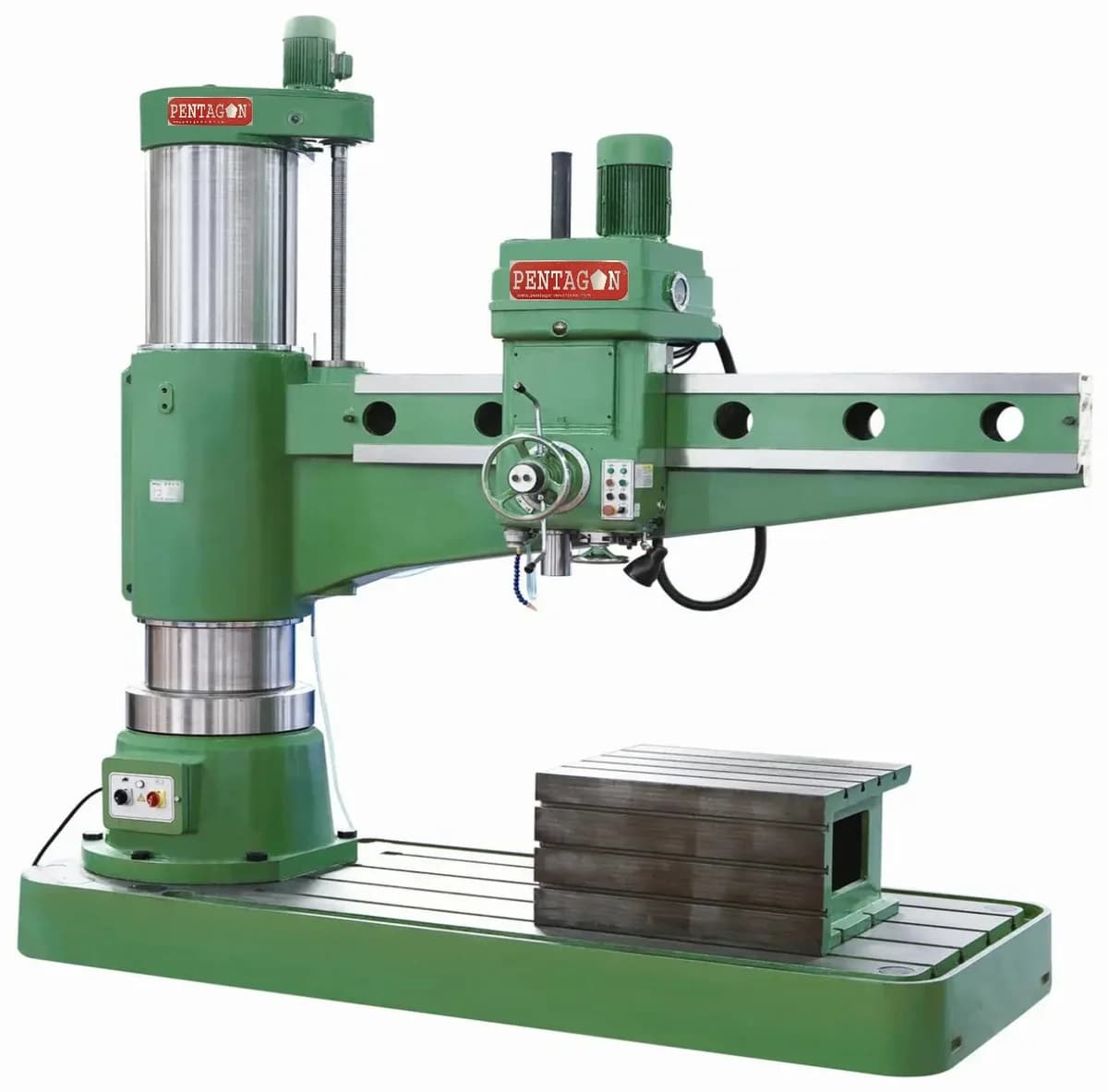

Engineered for precision machining, this radial drilling range combines geared auto feed with hydraulic locking and feeding mechanisms. Designed for versatile industrial applications, from general workshop maintenance to heavy structural fabrication tasks. • Hydraulic locking secures arm position effectively for stability • Geared auto feed maintains consistent drilling rates under load • Capacities range from 50mm to 100mm mild steel drilling • Robust column construction supports heavy duty industrial environments

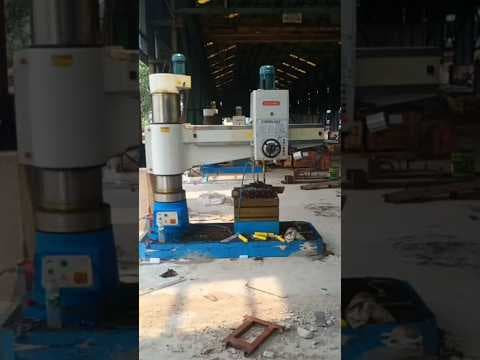

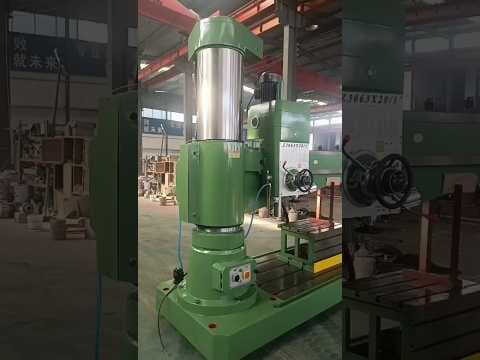

See it in action

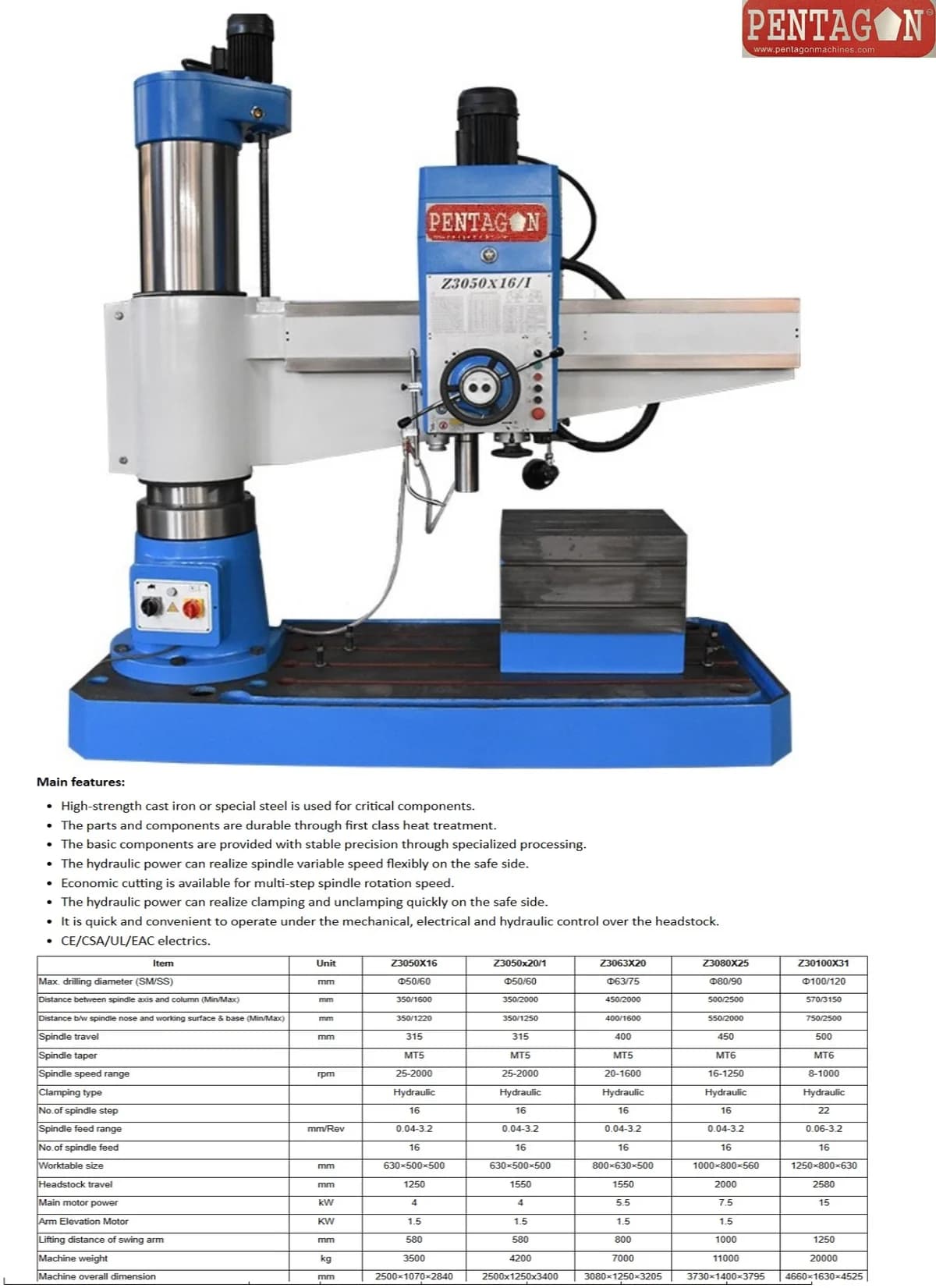

Specifications
For: Z3050x16/1- Machine Model
- Z3050x16/1
- Max Drilling Capacity (CI)
- 60 mm
- Working Box Table Size
- 630x500x480 mm
- Distance from spindle nose to working surface
- 320-1220 mm
- Range of spindle feeds (3)
- 0.04 – 3.20 mm/rev (16)
- Rocker Swing Angle
- 360±180°
- Spindle travel
- 315 mm
- Rocker arm lifting distance
- 580 mm
- Arm Length
- 1600 mm
- Column diameter
- 350 mm
- Arm (rocker) elevation speed
- 0.02 m/s
- Hydraulic Clamping Motor
- 0.75 Kw
- Elevating Motor Power
- 1.5 Kw
- Distance from spindle axis to column
- 350-1600 mm
- Coolant motor Power
- 0.09 Kw
- Overall Dimensions
- 2500×1070×2840 mm
- Machine Weight
- 3800 Kgs
- Max Drilling Capacity Ms
- 50 mm
- Spindle Taper
- MT5
- Motor Power
- 4 Kw
- Range Of Spindle Speeds 12
- 25-2000 rpm (16)
- Max Drilling Capacity (MS)
- 50 mm
- Range of spindle speeds (12)
- 25-2000 rpm (16)
Configurations
Click a row to switch| Variant | Max Drilling Capacity (MS) | Motor Power | Range of spindle speeds (12) | Spindle Taper | Price |
|---|---|---|---|---|---|
| Z3050x20/1 | 50 mm | 4 KW | 25-2000 rpm (16) | MT5 | ₹11,35,000 |
| Z3063x20/1 | 63 mm | 5.5 KW | 20-1600 rpm (16) | MT5 | ₹18,55,000 |
| Z3063x25/1 | 63 mm | 5.5 KW | 20-1600 rpm (16) | MT5 | ₹19,75,000 |
| Z3080x25/1 | 80 mm | 7.5 KW | 16-1250 rpm (16) | MT6 | ₹27,80,000 |
| Z30100x31/1 | 100 mm | 15 KW | 8-1000 rpm (22) | MT6 | ₹59,80,000 |
| Z3050x16/1 | 50 mm | 4 Kw | 25-2000 rpm (16) | MT5 | ₹9,35,000 |
Description
All Geared Radial Drilling Machine with Hydraulic Clamping System and Hydraulic Feed & Speed Changing is a heavy-duty industrial machine designed for precise drilling operations on large and heavy workpieces. The machine features a robust all-geared transmission system that delivers high torque, consistent spindle speeds, and smooth power transmission without belt slippage. This ensures reliable performance and accurate drilling even during continuous production.
the All Geared Radial Drilling Machine with Hydraulic Clamping, Hydraulic Feed, and Speed Change is widely used in heavy engineering workshops, fabrication units, machine shops, and manufacturing industries where high precision, efficiency, and versatility are required.
Advantage
1. Flexible positioning & large work-piece handling
Because the radial arm can slide horizontally, lift vertically and rotate around the column, you can bring the drill head to the work rather than moving the work-piece. This is especially useful for big, heavy castings or plates.
2. Improved rigidity/accuracy via hydraulic locking
The hydraulic locking mechanism secures the arm, column, spindle head in place during operation. This reduces deflection, vibration and movement under load, thereby improving hole straightness, repeatability and surface finish.
3. Versatility of operations
Radial drilling machines aren’t just for simple holes; many can also do tapping, reaming, counterboring, etc. The Z3050×16 with hydraulic feed further enhances this versatility.
4. Higher productivity & lower set-up time
Since you don’t need to reposition large work-pieces as much, and you can lock the arm quickly via hydraulics, cycle times go down, labour is less, and throughput improves.
5. Durability/heavy duty work readiness
Machines of this type are built for heavy work: thick plates, large flanges, big components. The heavy construction plus hydraulic aids make them suited to industrial, fabrication, maintenance shops where large parts are the norm

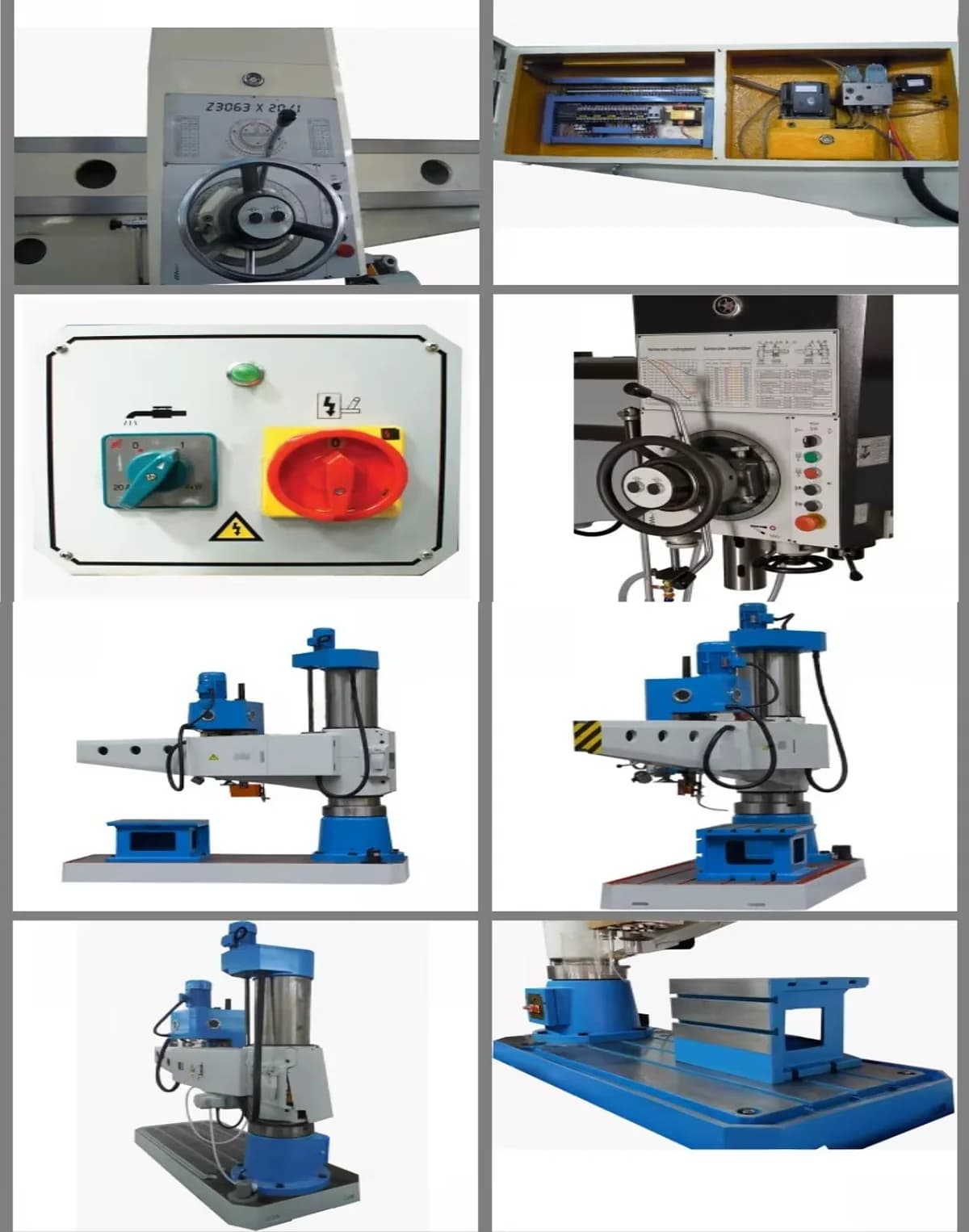

Features
- The upper guideway of the radial arm, the spindle quill and the inner and outer column swing ways are all surface hardened, which prolongs the service life of the machine
- All the operation handles are placed in a convenient place, which is convenient and fast
- Spindle forward and reverse, stop (brake), speed change, neutral five actions, are controlled by one handle, which is easy to operate

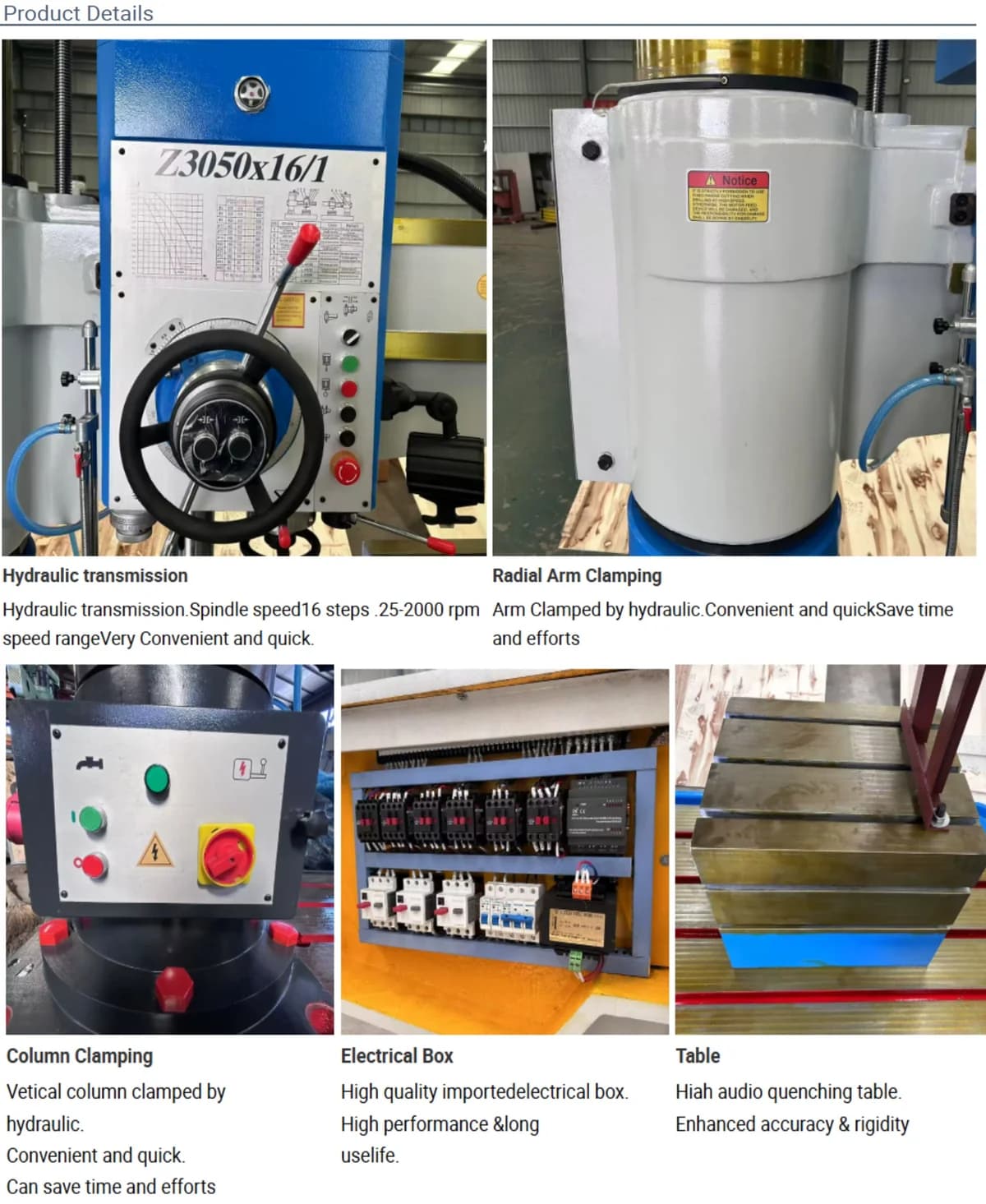

- The spindle, radial arm, and inner and outer columns adopt a diamond-shaped block clamping structure driven by hydraulic pressure, and the clamping is reliable
- Adopts hydraulic pre-selection shifting structure, which can save auxiliary time
- There are perfect safety protection devices, which is in line with the international general standard
- The clamping or unclamping of spindle and column can be clamped individually or at the same time
- Distance between spindle nose and working surface of machine base (Min/Max)
Standard Accessories
- Hydraulic clamping of spindle & Column
- Auto Feed
- Box Table Size 630 X 500
- Coolant Pump
- Machine Lamp
- Hydraulic clamping unit
- Foundation bolts
- Key type drill chuck size 1-13 mm
- MT-3 JT6 arbor
- Morse Taper Reduction
- Operation manual
- Test Certificate
Applications
- Drilling Operations – Suitable for drilling large diameter holes in metal components with high accuracy.
- Tapping & Reaming – Used for thread cutting and finishing holes to precise sizes.
- Boring & Counterboring – Ideal for enlarging and finishing existing holes in heavy parts.
- Machining Large Workpieces – Allows drilling on heavy components without moving the workpiece due to the rotating radial arm.
- Tool Room & Maintenance Work – Used for repair, maintenance, and general machining operations.

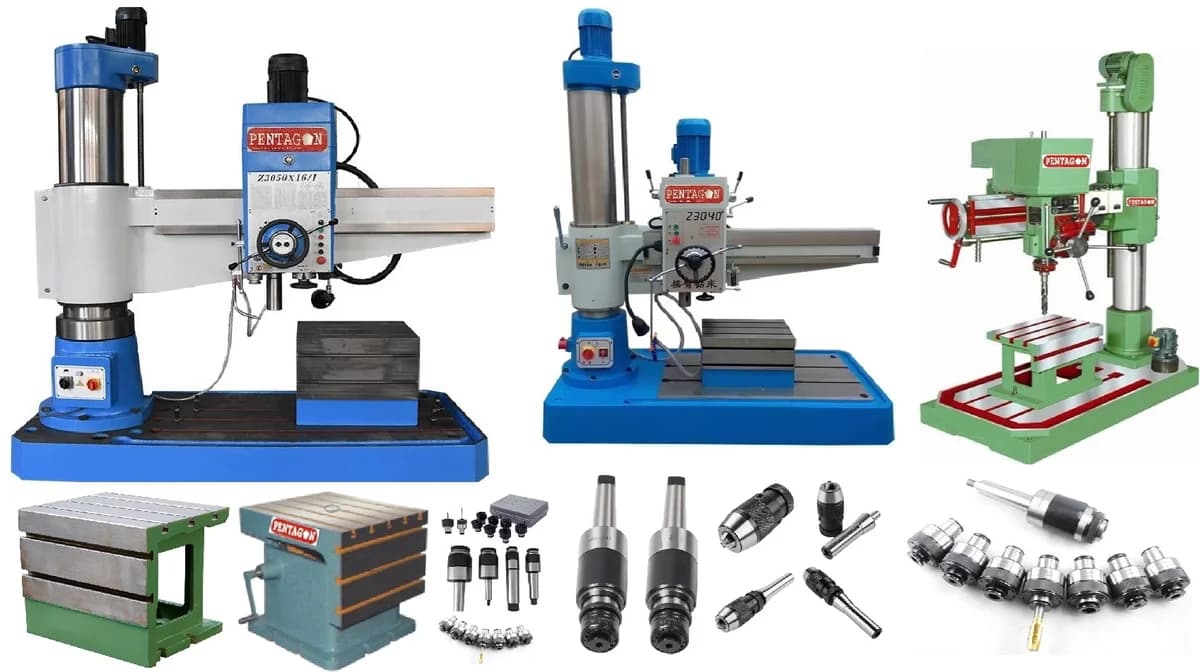

Optional Accessories
- 1. Tapping attachment model GT24/MT4-MT3
- 2. Tap collets M5 to M36 any size
- 3. Tilting Type Box table of suitable size
More questions buyers ask
What is a geared head radial drilling machine?
A geared head radial drilling machine uses a system of gears to transmit power from the motor to the spindle, allowing for a wider range of spindle speeds and higher torque at lower speeds. This makes it suitable for drilling large diameter holes in tough materials.
What is the advantage of hydraulic clamping in a radial drill?
Hydraulic clamping provides strong, consistent, and reliable clamping of the machine's arm and column. This ensures rigidity and stability during drilling, leading to higher accuracy and better surface finish.
What is auto feed in a drilling machine?
Auto feed, or automatic feed, is a mechanism that advances the drilling spindle automatically at a preset rate (feed rate). This eliminates the need for manual hand feeding, resulting in a more consistent drilling process and improved tool life.
What is the price of a Pentagon radial drilling machine in India?
The price of a Pentagon radial drilling machine varies depending on the model and its capacity. Prices can range from ₹9,35,000 for the Z3050x16/1 model to ₹59,80,000 for the heavy-duty Z30100x31/1 model.
What is the maximum drilling capacity of the Pentagon Z3050 model?
The Pentagon Z3050x16/1 and Z3050x20/1 models have a maximum drilling capacity of 50mm in mild steel and 60mm in cast iron.
Who are the main competitors for Pentagon radial drills in India?
In the Indian market, major competitors for Pentagon radial drilling machines include brands like Batliboi and HMT, which also offer a range of heavy-duty industrial drilling solutions.
Can I get a GST invoice for my purchase?
Yes, we provide a GST invoice for all purchases, allowing you to claim input tax credit.
Do you offer delivery across India?
Yes, we provide pan-India delivery for all our machines.
Is there a warranty on this machine?
Yes, the machine comes with a standard manufacturer's warranty against any manufacturing defects.
Who should choose the Pentagon Z3050x16/1 Radial Drill?
The Z3050x16/1 is the most affordable option in the series, ideal for workshops that need a reliable, all-geared radial drill for general purpose drilling up to 50mm in steel. Its 1600mm arm length offers a good balance of reach and compactness.
Who should choose the Pentagon Z3050x20/1 Radial Drill?
The Z3050x20/1 is suitable for facilities requiring a longer reach. With a 2000mm arm, it can handle larger workpieces than the 1600mm model while maintaining the same 50mm drilling capacity, making it great for fabrication shops.
Who should choose the Pentagon Z3063x20/1 Radial Drill?
With a 63mm drilling capacity and a 2000mm arm, the Z3063x20/1 is a step-up for heavier applications. It's designed for workshops that frequently work with thicker materials and require more power and rigidity.
Who should choose the Pentagon Z3063x25/1 Radial Drill?
The Z3063x25/1 offers an extended 2500mm arm length while maintaining the 63mm drilling capacity. It is the perfect choice for large-scale fabrication and structural engineering where maximum reach is critical.
Who should choose the Pentagon Z3080x25/1 Radial Drill?
The Z3080x25/1 is a heavy-duty machine for demanding industrial applications. With an 80mm drilling capacity and robust construction, it's built for continuous, high-load drilling in manufacturing plants and heavy engineering workshops.
Who should choose the Pentagon Z30100x31/1 Radial Drill?
As the top-of-the-line model, the Z30100x31/1 is designed for the most extreme drilling tasks. Its massive 100mm capacity and 3100mm arm make it suitable for shipbuilding, power plant construction, and other large-scale infrastructure projects.
What is the main difference between the Z3050 and Z3063 models?
The primary difference is the drilling capacity. The Z3050 models can drill up to 50mm in mild steel, while the Z3063 models can handle up to 63mm. The Z3063 also features a larger column diameter and a more powerful motor for increased rigidity and performance.
How does the Z3080x25/1 compare to the Z3063x25/1?
Both models have the same 2500mm arm length, but the Z3080x25/1 offers a significantly larger drilling capacity (80mm vs. 63mm), a more powerful 7.5 KW motor (vs. 5.5 KW), and a heavier, more robust construction (11000 Kgs vs. 7600 Kgs), making it suitable for more demanding, larger-diameter drilling operations.
When should I choose the Z30100x31/1 over the Z3080x25/1?
Choose the Z30100x31/1 when you need to drill holes larger than 80mm in diameter or require an exceptionally long reach of 3100mm. It's a much larger and more powerful machine designed for the heaviest and largest-scale industrial projects that are beyond the capabilities of the Z3080.
