Indexing Device (For 715 & 715E) — Indexing Device (For 715 & 715E) Range 6"
A precision attachment used to index and position the rotary table at accurate angles for operations like drilling, milling, and gear cutting, ensuring repeatable and precise machining
Specifications
For: Indexing Device (For 715 & 715E) Range 6"- RANGE
- 6"
- Dia of Table
- 150 mm
- Table T-Slot Size
- 10 mm
- Centre Bush Bore
- MT2
- Worm & Gear Ratio
- 02:12
- Wheel Calibration
- 2 Minutes
- No of indexing holes(715 H)
- 19|27 23|25
- Weight Appx
- 2.5 Kgs
Configurations
Click a row to switch| Variant | Price |
|---|---|
| Indexing Device (For 715 & 715E) Range 6" | ₹5,500 |
| Indexing Device (For 715 & 715E) Range 8" | ₹5,690 |
| Indexing Device (For 715 & 715E) Range 10" | ₹5,690 |
| Indexing Device (For 715 & 715E) Range 12" | ₹7,155 |
| Indexing Device (For 715 & 715E) Range 15" | ₹7,155 |
| Indexing Device (For 715 & 715E) Range 18" | ₹7,155 |
| Indexing Device (For 715 & 715E) Range 20" | ₹7,155 |
Common Questions
Q: Can this device be used for gear cutting? A: Yes, it supports gear cutting operations with accurate angle positioning. Q: What is the range of divisions available? A: The set allows indexing from 2 – 60 divisions quickly and accurately. Q: Is installation difficult? A: It is designed for quick conversion of rotary milling to indexing plates.
Maintenance & Care
- Regular cleaning prevents debris accumulation on plates
- Lubricate moving parts to ensure smooth plunger action
- Store in a dry environment to prevent rust on metal surfaces
- Inspect sector and handle for wear before critical jobs
- Ensure plunger engages fully to maintain positioning accuracy
Package Contents
- Complete dividing plate set included for immediate use
- Features two distinct indexing plates for versatility
- Includes a sector tool for accurate angle measurement
- Equipped with a handle and plunger for secure locking
- Designed for easy setup and removal during maintenance
Operational Applications
- Used to index and position the rotary table at accurate angles
- Enables operations like drilling, milling, and gear cutting
- Quick conversion process for enhanced workflow efficiency
- Accurate division settings for complex machining tasks
- Supports high-tolerance industrial machining requirements
Key Features & Compatibility

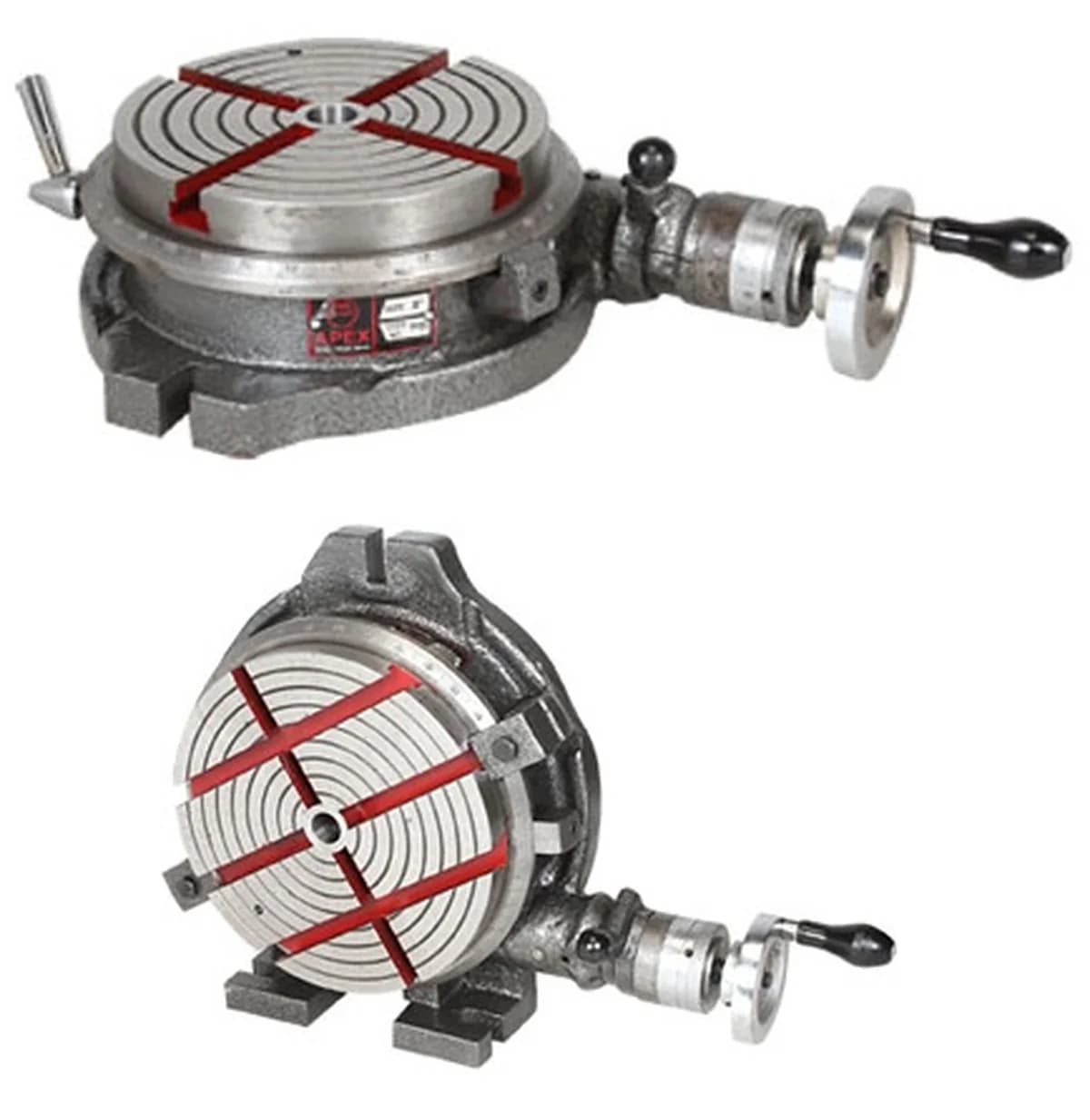

- Compatible with 715 & 715E Rotary Tables for seamless integration
- Optional unit to convert quickly Rotary Milling to using Indexing Plates

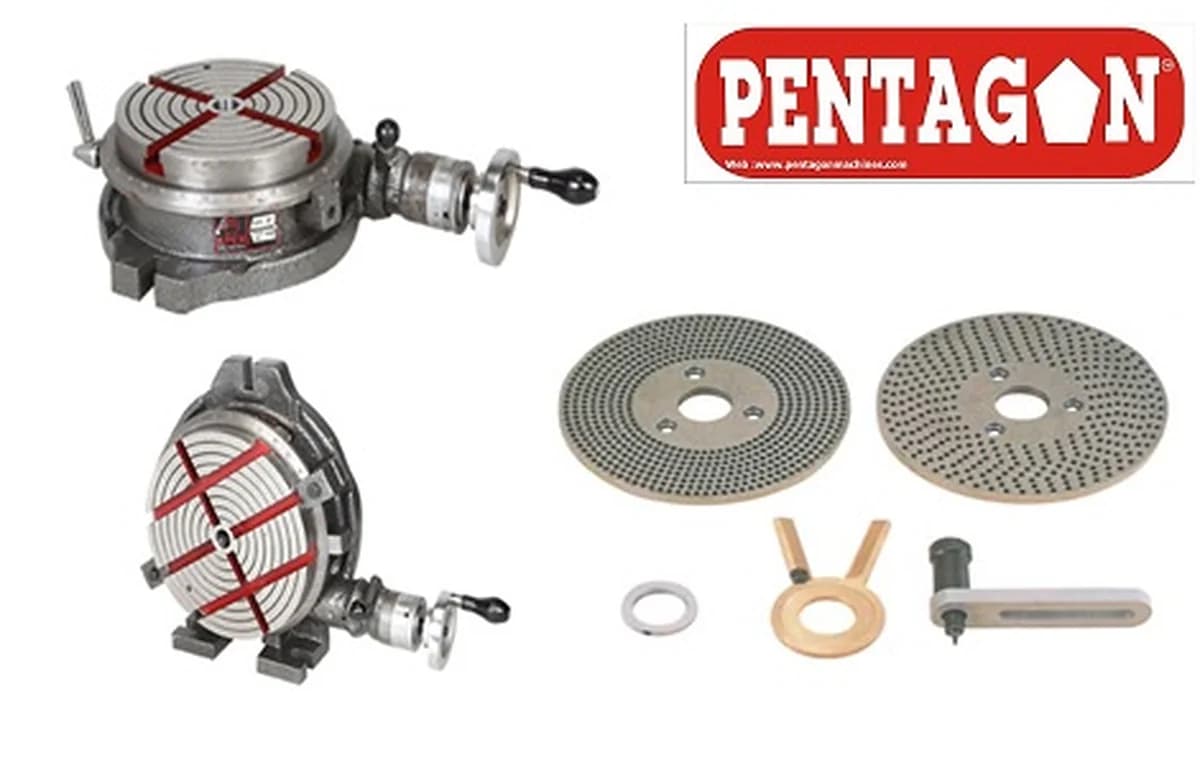

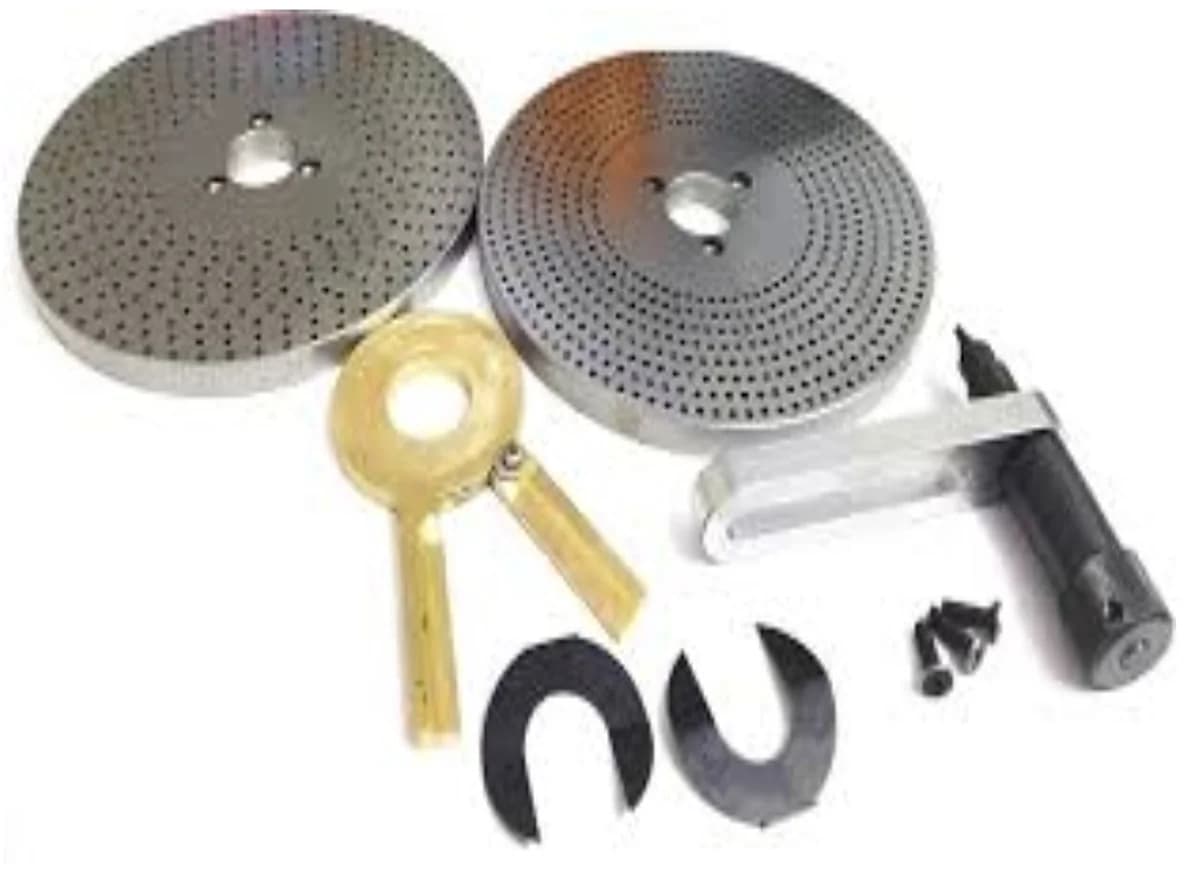

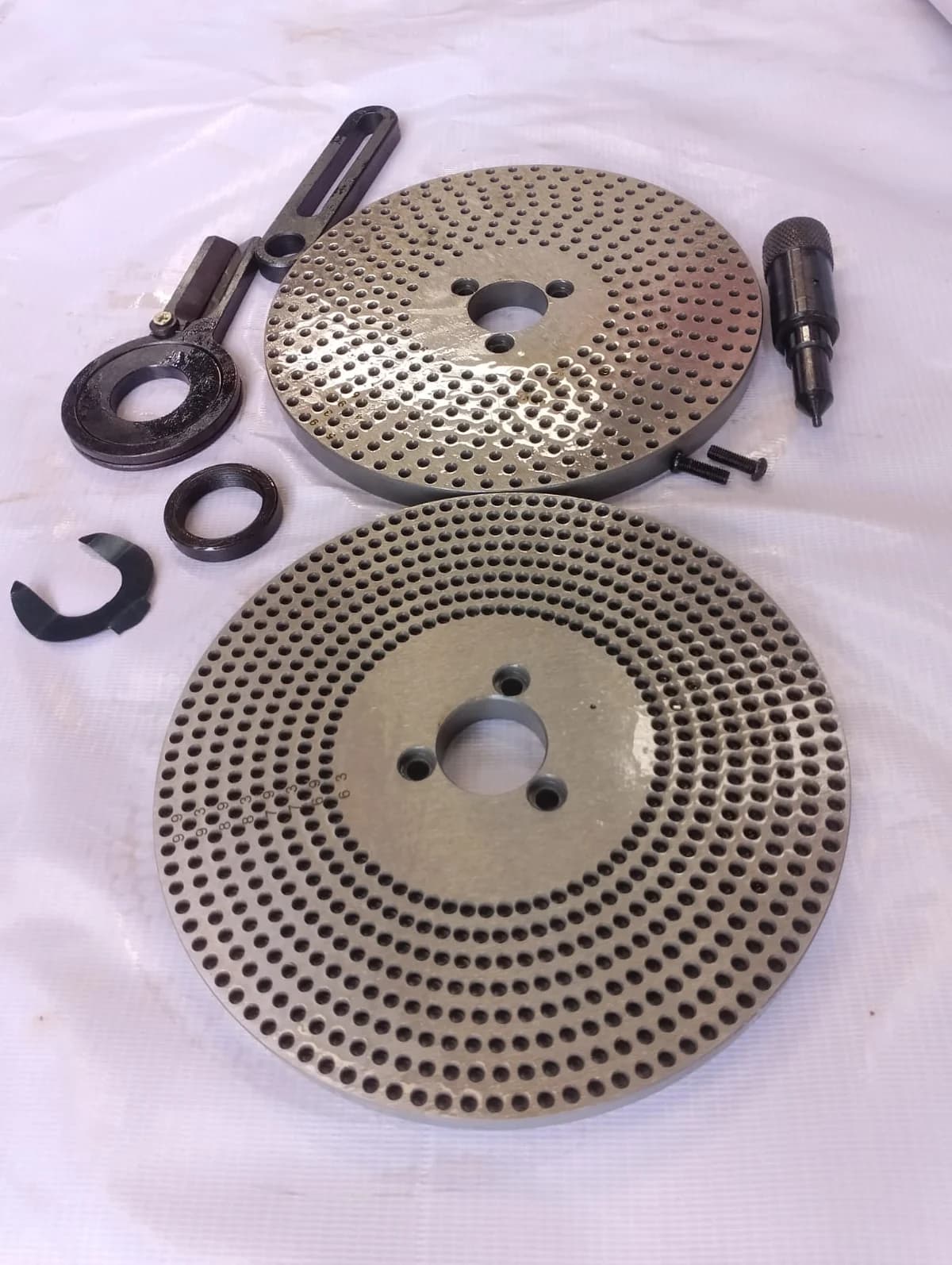

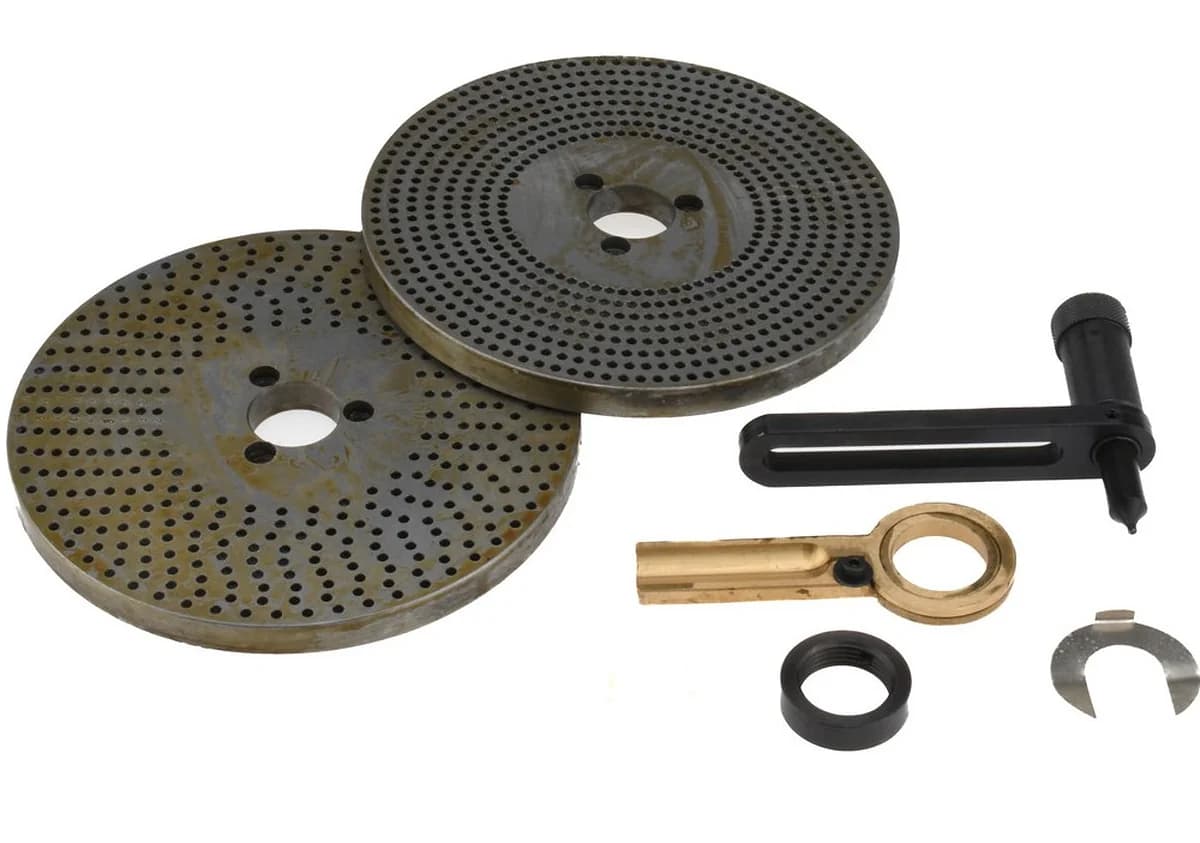

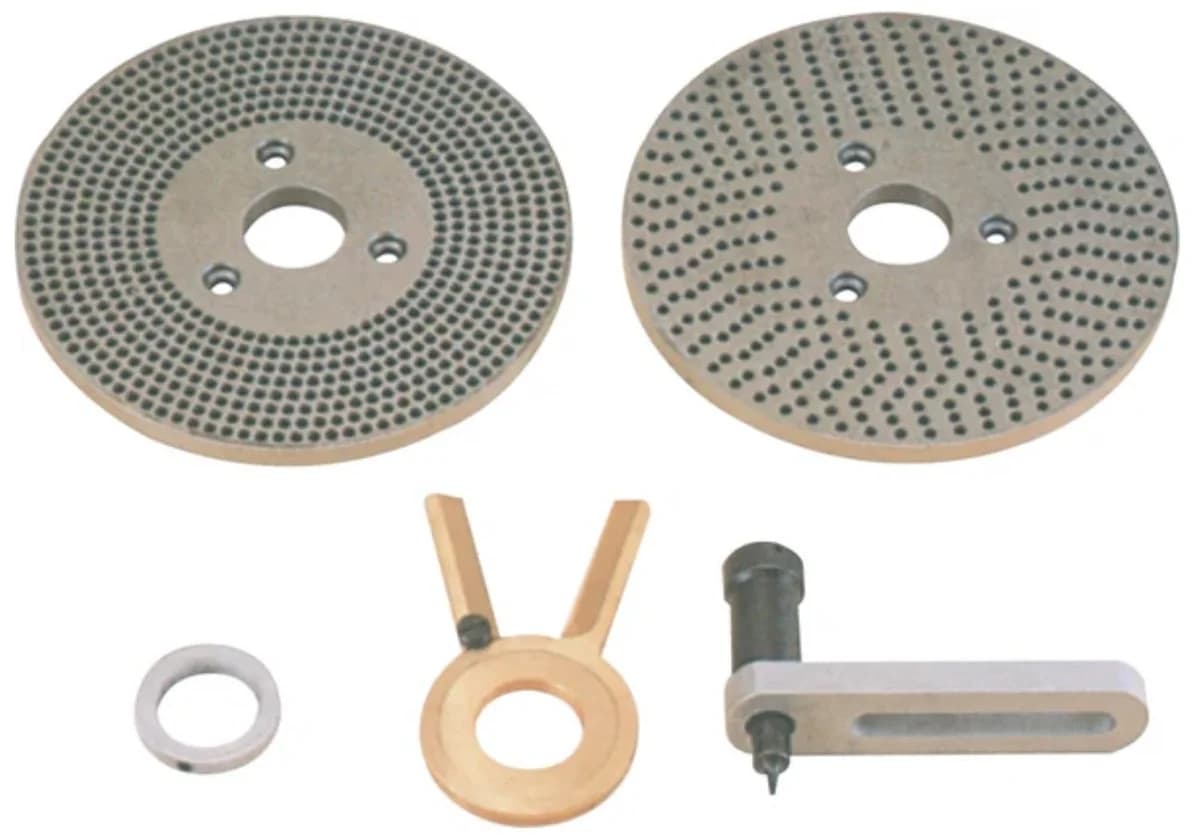

- Dividing plate set consists of 2 indexing plates, a sector & a handle with plunger
- Indexing of 2 – 60 divisions can be attained quickly and accurately
- Ensures repeatable and precise machining operations for industrial use
More questions buyers ask
What is the Apex Indexing Device used for?
It is a precision attachment used to index and position the rotary table at accurate angles for operations like drilling, milling, and gear cutting.
Which rotary tables is this indexing device compatible with?
This indexing device is specifically designed for use with 715 and 715E rotary tables.
Can this device be used for gear cutting?
Yes, it supports gear cutting operations with accurate angle positioning.
What is the range of divisions available?
The set allows indexing from 2 to 60 divisions quickly and accurately.
What is included in the package?
The package includes a complete dividing plate set, a sector tool for accurate angle measurement, and a handle with a plunger for secure locking.
How does the indexing device improve machining?
It ensures repeatable and precise machining by allowing accurate division settings for complex tasks.
Is the indexing device easy to install?
Yes, it features a quick conversion process for enhanced workflow efficiency and easy setup.
What maintenance is required for the indexing device?
Regular cleaning, lubricating moving parts, and storing in a dry environment are recommended to maintain precision and prevent rust.
Does the device come with a warranty?
Yes, it comes with a standard manufacturer warranty. Please check the specific terms at the time of purchase.
Can I get a GST invoice for this purchase?
Yes, a GST invoice is provided for all B2B purchases, allowing you to claim input tax credit.
Who should choose the 6" Range Indexing Device?
The 6" range model is ideal for smaller 150mm rotary tables, featuring an MT2 centre bush bore and 2-minute wheel calibration for compact precision tasks.
Who should choose the 8" Range Indexing Device?
The 8" range model is suited for 200mm rotary tables, offering an MT3 centre bush bore and 3-minute wheel calibration for medium-sized machining operations.
Who should choose the 10" Range Indexing Device?
The 10" range model is perfect for 250mm rotary tables, providing an MT3 centre bush bore and highly precise 1-minute wheel calibration.
Who should choose the 12" Range Indexing Device?
The 12" range model is designed for 300mm rotary tables, featuring a heavier 3.5 kg build, MT3 bore, and a 01:20 worm & gear ratio for larger workpieces.
Who should choose the 15" Range Indexing Device?
The 15" range model is ideal for 375mm rotary tables, offering robust support with an MT3 bore and 1-minute calibration for extensive milling and drilling.
Who should choose the 18" Range Indexing Device?
The 18" range model is suited for large 450mm rotary tables, featuring an MT4 centre bush bore and 20mm T-slot size for heavy-duty industrial applications.
Who should choose the 20" Range Indexing Device?
The 20" range model is the largest option, designed for 500mm rotary tables with an MT4 bore, perfect for maximum capacity and high-tolerance indexing.
What is the difference between the 6" and 10" range indexing devices?
The 6" model fits 150mm tables with an MT2 bore and 2-minute calibration, while the 10" model fits 250mm tables with an MT3 bore and finer 1-minute calibration.
How do the 12" and 18" range models compare?
The 12" model is designed for 300mm tables with an MT3 bore and 16mm T-slot, whereas the 18" model fits 450mm tables with a larger MT4 bore and 20mm T-slot for heavier tasks.
Which indexing device offers the finest wheel calibration?
The 10", 12", 15", 18", and 20" range models all offer the finest wheel calibration of 1 minute, providing superior precision compared to the 6" and 8" models.
