Pentagon Dividing Plates for Horizontal and Vertical Rotary Table Model DP-2
Pentagon Dividing Plates for Horizontal and Vertical Rotary Table Model are precision accessories designed for indexing applications on HV8, 10, 12, 14-TS200, TS250, TS320, and TS400 rotary tables. These plates ensure accurate angular positioning during machining operations. • A-Plate hole counts: 28, 32, 37, 39, 43, 46, 49, 53, 59 • B-Plate hole counts: 61, 67, 71, 77, 81, 87, 91, 97 • Dimensions: 185 x 185 x 50 mm; OD 180 mm; ID 29 mm • Net weight: 3.5 Kg

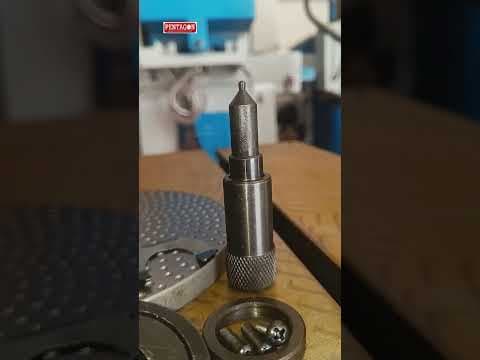

See it in action
Specifications
For: DP-2- MODEL
- DP-2
- Used of Model
- HV8, 10, 12, 14-TS200, TS250, TS320,TS400
- Number of the holes of Dividing Plates A-Plate
- 28,32,37,39,43,46.49,53,59
- Number of the holes of Dividing Plates A-Plate I
- 26, 30, 34,38, 41, 44, 47.51,57
- Number of the holes of Dividing Plates B-Plate
- 61, 67, 71, 77,81,87, 91,97
- Number of the holes of Dividing Plates B-Plate I
- 63, 69,73,79,83,89,93,99
- Plate ID
- 29 mm
- Plate OD
- 180 mm
- Overall dimention
- 185 X 185 X 50 mm
- Net Weight
- 3.5 Kg
- Grass Weight
- 4 Kg
Configurations
Click a row to switch| Variant | Number of the holes of Dividing Plates A-Plate | Number of the holes of Dividing Plates A-Plate I | Number of the holes of Dividing Plates B-Plate | Plate ID | Price |
|---|---|---|---|---|---|
| DP-2 | 28,32,37,39,43,46.49,53,59 | 26, 30, 34,38, 41, 44, 47.51,57 | 61, 67, 71, 77,81,87, 91,97 | 29 mm | ₹8,900 |
| DP-1 | 15, 16, 17, 18, 19, 20 | 37, 39, 41, 43, 47, 49 | 21, 23, 27, 29, 31, 33 | 29 mm | ₹7,999 |
Optimized for Versatile Machining Tasks
- Suitable for drilling, tapping, and milling hexagonal or square profiles
- Enables precise spacing for bolt circles and gear cutting applications
- Perfect for manufacturing automotive components and aerospace parts
- Supports general job shop requirements for multi-sided machining
- Facilitates production of intricate mechanical assemblies
- Enhances versatility for small to medium batch production runs
High-Precision Division Capabilities
- Achieves accurate indexing from 2 to 60 divisions per revolution
- Utilizes a high-ratio worm and gear mechanism for smooth operation
- Ensures minimal backlash for consistent part-to-part accuracy
- Ideal for complex geometries requiring exact angular positioning
- Supports both simple and compound indexing techniques
- Reduces scrap rates through superior positional repeatability
Complete Indexing Plate Set Components
- Includes two precision-machined indexing plates for versatile division ranges
- Features a durable sector arm for accurate angle measurement and setting
- Comes with a robust handle equipped with a spring-loaded plunger
- Plunger engages securely with plate holes for positive locking
- Sector allows for easy adjustment of partial divisions
- All components are engineered for long-term reliability and repeatable accuracy
Rapid Conversion to Rotary Milling
- Optional unit enabling quick conversion of standard milling operations
- Transforms linear milling capabilities into precise rotary indexing tasks
- Designed for seamless integration with compatible machine models
- Eliminates the need for complex setup changes between operations
- Enhances workflow efficiency by reducing tool changeover time
- Allows operators to switch modes without specialized training
More questions buyers ask
What is a dividing plate used for in a rotary table?
A dividing plate is used to achieve precise angular spacing for operations like gear cutting, bolt circles, and hexagonal or square milling.
Are these plates compatible with all rotary tables?
These plates are specifically designed for models like HV8, HV10, HV12, HV14, and TS series (TS200-TS400).
How many divisions can I achieve with these plates?
Depending on the plate set (DP-1 or DP-2), you can achieve a wide range of divisions from 2 to 60+ per revolution.
What material are Apex dividing plates made of?
They are precision-machined from high-grade steel to ensure durability and repeatable accuracy in industrial environments.
Can I use these for vertical milling?
Yes, these plates are designed for both horizontal and vertical rotary table setups.
What is the difference between DP-1 and DP-2 sets?
The DP-1 and DP-2 sets offer different hole patterns, allowing for different division counts to suit specific machining requirements.
Do these plates come with a sector arm?
Yes, the set includes a durable sector arm for accurate angle measurement and setting.
Is the indexing mechanism manual?
Yes, it uses a manual spring-loaded plunger that engages with the plate holes for positive locking.
What is the plate diameter?
The plates have an outer diameter of 180 mm and an inner diameter of 29 mm.
Are these suitable for automotive component manufacturing?
Yes, their high precision makes them ideal for manufacturing automotive parts, aerospace components, and intricate mechanical assemblies.
Who should choose the DP-1 set?
The DP-1 set is ideal for users needing standard division patterns for general-purpose milling and indexing tasks.
Who should choose the DP-2 set?
The DP-2 set is best for users requiring a more extensive or specialized range of hole patterns for complex gear or indexing work.
How do these compare to a dedicated dividing head?
A rotary table with dividing plates offers more versatility for horizontal/vertical mounting, whereas a dedicated dividing head is optimized for vertical-only, high-stability indexing.
Are these plates easy to install?
Yes, they are designed for seamless integration with compatible rotary tables, allowing for quick setup changes.
What is the weight of the set?
The set has a net weight of approximately 3.5 kg and a gross weight of 4 kg.
More like this
Full description
Pentagon Dividing Plates for Horizontal and Vertical Rotary Table Model are precision accessories designed for indexing applications on HV8, 10, 12, 14-TS200, TS250, TS320, and TS400 rotary tables. These plates ensure accurate angular positioning during machining operations. • A-Plate hole counts: 28, 32, 37, 39, 43, 46, 49, 53, 59 • B-Plate hole counts: 61, 67, 71, 77, 81, 87, 91, 97 • Dimensions: 185 x 185 x 50 mm; OD 180 mm; ID 29 mm • Net weight: 3.5 Kg
