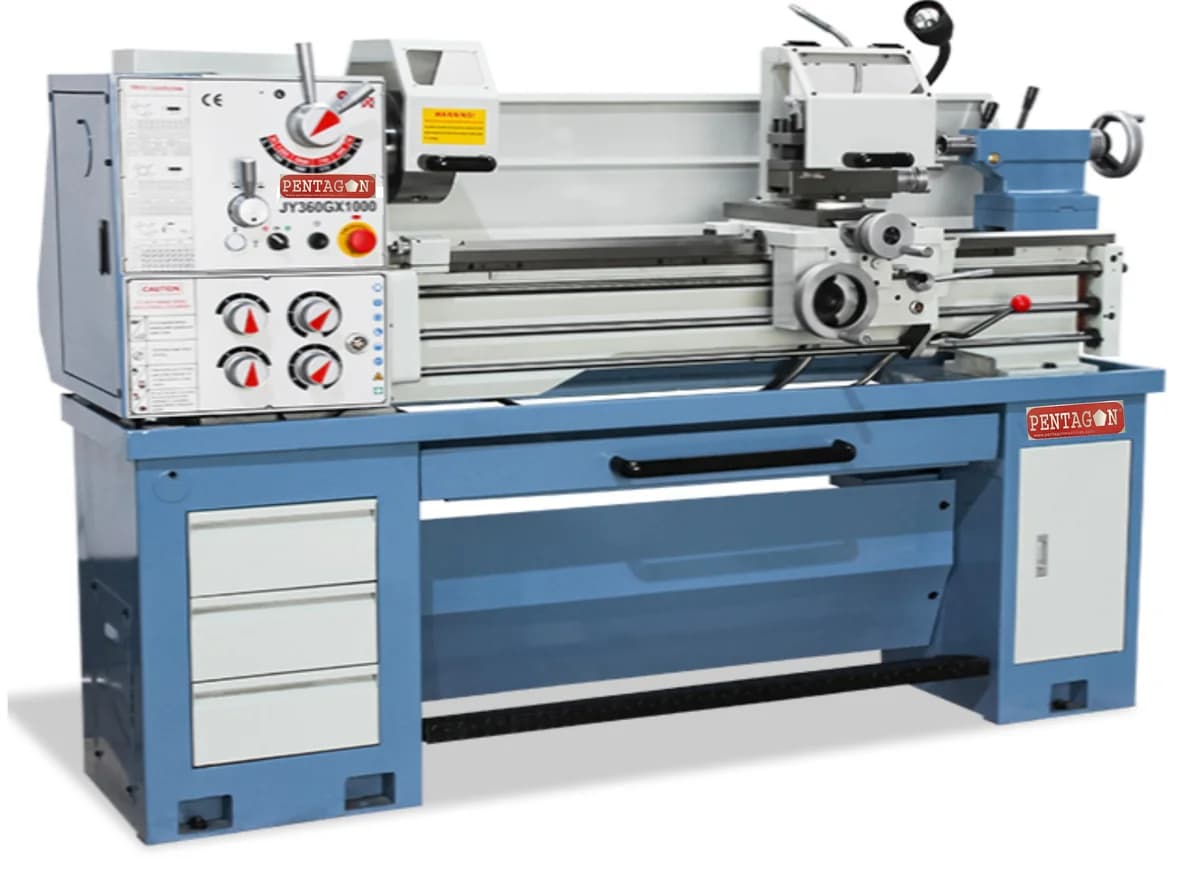

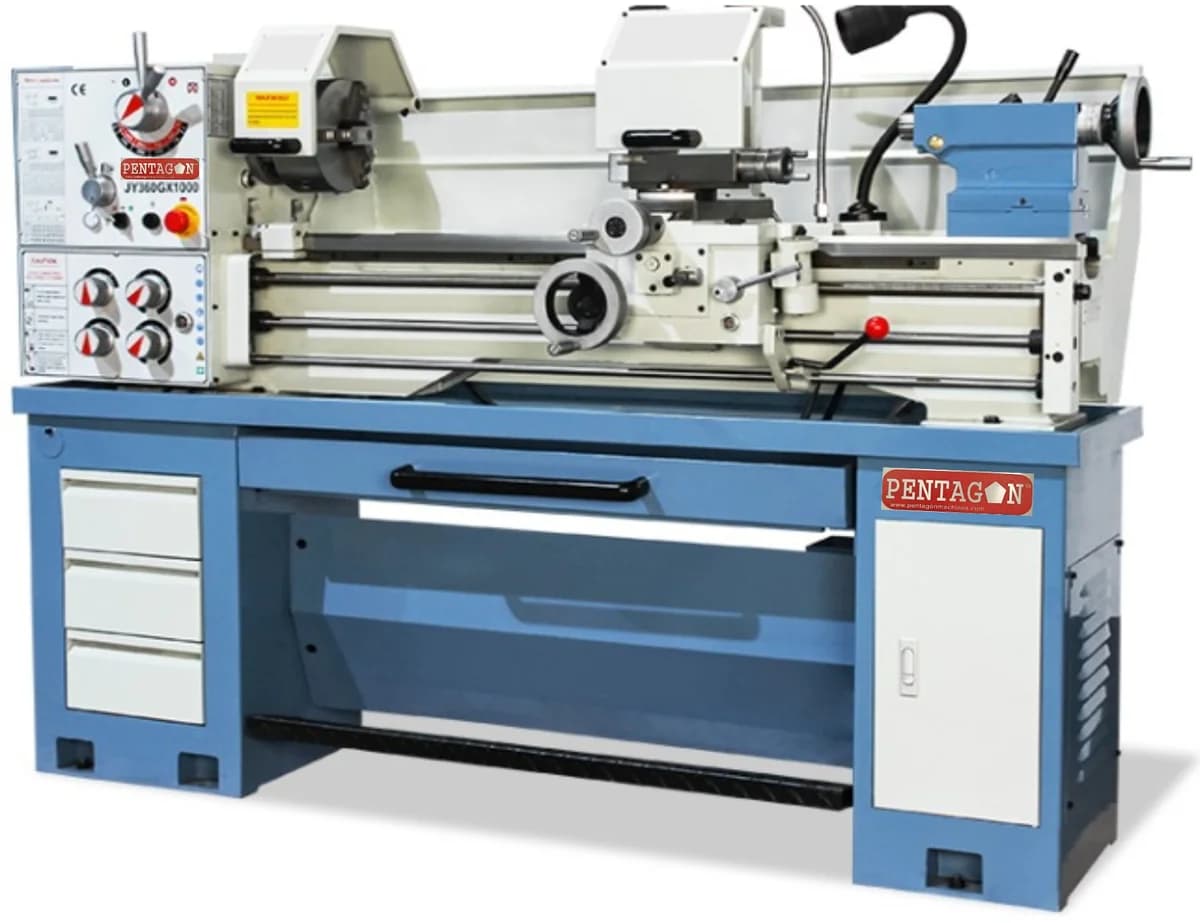

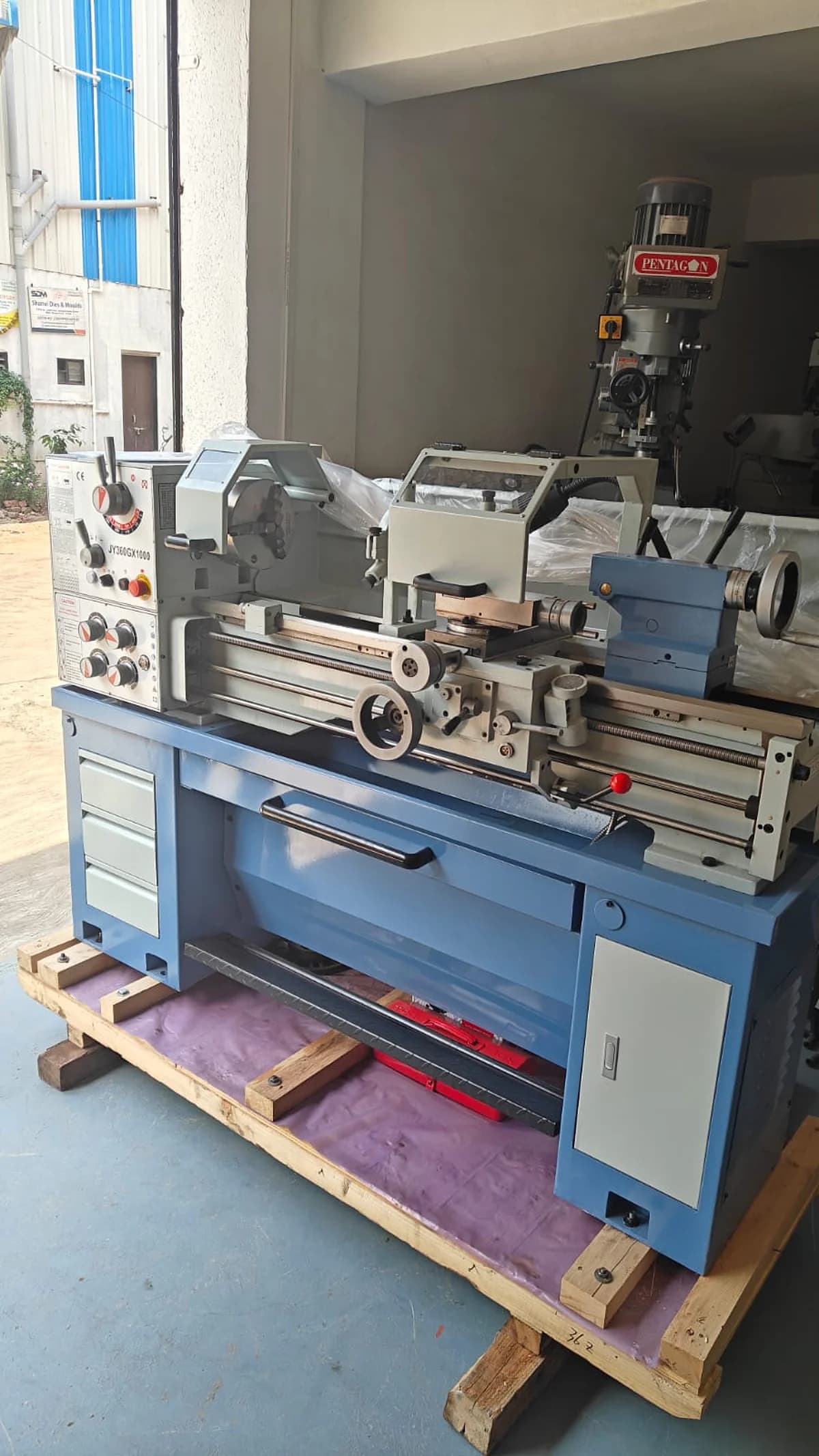

Pentagon JY360Gx1000 Lathe Machine Price in India | Buy Online
This all geared precision lathe machine delivers high speed turning capabilities for industrial machining applications. Engineered for stability and accuracy, it supports diverse metalworking tasks from threading to facing. • 360 mm swing over bed accommodates standard shaft diameters • 70-2000 rpm spindle speed range ensures versatile cutting • MT6 spindle nose enables broad tooling compatibility • 1000 mm center distance suits medium-length components
See it in action
Specifications
For: JY360Gx1000- Model
- JY360Gx1000
- Center Height
- 180 mm
- Swing Over Bed
- 360 mm
- Swing Over Cross Slide
- 224
- Swing Over Gap
- 502 mm
- Admit Between Centers
- 1000 mm
- Gap Length
- 210 mm
- Bed Width
- 187 mm
- Spindle Bore
- 52 mm
- Spindle Nose
- MT6
- Spindle Speed Range-Stages
- 70-2000 rpm/ 8 Stages
- Cross Slide Travel
- 170 mm
- Compound Rest Travel
- 95 mm
- Lead Screw Pitch
- 8 TPI/3 mm Pitch
- Tool post Section
- 16x16 mm
- Matric Thread Cutting Range - Pitch
- 26 Nos./ 0.4-7 M.P.
- Imperial Thread- Pitch
- 34 Nos/ 4-56 TPI
- Longitudinal Imperial Feeds
- 32 Nos. / 0.002-0.548" per Rev
- Longitudinal Matric Feeds
- 32 Nos. / 0.052-0.392 mm/Rev
- Cross Imperial Feeds
- 32 Nos/ 0.007-0.0187" Per Rev
- Cross Matric Feeds
- 32 Nos./ 0.014-0.380 mm/rev
- Tail Stock Quill Travel
- 100 mm
- Tail Stock Quill Taper
- MT4
- Main Motor Power
- 1.5 Kw
- Coolant Motor Power
- 40W
- Weight of the Machine
- 750 Kgs

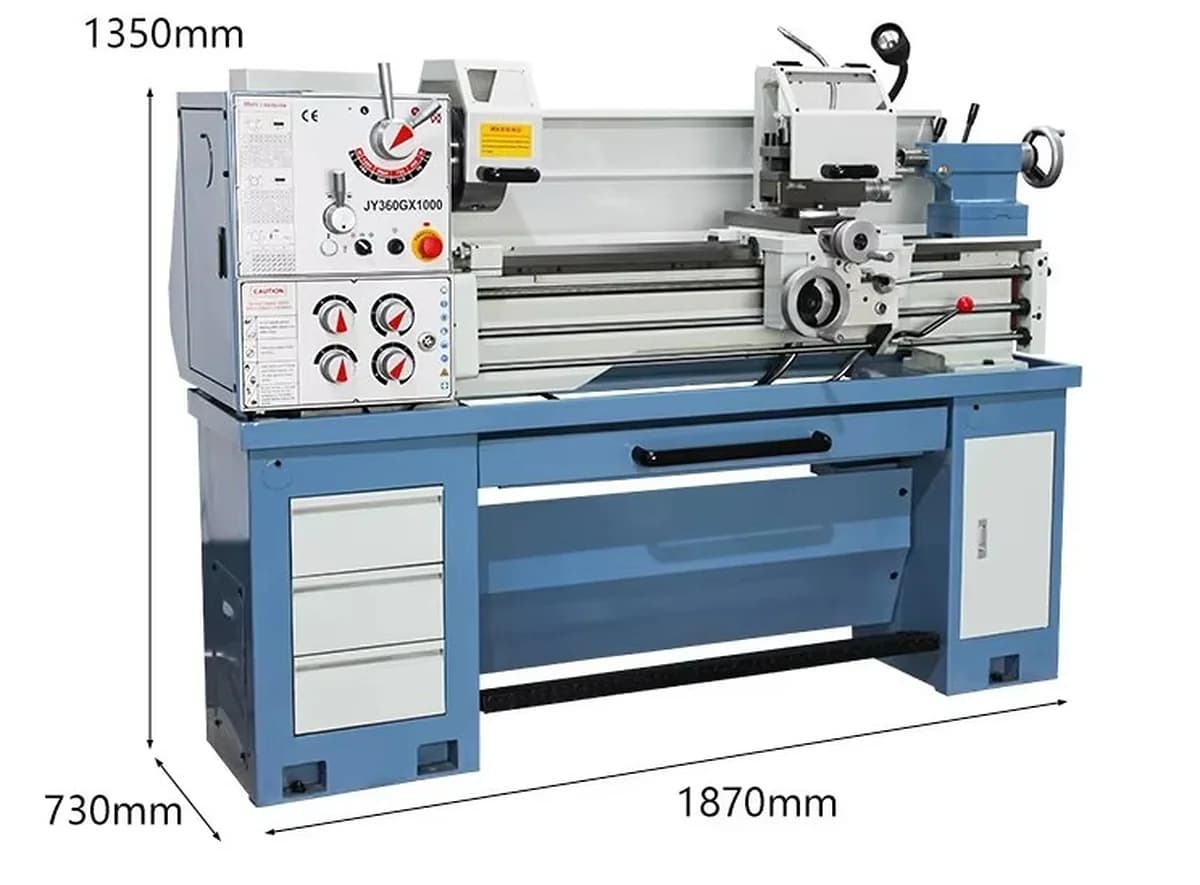

- Machine Dimension
- 1930x755x1585 mm
Operational Efficiency & Workshop Fit
- Coolant motor power 40W for effective heat management
- Lead screw pitch 8 TPI/3 mm Pitch for accuracy
- Smooth operation for consistent production quality
- Designed for tool rooms and general workshops
- Stable performance across diverse components
Tooling & Tailstock Configuration
- Tail stock quill travel 100 mm with MT4 taper
- Spindle bore 52 mm allows for bar stock feeding
- Spindle nose MT6 for secure chuck mounting
- Tool post section 16x16 mm for standard tooling
- Compound rest travel 95 mm for angled cuts
- Cross slide travel 170 mm for precise depth control
Structural Integrity & Stability
- Robust construction for reliable heavy-duty use
- 750 Kgs weight of the machine ensures stability
- 187 mm bed width provides solid foundation
- Swing over gap 502 mm for larger diameter work
- Swing over cross slide 224 mm for internal turning
- Machine dimension 1930x755x1585 mm for workshop fit
Advanced Feed & Thread Systems
- 32 Nos. longitudinal metric feeds 0.052–0.392 mm/Rev
- 32 Nos. longitudinal imperial feeds 0.002–0.548" per Rev
- Metric thread cutting range 26 Nos. 0.4–7 M.P.
- Imperial thread pitch 34 Nos. 4–56 TPI
- Cross matric feeds 32 Nos. 0.014–0.380 mm/rev
- Cross Imperial feeds 32 Nos. 0.007–0.0187" Per Rev
Precision Turning Capabilities
- All Geared Precision High Speed Lathe delivers precision turning
- 360 mm swing over bed for versatile workpiece sizes
- 1000 mm center distance accommodates longer components
- 1.5 Kw main motor power ensures robust performance
- 70-2000 rpm spindle speed with 8 stages for high speed
- Accurate threading across diverse components
Optional Accessories

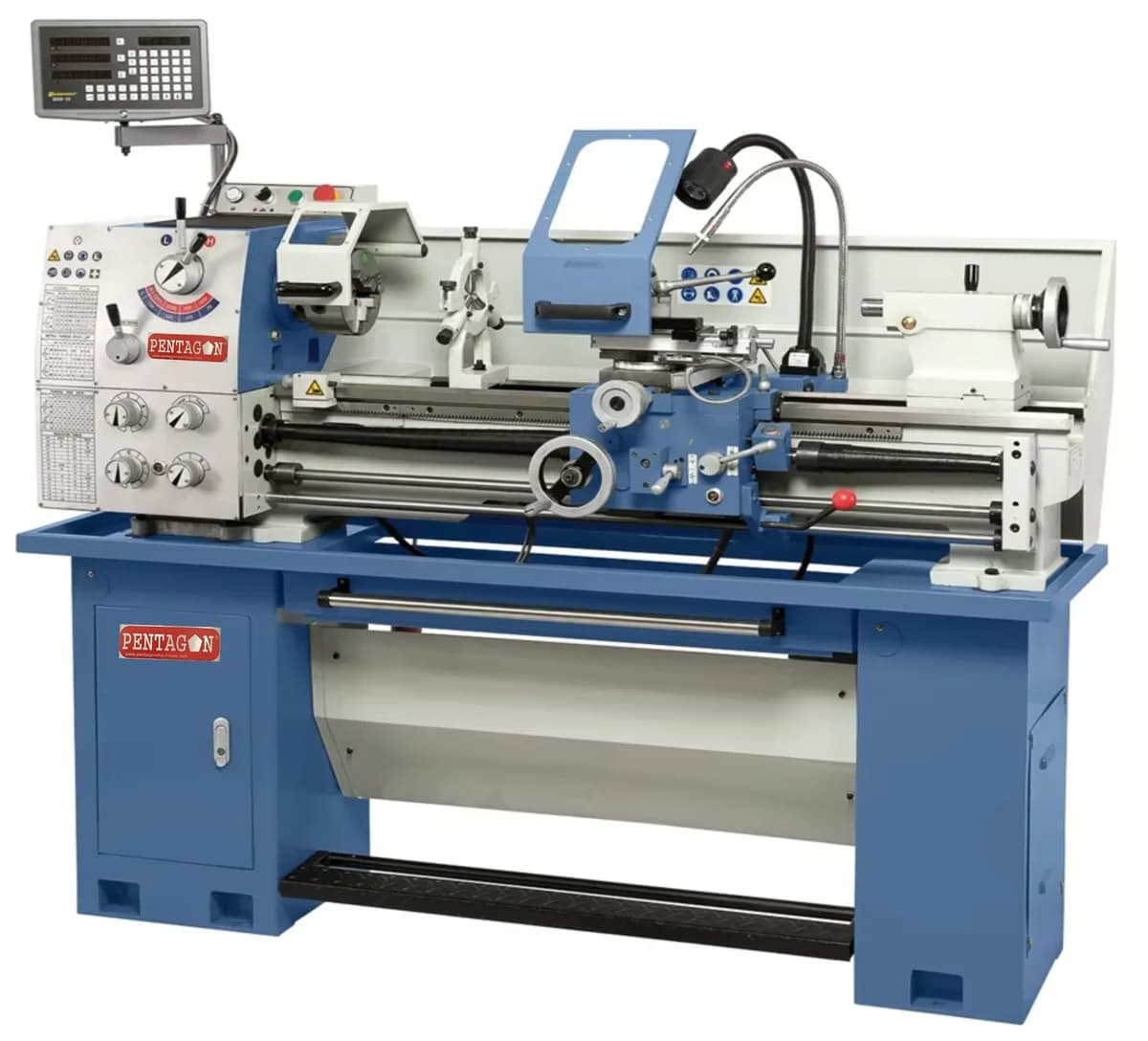

- DRO with Z and X linear scale and fitting(Rs
- Mounting pads
- Quick change type Tool post
- Grinding Attachment
Standard Accessories

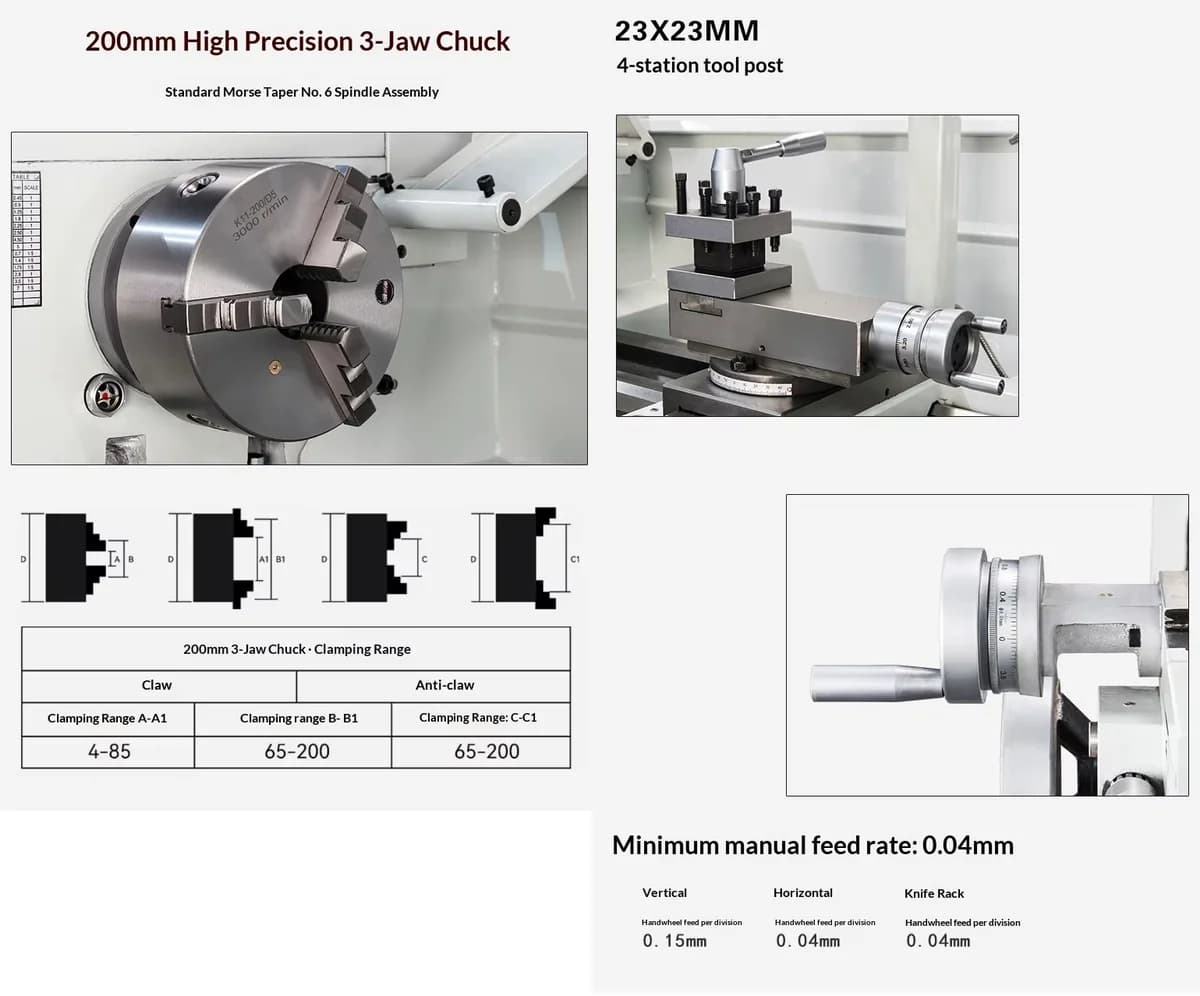

- 3-jaw chuck suitable size
- 4-jaw chuck suitable size
- centre sleeve
- steady rest
- Follower rest
- Face plate
- Coolant Pump
- Machine lamp
- Foot brake
- Operation Manual
- Test Certificate
More questions buyers ask
What is the Pentagon JY360Gx1000?
The Pentagon JY360Gx1000 is an all-geared, high-speed, high-precision lathe machine designed for industrial metalworking applications. It features a 1000mm distance between centers and a 360mm swing over the bed.
What are the main applications of this lathe machine?
This lathe is ideal for a variety of tasks including turning, facing, threading, and drilling of medium-length components in tool rooms, and general engineering workshops.
What is the spindle speed range of the JY360Gx1000?
The machine offers a versatile spindle speed range of 70 to 2000 RPM, adjustable in 8 stages, allowing for precise control over cutting operations on different materials.
What is the motor power of this lathe?
The Pentagon JY360Gx1000 is equipped with a 1.5 Kw (approximately 2 HP) main motor, providing ample power for most turning and machining tasks.
Does this machine support metric and imperial threading?
Yes, it supports a wide range of both metric (26 kinds, 0.4-7 M.P.) and imperial (34 kinds, 4-56 TPI) thread cutting.
What is the weight of the machine?
The machine weighs approximately 750 Kgs, which ensures high stability and rigidity, minimizing vibrations and improving machining accuracy.
What is the spindle bore size?
The spindle bore is 52 mm, which allows for feeding bar stock through the headstock for continuous operation.
What warranty is offered on this product?
The Pentagon JY360Gx1000 comes with a 1-year manufacturer warranty against manufacturing defects. Consumable parts are not covered.
Do you provide a GST invoice?
Yes, we provide a GST invoice for all purchases, which can be used to claim input tax credit.
Is delivery available across India?
Yes, we offer free and secure pan-India delivery for the Pentagon JY360Gx1000 lathe machine.
Who should choose the Pentagon JY360Gx1000 model?
The JY360Gx1000 model is ideal for workshops and small-scale industrial units that require a versatile, precise, and reliable lathe for medium-sized workpieces. Its all-geared design and wide speed range make it suitable for both production and tool room applications.
How does an all-geared lathe like the JY360Gx1000 compare to a belt-driven lathe?
An all-geared lathe like the JY360Gx1000 provides higher torque, especially at lower speeds, and requires less maintenance than a belt-driven lathe. Gear changes are also faster and more precise for setting spindle speeds.
Is the JY360Gx1000 suitable for heavy-duty continuous production?
While it is a robust and precise machine, the JY360Gx1000 is best classified as a medium-duty lathe. For continuous, heavy-duty mass production, a larger lathe with a more powerful motor and heavier construction might be more appropriate.
What is the advantage of a 1000mm distance between centers?
A 1000mm distance between centers allows the machine to handle longer workpieces, such as shafts and axles, making it more versatile than lathes with a shorter bed length.
