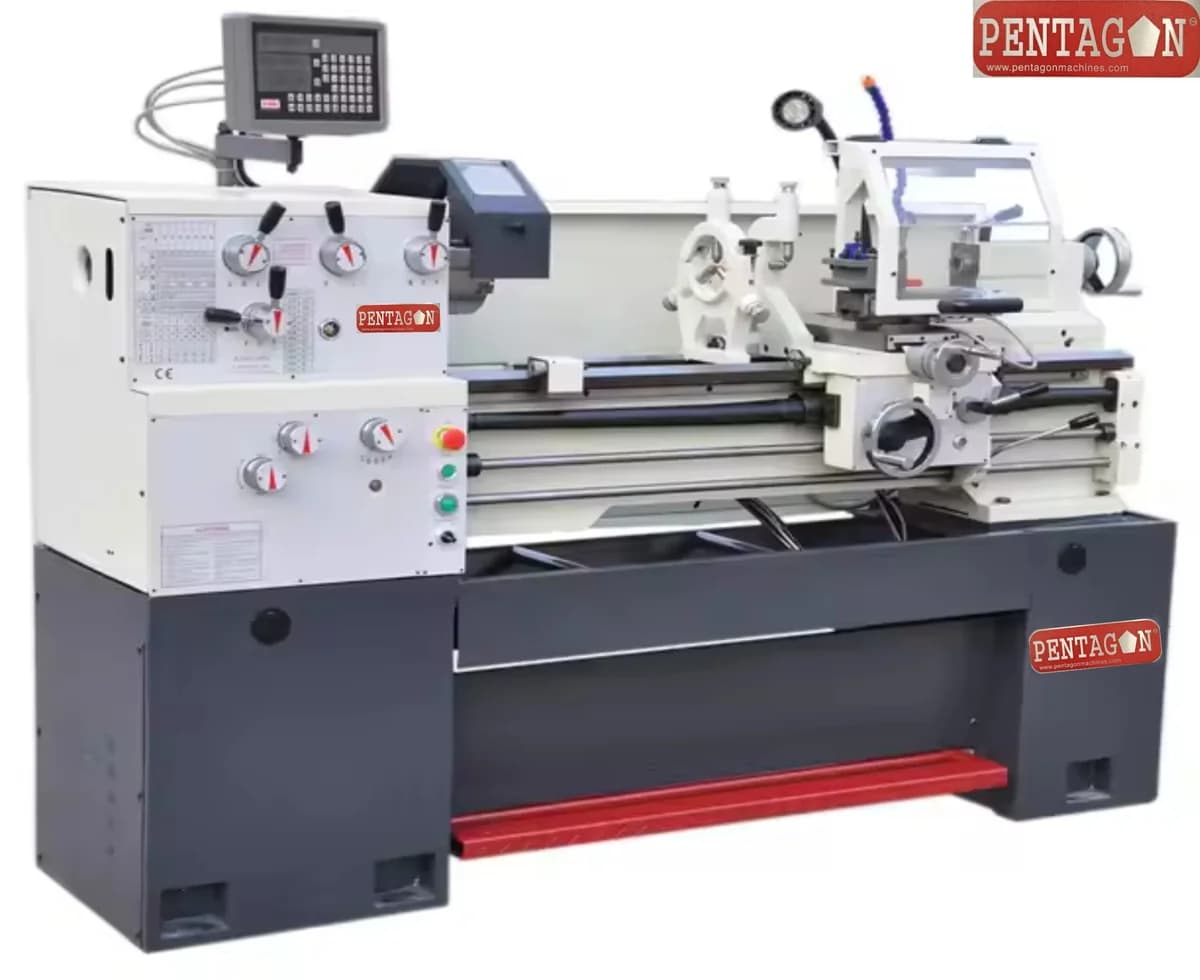

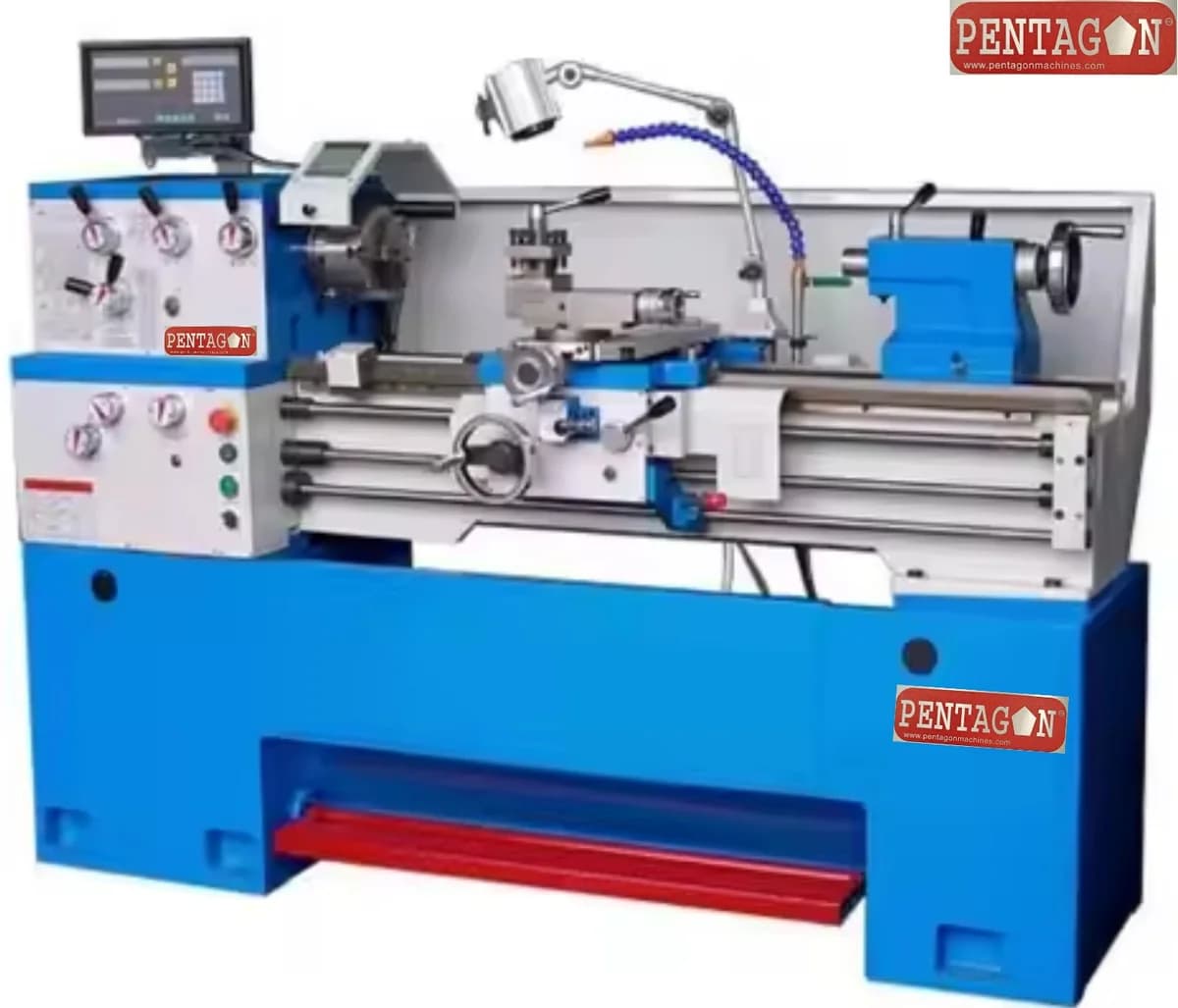

PENTAGON PAL6240x1000 Lathe Machine Price in India
This geared high speed lathe machine supports precision turning in industrial environments. It combines robust construction with versatile threading capabilities for metalworking needs. • 1000 mm center distance for long workpieces • 2.2 Kw motor delivers power for heavy cuts • 65-1800 rpm spindle speeds ensure efficiency • MT 6 spindle taper offers secure tool holding
See it in action
Specifications
For: PAL6240x1000- Model
- PAL6240x1000
- Max. swing over bed
- 400 mm
- Max. swing over cross slide
- 200 mm
- Max. swing in gap
- 520 mm
- Admit between centers
- 1000 mm
- Bed width
- 218 mm
- Spindle hole
- 52 mm
- Spindle nose
- D5
- Spindle taper
- MT 6
- Spindle speeds (Number)
- 65-1800 rpm/ (12 Nos)
- Metric threads range(Kinds)
- 0.4-7 mm (32)
- Inch threads range (Kinds)
- 4-60 TPI (35)
- Module threads range (Kind)
- 0.4-3 mm (22)
- Cross slide travel
- 120 mm
- Cross-section size of toolshank
- 20x20 mm
- Taper of tailstock sleeve
- MT 4
- Dia. of tailstock sleeve
- 50 mm
- Travel of tailstock sleeve
- 110 mm
- Main motor power
- 2.2 Kw
- Packing size (L*W*H)
- 1940x820x1545 mm
- Net Weight-Gross Weight
- 860/950 kg
Industrial Applications and Versatility
- Ideal for automotive component manufacturing.
- Suitable for general engineering and maintenance shops.
- Supports diverse materials and part geometries.
- Offers precision and versatility across industries.
- Reduces downtime with reliable power transmission.
- Optimized for high-precision production runs.
Tailstock and Logistics
- Travel of tailstock sleeve is 110 mm.
- Dia. of tailstock sleeve is 50 mm.
- Taper of tailstock sleeve is MT 4.
- Net Weight-Gross Weight is 860/950 kg.
- Packing size (L*W*H) is 1940x820x1545 mm.
- Designed for durability and consistent precision.
Robust Bed and Swing Capacity
- Admit between centers is 1000 mm for long workpieces.
- Max. swing over bed is 400 mm for large diameters.
- Max. swing in gap is 520 mm for extended reach.
- Max. swing over cross slide is 200 mm.
- Bed width is 218 mm ensuring machine stability.
- Engineered for high-performance turning operations.
Precision Threading Capabilities
- Cross slide travel is 120 mm for precise feed control.
- Cross-section size of toolshank is 20x20 mm.
- Module threads range 0.4–3 mm (22 kinds).
- Metric threads range 0.4–7 mm (32 kinds).
- Inch threads range 4–60 TPI (35 kinds).
- Enables versatile threading across various industries.
High-Speed Geared Performance
- The PAL6240x1000 model is an All Geared High Speed Lathe.
- Fully geared headstock eliminates the need for belt changes.
- Main motor power is 2.2 Kw for consistent power transmission.
- Spindle speeds (Number) are 65–1800 rpm (12 Nos).
- Spindle nose is D5 with a 52 mm spindle hole.
- Spindle taper is MT 6 for secure tool mounting.
Optional Accessories
- DRO with Z and X linear scale and fitting
- Quick change type suitable tool post
- 4 Jaw true chuck of suitable size
Standard Accessories
- 3-jaw chuck self centering chuck 200mm
- 4-jaw chuck Independent Type 250mm
- Center Sleeve
- Steady rest
- Follower rest
- Face plate
- Coolant Pump
- Machine lamp
- Foot brake
- Operation Manual
- Test Certification
- Tool box
More questions buyers ask
What is an all-geared high-speed lathe?
An all-geared high-speed lathe, like the PENTAGON PAL6240x1000, uses a gearbox to control the spindle speed, providing more torque and precision compared to belt-driven models. This makes it suitable for heavy-duty machining and a wide range of materials.
What are the main applications of the PENTAGON PAL6240x1000?
This lathe is ideal for precision turning, threading, and facing operations in general engineering workshops, tool rooms, and industrial production environments. Its robust construction makes it suitable for manufacturing automotive components, machine parts, and more.
What is the spindle speed range of this lathe?
The PENTAGON PAL6240x1000 offers a wide spindle speed range from 65 to 1800 RPM, across 12 steps, allowing for optimal cutting speeds for various materials and diameters.
What is the maximum swing over the bed?
The maximum swing over the bed is 400 mm, which allows for machining large diameter workpieces. The swing in the gap is 520 mm for even larger, irregular-shaped parts.
What kind of threads can this machine produce?
This model is highly versatile, capable of cutting Metric threads (0.4–7 mm), Imperial threads (4–60 TPI), and Module threads (0.4–3 mm).
What is the motor power of the PAL6240x1000?
It is equipped with a powerful 2.2 kW (approximately 3 HP) main motor, providing ample power for heavy cuts and demanding machining tasks.
Does this machine come with a warranty?
Yes, all PENTAGON machines sold through Gearo come with a standard manufacturer's warranty. Please contact our sales team for specific warranty details.
Do you provide delivery across India?
Yes, we offer pan-India delivery for the PENTAGON PAL6240x1000. We ensure safe and timely delivery to your workshop or factory premises.
Can I get a GST invoice for my purchase?
Absolutely. We provide a proper GST invoice for every purchase, allowing you to claim Input Tax Credit (ITC) as per government norms.
Who should choose the PENTAGON PAL6240x1000 model?
The PAL6240x1000 is perfect for workshops and industrial units that require a reliable, precise, and powerful conventional lathe for medium to heavy-duty jobs. Its 1000mm distance between centers makes it suitable for working on longer shafts and components.
How does an all-geared lathe compare to a belt-driven lathe?
All-geared lathes offer higher torque, more consistent power transmission, and easier speed changes compared to belt-driven lathes. They are better suited for heavy machining and materials that require lower RPMs with high torque.
What is the difference between this model and a CNC lathe?
This is a conventional (manual) lathe, where the operator controls the machine's movements. A CNC lathe is computer-controlled for automated, high-volume production. This model is better for custom jobs, tool room work, and applications where manual control is preferred.
Is this machine suitable for small workshops or only large industries?
While it has industrial-grade capabilities, its versatility and relatively compact footprint (compared to very large lathes) make it a valuable asset for both medium-sized workshops and large-scale industrial operations.
