CW-120 Series All Geared Heavy duty High Speed Lathe Machine — CW62120x2000
Designed for medium-large diameter workpieces, this geared lathe combines stability with 2000 mm center distance. It features an 800 mm swing over bed for specialized turning tasks. • 100 mm tailstock quill diameter provides support • 18 speed steps cover diverse machining needs • Camlock nose D1-11 ensures secure tool mounting Suitable for workshops requiring flexible turning solutions.

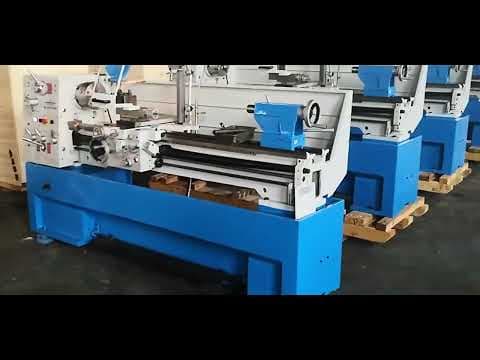

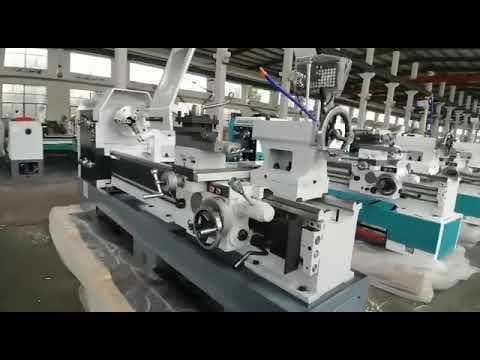

See it in action
Specifications
For: CW62120x2000- Model
- CW62120x2000
- Distance Between Centers
- 2000 mm
- Swing Over Bed
- 800 mm
- Swing Over Gap
- 1000 mm
- Swing Over Cross Slide
- 520 mm
- Bed Width
- 550 – 600 mm
- Spindle Bore
- 105 mm
- Spindle Nose
- D1-11 Camlock
- Spindle Taper
- MT6
- Spindle Speed Range
- 7.5 – 1000 RPM
- Number of Speeds
- 18 Steps
- Main Motor Power
- 11 – 15 kW
- Rapid Feed Motor
- 1.1 KW
- Voltage
- 415V / 50Hz
- Cross Slide Travel
- 450 – 500 mm
- Compound Slide Travel
- 200 mm
- Tailstock Quill Diameter
- 100 mm
- Tailstock Quill Trave
- 230 – 250 mm
- Taper of Tailstock Sleeve / Quill Taper
- MT6
- Metric Thread Range
- 1 – 240 mm
- Inch Thread Range
- 1 – 14 TPI
- Packing Dimensions
- 3700 × 1500 × 1900 mm
- Net Weight / Gross Weight
- 5500/ 6000 Kgs
Configurations
Click a row to switch| Variant | Price |
|---|---|
| CW62120x2000 | ₹31,45,000 |
| CW62120x3000 | ₹33,45,000 |
| CW62120x5000 | ₹35,55,000 |
| CW61120x2000 | ₹31,15,000 |
| CW61120x3000 | ₹32,96,000 |
| CW61120x5000 | ₹35,15,000 |
Common Buyer Questions
Q: What swing capacity does this series offer? A: Swing over best 1200 mm for this product family. Q: Are gap and non-gap versions available? A: Yes, With Gap and with out gap machines exist. Q: What is the bed width for stability? A: Bed width 600 mm ensures rigid support structure.
Operational Versatility
- Flexible configuration options for specific shop needs
- Efficient power transmission for varied material types
- Supports both metric and imperial threading standards
- Compact footprint relative to capacity for workshop fit
- Designed for ease of use by skilled machinists
Precision & Stability
- Rigid bed design maintains accuracy under heavy loads
- Suitable for precision work in industrial workshops
- Consistent surface finish on large diameter parts
- Reliable performance for continuous manufacturing runs
- Engineered for long workpiece handling capabilities
Heavy Duty Performance
- All geared transmission delivers consistent power output
- High Speed operation reduces machining cycle times
- Heavy duty construction supports demanding production loads
- Optimized for turning, facing, and threading applications
- Stable operation minimizes vibration during cutting
Series Overview & Configuration
- CW62120 and CW61120 Series All Geared Heavy duty High Speed Lathe Machine
- Available in With Gap and with out gap machines configurations
- Swing over best 1200 mm for large diameter workpieces
- Bed width 600 mm ensures robust structural stability
- Designed for versatile industrial machining requirements
Optional Accessories
- 1. Digital Readout System (DRO) – 2 or 3 Axis
- 2. Taper Turning Attachment
- 3. Quick-Change Tool Post (QCTP)
- 4. Large Face Plate (Special Size)
- 5. Boring Bar Support
- 6. Live Centers (MT6 / Heavy Duty)
- 7. Coolant Filtration System
- 8. Steady Rest – Extra Large Capacity
- 9. Follow Rest – Special Type
- 10. Chip Conveyor System
- 11. Tailstock with Motorized Travel
- 12. Variable Frequency Drive (VFD) for Spindle Speed Control
- 13. Safety Guarding / Enclosures
Standard Accessories
- 3-Jaw Self-Centering Chuck
- 4-Jaw Independent Chuck (Only in Gap bed type Machine)
- Face Plate
- Steady Rest (Fixed Steady)
- Follow Rest
- Dead Centers (MT5/MT6 as per model)
- 4-Way Tool Post (Heavy Duty)
- Tool Holder
- Coolant Pump with Tank & Fittings
- Chip Tray
- Thread Dial Indicator
- Change Gear Set for threading
- Motor Pulley / V-Belt Set
- Electrical Control Panel with Push Buttons
- Service Spanners & Tools
- Operation & Maintenance Manual
- Inspection / Test Certificate
More questions buyers ask
What is the PENTAGON CW-120 series lathe machine?
The PENTAGON CW-120 is a series of all-geared, heavy-duty, high-speed lathe machines designed for industrial-grade turning, facing, and threading operations. They are known for their robust construction and precision.
What is the swing over bed for this series?
The CW-120 series features a large 1200 mm swing over the bed, allowing for the machining of large diameter workpieces.
What is the spindle bore size?
These machines are equipped with a 105 mm spindle bore, accommodating large bars and pipes.
What is the motor power of the CW-120 series?
The main motor power ranges from 11 to 15 kW, providing ample power for heavy cutting and high material removal rates.
Is this a suitable machine for heavy-duty work?
Yes, with a rigid 600 mm bed width and powerful motor, the CW-120 series is specifically engineered for heavy-duty performance and stability in demanding production environments.
What is the spindle speed range?
The spindle speed is adjustable in 18 steps, ranging from 7.5 to 1000 RPM, offering versatility for different materials and cutting operations.
Can this lathe machine cut both metric and imperial threads?
Yes, it supports a wide range of threading, with a metric thread range of 1-240 mm and an inch thread range of 1-14 TPI.
What is the warranty and delivery policy?
All PENTAGON machines come with a standard manufacturer warranty. We provide pan-India delivery and issue a GST invoice for all purchases.
Who should choose the CW61120x2000 model?
The CW61120x2000 is ideal for workshops needing a heavy-duty lathe for workpieces up to 2000mm in length without the requirement for a gap bed. It is the most affordable model in the series, perfect for high-precision tasks on standard large-size components.
Who should choose the CW62120x2000 model?
The CW62120x2000 is designed for facilities that handle varied jobs, including those requiring a larger swing for flanges or non-standard shapes. Its gap bed design (1400mm swing over gap) and 2000mm center distance make it a versatile choice for job shops.
Who should choose the CW61120x3000 model?
Choose the CW61120x3000 for machining long, heavy shafts and components up to 3000mm. This no-gap model provides maximum rigidity and is suited for industries like oil & gas or heavy engineering that require precision over extended lengths.
Who should choose the CW62120x3000 model?
The CW62120x3000 offers the flexibility of a gap bed for large-diameter, short workpieces, combined with a 3000mm distance between centers for longer jobs. It's a great all-rounder for maintenance departments and heavy-duty job shops.
Who should choose the CW61120x5000 model?
This model is built for specialized applications involving very long workpieces up to 5000mm, such as large rollers or long shafts. The CW61120x5000 provides a stable, no-gap platform for precision turning at extreme lengths.
Who should choose the CW62120x5000 model?
The CW62120x5000 is the ultimate machine for versatility and capacity, featuring a 5000mm distance between centers and a gap bed. It is perfect for large-scale manufacturing and repair shops that handle a wide variety of workpiece sizes, from large flanges to very long shafts.
What is the main difference between the CW61 and CW62 models?
The primary difference is the bed design. CW62 models feature a 'gap bed', which allows a section of the bed to be removed to swing an extra-large diameter workpiece. CW61 models are 'straight bed' lathes, which do not have this feature but offer slightly more rigidity along the entire length.
How does the 'Distance Between Centers' affect my choice?
The 'Distance Between Centers' (e.g., 2000mm, 3000mm, 5000mm) determines the maximum length of the workpiece you can machine. You should choose a model with a length capacity that comfortably exceeds that of your typical jobs to ensure flexibility.
Why do models with similar dimensions have different prices?
Price differences arise from key features. The CW62 models with a gap bed are typically priced slightly higher than their CW61 straight-bed counterparts due to the more complex construction. As the length (Distance Between Centers) increases, the machine's overall size, weight, and material cost also increase, leading to a higher price.
