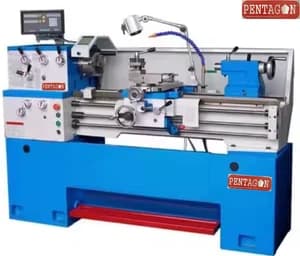

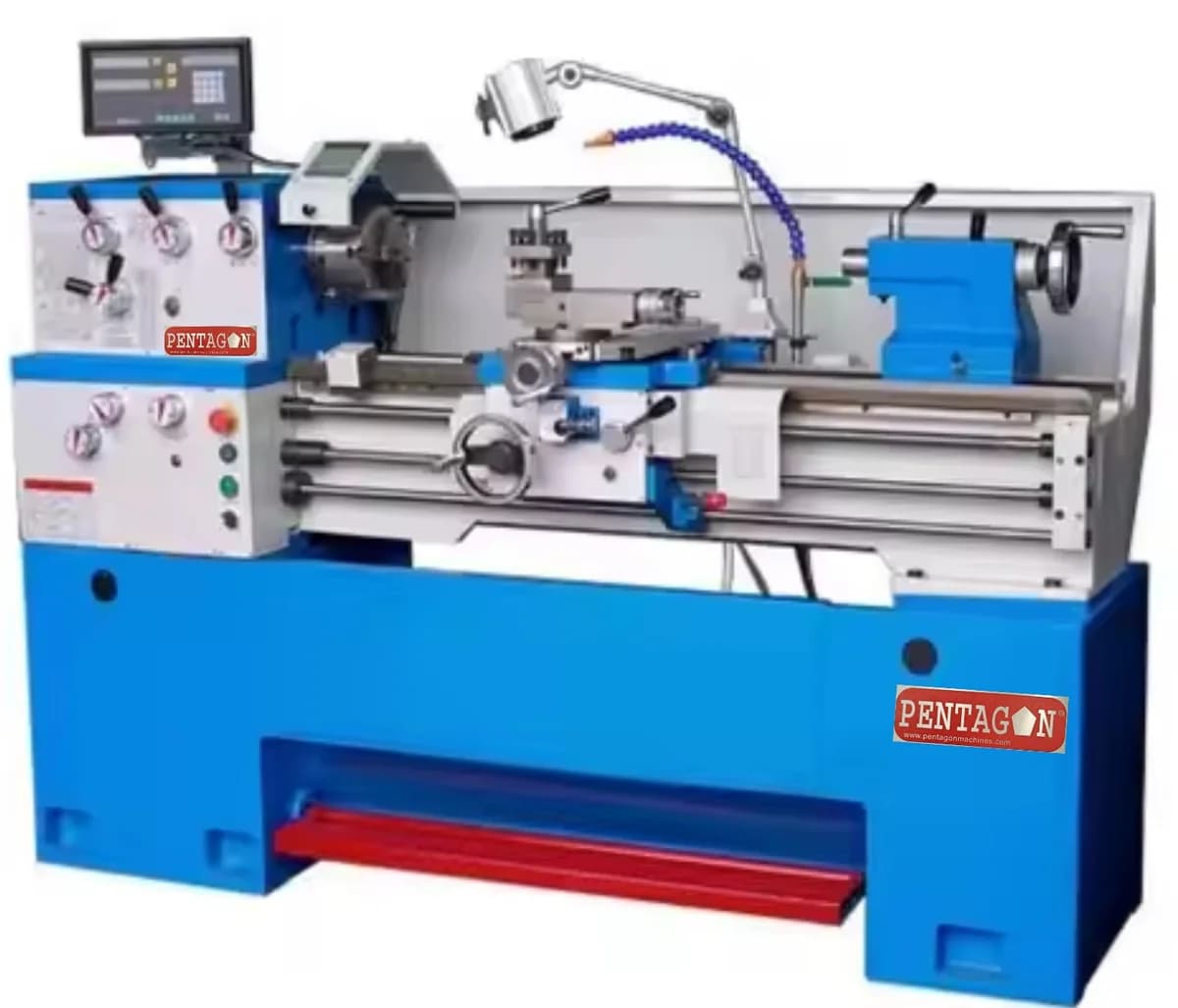

Pentagon C6266 Heavy Duty Lathe Machine Price in India — C6266Bx1500

The PENTAGON C6266 is a series of all-geared, high-speed, heavy-duty lathe machines designed for precision turning, threading, and machining in industrial workshop environments. It is known for its robust construction and reliability.

All models in the C6266 series are equipped with a powerful 7.5 KW (approximately 10 HP) main drive motor, ensuring consistent torque and performance even under heavy loads.

The machine has a maximum swing over bed of 660 mm, allowing it to handle large diameter workpieces.

The spindle bore diameter is 80 mm, which is suitable for a wide range of bar work.

Yes, the C6266 series is highly versatile and supports a comprehensive range of both metric (47 kinds, 0.2-14 mm) and inch (60 kinds, 2-112 T.P.I) threads.

The lathe features a wide bed width of 350 mm, which provides excellent stability and rigidity, minimizing vibrations and ensuring high accuracy.

Yes, the machine comes with a 120W coolant pump motor to ensure effective heat management during continuous operation.

For specific warranty information, please contact our sales team. All our machines come with a standard manufacturer's warranty against defects.

Absolutely. We provide a GST invoice for all purchases, allowing you to claim input tax credit for your business.

Yes, we offer pan-India delivery. We will ensure the machine is safely transported and delivered to your workshop or factory location.

The C6266Bx1500, with a 1500mm distance between centers, is the ideal choice for workshops that primarily handle small to medium-sized projects. It offers a balance of capability and a more compact footprint compared to the larger models.

The C6266Bx2000 is perfect for job shops and manufacturing units that require the flexibility to handle longer workpieces up to 2000mm. It is a versatile option for a wide variety of turning operations.

The C6266Bx3000 is designed for heavy engineering and large-scale industrial applications. If your work involves very long components, such as shafts or rollers, this model provides the maximum length capacity in the series.

The primary difference is the 'admit between centers' distance, which is 1500mm, 2000mm, and 3000mm respectively. This determines the maximum length of the workpiece that can be mounted on the machine. The overall length and weight of the machine also increase with the model number.

You should choose a model with an 'admit between centers' distance that is longer than the longest workpiece you typically machine. This ensures you have the capacity to handle all your required jobs without limitation.

Yes, the larger models (C6266Bx2000 and C6266Bx3000) are significantly longer and heavier. You must ensure your workshop has sufficient floor space and that your foundation can support the machine's weight. You may also need specialized equipment for unloading and positioning the lathe.
