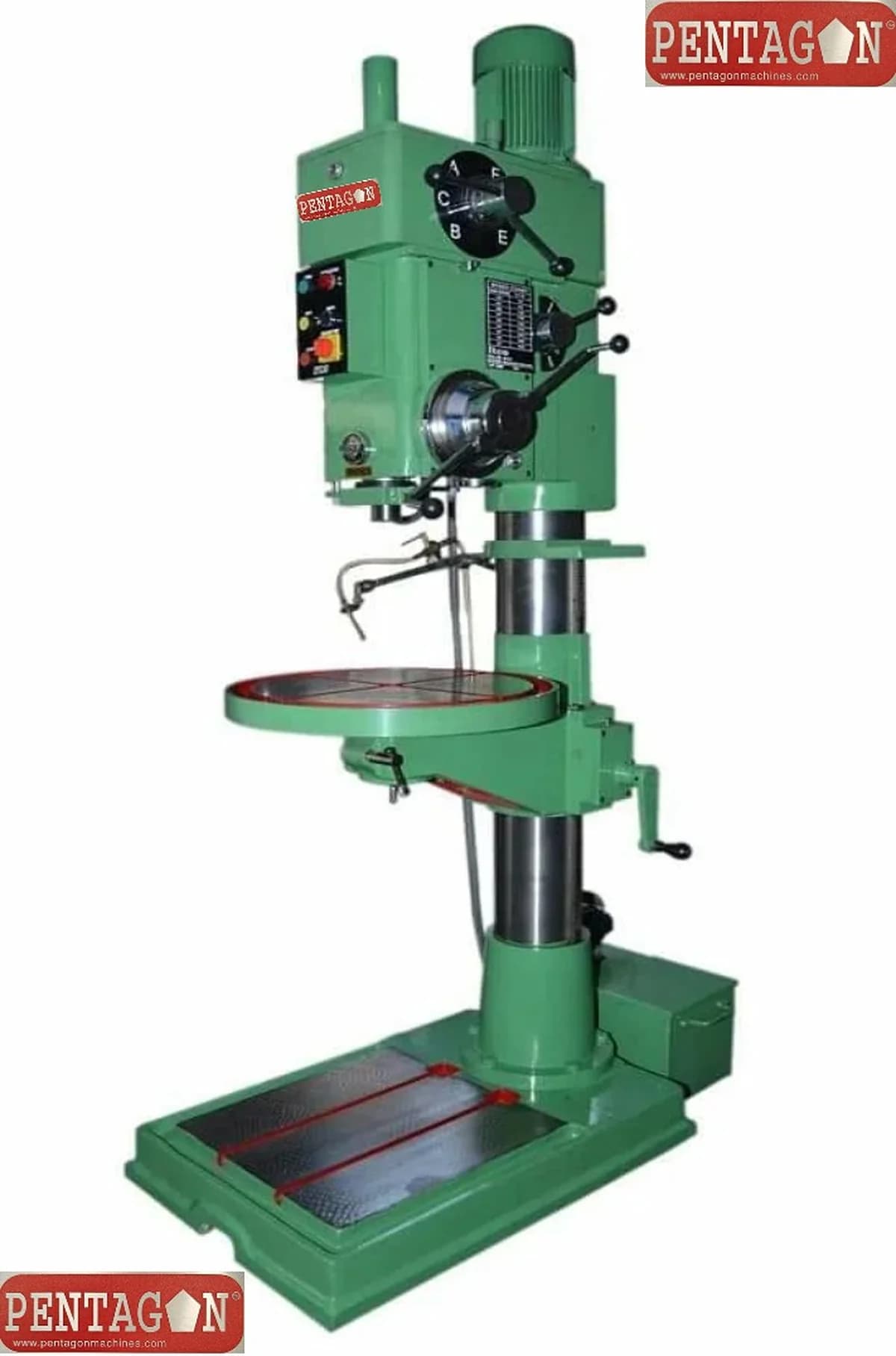

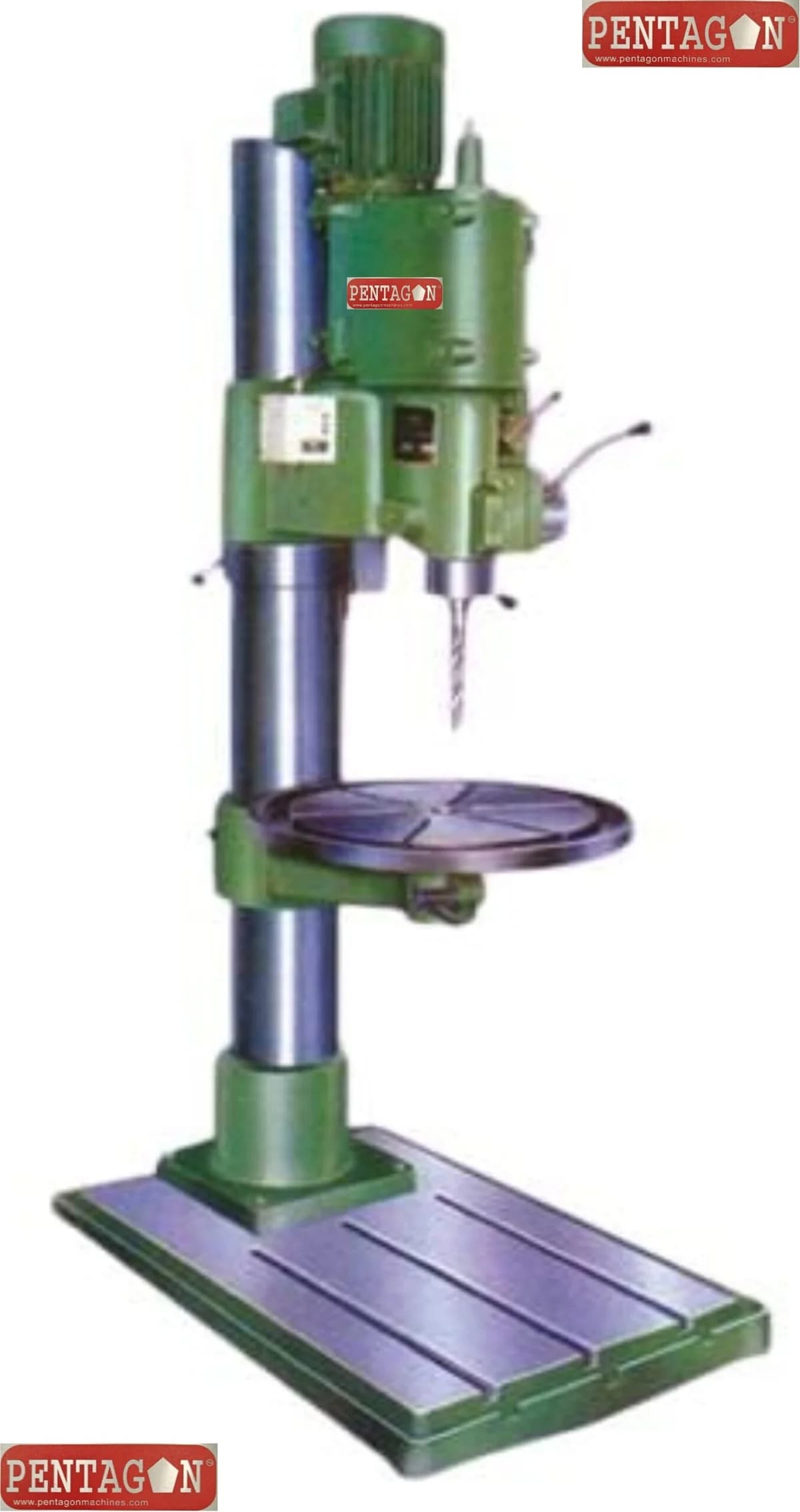

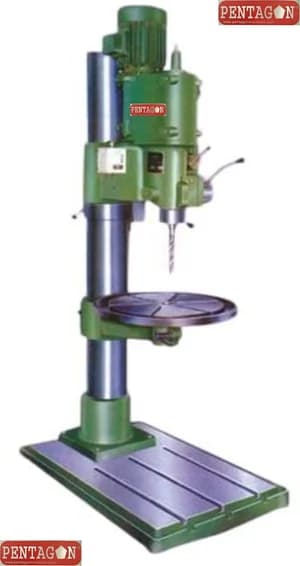

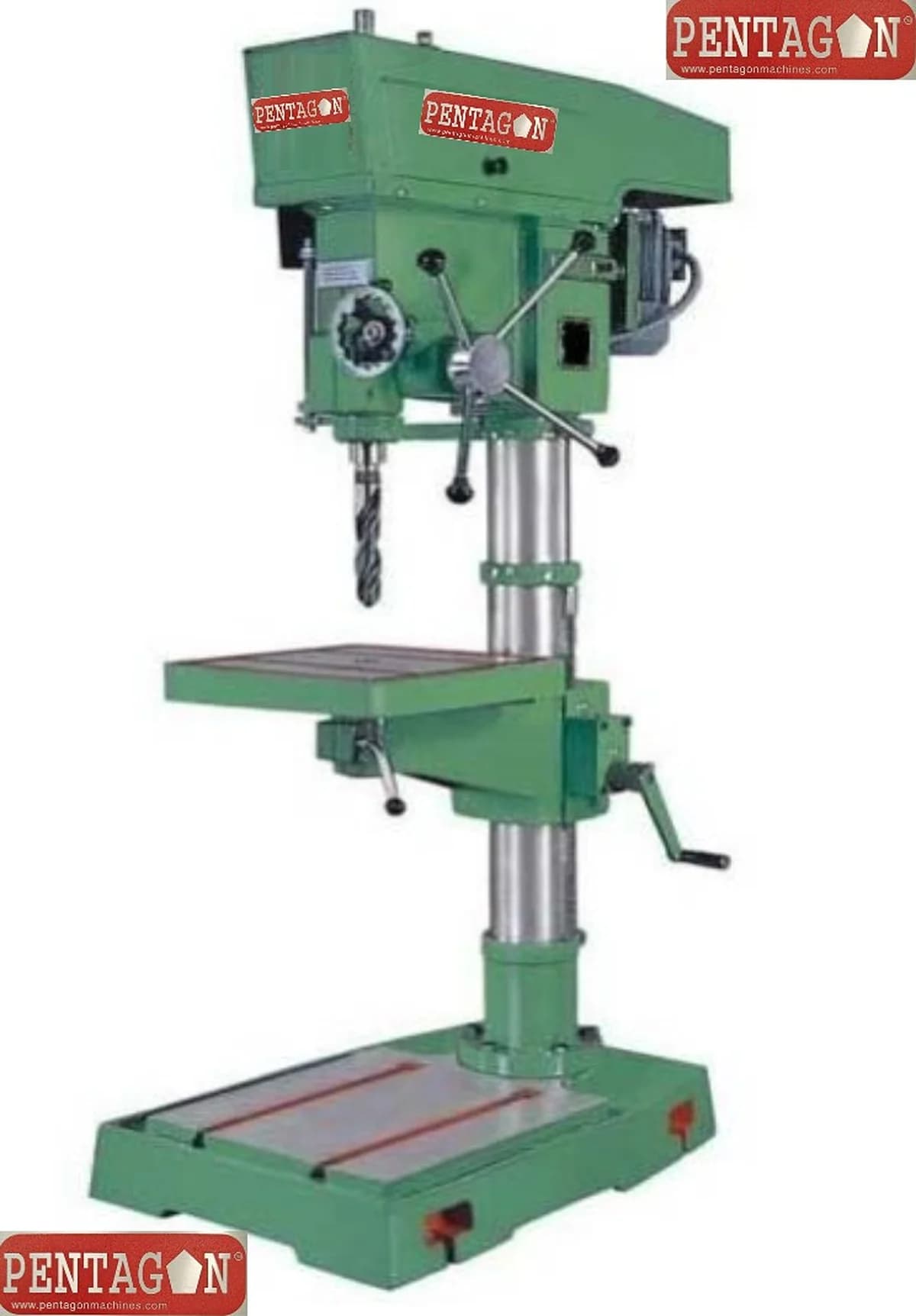

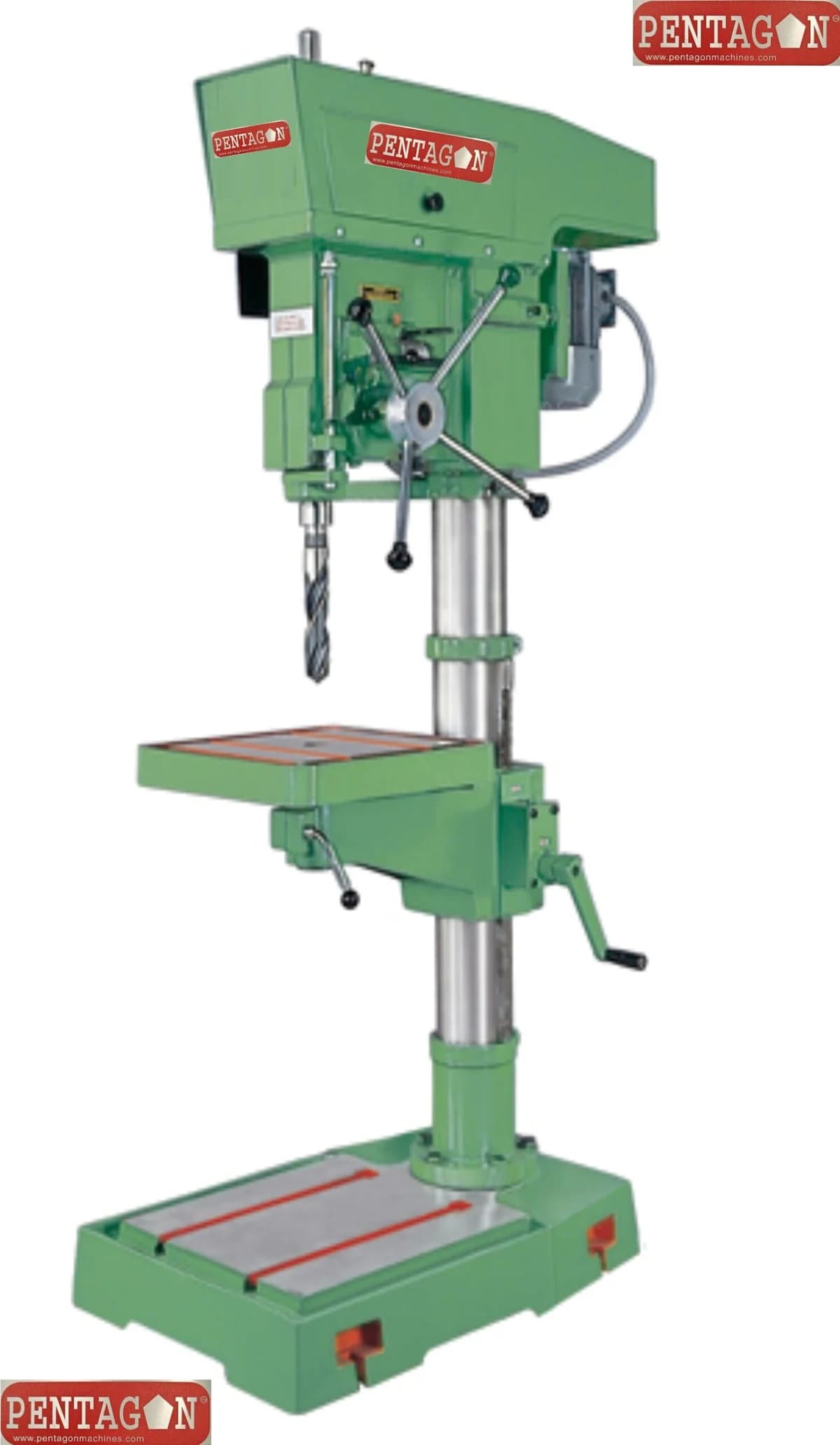

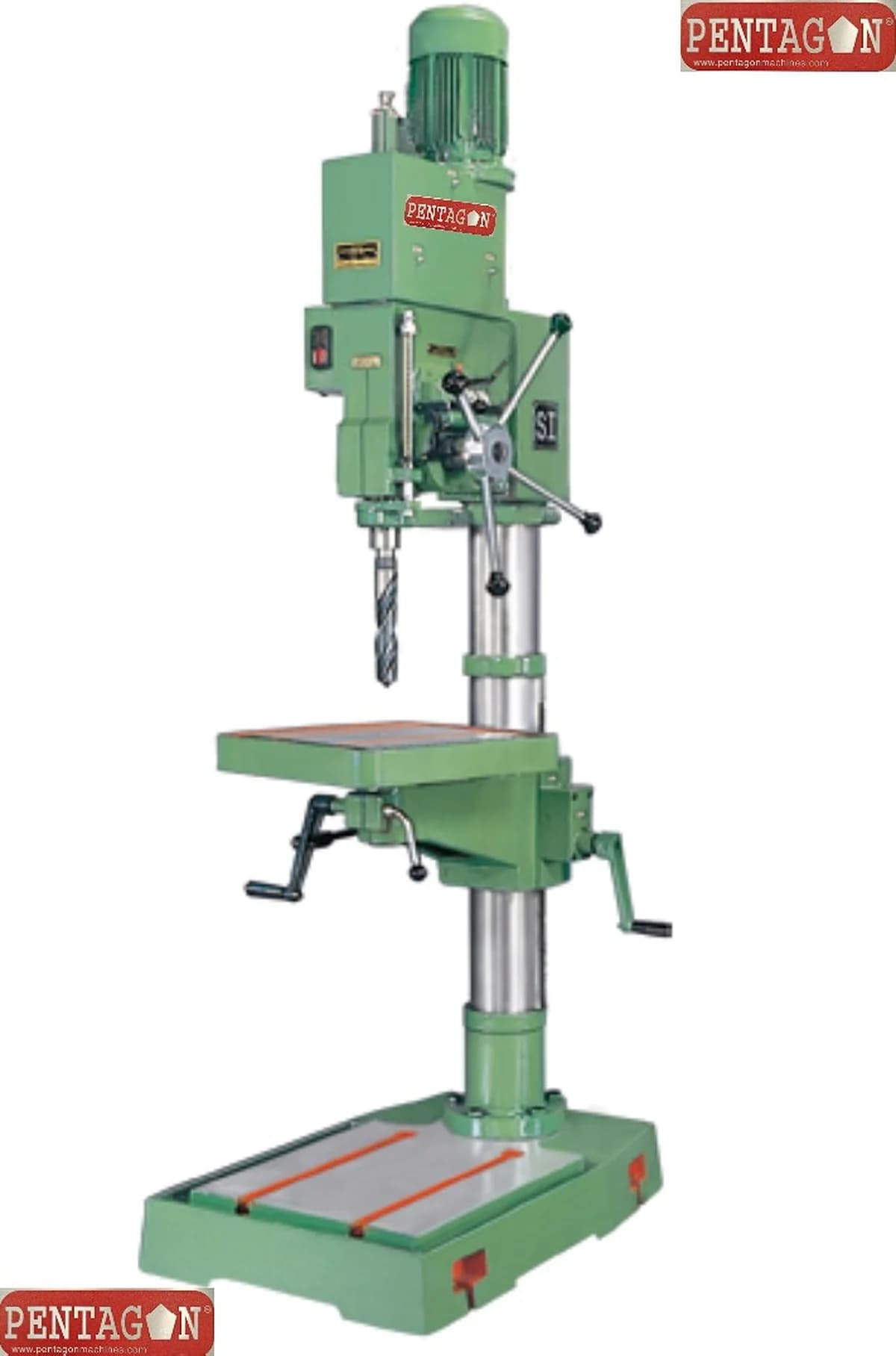

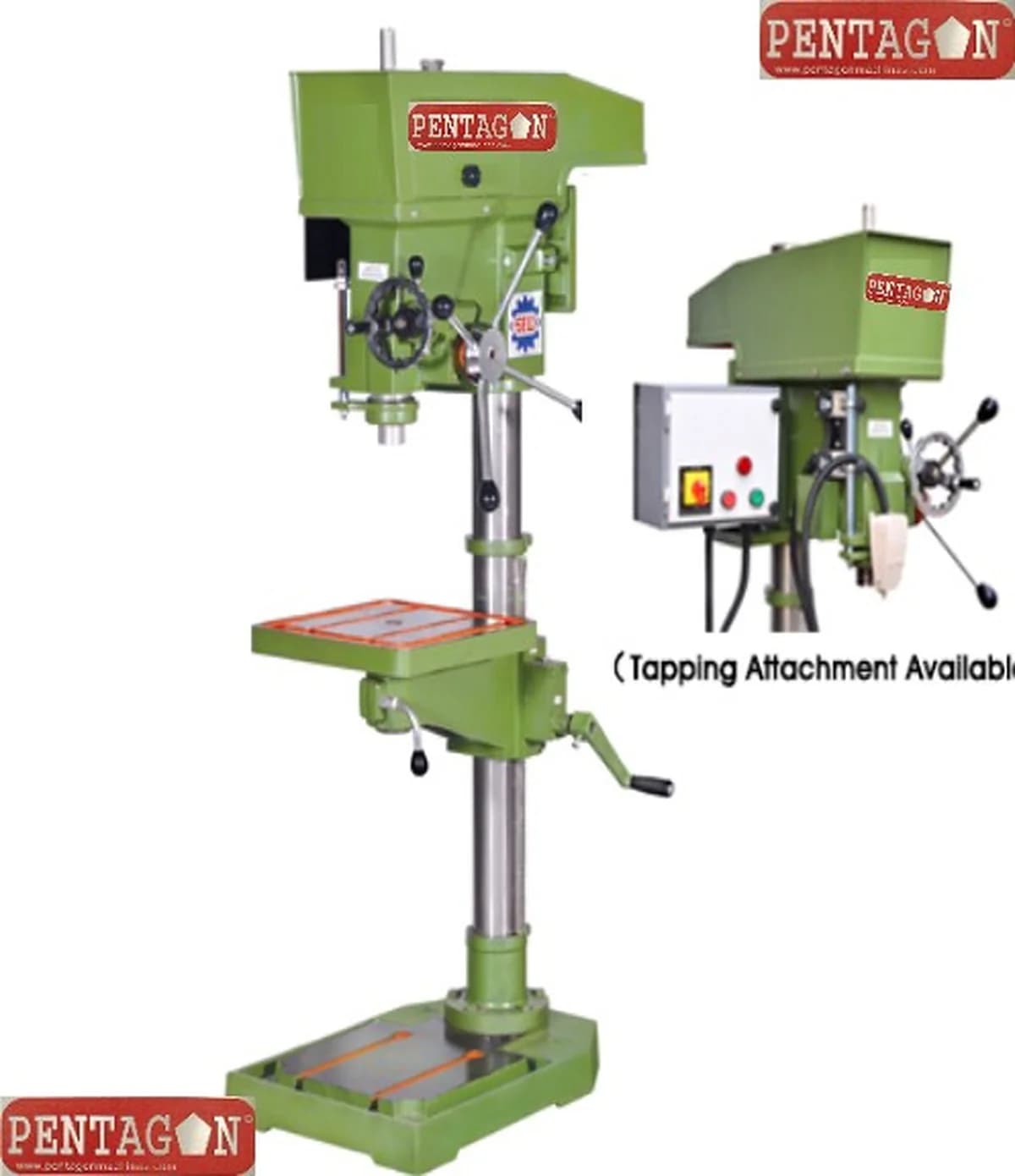

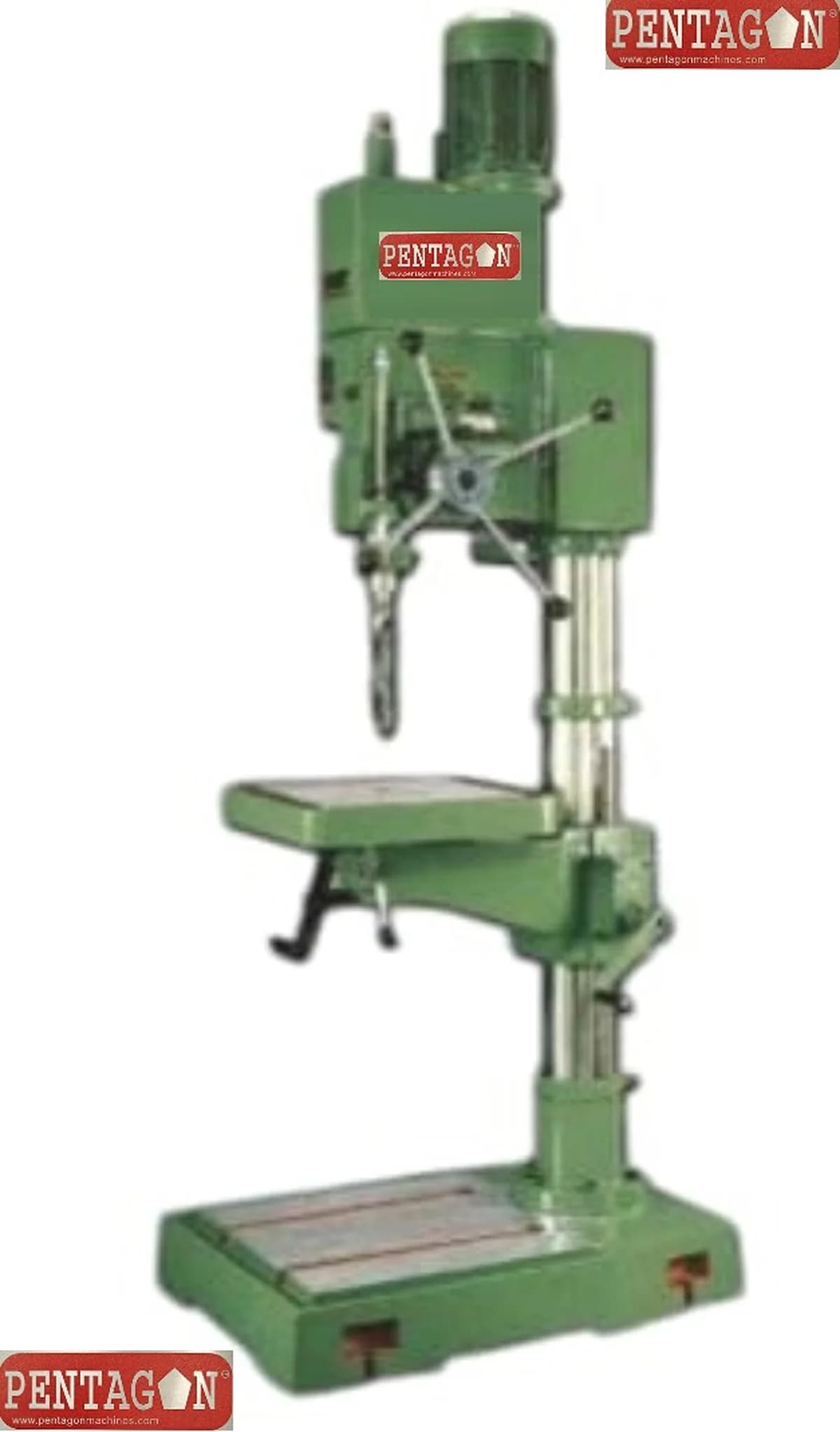

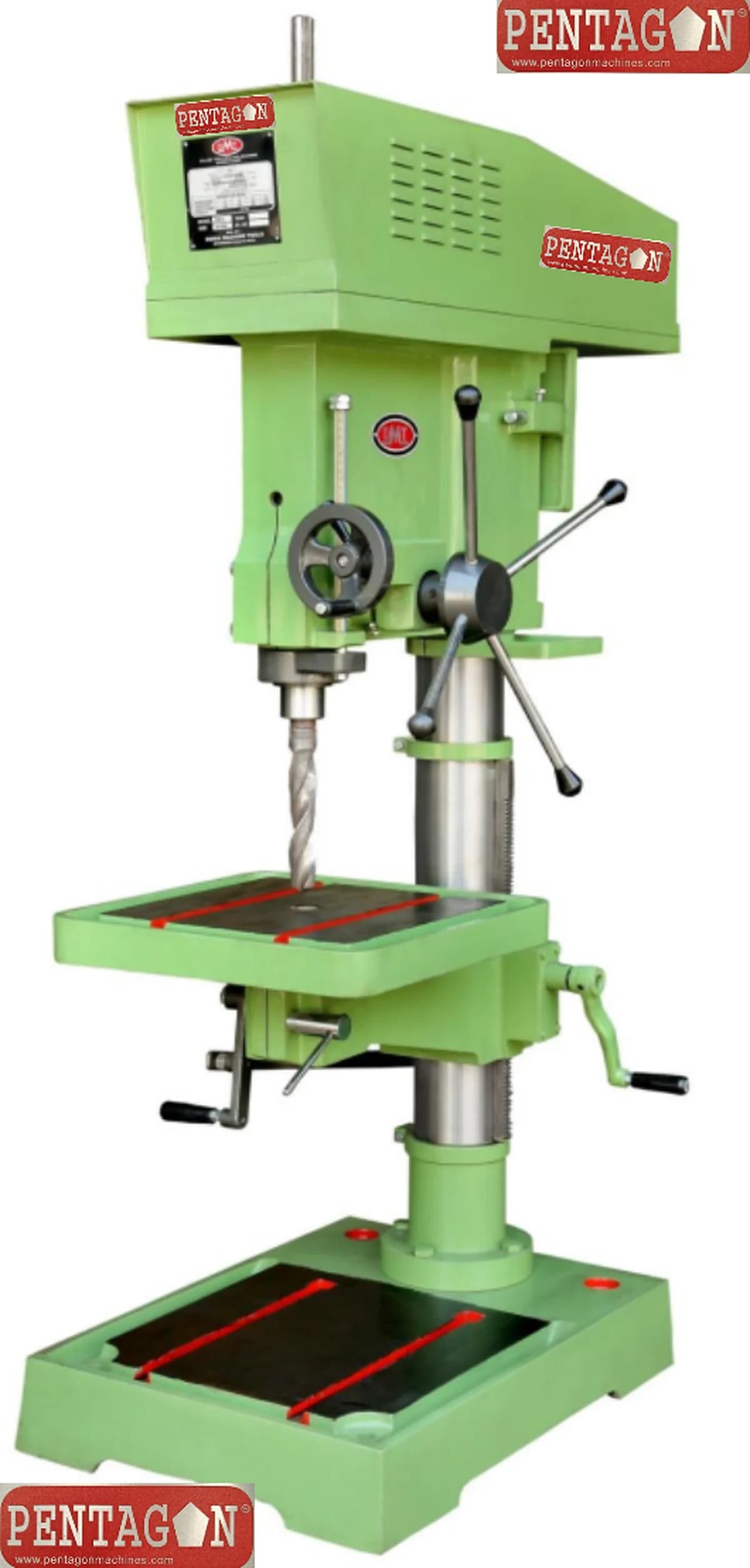

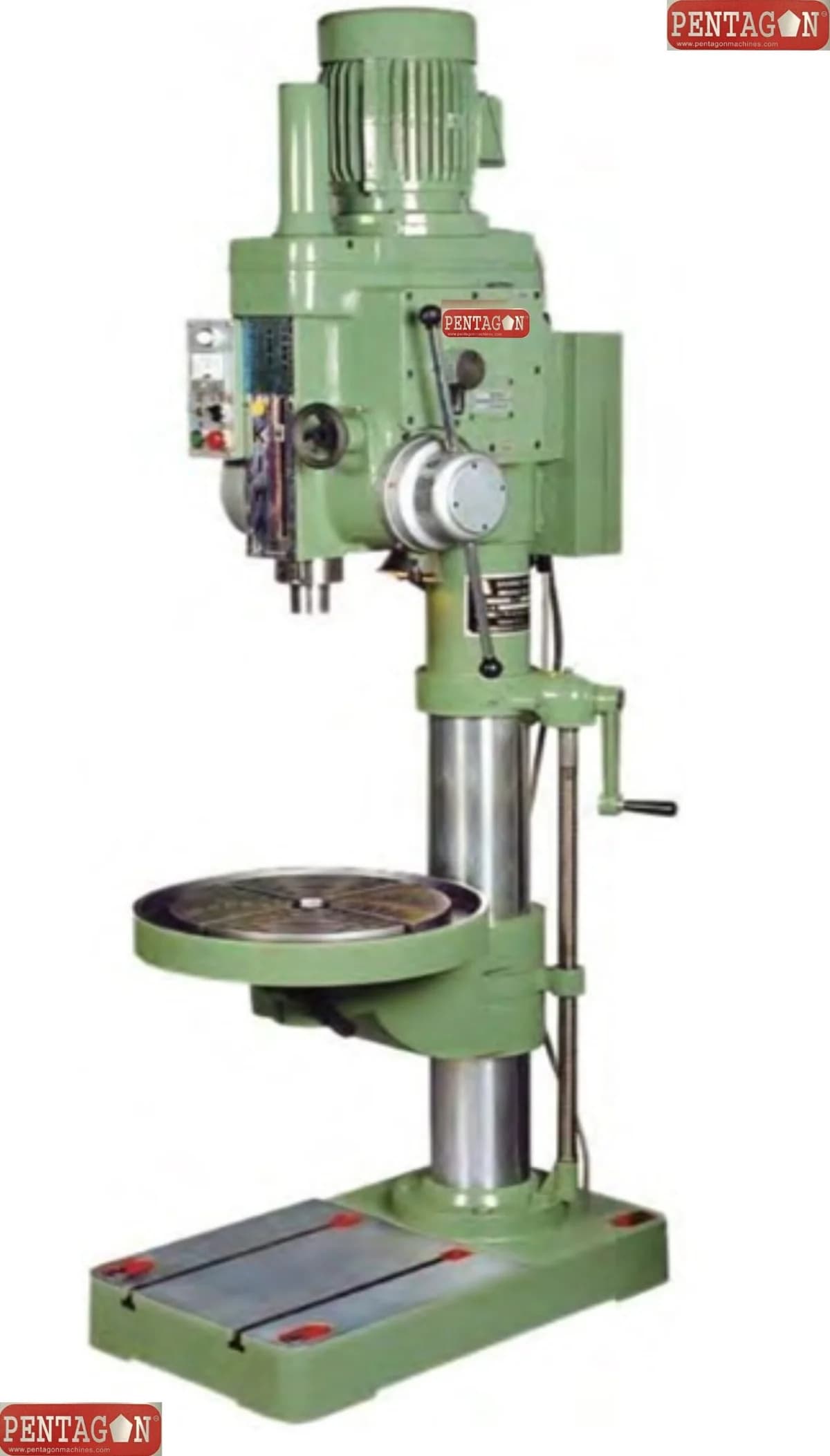

Geared Head heavy duty Pillar type Drilling Machine Model GHPD-40
This 40 mm capacity vertical pillar drill press is optimized for metalworking tasks requiring high stability. It features heavy-duty construction suitable for steel and alloy components. • 2 HP motor provides reliable power for continuous operation • 220 mm spindle travel accommodates deep hole drilling needs • MT-4 spindle nose ensures standard tool holder compatibility • 325 kg weight minimizes vibration during heavy cutting

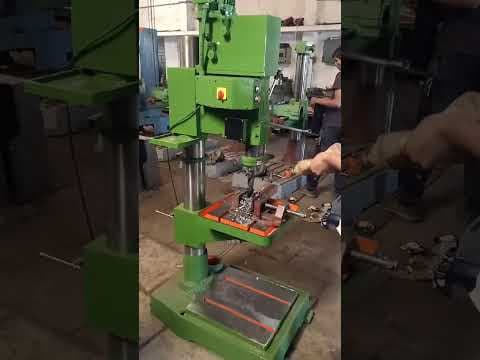

See it in action
Specifications
For: GHPD-40- Model
- GHPD-40
- Spindle Nose
- MT-4
- Drilling
- 40 mm
- Spindle Travel
- 220 mm
- Table Size
- 435 x 435 mm
- Overall Height with Guard
- 2130 mm
- Column Diameter
- 130 mm
- Range of Power Feed
- (2) 0.08 & 0.04
- No of Spindle Speed
- 8
- Range of Spindle Speed
- 90 / 1000 RPM
- Main Electrical Motor
- 2 speed: 2 HP
- Centre of Spindle to Column
- 305 mm
- Shipping Case (LxWxH)
- 925 X 650 X 2330 mm
- Base Size Machine Area
- 490 x 470 mm
- Weight
- 325 Kgs
Function:
1. High Drilling Capacity (40 mm in steel): Enables deep and large-diameter holes in hard metals, reducing the need for pre-drilling or step drilling operations.
2. All Geared Head: Transfers power more efficiently and consistently than belt-driven systems; ensures reliable performance in continuous use.
3. Rigid Pillar and Base Construction: Provides stability during drilling operations, minimizing vibration and ensuring higher precision and tool life.
4. Multiple Spindle Speeds & Feeds: Allows adjustment based on material type and hole size; essential for preventing tool wear and improving hole finish.
5. Automatic Feed Mechanism: Reduces operator fatigue and ensures consistent feed rates for uniform hole quality and reduced risk of tool breakage.
6. Extended Spindle Travel: Increases the machine's ability to handle deep-hole drilling without repositioning the workpiece.
7. Large Table & Column Distance: Accommodates larger components and fixtures, improving the machine’s flexibility across job types.
8. Coolant System (optional): Keeps drill bits cool, reduces friction and heat build-up, and extends tool life, especially during long operations.
9. Heavy Duty Design (up to 1200 kg): Withstands prolonged industrial use without distortion or accuracy loss, making it ideal for workshop and production line use.
10. Precision Control Panel & Safety Features: Enhances operator safety and allows precise control over speed and feed, reducing errors and increasing production quality.
Features:
1. High Drilling Capacity: Drills up to 40 mm in steel, suitable for robust industrial applications.
2. All Geared Drive System: Precision-engineered gear-driven transmission provides smooth, consistent power with minimal maintenance.
3. Sturdy Pillar and Base: Heavy-duty cast iron structure ensures stability, vibration resistance, and long-term durability.
4. Multi-Speed Spindle: Equipped with multiple spindle speed settings (e.g., 6 or 8 steps), enabling use across a wide range of materials and applications.
5. Automatic Feed Mechanism: Built-in auto-feed system enhances efficiency, ensures uniform hole depth, and reduces operator fatigue.
6. Wide Working Area: Large column-to-spindle and table-to-spindle distances allow for drilling of large or awkward-shaped components.
7. Spindle Travel & Taper: Extended spindle travel (approx. 200 mm) and MT-4 taper accommodate various drill bits and attachments for flexible operations.
8. Coolant System: Optional coolant pump helps reduce heat buildup and increases tool life during prolonged drilling tasks.
9. Precision Work Table: Heavy-duty work table with precision T-slots for secure clamping of workpieces.
10. Electric Panel & Safety Switches: Fitted with user-friendly electrical controls and safety limit switches for operator protection and smooth operation.
11. Low Maintenance Design: High-quality gears, bearings, and lubrication system ensure long service life and reduced maintenance down time.
Advantages:
1. High Drilling Capacity: Capable of drilling up to 40 mm in steel, making it ideal for heavy-duty operations in industrial environments.
2. All Geared Transmission: Equipped with an all-geared head for smooth and reliable power transmission, enabling consistent torque and speed under load.
3. Rigid & Durable Construction: Built with a sturdy pillar and heavy-duty base, ensuring minimal vibration and maximum precision during operation.
4. Multi-Speed & Feed Options: Offers multiple spindle speeds and feed rates, allowing versatility for different materials and drilling depths.
5. Automatic Feed Mechanism: Includes auto-feed functionality, improving operator efficiency and reducing manual effort.
6. Wide Working Range: Ample distance between spindle, column, and table allows handling of large and bulky components.
7. Easy Maintenance & Operation: Designed for user-friendly operation with easy access to control levers and safety switches.
8. Versatile Applications: Suitable for metal fabrication, automotive parts, tool rooms, shipbuilding, and industrial workshops.
9. Customizable Options: Compatible with optional accessories like, Machine vice, Coolant system, Coordinate milling table.
10. Enhanced Productivity & Precision: The geared system and rigid body combine to deliver high accuracy, reduced downtime, and better surface finish on drilled parts.
Description
All geared heavy duty Geared Drilling Machine Pillar type Model GHPD-40
The All Geared Heavy Duty Pillar Drilling Machine Model GHPD-40 is a robust and versatile industrial tool designed for precision drilling operations in workshops and tool rooms.
Applications:
Ideal for heavy-duty drilling tasks in steel, cast iron, and other metals, the GHPD-40 is suitable for:
1. Manufacturing workshops
2. Tool rooms
3. Automotive component production
4. Fabrication units
Standard Accessories:
- 1. Motor Pulley
- 2. Electrical Motor-2Hp 3 Phase
- 3. R/F Switch
- 4. V-Belt
Optional Accessories:
- 1. Key type drill chuck size 1-13 mm JT6 type(at actual)
- 2. Arbor MT4 -JT6(at actual)
More questions buyers ask
What is the maximum drilling capacity of the Pentagon GHPD-40?
The Pentagon GHPD-40 has a maximum drilling capacity of 40 mm in steel, making it suitable for heavy-duty applications.
What are the spindle speeds for this machine?
The machine offers 8 spindle speeds, ranging from 90 to 1000 RPM.
What is the spindle taper (Nose)?
The spindle nose is MT-4.
What motor power does the GHPD-40 use?
The GHPD-40 is equipped with a 2 HP, 2-speed main electrical motor.
Is this machine suitable for heavy-duty industrial use?
Yes, with its robust all-geared head, heavy-duty column, and 40mm drilling capacity, this machine is designed for industrial workshops.
What is the warranty on Pentagon drilling machines?
Pentagon machines typically come with a 1-year warranty against manufacturing defects. Please confirm at the time of purchase.
Do you provide a GST invoice?
Yes, we provide a GST invoice for all purchases, allowing you to claim input tax credit.
Can I get delivery anywhere in India?
Yes, we offer pan-India delivery for the Pentagon GHPD-40 drilling machine.
Who should choose the Pentagon GHPD-40 model?
The Pentagon GHPD-40 is ideal for industrial users, fabrication shops, and workshops that require a powerful and precise drilling machine for heavy-duty tasks on materials like steel and cast iron.
How does a geared head drill compare to a belt-driven one?
A geared head drill like the GHPD-40 provides more consistent torque and requires less maintenance than a belt-driven system, which can experience belt slip and wear.
What is the advantage of a pillar-type drilling machine?
Pillar-type drilling machines offer excellent stability and rigidity due to the heavy column and base, ensuring high precision and accuracy during drilling operations.
